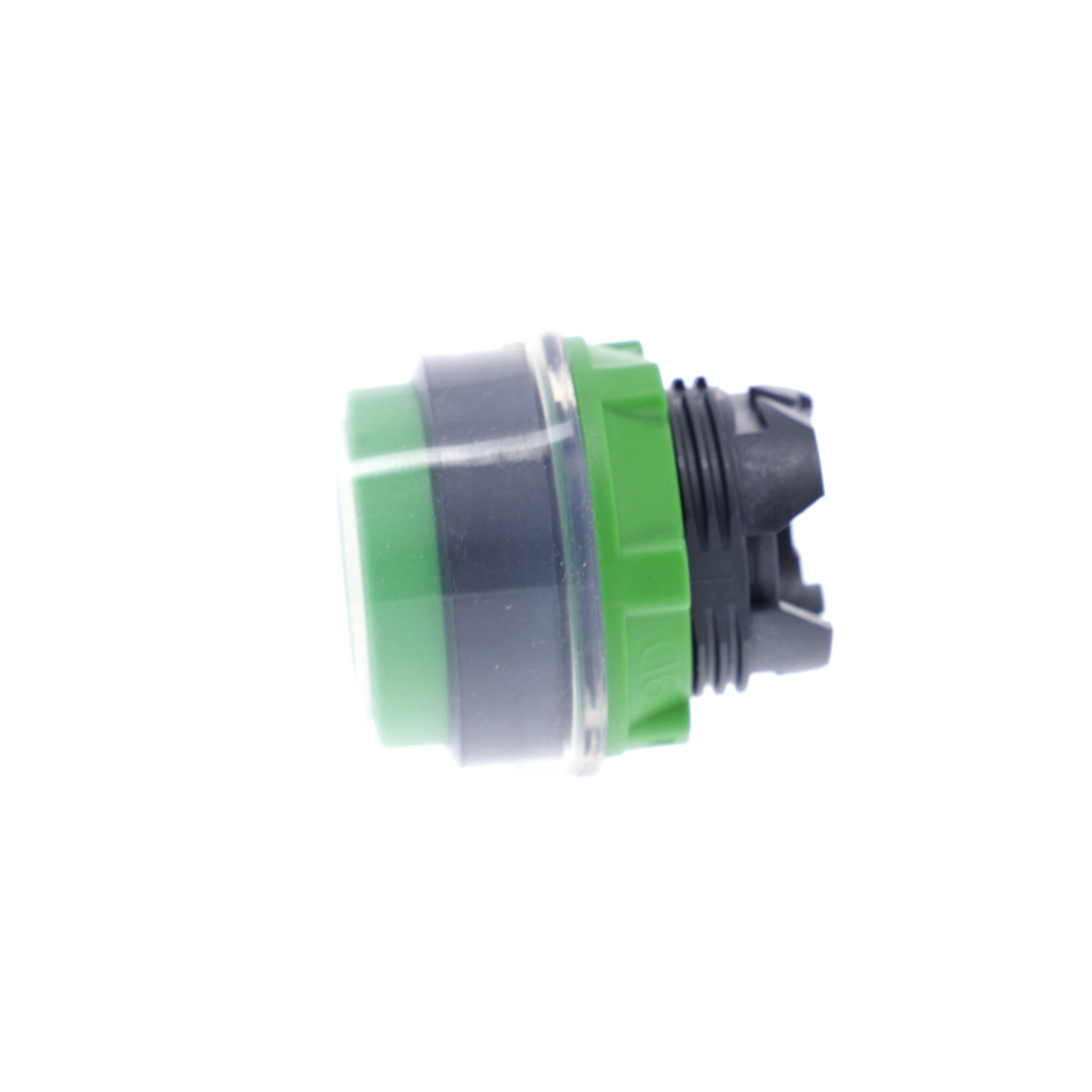

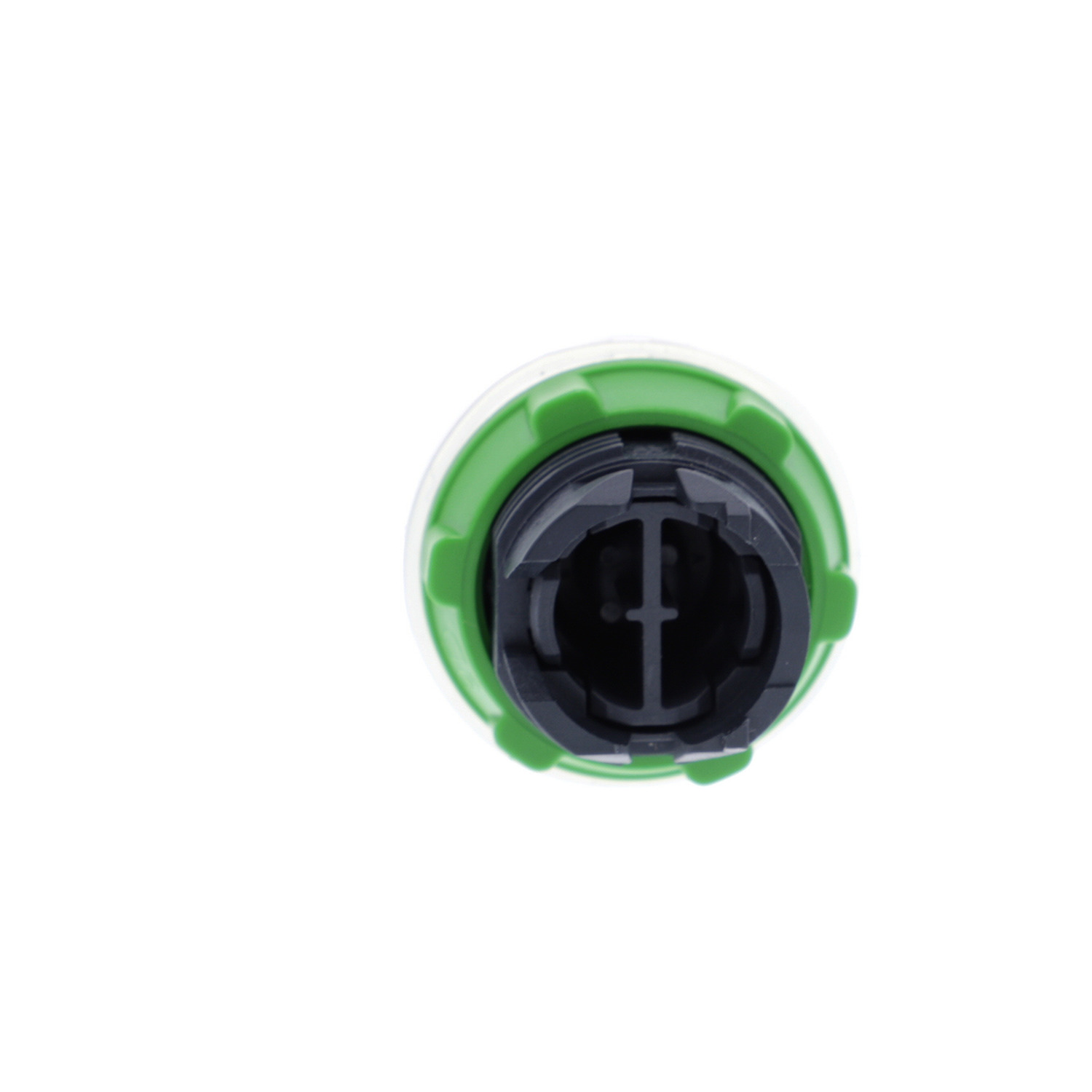

Head for non illuminated push button, Harmony XB5, plastic, projecting, green, 22mm, spring return, booted, unmarked
ZB5AP3
| Range of Product | Harmony XB5 |
|---|---|
| Product or Component Type | Head for non-illuminated push-button |
| Device short name | ZB5 |
| Product Compatibility | Not compatible with legend holder |
| Bezel material | Dark grey plastic |
| Mounting diameter | 0.9 in (22 mm) |
| Head type | Standard |
| Sale per indivisible quantity | 1 |
| Shape of signaling unit head | Round |
| Type of operator | spring return |
| Operator profile | Green projecting, unmarked |
| Operator additional information | Clear boot |
| CAD overall width | 1.2 in (30 mm) |
|---|---|
| CAD overall height | 1.2 in (30 mm) |
| CAD overall depth | 1.4 in (35 mm) |
| Net Weight | 0.031 lb(US) (0.014 kg) |
| Mechanical durability | 10000000 cycles |
| Station name | XALD 1…5 cut-outs XALK 2…5 cut-outs |
| Electrical composition code | C1 9 single front mounting C2 9 single and double front mounting C11 3 single front mounting C15 1 single front mounting SF1 3 single front mounting SR1 3 single rear mounting |
| device presentation | Basic element |
| protective treatment | TH |
|---|---|
| Ambient Air Temperature for Storage | -40.0000000000…158.0000000000 °F (-40…70 °C) |
| Ambient Air Temperature for Operation | -40.0000000000…158.0000000000 °F (-40…70 °C) |
| Overvoltage category | Class II IEC 60536 |
| IP degree of protection | IP66 IEC 60529 IP67 IEC 60529 IP69 IEC 60529 IP69K ISO 20653 |
| NEMA degree of protection | NEMA 13 NEMA 4X |
| Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131.0000000000 °F (55 °C) 0.1 m |
| IK degree of protection | IK03 conforming to IEC 50102 |
| Standards | JIS C8201-5-1 CSA C22.2 No 14 IEC 60947-1 IEC 60947-5-4 IEC 60947-5-1 UL 508 JIS C8201-1 |
| Product Certifications | CSA LROS (Lloyds register of shipping) DNV UL Listed GL BV |
| Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 |
| Category | US10CS222467 |
|---|---|
| Discount Schedule | 0CS2 |
| GTIN | 3389110906653 |
| Returnability | Yes |
| Country of origin | US |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 1.732 in (4.400 cm) |
| Package 1 Width | 1.339 in (3.400 cm) |
| Package 1 Length | 2.047 in (5.200 cm) |
| Package 1 Weight | 0.723 oz (20.500 g) |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 300 |
| Package 2 Height | 11.811 in (30.000 cm) |
| Package 2 Width | 11.811 in (30.000 cm) |
| Package 2 Length | 15.748 in (40.000 cm) |
| Package 2 Weight | 14.630 lb(US) (6.636 kg) |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 2400 |
| Package 3 Height | 29.528 in (75.000 cm) |
| Package 3 Width | 23.622 in (60.000 cm) |
| Package 3 Length | 31.496 in (80.000 cm) |
| Package 3 Weight | 142.428 lb(US) (64.604 kg) |
| Warranty | 18 months |
|---|
