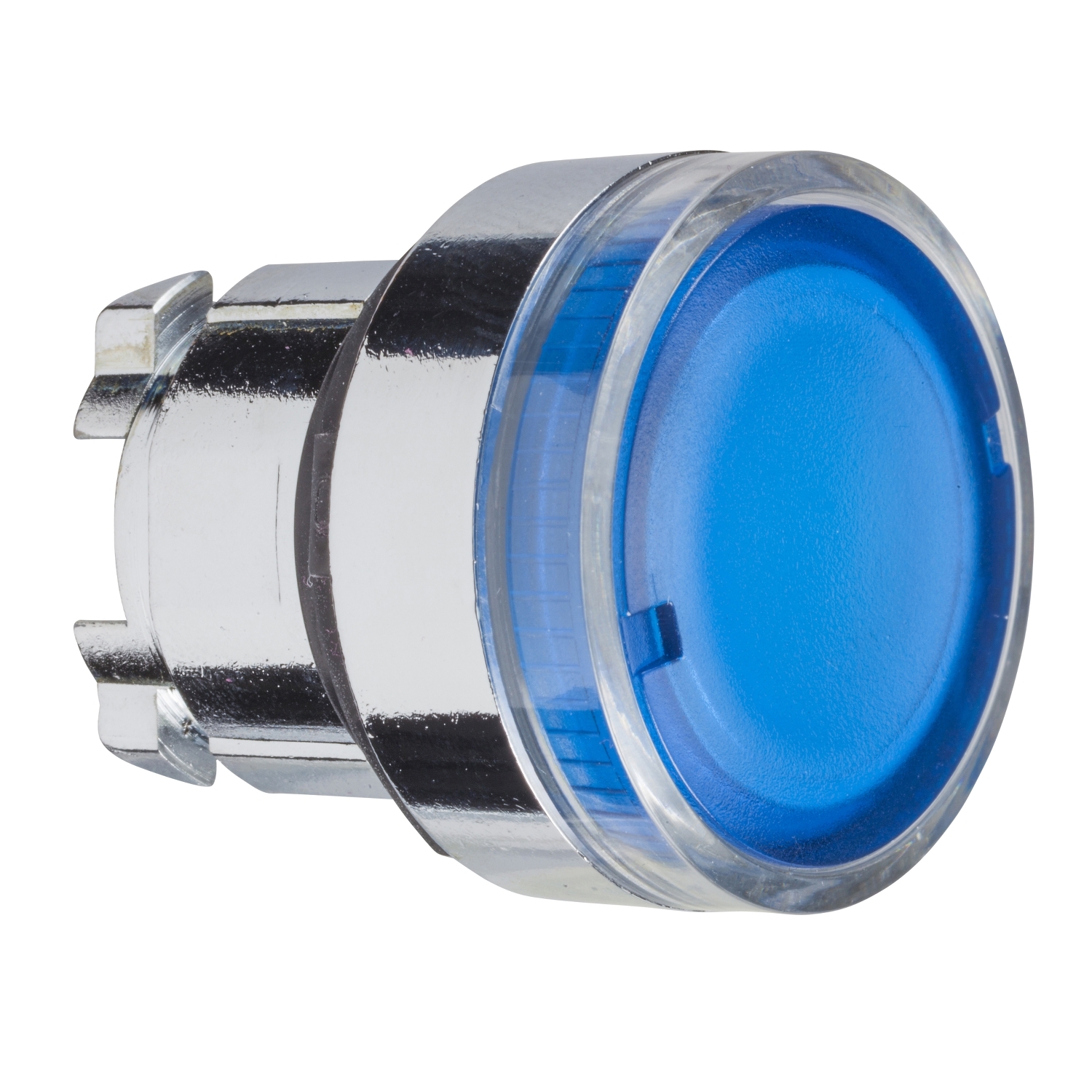

ZB4BW36, Head for illuminated push button, Harmony XB4, metal, flush, blue, 22mm, spring return, plain lens for BA9s bulb

MXN $621.00 - (IVA Incluido) + Envío

220 disponibles

This Harmony XB4, plain lens illuminated flush blue button head operates with a spring return / impulse mechanism. This illuminated button head for BA9s Integral LED provides a versatile interface for controlling your machines. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to illuminated, clear color and by touch due to flush element, minimizing errors in machine control. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product. It provides high brightness for easy identification of function and operation mode, even in brightly lit environments.

Buy it now
Brands:
SKU: ZB4BW36

Head for illuminated push button, Harmony XB4, metal, flush, blue, 22mm, spring return, plain lens for BA9s bulb

ZB4BW36

Main
Range of Product Harmony XB4
Product or Component Type Head for illuminated push-button
Device short name ZB4
Product Compatibility BA 9s
Bezel material Chromium plated metal
Head type Standard
Mounting diameter 0.9 in (22.5 mm)
Sale per indivisible quantity 1
Shape of signaling unit head Round
Type of operator spring return
Operator profile Blue flush, unmarked
Operator additional information With plain lens
Cap/operator or lens colour Blue
Complementary
CAD overall width 1.1 in (29 mm)
CAD overall height 1.1 in (29 mm)
CAD overall depth 1.3 in (32 mm)
Net Weight 0.060 lb(US) (0.027 kg)
Resistance to high pressure washer 1015.3 psi (7000000 Pa) 131.0000000000 °F (55 °C) 0.1 m
Mechanical durability 10000000 cycles
Electrical composition code M7 6 single front mounting BA 9s
M8 6 single and double front mounting BA 9s
M9 2 single front mounting BA 9s and transformer
device presentation Basic sub-assemblies
Environment
protective treatment TH
Ambient Air Temperature for Storage -40.0000000000…158.0000000000 °F (-40…70 °C)
Ambient Air Temperature for Operation -40.0000000000…131.0000000000 °F (-40…55 °C)
Overvoltage category Class I IEC 60536
IP degree of protection IP66 IEC 60529
IP67
IP69
IP69K
NEMA degree of protection NEMA 13
NEMA 4X
IK degree of protection IK06 conforming to IEC 62262
Standards IEC 60947-1
JIS C8201-5-1
IEC 60947-5-1
CSA C22.2 No 14
UL 508
IEC 60947-5-4
IEC 60947-5-5
JIS C8201-1
Product Certifications DNV
GL
BV
LROS (Lloyds register of shipping)
CSA
UL Listed
Vibration resistance 5 gn 2…500 Hz)IEC 60068-2-6
Shock resistance 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27
50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Ordering and shipping details
Category US10CS222468
Discount Schedule 0CS2
GTIN 3389110889734
Returnability Yes
Country of origin CZ
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 1.8 in (4.5 cm)
Package 1 Width 1.3 in (3.4 cm)
Package 1 Length 2.1 in (5.4 cm)
Package 1 Weight 0.9 oz (26.0 g)
Unit Type of Package 2 S01
Number of Units in Package 2 50
Package 2 Height 5.9 in (15.0 cm)
Package 2 Width 5.9 in (15.0 cm)
Package 2 Length 15.7 in (40.0 cm)
Package 2 Weight 3.366 lb(US) (1.527 kg)
Contractual warranty
Warranty 18 months
Peso 0.026 kg
Dimensiones 3.4 × 5.4 × 4.5 cm
Product Datasheet
Instruction Sheet
Catalog
Technical Drawing
Environmental Disclosure
