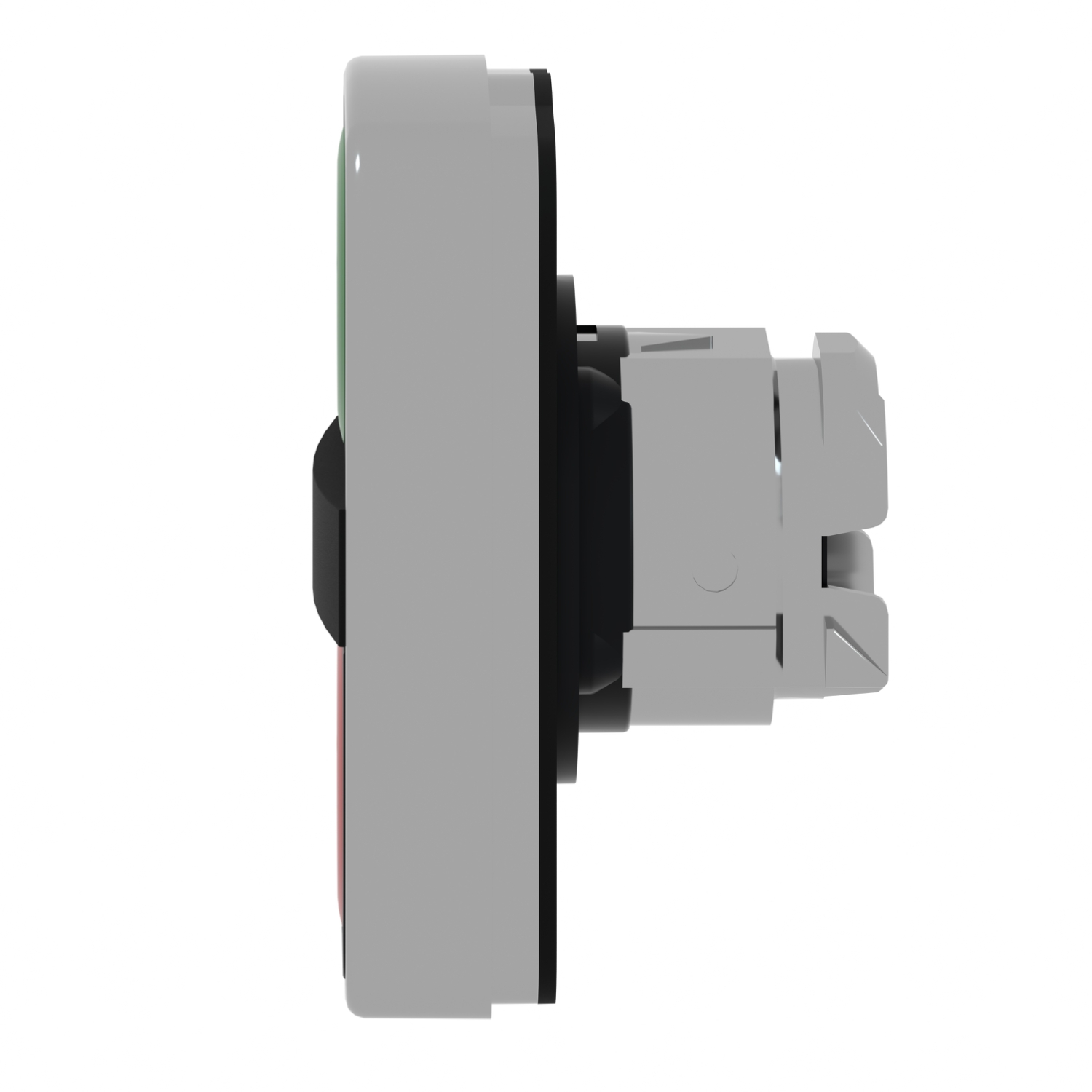

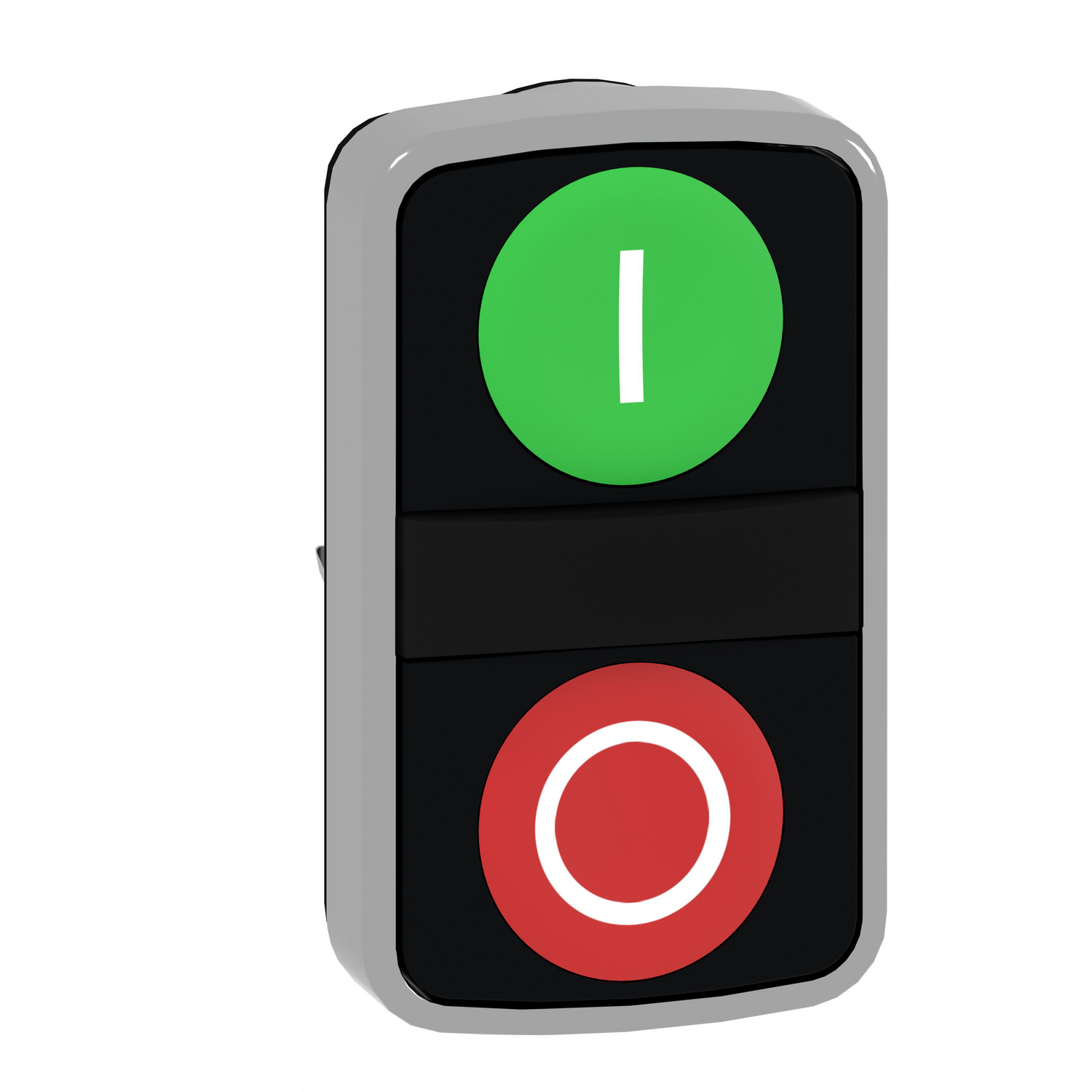

Head for double headed push button, Harmony XB4, metal, 22mm, 1 green flush marked I + 1 red flush marked O
ZB4BA7341
| Range of Product | Harmony XB4 |
|---|---|
| Product or Component Type | Head for double-headed push-button |
| Device short name | ZB4 |
| Bezel material | Chromium plated metal |
| Mounting diameter | 0.9 in (22 mm) |
| Head type | Standard |
| Sale per indivisible quantity | 1 |
| Shape of signaling unit head | Rectangular |
| Type of operator | spring return |
| Operator profile | 2 flush push-buttons |
| Operators description | Green ”I” – red ”O” |
| Net Weight | 0.123 lb(US) (0.056 kg) |
|---|---|
| Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131.0000000000 °F (55 °C) 0.1 m |
| Colour of marking | Black marking when white caps White marking when green, red or black caps |
| Operator profile | Green flush, I white) Red flush, O white) |
| Mechanical durability | 1000000 cycles |
| Electrical composition code | C3 6 single front mounting C4 6 single and double front mounting C14 2 single front mounting |
| device presentation | Basic element |
| Ambient Air Temperature for Storage | -40.0000000000…158.0000000000 °F (-40…70 °C) |
|---|---|
| Ambient Air Temperature for Operation | -40.0000000000…158.0000000000 °F (-40…70 °C) |
| Electrical shock protection class | Class I IEC 60536 |
| IP degree of protection | IP67 IEC 60529 IP69 IEC 60529 IP66 IEC 60529 |
| NEMA degree of protection | NEMA 13 NEMA 4X |
| IK degree of protection | IK06 conforming to IEC 50102 |
| Standards | IEC 60947-5-5 CSA C22.2 No 14 UL 508 IEC 60947-5-4 JIS C8201-5-1 IEC 60947-5-1 IEC 60947-1 JIS C8201-1 |
| Product Certifications | DNV UL Listed CSA GL LROS (Lloyds register of shipping) BV |
| Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 |
| Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Category | US10CS222468 |
|---|---|
| Discount Schedule | 0CS2 |
| GTIN | 3389119043847 |
| Returnability | Yes |
| Country of origin | US |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 2.165 in (5.500 cm) |
| Package 1 Width | 1.378 in (3.500 cm) |
| Package 1 Length | 2.087 in (5.300 cm) |
| Package 1 Weight | 1.975 oz (56.000 g) |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 5 |
| Package 2 Height | 2.165 in (5.500 cm) |
| Package 2 Width | 1.378 in (3.500 cm) |
| Package 2 Length | 10.472 in (26.600 cm) |
| Package 2 Weight | 9.947 oz (282.000 g) |
| Unit Type of Package 3 | S03 |
| Number of Units in Package 3 | 200 |
| Package 3 Height | 11.811 in (30.000 cm) |
| Package 3 Width | 11.811 in (30.000 cm) |
| Package 3 Length | 15.748 in (40.000 cm) |
| Package 3 Weight | 25.944 lb(US) (11.768 kg) |
| Warranty | 18 months |
|---|
