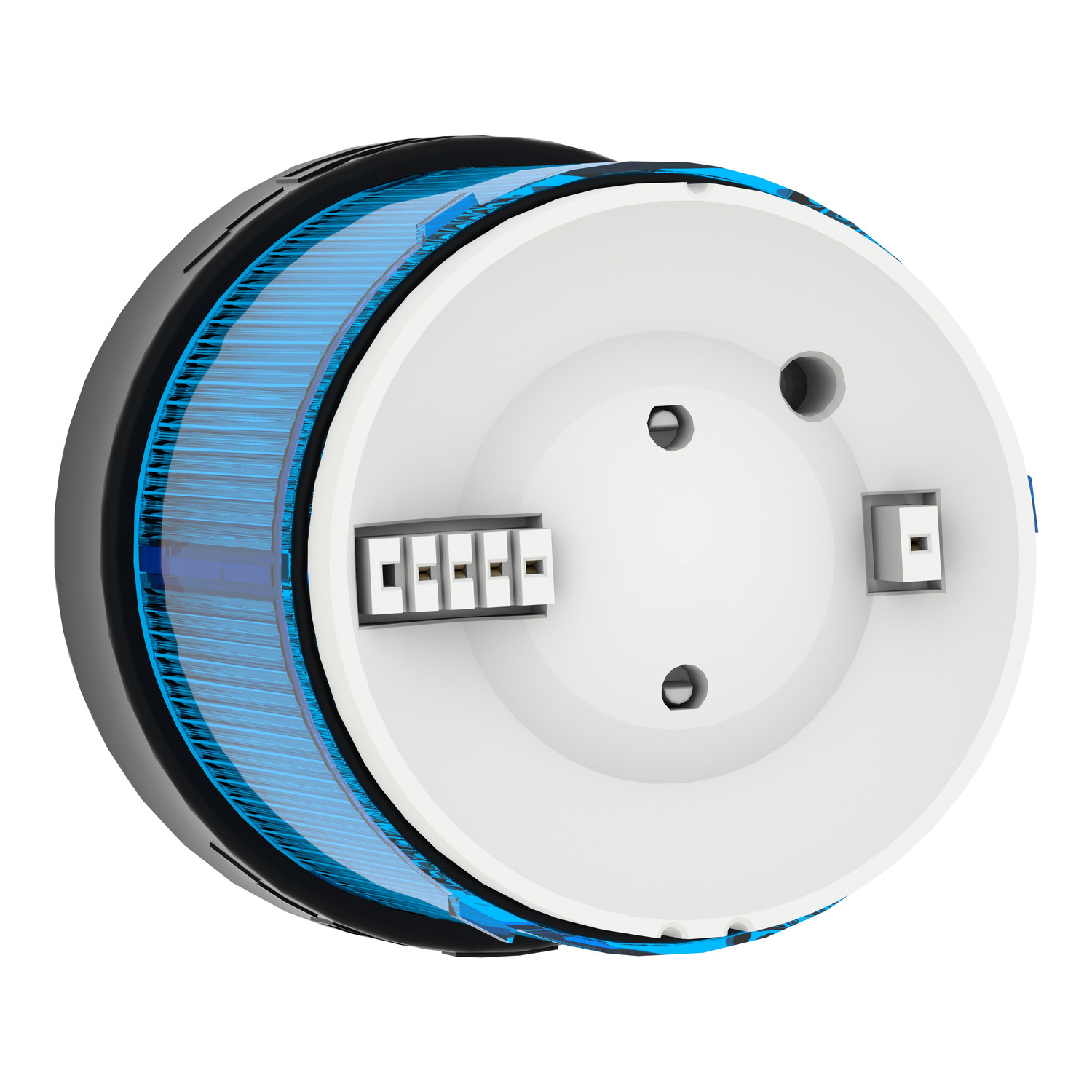

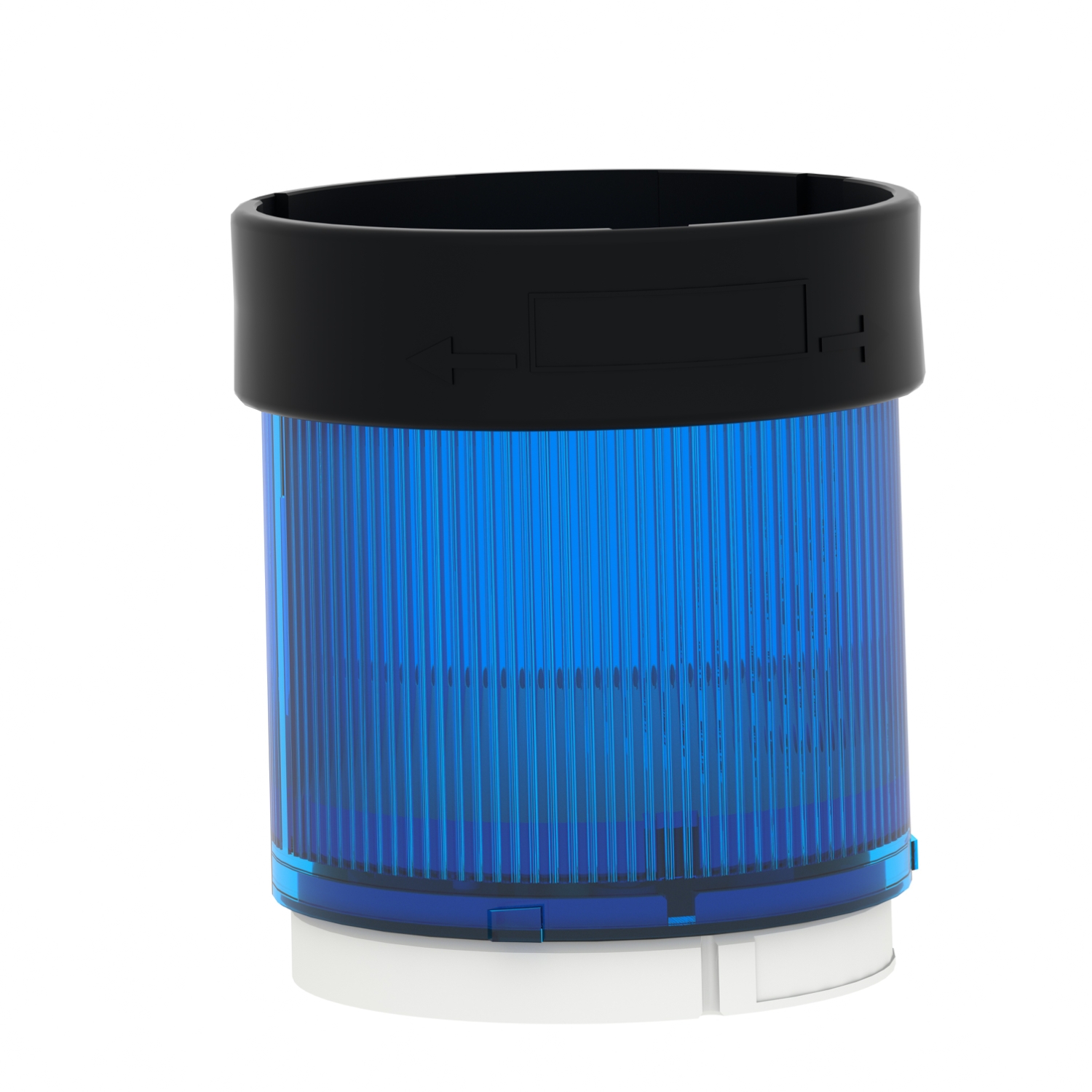

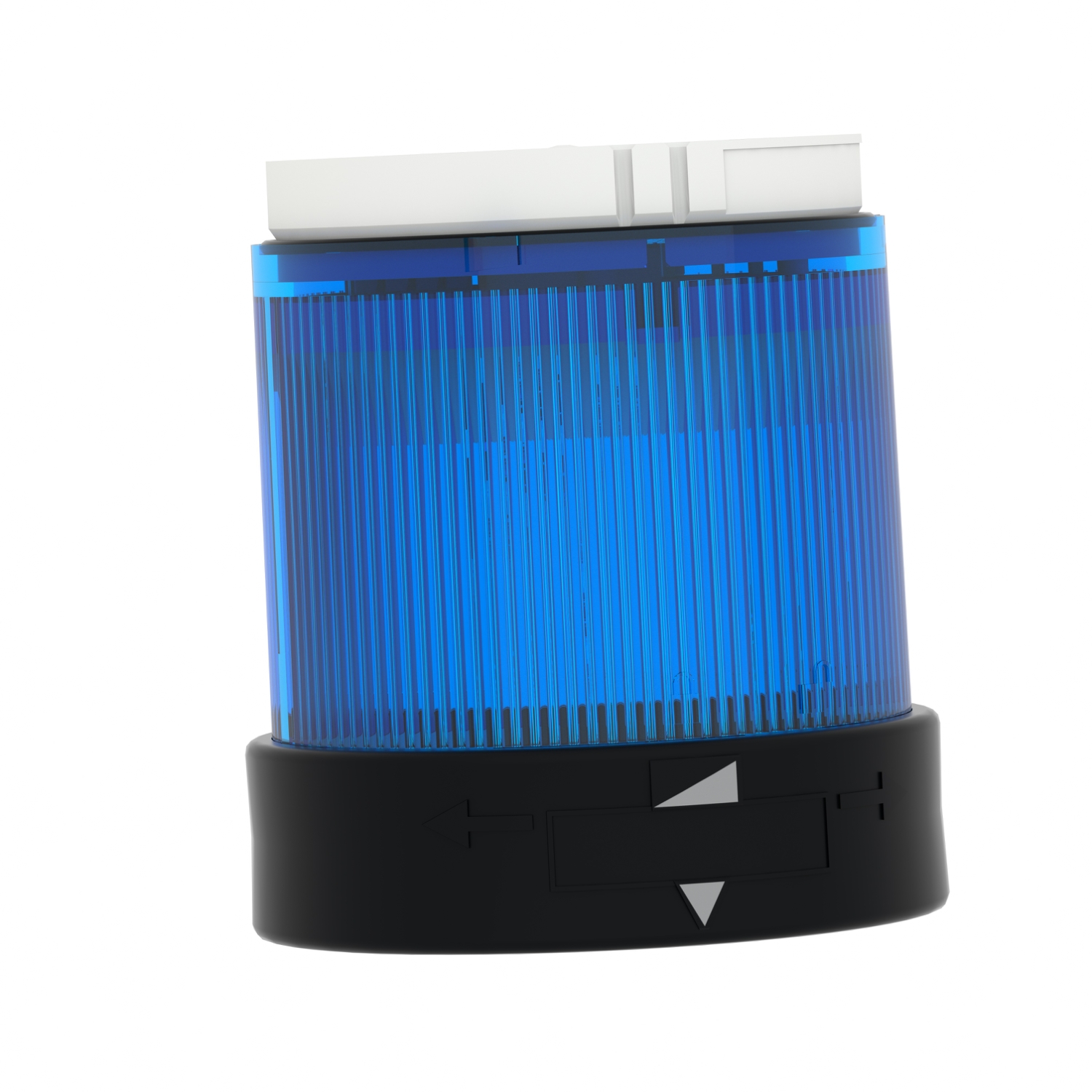

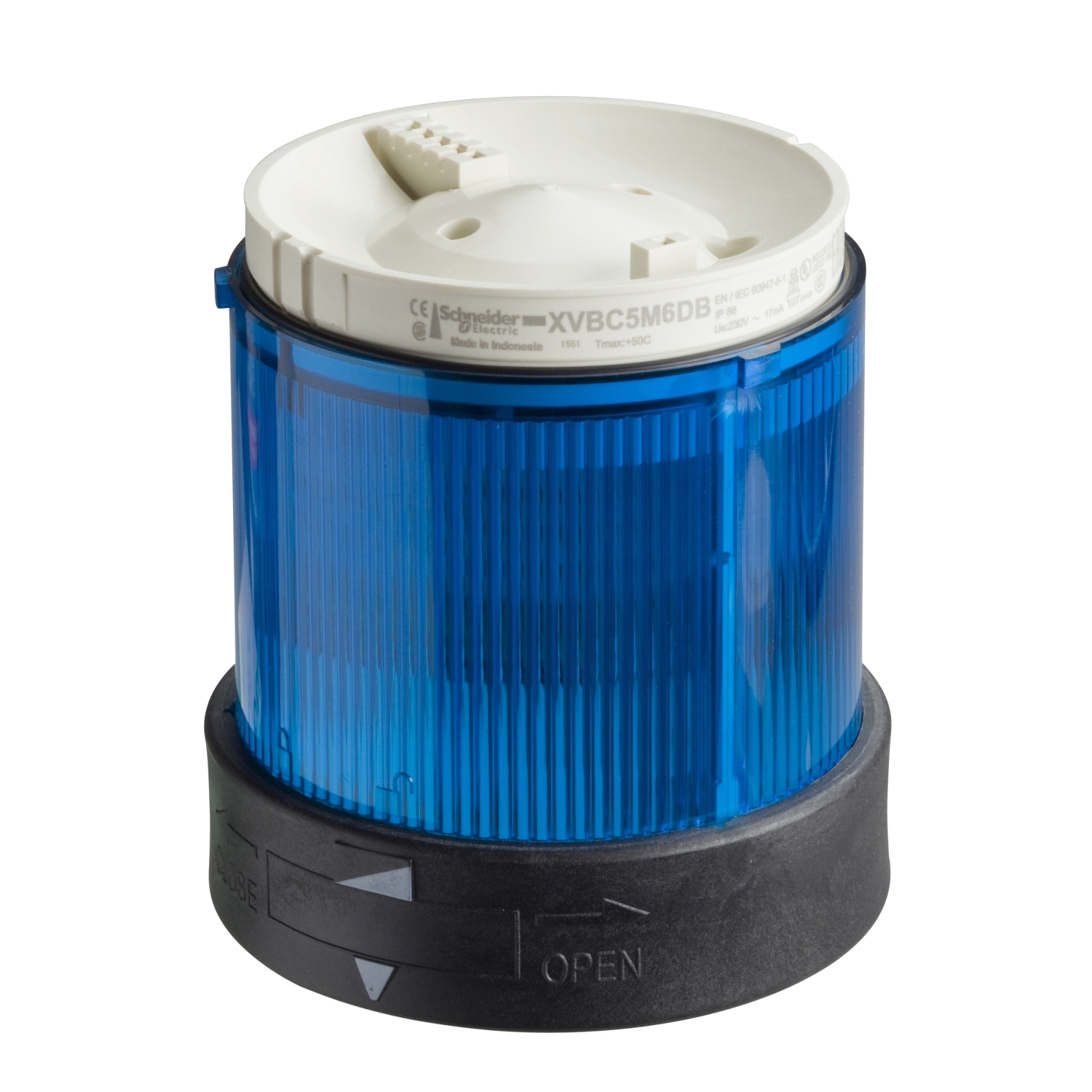

Indicator bank, Harmony XVB, illuminated unit, plastic, blue, 70mm, steady, bulb or LED not included, 250V
XVBC36
| Range of Product | Harmony XVB Universal |
|---|---|
| Product or Component Type | Indicator bank |
| Beacon or indicator bank unit type | Illuminated unit |
| Signalling type | Steady |
| Mounting diameter | 2.8 in (70 mm) |
| Component name | XVBC |
| Material | Polycarbonate |
| Light source | Bulb not included, blue |
| Bulb type | Incandescent BA 15d Protected LED |
| [Us] rated supply voltage | <= 250 V |
| Assembly style | Customer assembly, up to 5 units |
|---|---|
| Maximum power dissipation in W | 7 W |
| Connections – terminals | Screw clamp terminals, <= 1 x 1.5 mm² with cable end |
| [Ui] rated insulation voltage | 250 V IEC 60947-1 |
| Nominal voltage limit | 0.85…1.1 Un IEC 60947-5-1 |
| [Uimp] rated impulse withstand voltage | 4 kV IEC 60947-1 |
| CAD overall width | 2.8 in (70 mm) |
| CAD overall height | 2.5 in (63 mm) |
| CAD overall depth | 2.8 in (70 mm) |
| Pollution degree | 2 |
|---|---|
| Product Certifications | CCC EAC CSA C22-2 No 14 UL 508 |
| Standards | EN/IEC 60947-5-1 |
| protective treatment | TC |
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Ambient air temperature for operation | -13…122 °F (-25…50 °C) LED -13…158 °F (-25…70 °C) incandescent |
| Electrical shock protection class | Class I on support tube IEC 61140 Class II on base unit IEC 61140 |
| IP degree of protection | IP65 on fixing base XVBZ0. IEC 60529 IP66 on base unit IEC 60529 |
| NEMA degree of protection | Type 4X UL indoor) |
| Category | US100XV22611 |
|---|---|
| Discount Schedule | 00XV |
| GTIN | 3389110845099 |
| Returnability | Yes |
| Country of origin | ID |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 3.07 in (7.8 cm) |
| Package 1 Width | 4.2 in (10.6 cm) |
| Package 1 Length | 5.7 in (14.4 cm) |
| Package 1 Weight | 4.8 oz (137.0 g) |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 36 |
| Package 2 Height | 11.8 in (30.0 cm) |
| Package 2 Width | 11.8 in (30.0 cm) |
| Package 2 Length | 15.7 in (40.0 cm) |
| Package 2 Weight | 12.427 lb(US) (5.637 kg) |
| Warranty | 18 months |
|---|
