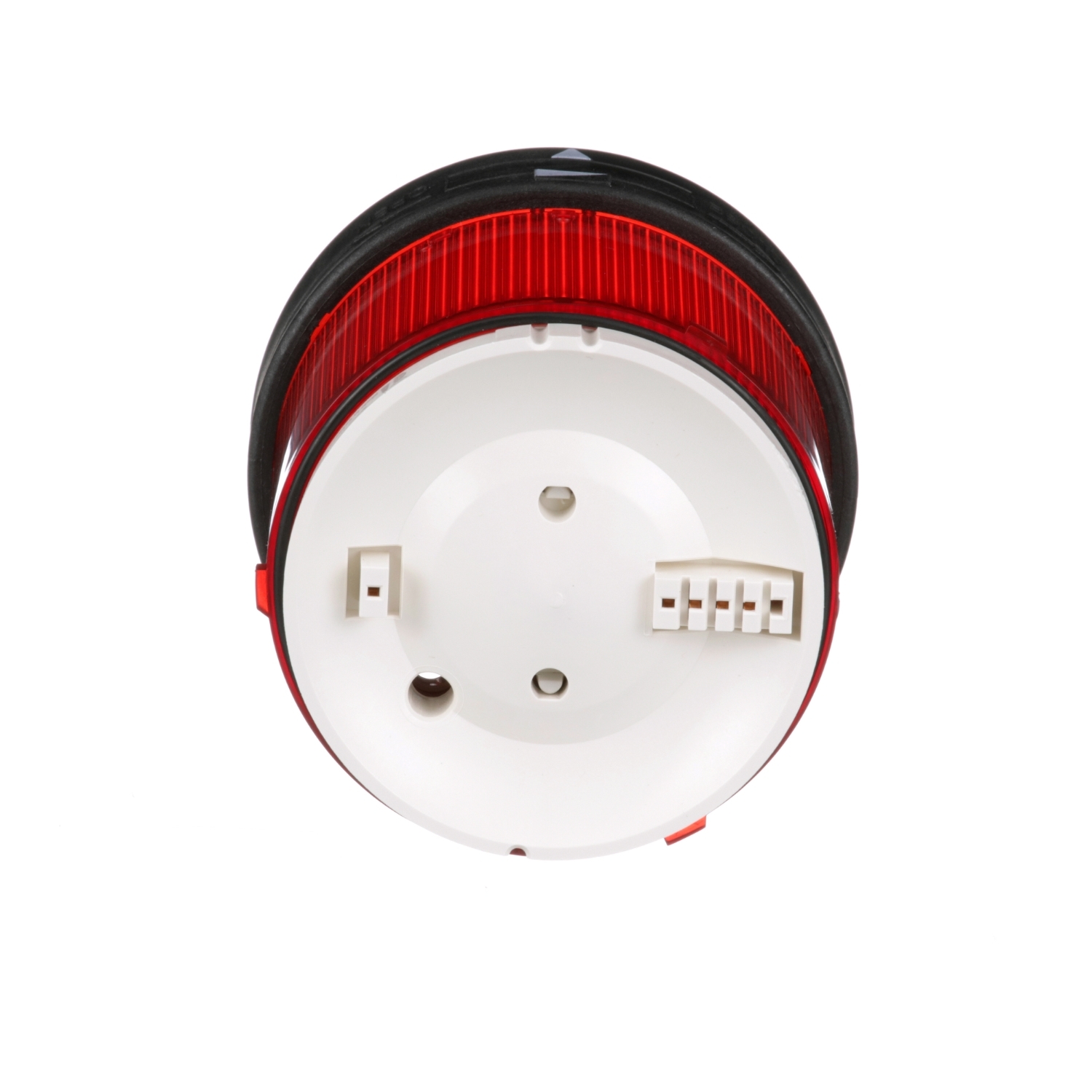

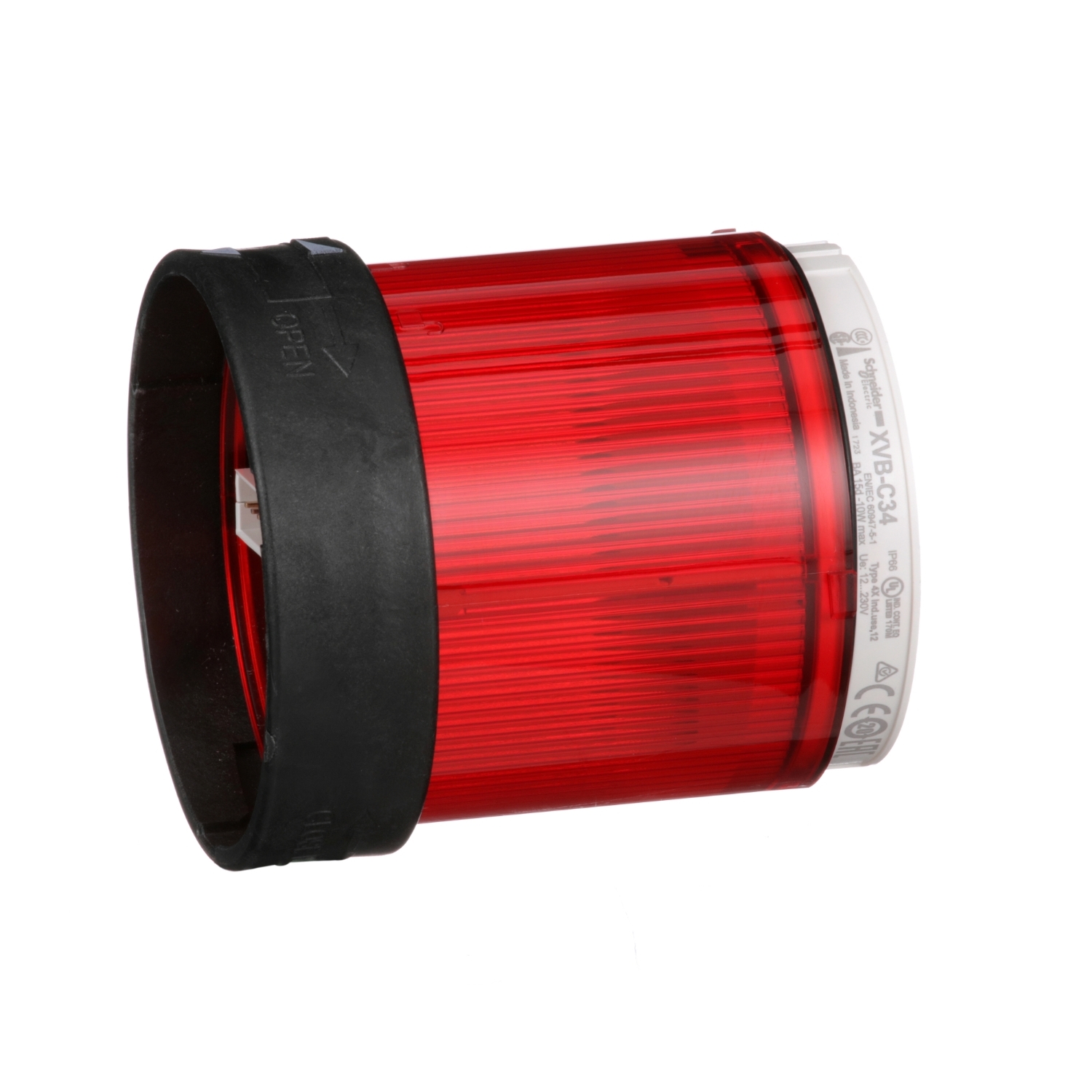

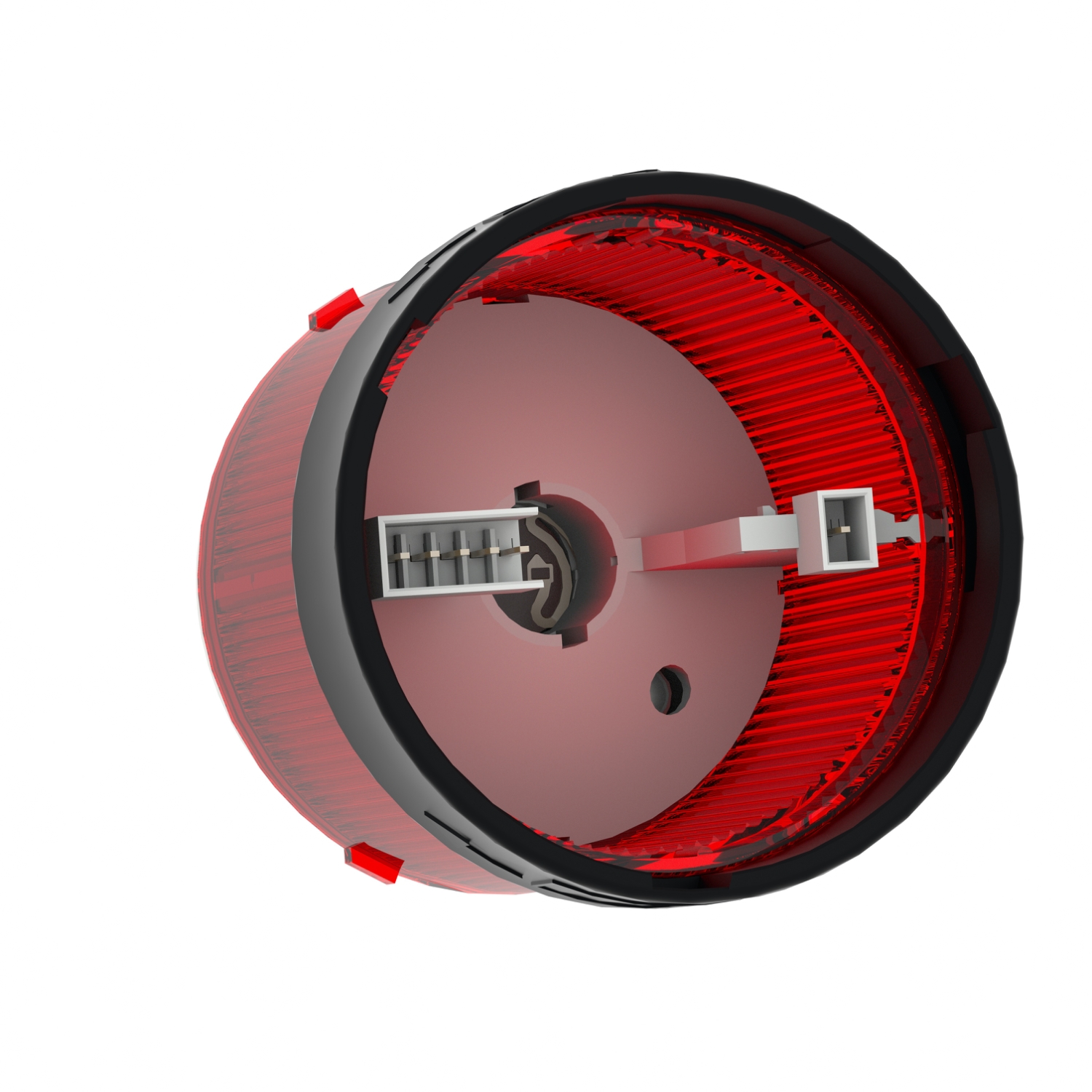

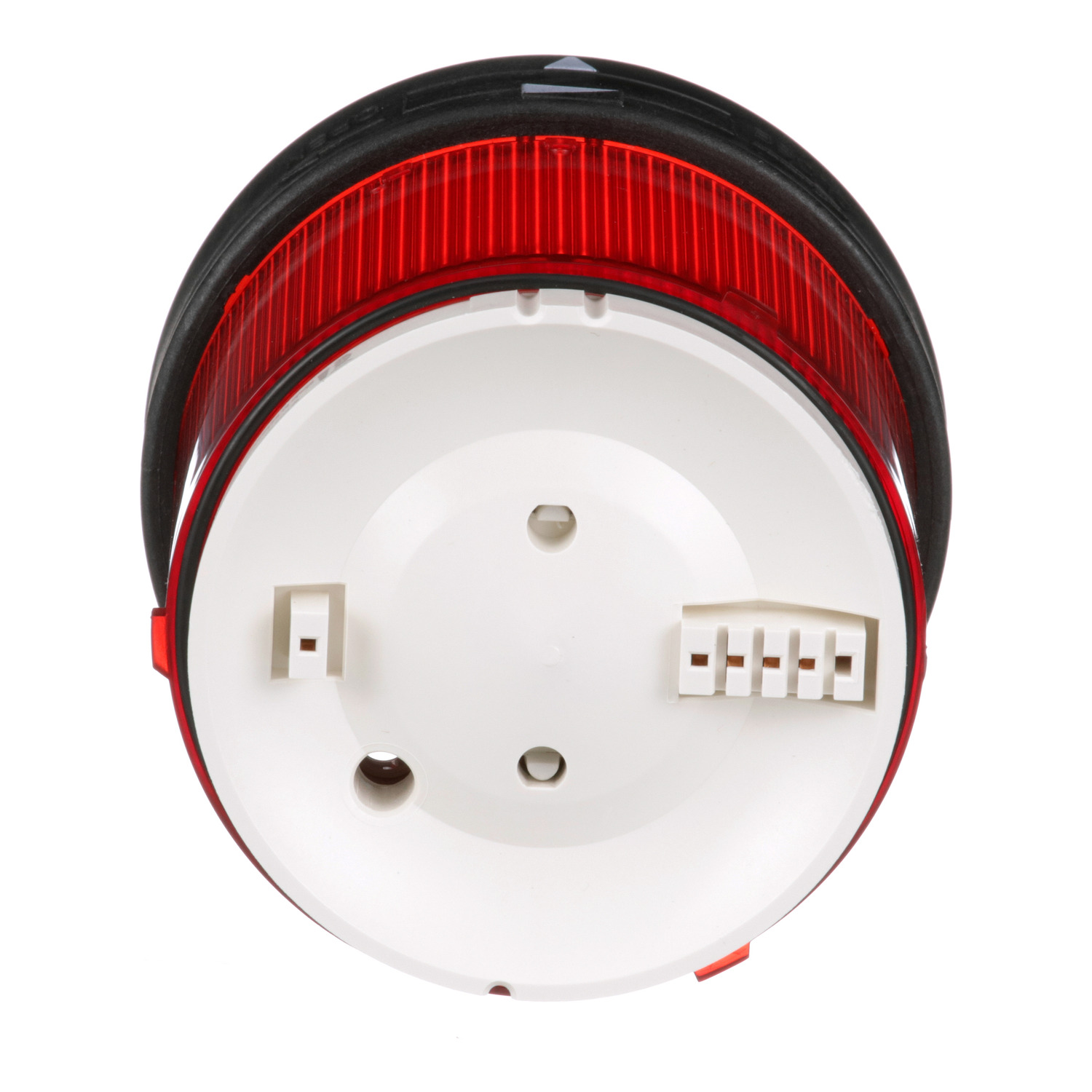

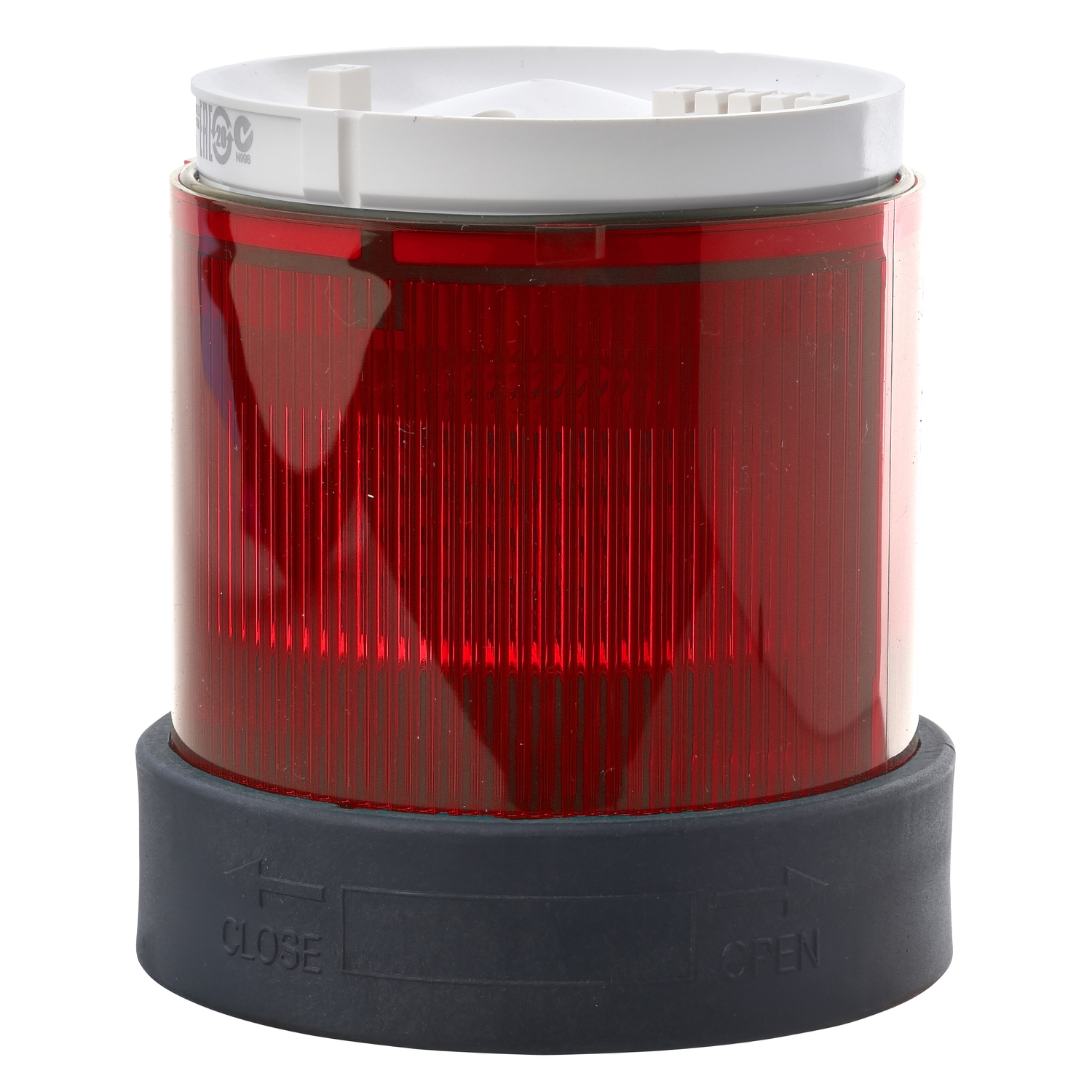

XVBC34, Indicating Bank, 70mm, illuminated lens unit, red, steady on, 10 W, 250 VAC/DC

MXN $1,068.00 - (IVA Incluido) + Envío

594 disponibles

Harmony XVB 70 mm modular beacons and tower lights are available with steady or flashing lights, and with incandescent or LED illumination. The XVB 70mm tower light range is modular line makes assembly simple which minimizes installation time. There are 5 illuminated units and an audible unit that are simple interchangeable units. The LEDs have a service life of 100,000 hours which reduces the need for maintenance. The wide variety of modules simplifies designing a tower light to meet your requirements. Harmony XVB 70 mm tower lights can be used in automotive, machine tool, material handling, packaging, assembly stations, conveyors and more. It complies with international standards and certifications (CCC, CSA C22-2 No.14, EN/IEC 60947-5-1, EAC, UL 508 standards and NEMA 4X).

Buy it now

Categories: Tower Lights

Tags: Tower Lights

SKU: XVBC34

Indicating Bank, 70mm, illuminated lens unit, red, steady on, 10 W, 250 VAC/DC

XVBC34

Main
Range of Product	Harmony XVB Universal
Product or Component Type	Indicator bank
Beacon or indicator bank unit type	Illuminated unit
Signalling type	Steady
Mounting diameter	2.8 in (70 mm)
Component name	XVBC
Material	Polycarbonate
Light source	Bulb not included, red
Bulb type	Incandescent BA 15d Protected LED
[Us] rated supply voltage	<= 250 V

Complementary
Assembly style	Customer assembly, up to 5 units
Maximum power dissipation in W	7 W
Connections – terminals	Screw clamp terminals, <= 1 x 1.5 mm² with cable end
[Ui] rated insulation voltage	250 V IEC 60947-1
Nominal voltage limit	0.85…1.1 Un IEC 60947-5-1
[Uimp] rated impulse withstand voltage	4 kV IEC 60947-1
CAD overall width	2.8 in (70 mm)
CAD overall height	2.5 in (63 mm)
CAD overall depth	2.8 in (70 mm)

Environment
Pollution degree	2
Product Certifications	CCC EAC CSA C22-2 No 14 UL 508
Standards	EN/IEC 60947-5-1
protective treatment	TC
Ambient Air Temperature for Storage	-40.0000000000…158.0000000000 °F (-40…70 °C)
Ambient air temperature for operation	-13.0000000000…122.0000000000 °F (-25…50 °C) LED -13.0000000000…158.0000000000 °F (-25…70 °C) incandescent
Electrical shock protection class	Class I on support tube IEC 61140 Class II on base unit IEC 61140
IP degree of protection	IP65 on fixing base XVBZ0. IEC 60529 IP66 on base unit IEC 60529
NEMA degree of protection	Type 4X UL indoor)

Ordering and shipping details
Category	US100XV22611
Discount Schedule	00XV
GTIN	3389110845075
Returnability	Yes
Country of origin	US

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	4.134 in (10.500 cm)
Package 1 Width	3.937 in (10.000 cm)
Package 1 Length	3.937 in (10.000 cm)
Package 1 Weight	4.797 oz (136.000 g)
Unit Type of Package 2	S03
Number of Units in Package 2	36
Package 2 Height	11.811 in (30.000 cm)
Package 2 Width	11.811 in (30.000 cm)
Package 2 Length	15.748 in (40.000 cm)
Package 2 Weight	12.339 lb(US) (5.597 kg)
Unit Type of Package 3	P06
Number of Units in Package 3	288
Package 3 Height	29.528 in (75.000 cm)
Package 3 Width	23.622 in (60.000 cm)
Package 3 Length	31.496 in (80.000 cm)
Package 3 Weight	115.760 lb(US) (52.508 kg)
