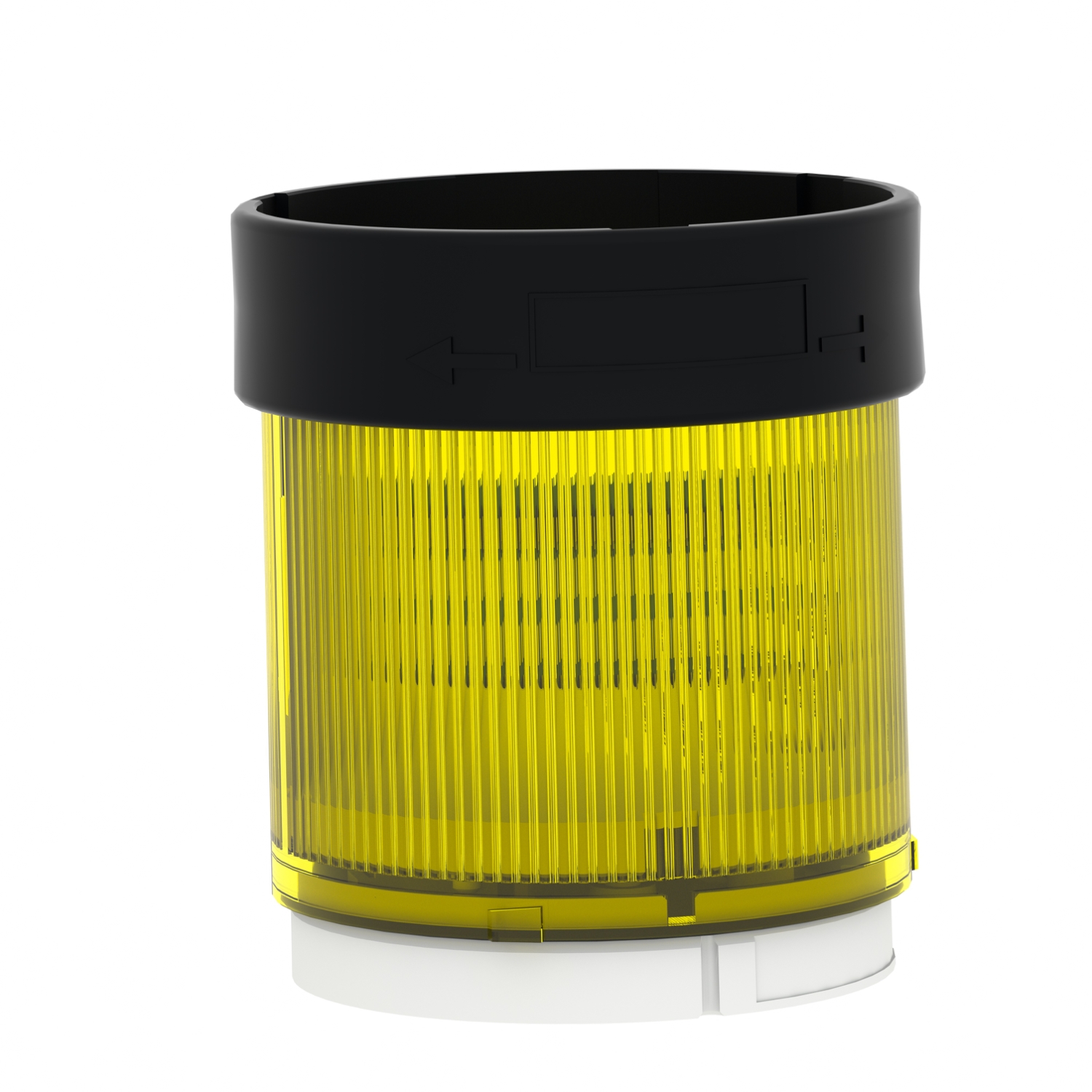

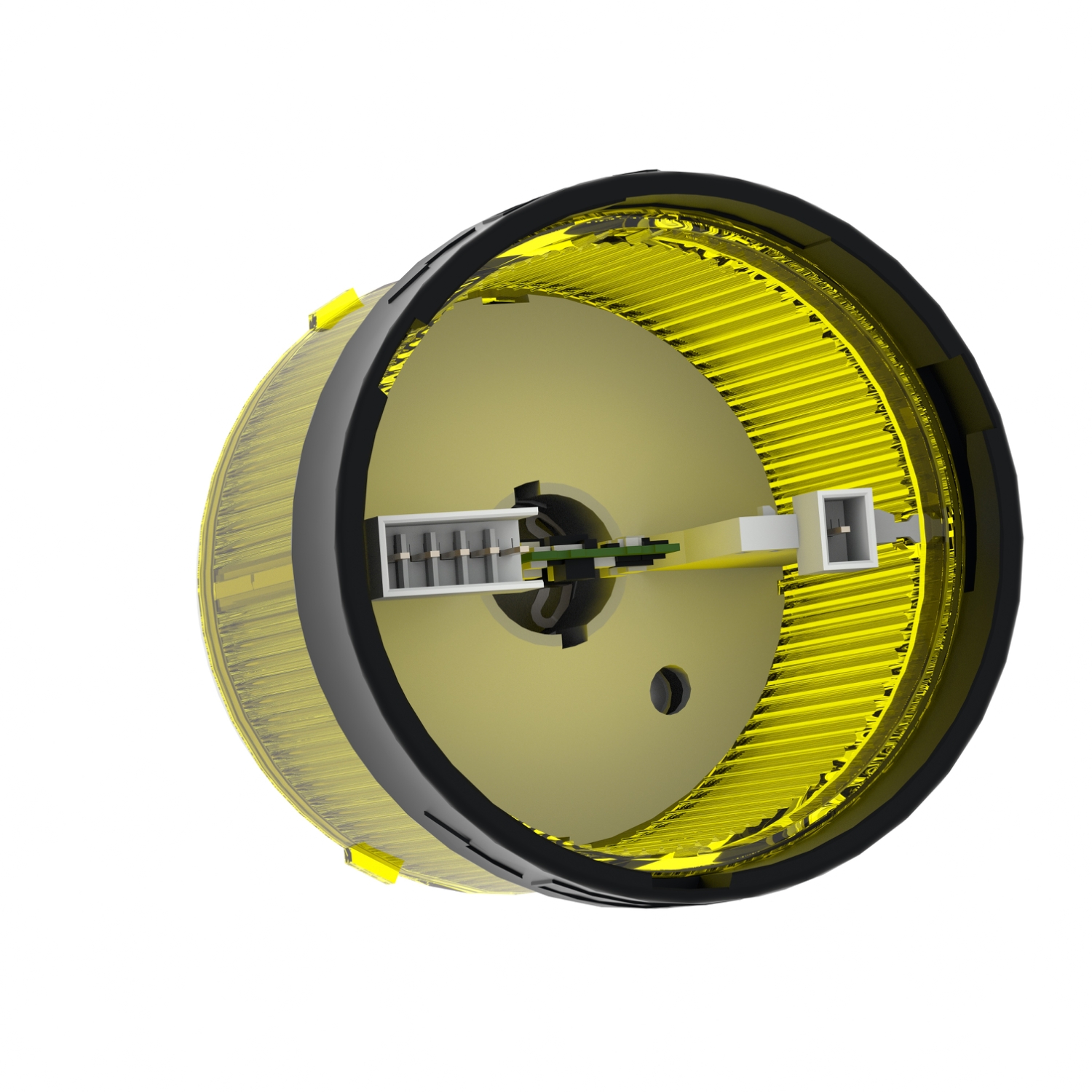

Indicator bank, Harmony XVB, illuminated unit, plastic, yellow, 70mm, steady, integral LED, 24V AC/DC
XVBC2B8
| Range of Product | Harmony XVB Universal |
|---|---|
| Product or Component Type | Indicator bank |
| Beacon or indicator bank unit type | Illuminated unit |
| Signalling type | Steady |
| Mounting diameter | 2.8 in (70 mm) |
| Component name | XVBC |
| Material | Polycarbonate |
| Light source | Integral LED, yellow |
| Bulb type | Protected LED |
| [Us] rated supply voltage | 24 V AC/DC |
| Assembly style | Customer assembly, up to 5 units |
|---|---|
| Connections – terminals | Screw clamp terminals, <= 1 x 1.5 mm² with cable end |
| [Ui] rated insulation voltage | 250 V IEC 60947-1 |
| Nominal voltage limit | 0.85…1.1 Un IEC 60947-5-1 |
| Current consumption | < 47 mA AC/DC |
| [Uimp] rated impulse withstand voltage | 4 kV IEC 60947-1 |
| CAD overall width | 2.8 in (70 mm) |
| CAD overall height | 2.5 in (63 mm) |
| CAD overall depth | 2.8 in (70 mm) |
| Net Weight | 0.33 lb(US) (0.15 kg) |
| Pollution degree | 2 |
|---|---|
| Product Certifications | CCC EAC CSA C22-2 No 14 UL 508 |
| Standards | IEC 60947-5-1 |
| protective treatment | TC |
| Ambient Air Temperature for Storage | -40.0000000000…158.0000000000 °F (-40…70 °C) |
| Ambient air temperature for operation | -13.0000000000…122.0000000000 °F (-25…50 °C) |
| Electrical shock protection class | Class I on support tube IEC 61140 Class II on base unit IEC 61140 |
| IP degree of protection | IP65 on fixing base XVBZ0. IEC 60529 IP66 on base unit IEC 60529 |
| NEMA degree of protection | Type 4X UL indoor) |
| Category | US100XV22611 |
|---|---|
| Discount Schedule | 00XV |
| GTIN | 3389110144543 |
| Returnability | Yes |
| Country of origin | ID |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 3.097 in (7.867 cm) |
| Package 1 Width | 3.10 in (7.88 cm) |
| Package 1 Length | 3.551 in (9.019 cm) |
| Package 1 Weight | 4.9 oz (137.8 g) |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 36 |
| Package 2 Height | 11.8 in (30 cm) |
| Package 2 Width | 11.8 in (30 cm) |
| Package 2 Length | 15.7 in (40 cm) |
| Package 2 Weight | 12.1 lb(US) (5.5 kg) |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 288 |
| Package 3 Height | 29.5 in (75 cm) |
| Package 3 Width | 23.6 in (60 cm) |
| Package 3 Length | 31.5 in (80 cm) |
| Package 3 Weight | 127.9 lb(US) (58 kg) |
| Warranty | 18 months |
|---|
