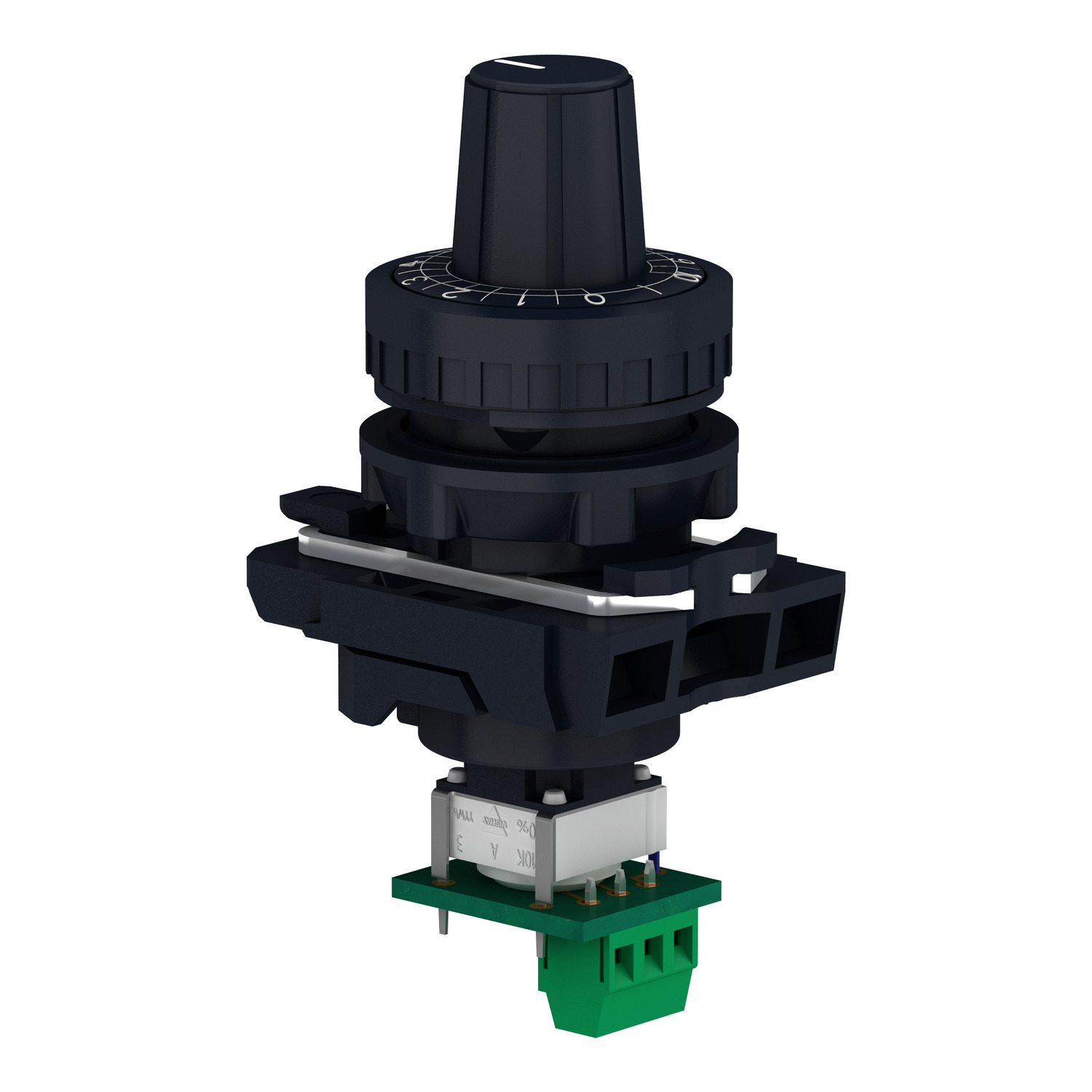

Complete potentiometer, Harmony XB5, plastic, 22mm, 10K
XB5AD912R10K
| Range of Product | Harmony XB5 |
|---|---|
| Product or Component Type | Potentiometer |
| Device short name | XB5 |
| Head type | Standard |
| device presentation | Complete product |
| Bezel material | Dark grey plastic |
|---|---|
| Mounting diameter | 0.9 in (22 mm) |
| Product Compatibility | Ø 6 mm shaft |
| Sale per indivisible quantity | 1 |
| CAD overall width | 1.2 in (30 mm) |
| CAD overall height | 1.7 in (42 mm) |
| CAD overall depth | 3.2 in (82 mm) |
| Net Weight | 0.106 lb(US) (0.048 kg) |
| protective treatment | TH |
| Ambient Air Temperature for Storage | -40.0000000000…158.0000000000 °F (-40…70 °C) |
| Ambient Air Temperature for Operation | -40.0000000000…158.0000000000 °F (-40…70 °C) |
| Electrical shock protection class | Class II IEC 60536 |
| IP degree of protection | IP66 IEC 60529 |
| NEMA degree of protection | NEMA 13 NEMA 4X |
| Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131.0000000000 °F (55 °C) 0.1 m |
| IK degree of protection | IK03 conforming to IEC 50102 |
| Standards | CSA C22.2 No 14 UL 508 EN/IEC 60947-1 |
| Product Certifications | BV CSA UL Listed |
| Shape of signaling unit head | Round |
| Operator profile | knurled knob, with white) |
| [Us] rated supply voltage | <= 42 V DC <= 30 V AC |
| Rated power in W | 1 W 158.0000000000 °F (70 °C) |
| Precision of internal conversion resistor | +-10% |
| Potentiometer characteristic | Linear |
| Mechanical durability | 50000 cycles |
| ohmic value | 10000 Ohm |
| Material | Cermet |
| Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 |
| Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Main group | Potentiometer |
| Group of product | Potentiometer knurled knob |
| Colour of marking | White |
| Category | US10CS222468 |
|---|---|
| Discount Schedule | 0CS2 |
| GTIN | 3606480985072 |
| Returnability | Yes |
| Country of origin | FR |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 1.654 in (4.200 cm) |
| Package 1 Width | 2.205 in (5.600 cm) |
| Package 1 Length | 3.307 in (8.400 cm) |
| Package 1 Weight | 2.046 oz (58.000 g) |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 40 |
| Package 2 Height | 5.906 in (15.000 cm) |
| Package 2 Width | 11.811 in (30.000 cm) |
| Package 2 Length | 15.748 in (40.000 cm) |
| Package 2 Weight | 5.904 lb(US) (2.678 kg) |
