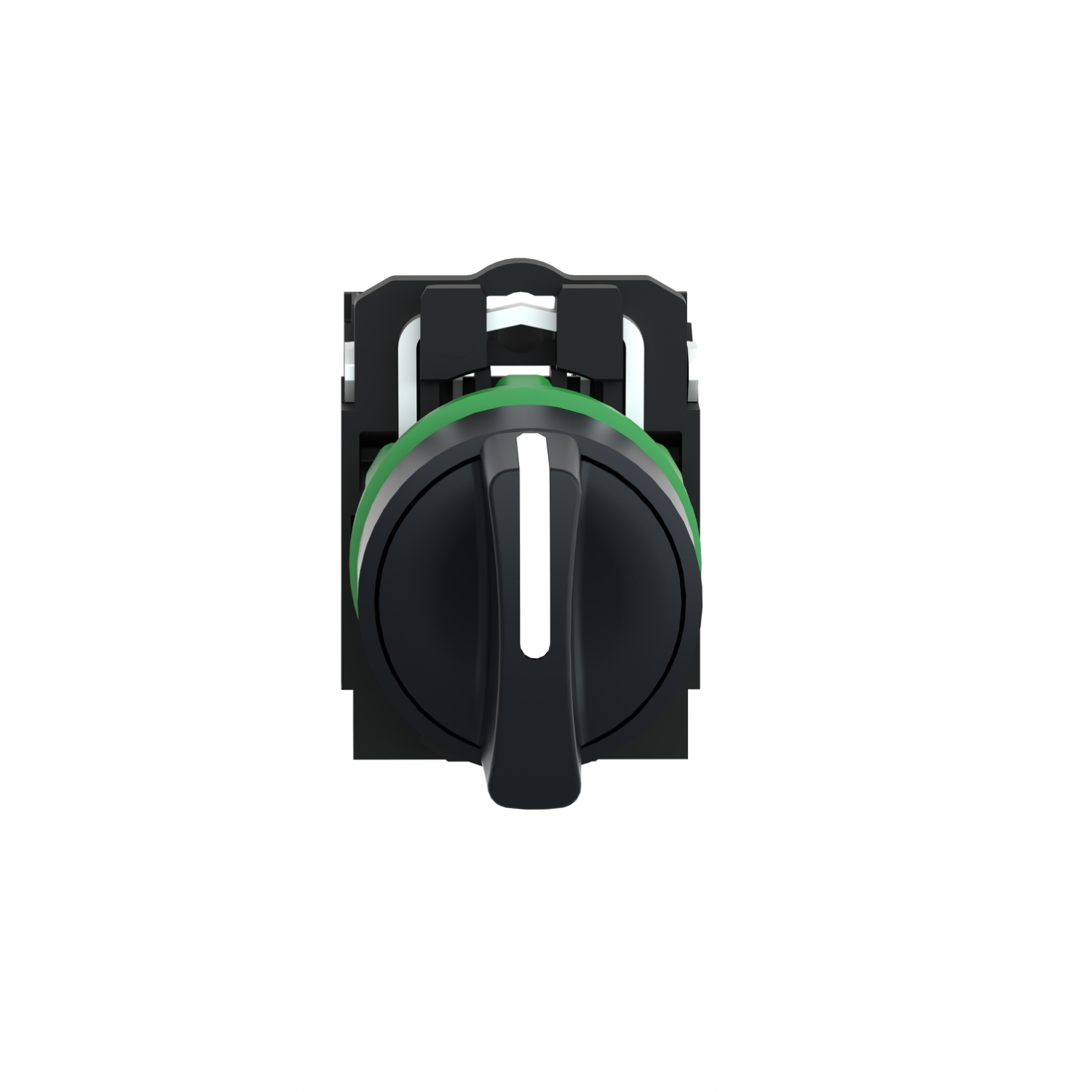

XB5AD33, Harmony, 22mm Push Button, 3 position selector switch, black, maintained, 2 NO, marked HAND OFF AUTO

MXN $738.00 - (IVA Incluido) + Envío

Sin existencias

Harmony 22 mm modular push buttons, selector switches, pilot lights are designed for industry. This range combines simplicity of setup, flexibility and a robust construction. An ingenious locking system consisting of a snap fit head and body that can be tightened with a single screw but still ensuring an easy and yet secure mounting. Harmony XB4/ZB4 are 22 mm chromium plated metal modular push buttons, selector switches and pilot lights connecting to fully metal mounting collar. The operators can be purchased as complete operators or various modules that can be assembled to meet the user’s specific requirement. Harmony XB5/ZB5 are 22 mm plastic modular push buttons, selector switches, pilot lights. The operator can have a round and square plastic bezel. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation. The contacts can be used for low load electrical contact and high power applications. Shake proof connection screws make periodic retightening unnecessary. A complete set of accessories to provide a solution for applications where exposure to high pressure cleaning, dust and extreme temperatures is an everyday occurrence. These harmony 22mm push buttons are used by machine manufacturers (automotive, textiles, timber) and control system panel builders. Certified and approved for meeting requirements throughout all continents: EN/IEC, UL, NEMA, CSA, CCC, Gost, JIS and many more. They have UL and CE markings and have ratings up to IP66 and IP69K.

Brands:
SKU: XB5AD33

Harmony, 22mm Push Button, 3 position selector switch, black, maintained, 2 NO, marked HAND OFF AUTO

XB5AD33

Main
Range of Product Harmony XB5
Product or Component Type Selector switch
Device short name XB5
Bezel material Dark grey plastic
Head type Standard
Mounting diameter 0.9 in (22.5 mm)
Sale per indivisible quantity 1
Shape of signaling unit head Round
Type of operator stay put
Operator profile Black standard handle
Operator position information 3 positions +/- 45°
Contacts type and composition 2 NO
Contact operation Slow-break
Connections – terminals Screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1
Screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1
Complementary
Height 1.7 in (42 mm)
Width 1.2 in (30 mm)
Depth 2.8 in (70 mm)
Terminals description ISO n°1 (13-14)NO
Net Weight 0.115 lb(US) (0.052 kg)
Resistance to high pressure washer 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m
Contacts usage Standard contacts
Positive opening Without
Torque value 1.24 lbf.in (0.14 N.m) NO changing electrical state
Mechanical durability 1000000 cycles
Tightening torque 7.08…10.6 lbf.in (0.8…1.2 N.m) IEC 60947-1
Shape of screw head Cross Philips no 1
Cross pozidriv No 1
Slotted flat Ø 4 mm
Slotted flat Ø 5.5 mm
Contacts material Silver alloy (Ag/Ni)
Short-circuit protection 10 A cartridge fuse gG IEC 60947-5-1
[Ith] conventional free air thermal current 10 A IEC 60947-5-1
[Ui] rated insulation voltage 600 V 3)IEC 60947-1
[Uimp] rated impulse withstand voltage 6 kV IEC 60947-1
[Ie] rated operational current 3 A 240 V, AC-15, A600 IEC 60947-5-1
6 A 120 V, AC-15, A600 IEC 60947-5-1
0.1 A 600 V, DC-13, Q600 IEC 60947-5-1
0.27 A 250 V, DC-13, Q600 IEC 60947-5-1
0.55 A 125 V, DC-13, Q600 IEC 60947-5-1
1.2 A 600 V, AC-15, A600 IEC 60947-5-1
Electrical durability 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
Electrical reliability Λ < 10exp(-6) 5 V, 1 mA in clean environment IEC 60947-5-4
Λ < 10exp(-8) 17 V, 5 mA in clean environment IEC 60947-5-4
device presentation Complete product
Environment
protective treatment TH
Ambient Air Temperature for Storage -40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation -40…158 °F (-40…70 °C)
Electrical shock protection class Class II IEC 60536
IP degree of protection IP67 IEC 60529
IP69
IP69K
NEMA degree of protection NEMA 13
NEMA 4X
IK degree of protection IK04 conforming to IEC 50102
Standards IEC 60947-1
IEC 60947-5-1
JIS C8201-5-1
CSA C22.2 No 14
IEC 60947-5-4
UL 508
JIS C8201-1
Product Certifications UL
GL
LROS (Lloyds register of shipping)
DNV
CSA
BV
Vibration resistance 5 gn 2…500 Hz)IEC 60068-2-6
Shock resistance 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27
50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Ordering and shipping details
Category US10CS222467
Discount Schedule 0CS2
GTIN 3389110903454
Returnability Yes
Country of origin US
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 1.378 in (3.500 cm)
Package 1 Width 2.165 in (5.500 cm)
Package 1 Length 3.583 in (9.100 cm)
Package 1 Weight 1.799 oz (51.000 g)
Unit Type of Package 2 S03
Number of Units in Package 2 150
Package 2 Height 11.811 in (30.000 cm)
Package 2 Width 11.811 in (30.000 cm)
Package 2 Length 15.748 in (40.000 cm)
Package 2 Weight 17.902 lb(US) (8.120 kg)
Unit Type of Package 3 P06
Number of Units in Package 3 1200
Package 3 Height 29.528 in (75.000 cm)
Package 3 Width 23.622 in (60.000 cm)
Package 3 Length 31.496 in (80.000 cm)
Package 3 Weight 166.361 lb(US) (75.460 kg)
Contractual warranty
Warranty 18 months
Peso 0.051 kg
Dimensiones 5.5 × 9.1 × 3.5 cm
Product Datasheet
Instruction Sheet
Catalog
Environmental Disclosure
