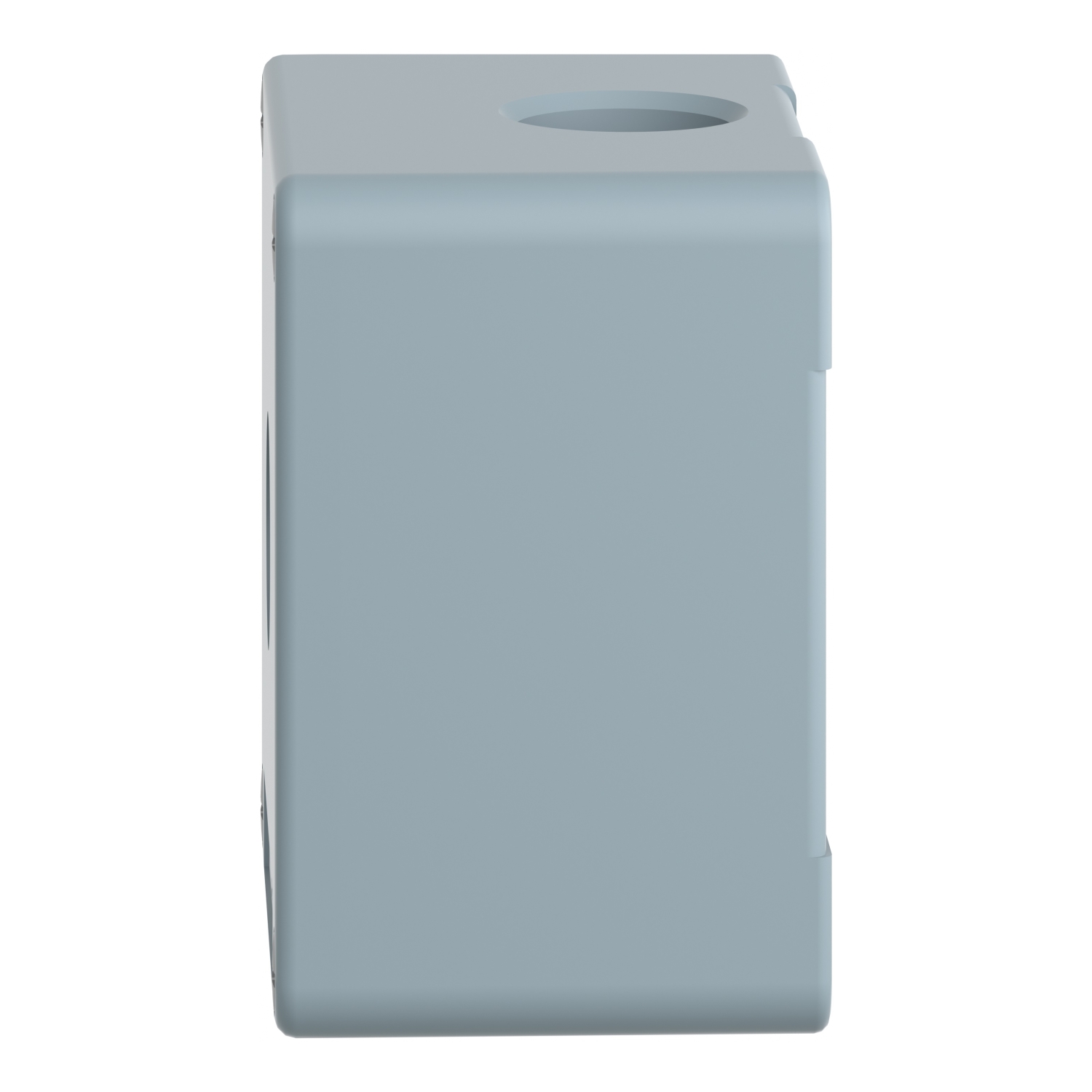

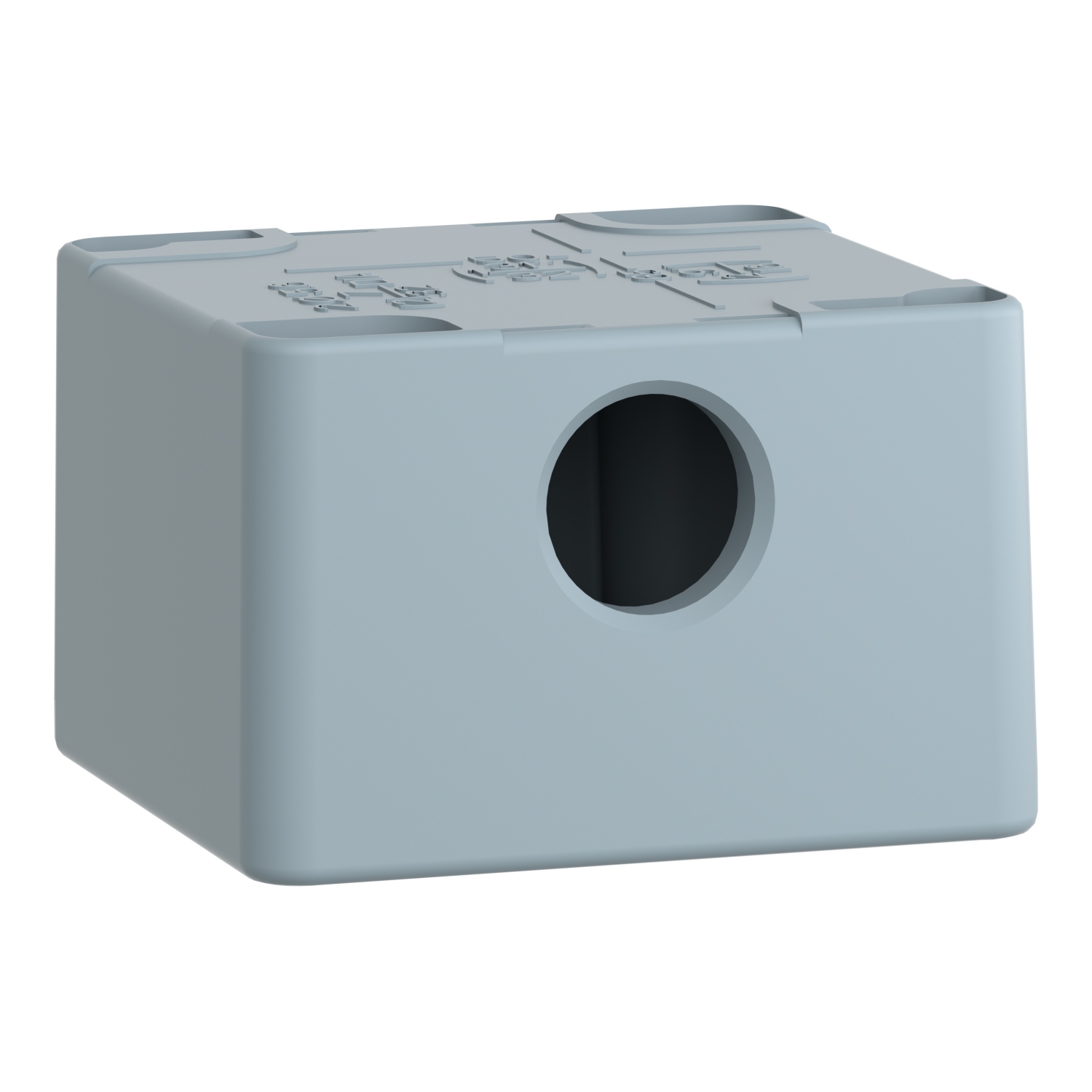

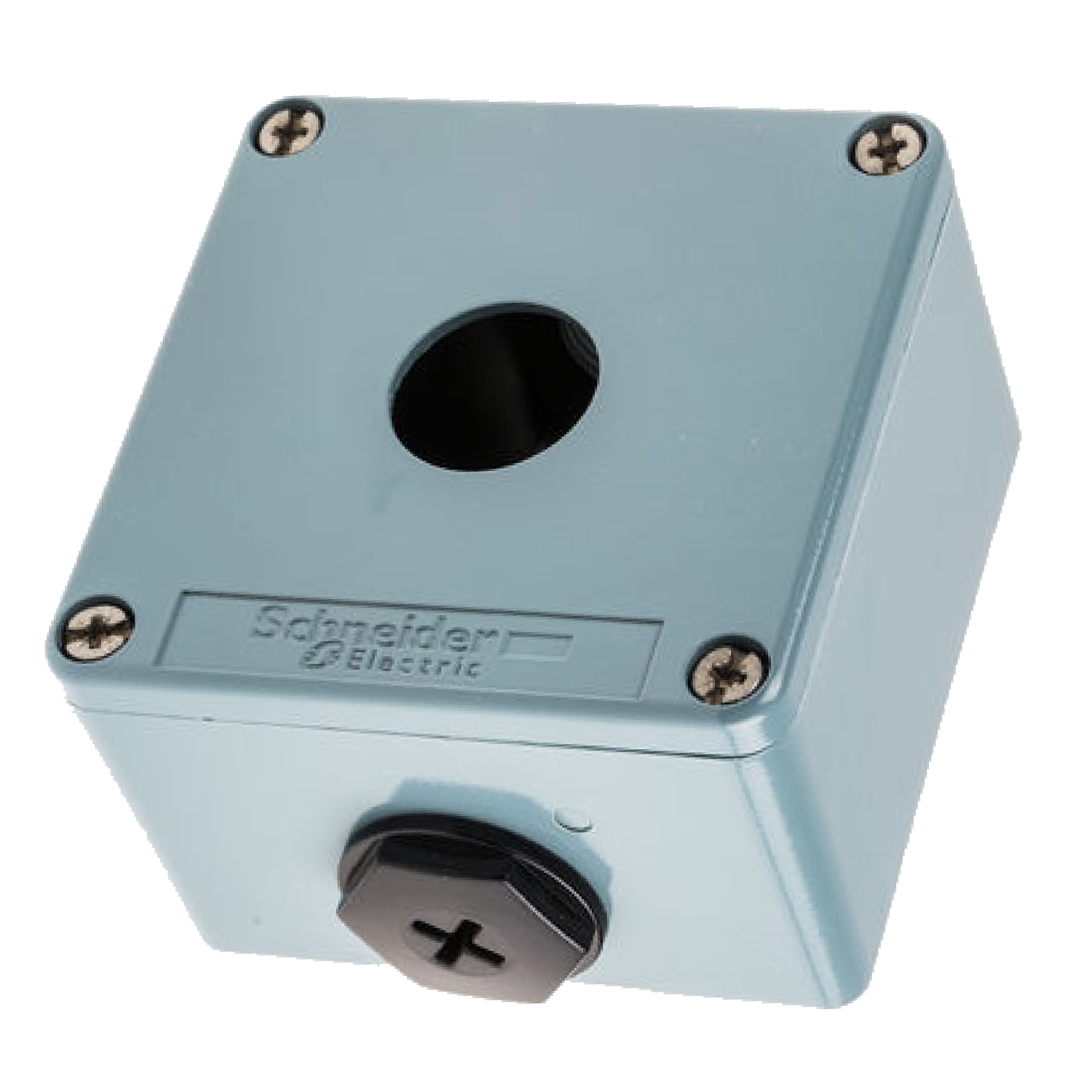

XAPM1501, Harmony XAP, XB2 SL, Empty control station, zinc alloy, blue, 1 cut-out, Ø22, 80 x 80 x 77 mm

MXN $1,454.00 - (IVA Incluido) + Envío

Sin existencias

This Harmony XAPM die-cast empty control station has 1 cut-out for 1 push button / 1 function for controlling of operation in machines. This 1 cut-out blue empty control station enables machine builders to customize their machines by easily adding any control and signalling functionality units on the enclosure according to the operation required. It is designed for simple and mass production machines, textiles, packaging, handling small lifting systems, control of garage doors, rolling shutters, smoke extraction vents. It is compatible with Harmony 22mm range push buttons, switches and pilot lights. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65 / IP69 / IP69K, making it ideal for operation in harsh environments. It can be retrofitted with all 22 mm push buttons, pilot lights, selector switches and joysticks. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.

Brands:
SKU: XAPM1501

Harmony XAP, XB2 SL, Empty control station, zinc alloy, blue, 1 cut-out, Ø22, 80 x 80 x 77 mm

XAPM1501

Main
Range of Product Harmony XAP
Product or Component Type Die-cast empty control station
Device short name XAPM
product destination For Ø 22 mm control and signalling units
Product front plate size 80 x 80 mm
Usable depth 2.9 in (74.5 mm)
Number of cut-out 1 cut-out
Colour of base of enclosure Blue
Colour of cover Blue
Material Zinc alloy
Cable entry 1 hole with blanking plug for cable gland 0.6 in (14 mm)
1 hole without blanking plug for cable gland 0.6 in (14 mm)
device mounting Flush
IP degree of protection IP65 IEC 60529
IP69 NF C 20-010
IP69K
Complementary
Number of vertical rows 1
Net Weight 1.334 lb(US) (0.605 kg)
Environment
protective treatment TC
Ambient Air Temperature for Storage -40.0000000000…158.0000000000 °F (-40…70 °C)
Ambient Air Temperature for Operation -40.0000000000…158.0000000000 °F (-40…70 °C)
Overvoltage category Class I IEC 60536
Class I NF C 20-030
Ordering and shipping details
Category US10CS222475
Discount Schedule 0CS2
GTIN 3389110312911
Returnability No
Country of origin US
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 3.50 in (8.89 cm)
Package 1 Width 3.20 in (8.13 cm)
Package 1 Length 3.50 in (8.89 cm)
Package 1 Weight 1.59 lb(US) (0.72 kg)
Contractual warranty
Warranty 18 months
Peso 0.766 kg
Dimensiones 9 × 8.4 × 9 cm
