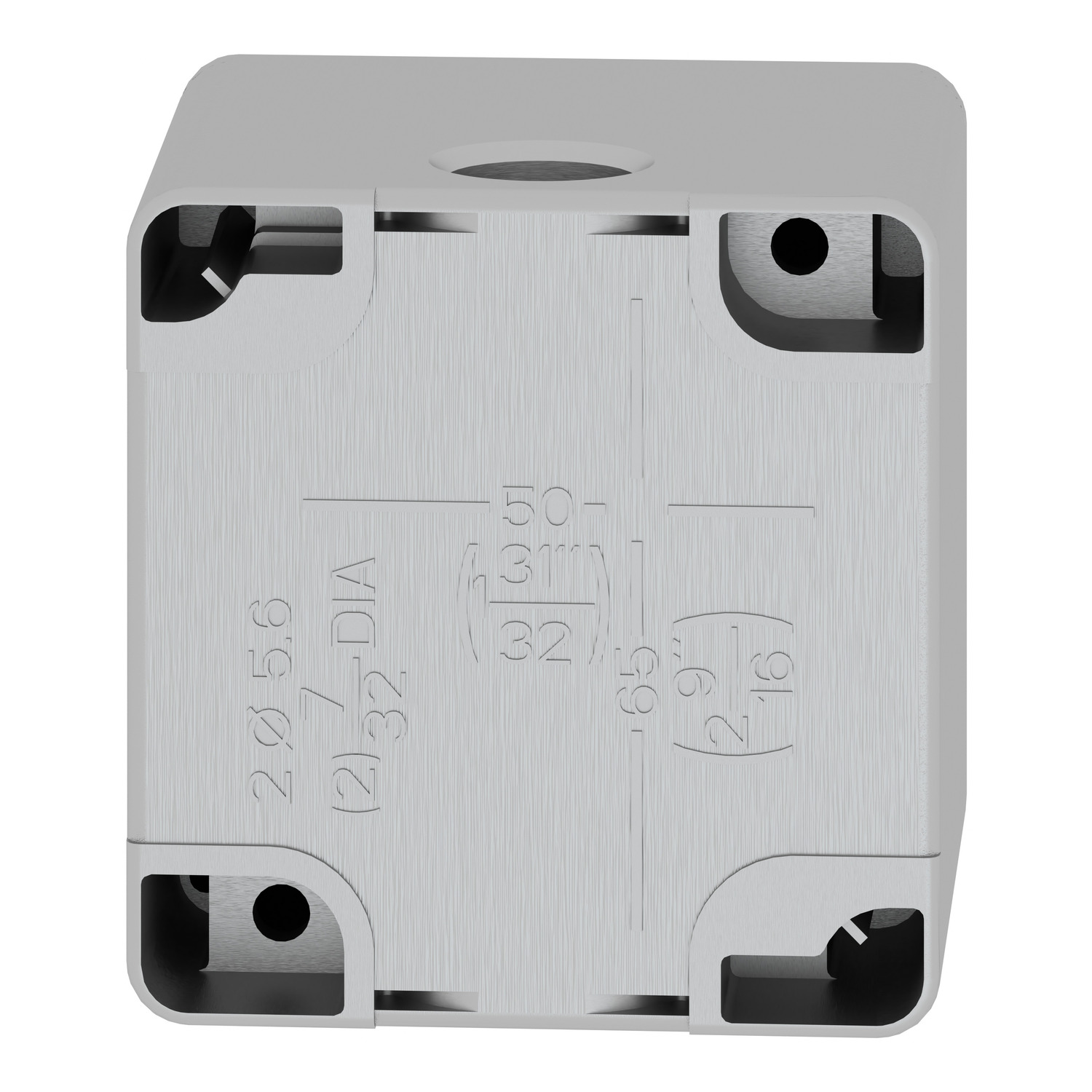

Die cast empty control station, Harmony XAP, XB2 SL, zinc alloy, grey, 1 cut out, 22mm, 80×80 x77mm
XAPG19501
| Range of Product | Harmony XAP |
|---|---|
| Product or Component Type | Die-cast empty control station |
| Device short name | XAPG |
| product destination | For Ø 22 mm control and signalling units |
| Number of cut-out | 1 cut-out |
| Colour of base of enclosure | Grey RAL 7032) |
| Colour of cover | Grey RAL 7032) |
| Control station type | Metal |
| Material | Die cast zinc |
| Sale per indivisible quantity | 1 |
| IP degree of protection | IP65 IEC 60529 IP657 IEC 60529 |
| Resistance to chemical agents | Special treatment can be obtained on request |
| Number of vertical rows | 1 |
|---|---|
| Number of horizontal rows | 1 |
| Cut-out dimensions | Ø 22 mm |
| Cable entry | cable gland 1 x cable gland |
| Thread type | 3/4 NPT |
| CAD overall width | 3.1 in (80 mm) |
| CAD overall height | 3.1 in (80 mm) |
| CAD overall depth | 3.03 in (77 mm) |
| Net Weight | 1.618 lb(US) (0.734 kg) |
| Compatibility code | XAPG |
| protective treatment | TH |
|---|---|
| Ambient Air Temperature for Storage | -40.0000000000…158.0000000000 °F (-40…70 °C) |
| Ambient Air Temperature for Operation | -13.0000000000…158.0000000000 °F (-25…70 °C) |
| Electrical shock protection class | Class I IEC 60536 Class I NF C 20-030 |
| IK degree of protection | IK07 IEC 62262 |
| Category | US10CS222475 |
|---|---|
| Discount Schedule | 0CS2 |
| GTIN | 3389118381902 |
| Returnability | Yes |
| Country of origin | US |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 3.6 in (9.2 cm) |
| Package 1 Width | 3.4 in (8.6 cm) |
| Package 1 Length | 3.5 in (8.8 cm) |
| Package 1 Weight | 26.9 oz (764.0 g) |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 12 |
| Package 2 Height | 5.9 in (15.0 cm) |
| Package 2 Width | 11.8 in (30.0 cm) |
| Package 2 Length | 15.7 in (40.0 cm) |
| Package 2 Weight | 21.530 lb(US) (9.766 kg) |
| Warranty | 18 months |
|---|
