VCF5, Switch disconnector,TeSys Control,for ON/emergency stop,125A,4 screws fixing,for mounting on door
MXN $5,875.00 - (IVA Incluido) + Envío

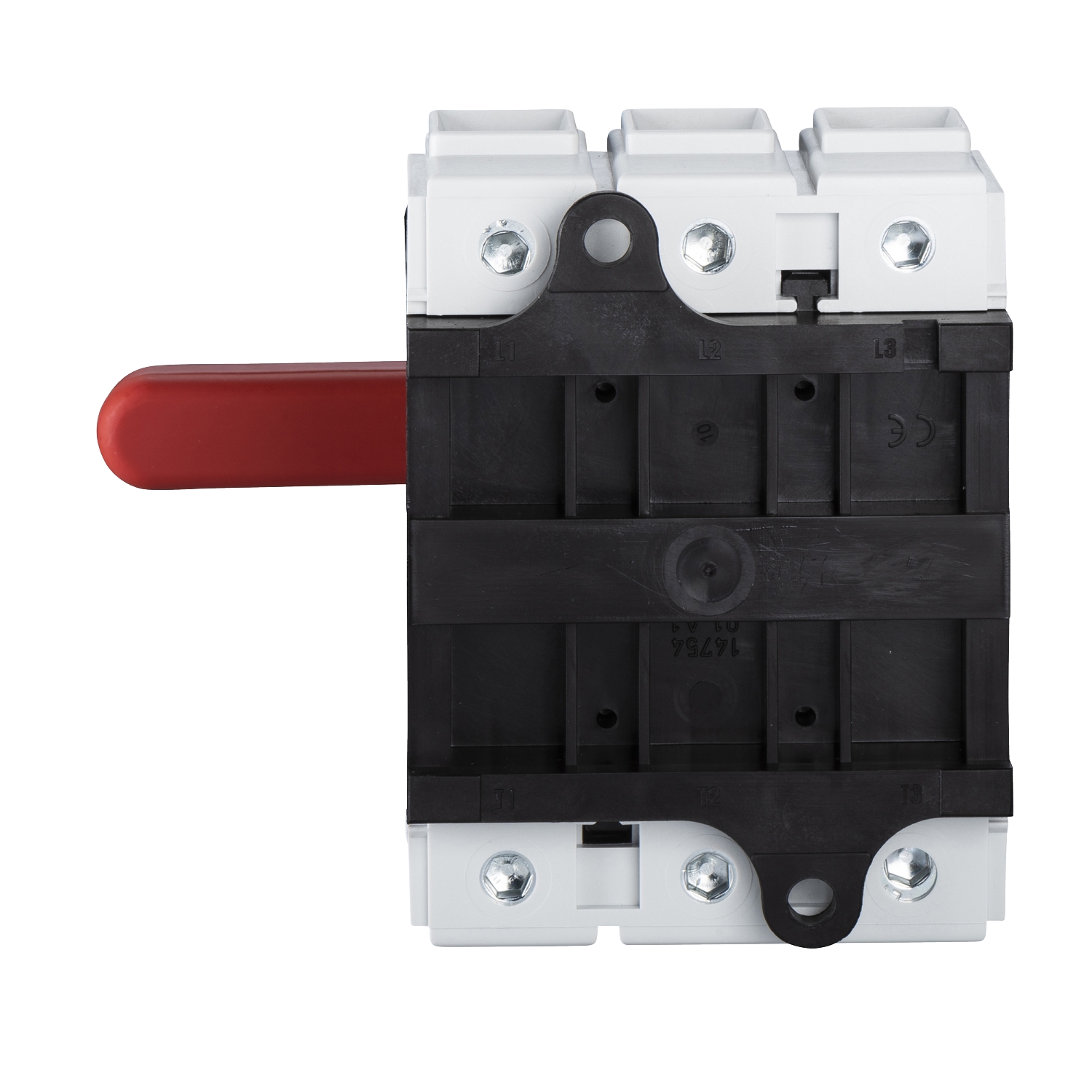

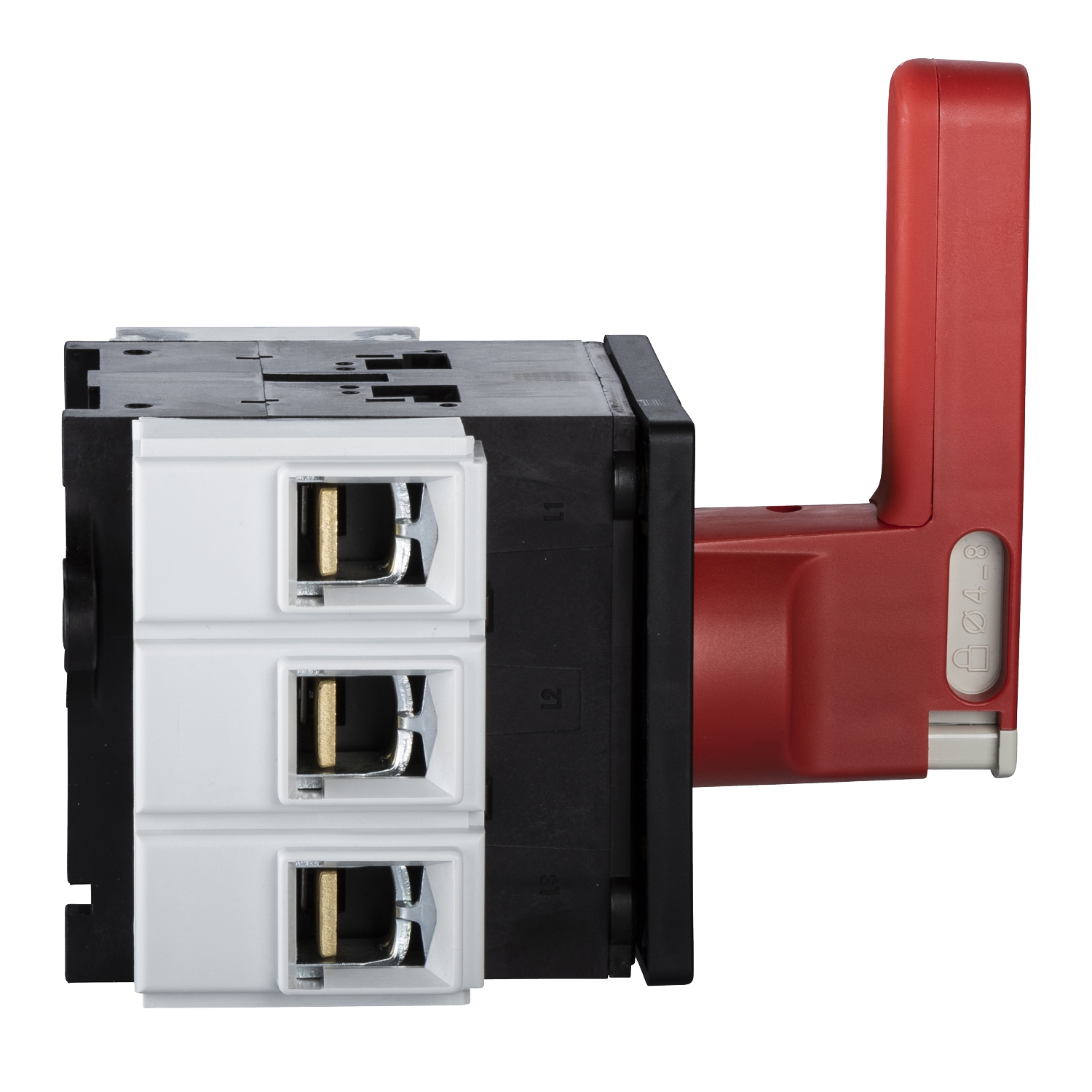

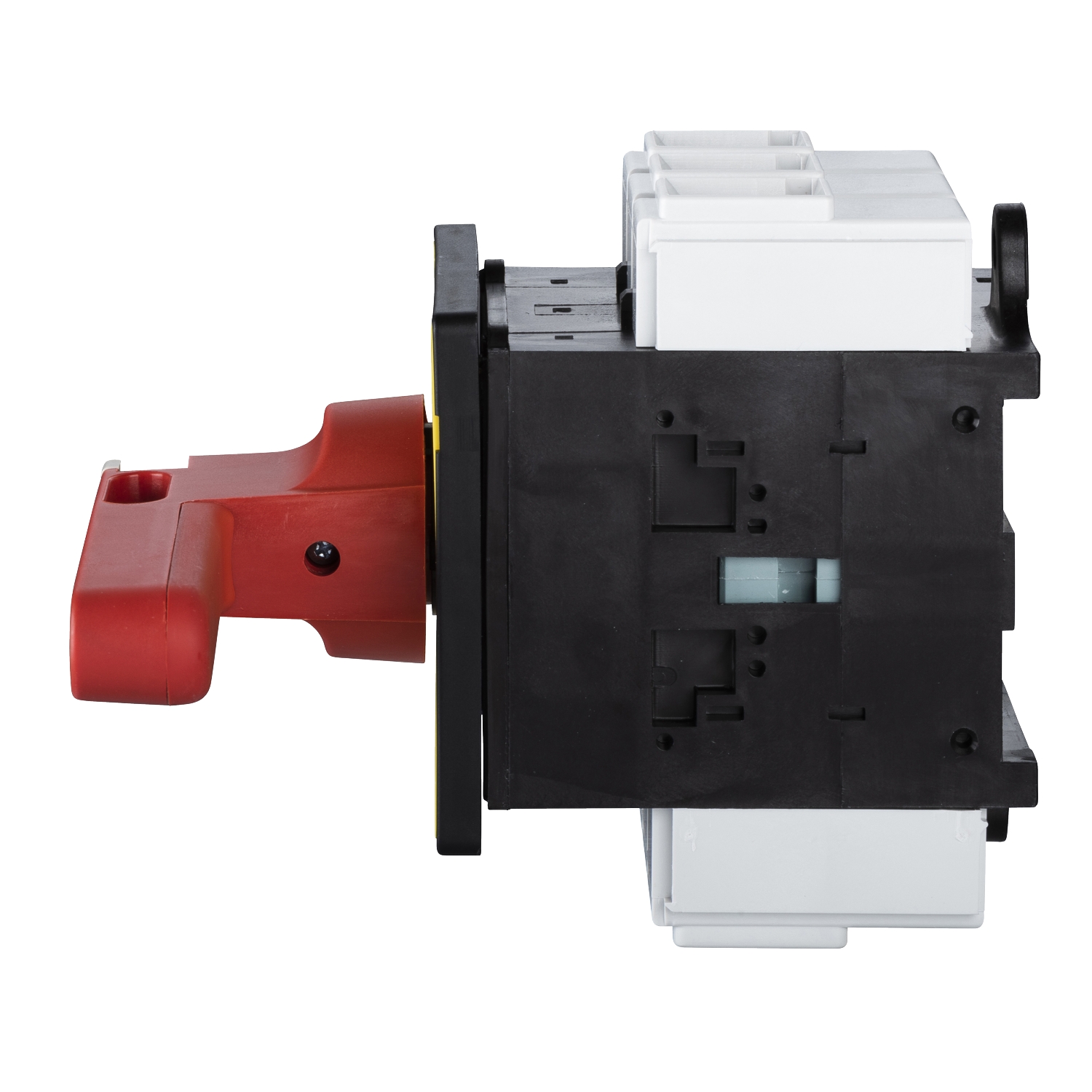

VCF5 is a 3-pole TeSys Vario switch-disconnector from Schneider Electric for emergency stop switching in motor applications 37kW@400V AC-23. Door mounting with 4 screw fixing, it provides a red & yellow operator with IP65 protection. VCF5 is a 3-pole TeSys Vario switch-disconnector from Schneider Electric for main and emergency stop switching in motor applications 37kW@400V AC-23. It consists of a V5 Vario switch body and a padlockable red & yellow operator to be mounted on door with 4 screws fixing. It ensures an IP65 protection to the mounting. Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine) and Green Premium compliant (RoHs/Reach). Vario 3-pole rotary switch disconnector for door mounting. Composed with a switch body V5 and a long red handle with yellow plate, for emergency stop, padlockable. Ensures an IP65 protection to the mounting. Rated for 690V AC operation, DC operation is permitted until 250V, performance depending on the number of contacts in series. Possible attachment of 2 add-on poles (1 in each side) , neutral (VZ13), earthing (VZ16), auxiliary (VZ7, VZ20).
Switch disconnector,TeSys Control,for ON/emergency stop,125A,4 screws fixing,for mounting on door
VCF5
Range | TeSys |
---|---|
Product Name | TeSys VARIO |
Device Short Name | VCF |
Product Type | Emergency stop switch disconnector |
Device Composition | Switch Handle |
---|---|
Mounting Support | Handle door Switch door |
Mounting Method | By 4 screws handle |
Performance Level | High performance |
Number of Poles | 3P |
Contact Type and Composition | 3 NO |
[Ue] IEC Rated Operational Voltage | 690 V AC 50/60 Hz |
IEC Rated Operational Power in W | 22 kW 230…240 V AC-3) 30 kW 400…415 V AC-3) 30 kW 690 V AC-3) 37 kW 500 V AC-3) 37 kW 690 V AC-23A) 45 kW 500 V AC-23A) 22 kW 230…240 V AC-23A) 37 kW 400…415 V AC-23A) |
[Ie] Rated Operational Current | 68.5 A AC-23 Ue: 400 V |
[Ith] Conventional Free Air Thermal Current | 125 A |
[Ithe] Conventional Enclosed Thermal Current | 100 A |
Making Capacity ( I Rms) | 1250 A 400 V AC-21A 1250 A 400 V AC-22A 1250 A 400 V AC-23A |
Breaking Capacity | 1000 A 400 V AC-21A) 1000 A 400 V AC-22A) 1000 A 400 V AC-23A) |
Rated Conditional Short Circuit Current | 10 kA 400 V 125 A aM 10 kA 400 V 125 A gG |
[Icm] Rated Short Circuit Making Capacity | 2.8 kA 400 V at Ipeak |
[Icw] Rated Short Time Withstand Current | 1500 A 400 V 1 s |
[Uimp] Rated Impulse Withstand Voltage | 8 kV |
Suitability for Isolation | Yes |
Network Type | AC DC |
Intermittent Duty Class | 30 |
Control Type | Rotary handle |
Rotary Handle Mounting Style | Direct |
Handle Color | Red |
Handle Front Plate Color | Yellow |
Rotary Handle Padlocking | 1 to 3 padlocks 0.2…0.3 in (4…8 mm) |
Marking | 0 – 1 |
Mechanical Durability | 30000 cycles |
Electrical Durability | 30000 cycles AC-21 30000 cycles DC-1…5 |
IEC Terminal Connection | Power circuit screw clamp terminals 0.1 in² (95 mm²) solid Power circuit screw clamp terminals 0.1 in² (70 mm²) flexible – with cable end |
Tightening Torque | Power circuit 200.03 lbf.in (22.6 N.m) screw clamp terminals |
Base Dimension | 90 x 90 mm |
Height | 4.9 in (125 mm) |
Width | 3.5 in (90 mm) |
Product Weight | 2.6 lb(US) (1.2 kg) |
Standards | IEC 60947-3 |
---|---|
Product Certifications | CCC CSA GL UL UKCA |
Degree of Protection | IP20 conforming to IEC 60529 IP65 |
Protective Treatment | TC |
Mechanical Robustness | Vibrations 10…150 Hz 1 gn) IEC 60068-2-6 Shocks 11 ms 30 Gn) IEC 60068-2-27 |
Ambient Air Temperature for Operation | -4.0000000000…122.0000000000 °F (-20…50 °C) |
Fire Resistance | 1760.0000000000 °F (960 °C) IEC 60695-2-1 |
Compatibility Code | Main switch disconnector |
Category | US10CP121730 |
---|---|
Discount Schedule | 0CP1 |
GTIN | 3389110804638 |
Returnability | Yes |
Country of origin | US |
Unit Type of Package 1 | PCE |
---|---|
Number of Units in Package 1 | 1 |
Package 1 Height | 3.937 in (10.000 cm) |
Package 1 Width | 6.693 in (17.000 cm) |
Package 1 Length | 6.890 in (17.500 cm) |
Package 1 Weight | 2.348 lb(US) (1.065 kg) |
Unit Type of Package 2 | P06 |
Number of Units in Package 2 | 50 |
Package 2 Height | 29.528 in (75.000 cm) |
Package 2 Width | 23.622 in (60.000 cm) |
Package 2 Length | 31.496 in (80.000 cm) |
Package 2 Weight | 141.515 lb(US) (64.190 kg) |
Warranty | 18 months |
---|
Peso | 1.217 kg |
---|---|
Dimensiones | 17 × 17.5 × 10 cm |
