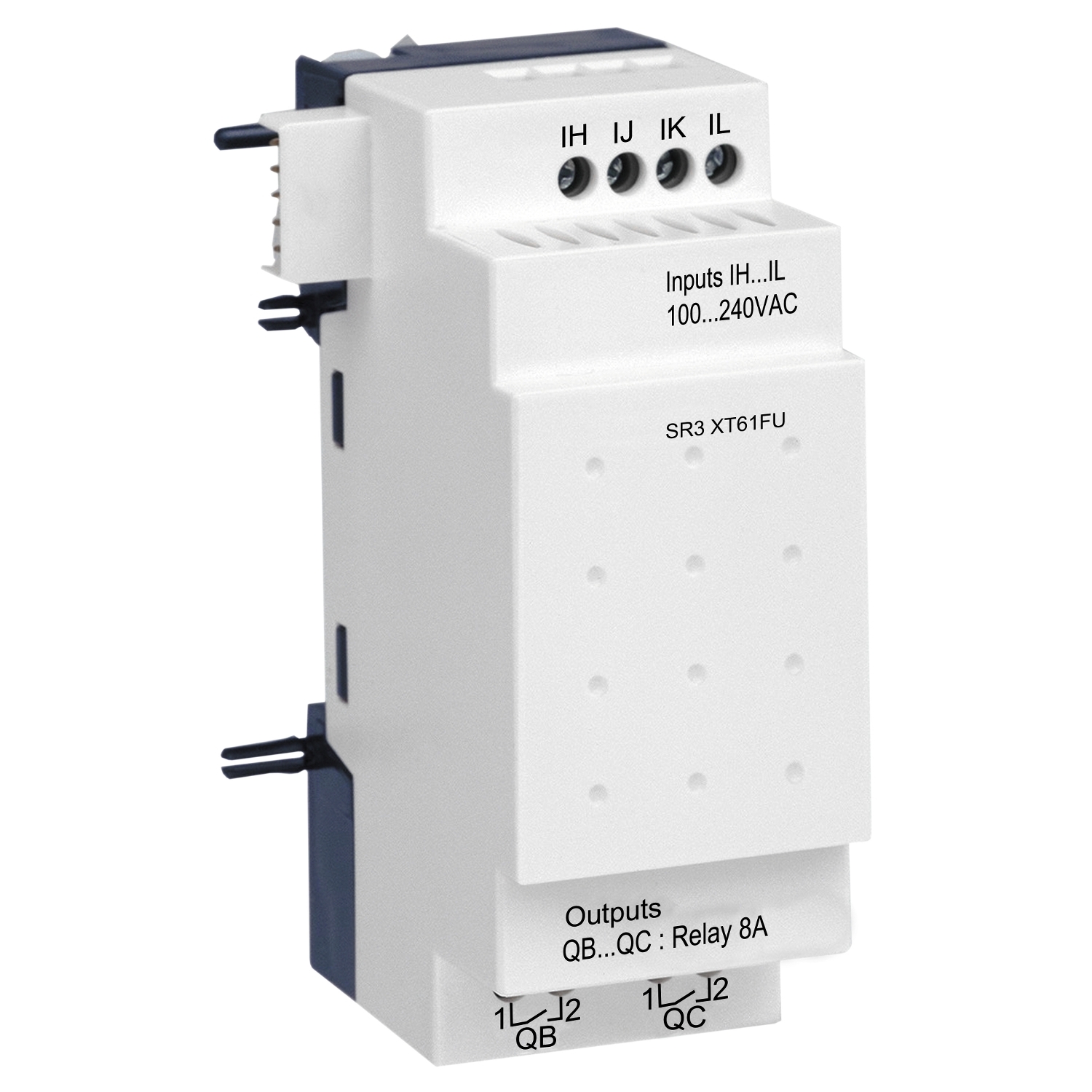

discrete IO extension module, Zelio Logic SR2 SR3, 6 IO, 100 to 240V AC
SR3XT61FU
| Range of Product | Zelio Logic |
|---|---|
| Product or Component Type | Discrete I/O extension module |
| Number or control scheme lines | 120 ladder |
|---|---|
| Cycle time | 6…90 ms |
| Backup time | 10 years 77.0000000000 °F (25 °C) |
| Clock drift | 12 min/year 32.0000000000…131.0000000000 °F (0…55 °C) |
| Checks | Program memory on each power up |
| [Us] rated supply voltage | 100…240 V AC |
| Supply voltage limits | 85…264 V |
| Supply frequency | 50/60 Hz |
| Reverse polarity protection | With |
| Discrete input number | 4 |
| Discrete input voltage | 100…240 V AC |
| Discrete input current | 0.6 mA |
| Discrete input frequency | 57…63 Hz 47…53 Hz |
| Voltage state 1 guaranteed | >= 79 V discrete input |
| Voltage state 0 guaranteed | <= 40 V discrete input |
| Current state 1 guaranteed | >= 0.17 mA discrete input) |
| Current state 0 guaranteed | <= 0.5 mA discrete input) |
| Input impedance | 350 kOhm discrete input |
| Number of Outputs | 2 relay |
| Output voltage limits | 5…30 V DC relay output) 24…250 V AC |
| Contacts type and composition | NO relay output |
| Output thermal current | 8 A for all 2 outputs relay output |
| Electrical durability | AC-15 500000 cycles 230 V, 0.9 A relay output IEC 60947-5-1 AC-12 500000 cycles 230 V, 1.5 A relay output IEC 60947-5-1 DC-13 500000 cycles 24 V, 0.6 A relay output IEC 60947-5-1 DC-12 500000 cycles 24 V, 1.5 A relay output IEC 60947-5-1 |
| Switching capacity in mA | >= 10 mA 12 V relay output) |
| Operating rate in Hz | 0.1 Hz at Ie)relay output 10 Hz no load)relay output |
| Mechanical durability | 10000000 cycles relay output |
| [Uimp] rated impulse withstand voltage | 4 kV EN/IEC 60947-1 and EN/IEC 60664-1 |
| Response time | 50 ms ladder from state 0 to state 1)discrete input 50 ms ladder from state 1 to state 0)discrete input 50…255 ms FBD from state 0 to state 1)discrete input 50…255 ms FBD from state 1 to state 0)discrete input 10 ms from state 0 to state 1)relay output 5 ms from state 1 to state 0)relay output |
| Connections – terminals | Screw terminals, 1 x 0.25…1 x 2.5 mm² AWG 24…AWG 14) flexible with cable end Screw terminals, 2 x 0.25…2 x 0.75 mm² AWG 24…AWG 18) flexible with cable end Screw terminals, 1 x 0.2…1 x 2.5 mm² AWG 25…AWG 14) semi-solid Screw terminals, 1 x 0.2…1 x 2.5 mm² AWG 25…AWG 14) solid Screw terminals, 2 x 0.2…2 x 1.5 mm² AWG 24…AWG 16) solid |
| Tightening torque | 4.4 lbf.in (0.5 N.m) |
| Overvoltage category | III IEC 60664-1 |
| Net Weight | 0.276 lb(US) (0.125 kg) |
| Product Certifications | CSA GOST C-tick UL GL |
|---|---|
| Standards | IEC 61000-4-11 IEC 60068-2-27 Ea IEC 61000-4-4 level 3 IEC 61000-4-5 IEC 61000-4-12 IEC 60068-2-6 Fc IEC 61000-4-2 level 3 IEC 61000-4-3 IEC 61000-4-6 level 3 |
| IP degree of protection | IP20 IEC 60529 terminal block) IP40 IEC 60529 front panel) |
| Environmental characteristic | EMC directive IEC 61000-6-2 EMC directive IEC 61000-6-3 EMC directive IEC 61000-6-4 EMC directive IEC 61131-2 zone B Low voltage directive IEC 61131-2 |
| Disturbance radiated/conducted | Class B EN 55022-11 group 1 |
| Pollution degree | 2 IEC 61131-2 |
| Ambient air temperature for operation | -4.0000000000…104.0000000000 °F (-20…40 °C) in non-ventilated enclosure IEC 60068-2-1 and IEC 60068-2-2 -4.0000000000…131.0000000000 °F (-20…55 °C) IEC 60068-2-1 and IEC 60068-2-2 |
| Ambient Air Temperature for Storage | -40.0000000000…158.0000000000 °F (-40…70 °C) |
| Operating altitude | 6561.68 ft (2000 m) |
| Maximum altitude transport | 10000.0000000000 ft (3048 m) |
| Relative Humidity | 95 % without condensation or dripping water |
| Category | US1000I22378 |
|---|---|
| Discount Schedule | 000I |
| GTIN | 3389110550122 |
| Returnability | Yes |
| Country of origin | US |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 2.362 in (6.000 cm) |
| Package 1 Width | 2.559 in (6.500 cm) |
| Package 1 Length | 4.331 in (11.000 cm) |
| Package 1 Weight | 4.162 oz (118.000 g) |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 48 |
| Package 2 Height | 11.811 in (30.000 cm) |
| Package 2 Width | 11.811 in (30.000 cm) |
| Package 2 Length | 15.748 in (40.000 cm) |
| Package 2 Weight | 13.556 lb(US) (6.149 kg) |
| Warranty | 18 months |
|---|
