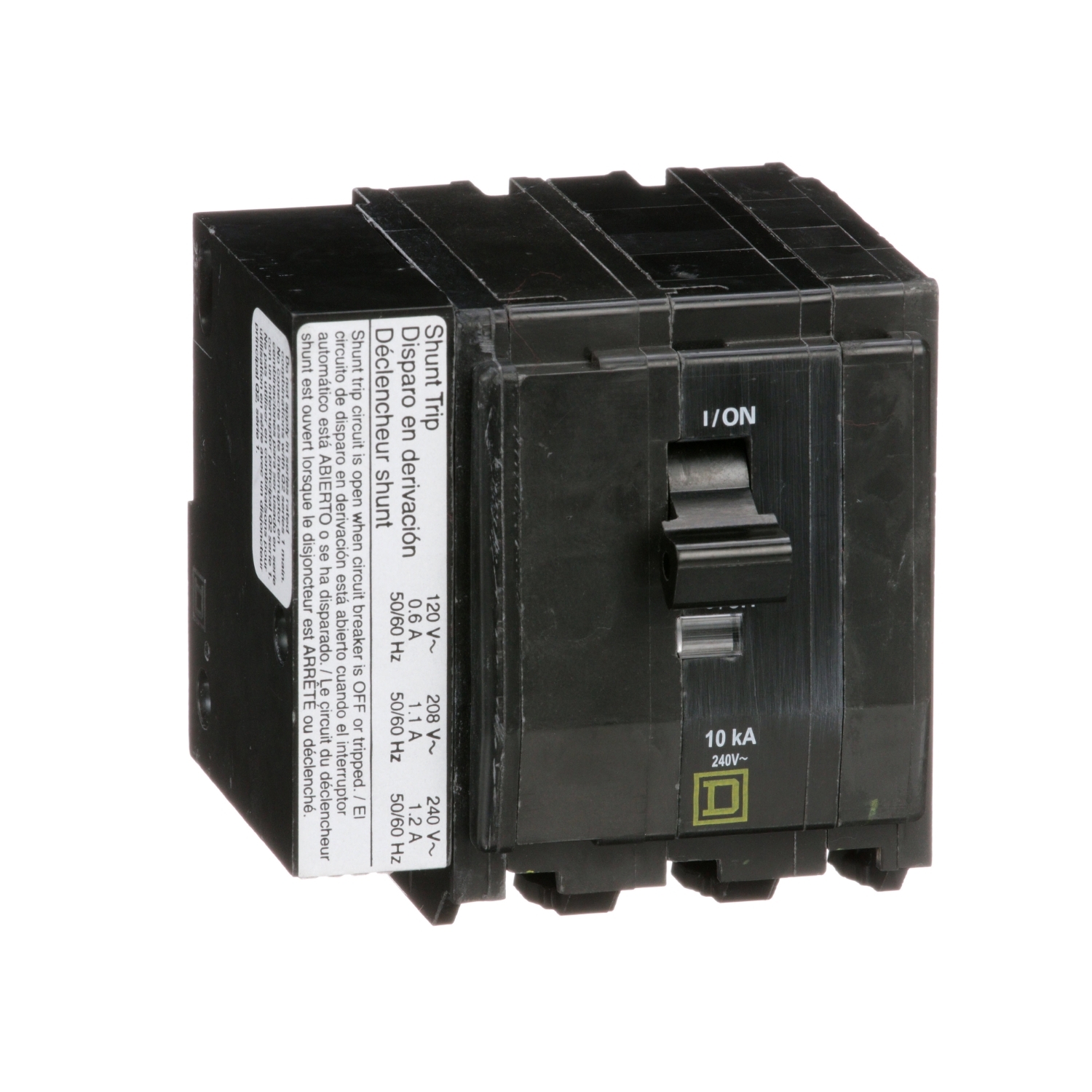

QO3201021, Mini circuit breaker, QO, 20A, 3 pole, 120/240VAC, 10kA, plug in, AC shunt

MXN $5,138.00 - (IVA Incluido) + Envío

100 disponibles

QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This 3 pole QO circuit breaker is rated at 20A at 120/240VAC. This unit provides 10kA breaking capacity and plug in mounting. This product includes an AC shunt trip. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.

Buy it now
Brands:
SKU: QO3201021

Mini circuit breaker, QO, 20A, 3 pole, 120/240VAC, 10kA, plug in, AC shunt

QO3201021

Main
Product Miniature circuit-breaker
Range QO
Current Rating 20 A
Voltage Rating 120/240 V AC
240 V AC
120 V AC
Mounting Type Plug-in
Number of Poles 3P
Circuit Breaker Type Standard
Ratings HACR rated
Electrical Connection Pressure plate
Options Shunt trip 120/208/240 V AC
Complementary
Interrupt Rating 10 kA 120/240 V AC
10 kA 240 V AC
10 kA 120 V AC
Number of Panel Spaces 4
Wire Size AWG 14…AWG 8 copper or aluminium
Tightening Torque 35.4 lbf.in (4 N.m)
Height 3.0 in (76 mm)
Width 3.0 in (76 mm)
Depth 2.9 in (74 mm)
Net Weight 1.190 lb(US) (0.540 kg)
Environment
Certifications UL Listed
CSA
Ambient Rating 104.0000000000 °F (40 °C)
Ordering and shipping details
Category US1DE2A00012
Discount Schedule DE2A
GTIN 785901494096
Returnability No
Country of origin IE
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 3.200 in (8.128 cm)
Package 1 Width 3.700 in (9.398 cm)
Package 1 Length 4.600 in (11.684 cm)
Package 1 Weight 19.040 oz (539.775 g)
Contractual warranty
Warranty 18 months
Peso 5 kg
Dimensiones 15 × 15 × 15 cm
Product Datasheet
Environmental Disclosure
