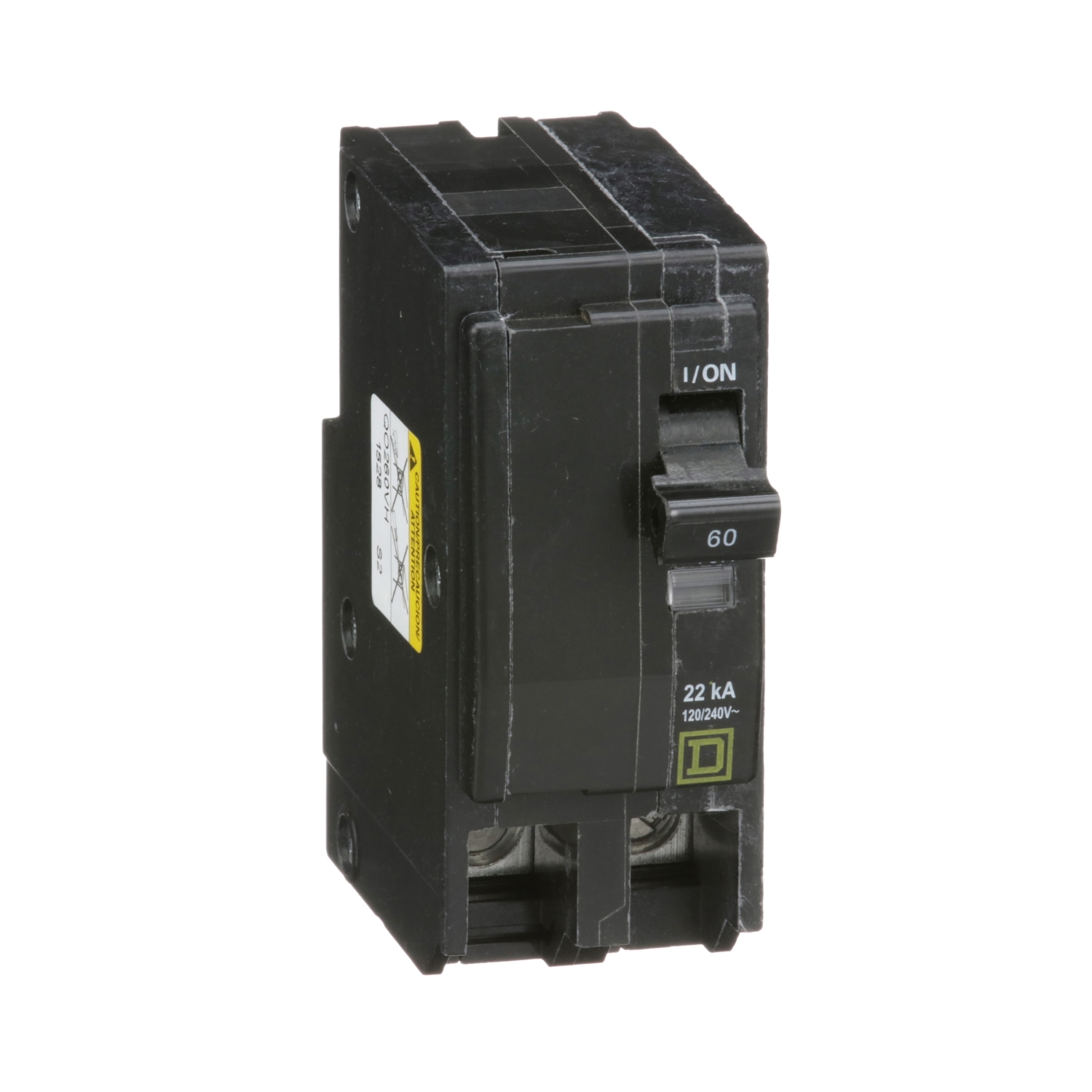

QO260VH, Mini circuit breaker, QO, 60A, 2 pole, 120/240VAC, 22kA, plug in

MXN $1,938.00 - (IVA Incluido) + Envío

1 disponibles

QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This 2 pole QO circuit breaker is rated at 60A at 120/240VAC. This unit provides 22kA breaking capacity and plug in mounting. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.

Buy it now
Brands:
SKU: QO260VH

Mini circuit breaker, QO, 60A, 2 pole, 120/240VAC, 22kA, plug in

QO260VH

Main
Product Miniature circuit-breaker
Range QO
Current Rating 60 A
Voltage Rating 120/240 V AC
120 V AC
Mounting Type Plug-in
Number of Poles 2P
Circuit Breaker Type Standard
Ratings HACR rated
Electrical Connection Box lugs
Complementary
Interrupt Rating 22 kA 120/240 V AC
22 kA 120 V AC
Number of Panel Spaces 2
Wire Size AWG 8…AWG 2 copper or aluminium
Tightening Torque 49.6 lbf.in (5.6 N.m)
Height 3.1 in (79 mm)
Width 1.5 in (38 mm)
Depth 2.9 in (74 mm)
Net Weight 0.701 lb(US) (0.318 kg)
Environment
Certifications UL Listed
CSA
Ambient Rating 104.0000000000 °F (40 °C)
Ordering and shipping details
Category US1DE2A00926
Discount Schedule DE2A
GTIN 785901054979
Returnability Yes
Country of origin MX
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 1.50 in (3.81 cm)
Package 1 Width 3.120 in (7.925 cm)
Package 1 Length 2.910 in (7.391 cm)
Package 1 Weight 11.2 oz (318.0 g)
Unit Type of Package 2 CAR
Number of Units in Package 2 51
Package 2 Height 4.0000000000 in (10.16 cm)
Package 2 Width 13.50 in (34.29 cm)
Package 2 Length 20.50 in (52.07 cm)
Package 2 Weight 35.733 lb(US) (16.208 kg)
Contractual warranty
Warranty 18 months
Peso 5 kg
Dimensiones 15 × 15 × 15 cm
Product Datasheet
Environmental Disclosure
