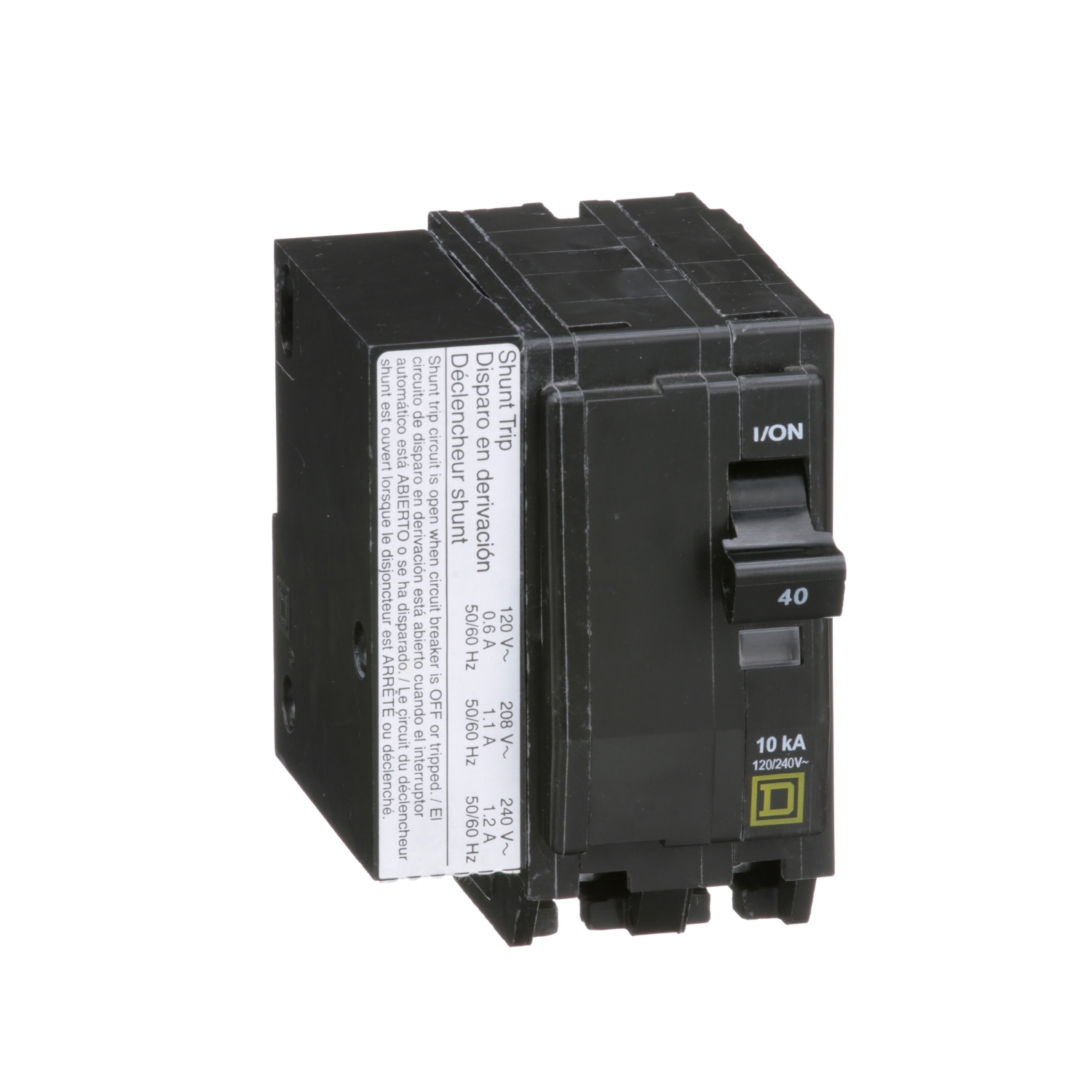

QO2401021, Mini circuit breaker, QO, 40A, 2 pole, 120/240VAC, 10kA, plug in, AC shunt

MXN $4,453.00 - (IVA Incluido) + Envío

Sin existencias

QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This 2 pole QO circuit breaker is rated at 40A at 120/240VAC. This unit provides 10kA breaking capacity and plug in mounting. This product includes an AC shunt trip. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.

Brands:
SKU: QO2401021

Mini circuit breaker, QO, 40A, 2 pole, 120/240VAC, 10kA, plug in, AC shunt

QO2401021

Main
Product Miniature circuit-breaker
Range QO
Current Rating 40 A
Voltage Rating 120/240 V AC
120 V AC
Mounting Type Plug-in
Number of Poles 2P
Circuit Breaker Type Standard
Ratings HACR rated
Electrical Connection Box lugs
Options Shunt trip 120/208/240 V AC
Complementary
Interrupt Rating 10 kA 120/240 V AC
10 kA 120 V AC
Number of Panel Spaces 3
Wire Size AWG 8…AWG 2 copper or aluminium
Tightening Torque 44.3 lbf.in (5 N.m)
Height 3.1 in (79 mm)
Width 2.2 in (57 mm)
Depth 2.9 in (74 mm)
Net Weight 0.919 lb(US) (0.417 kg)
Environment
Certifications UL Listed
CSA
Ambient Rating 104.0000000000 °F (40 °C)
Ordering and shipping details
Category US1DE2A00004
Discount Schedule DE2A
GTIN 785901493983
Returnability Yes
Country of origin MX
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 3.300 in (8.382 cm)
Package 1 Width 3.600 in (9.144 cm)
Package 1 Length 4.800 in (12.192 cm)
Package 1 Weight 14.720 oz (417.305 g)
Contractual warranty
Warranty 18 months
Peso 5 kg
Dimensiones 15 × 15 × 15 cm
Product Datasheet
Instruction Sheet
Environmental Disclosure
