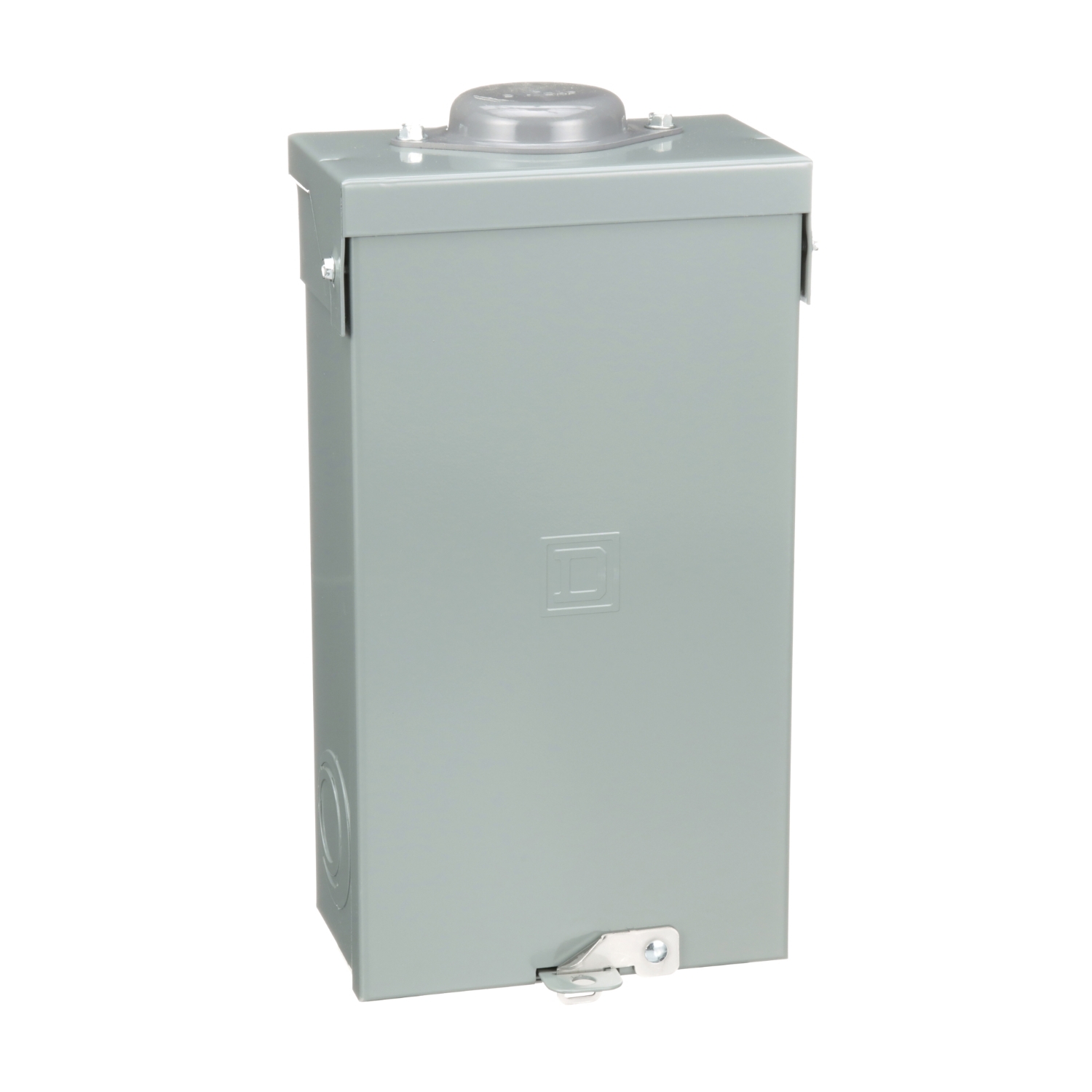

Circuit breaker enclosure, QO, 1 phase, 2 spaces, 100A, NEMA3R, UL
QO2100BNRB
| Product Type | Enclosure |
|---|---|
| Range of Product | QO |
| Current Rating | 100 A |
|---|---|
| Interrupt Rating | 22 kA |
| Number of Spaces | 2 |
| Maximum Number of Single Pole Circuits | 2 |
| Maximum Number of Tandem Breakers | 0 |
| Number of Phases | 1 phase |
| Enclosure Rating | NEMA 3R outdoor |
| Breaker Compatibility | Circuit breaker QO 2P |
| Product Certifications | UL Listed |
| Wiring Configuration | 3-wire |
| Electrical Connection | Lugs |
| Wire Size | AWG 14…AWG 1 copper |
| Surface Finish | Baked enamel Gray |
| Busbar Material | Tin plated copper: busbar |
| Tightening Torque | 35 lb.in, AWG 14…AWG 10, copper 35 lb.in, AWG 12…AWG10, aluminium 40 lb.in, AWG 8…AWG 4, aluminium/copper 50 lb.in, AWG 3…AWG 2, aluminium/copper Main lugs 50 lb.in, AWG 3…AWG 1, aluminium/copper |
| Box Number | 10R |
| Ground Bar | Grounding bar (ordered separately) |
| Enclosure Material | Welded galvannealed steel |
| Enclosure Type | Enclosure |
| Height | 13.2 in (335 mm) |
| Width | 6.9 in (176 mm) |
| Depth | 4.12 in (104.65 mm) |
| Category | US1DE2A00005 |
|---|---|
| Discount Schedule | DE2A |
| GTIN | 785901051749 |
| Returnability | Yes |
| Country of origin | US |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.0000000000 in (12.7 cm) |
| Package 1 Width | 14.50 in (36.83 cm) |
| Package 1 Length | 7.900 in (20.066 cm) |
| Package 1 Weight | 8.049 lb(US) (3.651 kg) |
| Unit Type of Package 2 | PAL |
| Number of Units in Package 2 | 105 |
| Package 2 Height | 41.0000000000 in (104.14 cm) |
| Package 2 Width | 40.0000000000 in (101.6 cm) |
| Package 2 Length | 48.0000000000 in (121.92 cm) |
| Package 2 Weight | 907.00 lb(US) (411.408 kg) |
| Warranty | 18 months |
|---|
