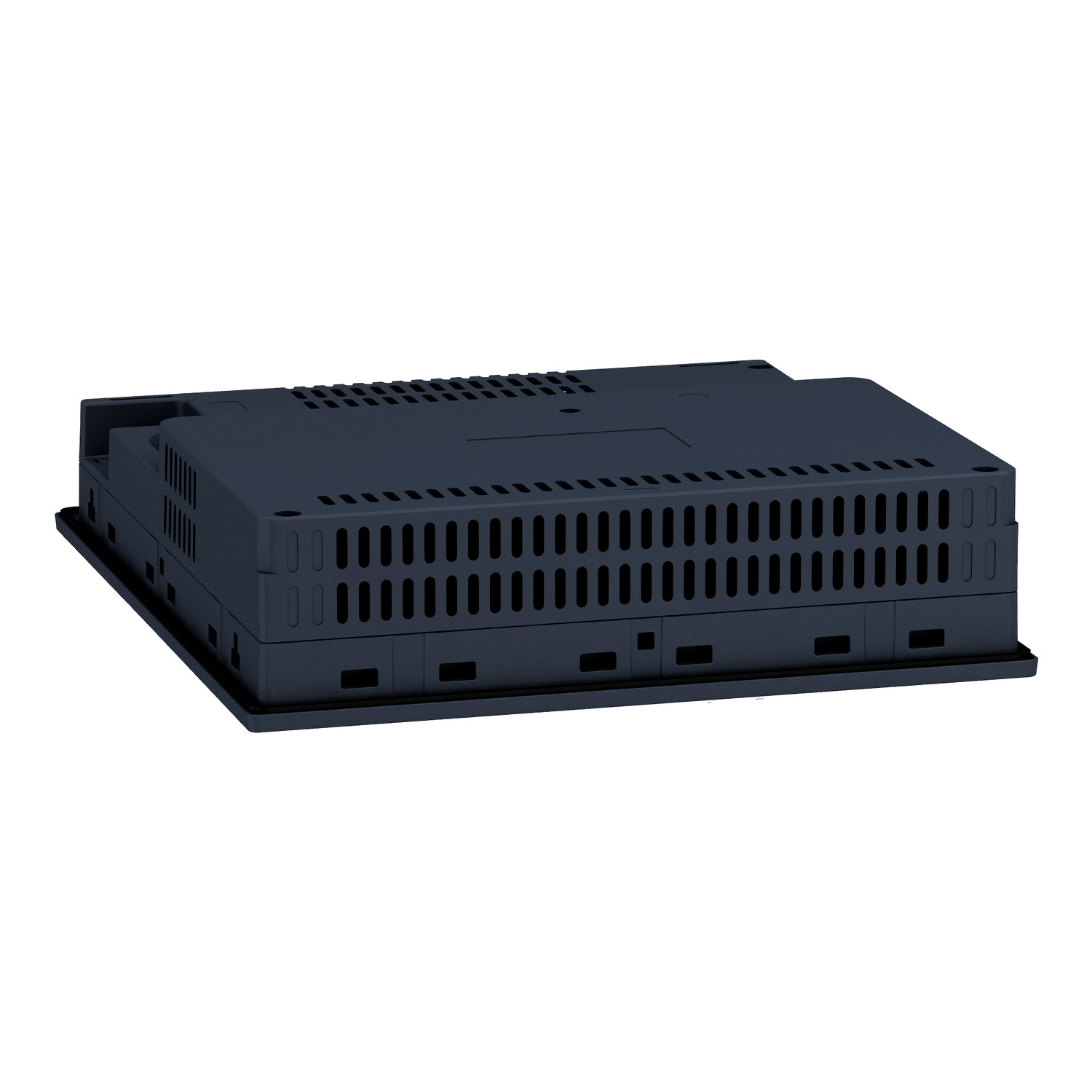

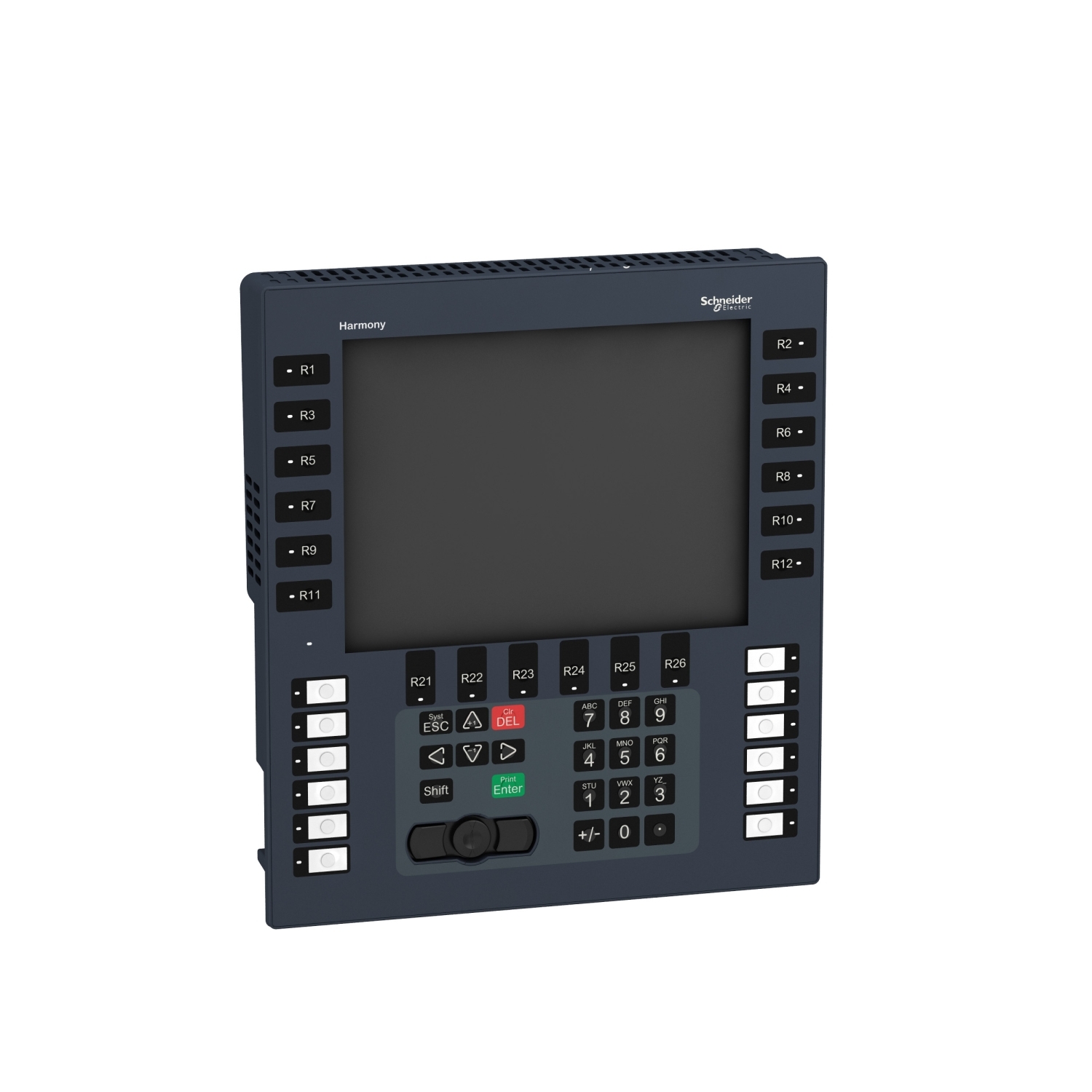

HMIGK5310, Keypad-touchscreen panel color – 640 x 480 pixels VGA -10.4″ – TFT LCD

MXN $80,366.00 - (IVA Incluido) + Envío

Sin existencias

This Magelis GK keypad-touchscreen operator interface (HMI) is supplied with 24V DC, has a 10.4″ color TFT LCD display with, 640 x 480 pixels (VGA), a complete keypad and 128MB EPROM. It also has 1 SD card slot, 1 host + 1 mini-B USB ports, 1 RS232C port, 1 RS485 port and 1 Ethernet TCP/IP port. It is ideal for complete control of an automation system in industry such as complex machines, CNC machines, food & beverage machines and pharmaceutical industry. The screen displays text messages, graphic objects and mimic diagrams, control and configuration of data. It also offers 18 dynamic function keys, 12 static function keys, 12 alphanumeric keys, 8 service keys and an industrial mouse pointer. Its RS485 host port makes it ideal to supervise and control simple systems and machines.

SKU: HMIGK5310

Keypad-touchscreen panel color – 640 x 480 pixels VGA -10.4″ – TFT LCD

HMIGK5310

Main
Range of Product Harmony GK
Product or Component Type Touchscreen panel with keypad
Display colour 65536 colours
display size 10.4 inch
Supply External source
operating system Harmony
Processor name CPU RISC
Complementary
Display Type Backlit colour TFT LCD
display resolution 640 x 480 pixels VGA
Touch sensitive zone 1024 x 1024
Touch panel Analogue
Backlight lifespan 50000 hours
Brightness 16 levels via touch panel
Character font Japanese (ANK, Kanji)
Korean
ASCII (European characters)
Taiwanese (traditional Chinese)
Chinese (simplified Chinese)
[Us] rated supply voltage 24 V DC
Supply voltage limits 19.2…28.8 V
Inrush current 30 A
power consumption in W 11.4 W
Number of dynamic function keys symb 18 with LED
Number of static function keys 12 with LED and labels
Number of SERVICE keys 8
Number of alphanumeric keys 12
Local signalling for normal operation or backlighting faulty 1 LED (green or orange)
Number of pages Limited by internal memory capacity
Software Type Configuration software
Software Designation Vijeo Designer
Processor frequency 333 MHz
Memory description 512 KB SRAM back up of data lithium battery
128 MB flash EPROM application memory
Downloadable protocols Telemecanique Modicon FIPWAY
Telemecanique Modicon Modbus Plus
Telemecanique Modicon Modbus TCP
Telemecanique Modicon Modbus
Mitsubishi Melsec third party protocols
Omron Sysmac third party protocols
Rockwell Automation Allen-Bradley third party protocols
Siemens Simatic third party protocols
Telemecanique Modicon Uni-TE
Realtime clock Built-in
Memory type Up to 32 GB SD card RAM
Up to 32 GB SDHC card RAM
Integrated connection type <= 187.5 kbit/s RJ45, RS485 COM2 serial link Siemens MPI (187.5 kbits/s)
USB 2.0 type A master Modicon M340 terminal port communication
<= 115.2 kbits/s male SUB-D 9, RS232C COM1 serial link
removable screw terminal block power supply
RJ45 Ethernet TCP/IP
USB 2.0 type mini B
Port Ethernet 10BASE-T/100BASE-TX
Mounting Mode Flush mounting
Fixing Mode By 12 spring clips
Front material Aluminium alloy
Enclosure Material PPT
marking CE
Width 11.7 in (296 mm)
Height 13.07 in (332 mm)
Depth 3.0 in (76 mm)
Cut-out dimensions 285 (+/- 0.4) x 309 (+/- 0.4) mm
Net Weight 7.3 lb(US) (3.3 kg)
Environment
Immunity to microbreaks 10 ms
Standards IEC 61000-6-2
IEC 61000-6-4
CSA C22.2 No 213
UL 61010-2-201
ANSI/ISA 12.12.01
IEC 61131-2
Product Certifications cULus
EAC
UL Class 1 Division 2 T5
KC
UL Class 1 Division 2 T4A
RCM
CSA Class 1 Division 2 T4A
CSA Class 1 Division 2 T5
UKCA
Ambient Air Temperature for Operation 32.0000000000…131.0000000000 °F (0…55 °C)
Ambient Air Temperature for Storage -4.0000000000…140.0000000000 °F (-20…60 °C)
Relative humidity 10…90 % without condensation
Operating altitude < 6561.68 ft (2000 m)
IP degree of protection IP20 IEC 60529 rear panel)
IP65 IEC 60529 front panel)
NEMA degree of protection NEMA 4X front panel (indoor use)
Shock resistance 15 gn 11 ms IEC 60068-2-27
Vibration resistance 1 gn 9…150 Hz)IEC 60068-2-6
3.5 mm 5…9 Hz)IEC 60068-2-6
Electromagnetic compatibility Resistance to electrostatic discharge – test level: 4 kV level 3 conforming to IEC 61000-4-2
Resistance to radiated electromagnetic fields – test level: 10 V/m conforming to IEC 61000-4-3
Resistance to fast transient – test level: 2 kV level 3 conforming to IEC 61000-4-4
Ordering and shipping details
Category US10MC222569
Discount Schedule 0MC2
GTIN 3606480992094
Returnability Yes
Country of origin CN
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 8.8 in (22.4 cm)
Package 1 Width 14.6 in (37.2 cm)
Package 1 Length 17.9 in (45.5 cm)
Package 1 Weight 12.901 lb(US) (5.852 kg)
Peso 5.852 kg
Dimensiones 37.2 × 45.5 × 22.4 cm
