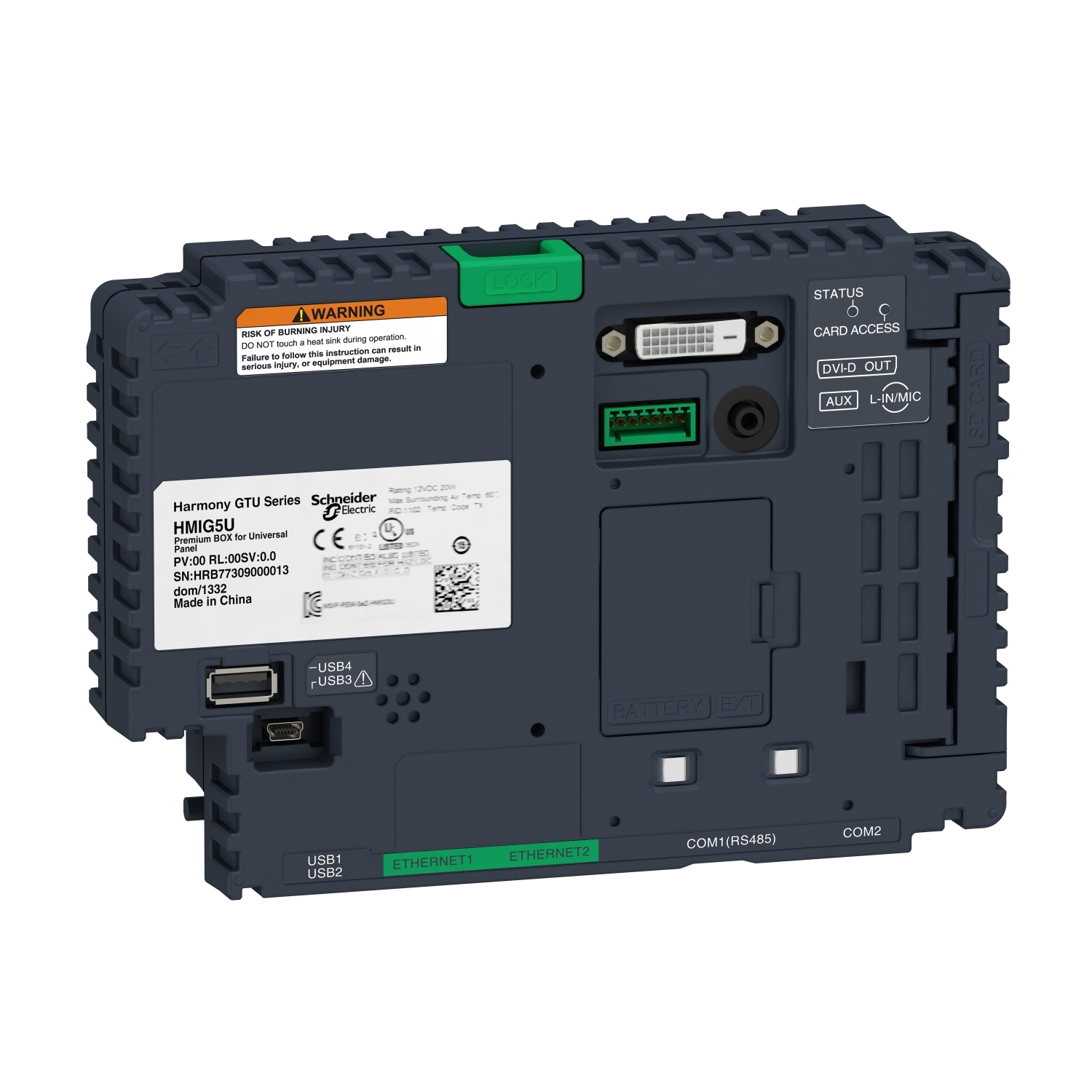

HMIG5U, Base unit, Harmony GTU, spare part, open box for universal panel

MXN $74,844.00 - (IVA Incluido) + Envío

4 disponibles

This Magelis GTU open box module has 2GB of RAM, an x86 1.3GHz CPU, 1 SD card and 2 CFast card slots including a 16GB card with Windows 7 Embedded pre-installed. It also has 2 host + 1 mini-B USB ports, 1 RS232C/RS422/RS485 port, 1 RS485 port and 2 Ethernet TCP/IP ports. This universal open box is designed for building advanced HMI systems together with Magellis universal GTU panels. It also offers a LED power indicator and a lock button to attach the box module and display. Its low consumption x86 CPU makes it ideal for low power remote stations, while preserving Windows embedded functionality. Its RS485 and Ethernet ports, ideal to supervise and control complex systems and machines.

Buy it now

Categories: HMI

Tags: HMI

SKU: HMIG5U

Base unit, Harmony GTU, spare part, open box for universal panel

HMIG5U

Main
Range of Product	Harmony GTU
Product or Component Type	Base unit
Device short name	Open Box
Range Compatibility	Harmony GTU
[Us] rated supply voltage	12…24 V DC power supply

Complementary
Integrated connection type	Ethernet TCP/IP 2 RJ45 COM1 serial link RJ45 RS485 110…115200 bit/s COM2 serial link SUB-D 9 RS232C/RS422/RS485 110…115200 bit/s Auxiliary port terminal block Expansion unit fieldbus card USB 2.0 port mini B USB DVI-D video port DVI-D Microphone mini-jack USB 2.0 port 3 USB type A
Operating system	Windows Embedded 7
Software package	Internet Explorer Vijeo Citect web client Vijeo Designer run time .NET framework 4.0 Adobe PDF reader CAD viewer Multimedia player Office reader VNC client/server
Processor name	Intel X86 1.3 GHz
Data storage equipment	16 GB CFast card
Port Ethernet	10BASE-T/100BASE-TX/1000BASE-T
Memory description	512 KB NVRAM backup memory 2 GB RAM internal
Width	7.4 in (188 mm)
Height	5.2 in (131 mm)
Net Weight	2.0 lb(US) (0.9 kg)

Environment
Standards	CSA C22.2 No 142 ANSI/ISA 12-12-01 UL 508 Class I division 2 CSA C22.2 No 213 IEC 61132-2
Ambient air temperature for operation	32.0000000000…140.0000000000 °F (0…60 °C)
Ambient air temperature for storage	-4.0000000000…140.0000000000 °F (-20…60 °C)
Pollution degree	2 EN 61131-2 Ed.3
Relative Humidity	10…90 % non-condensing
Operating altitude	6561.68 ft (2000 m)
Vibration resistance	3.5 mm constant amplitude 5…9 Hz) EN/IEC 61131-2 9.8 m/s² 9…150 Hz) EN/IEC 61131-2
Electromagnetic compatibility	Electrostatic discharge immunity test conforming to EN/IEC 61000-4-2 level 3

Ordering and shipping details
Category	US10MC222567
Discount Schedule	0MC2
GTIN	3606480687211
Returnability	Yes
Country of origin	CN

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	5.3 in (13.5 cm)
Package 1 Width	8.3 in (21.0 cm)
Package 1 Length	10.4 in (26.5 cm)
Package 1 Weight	2.560 lb(US) (1.161 kg)
