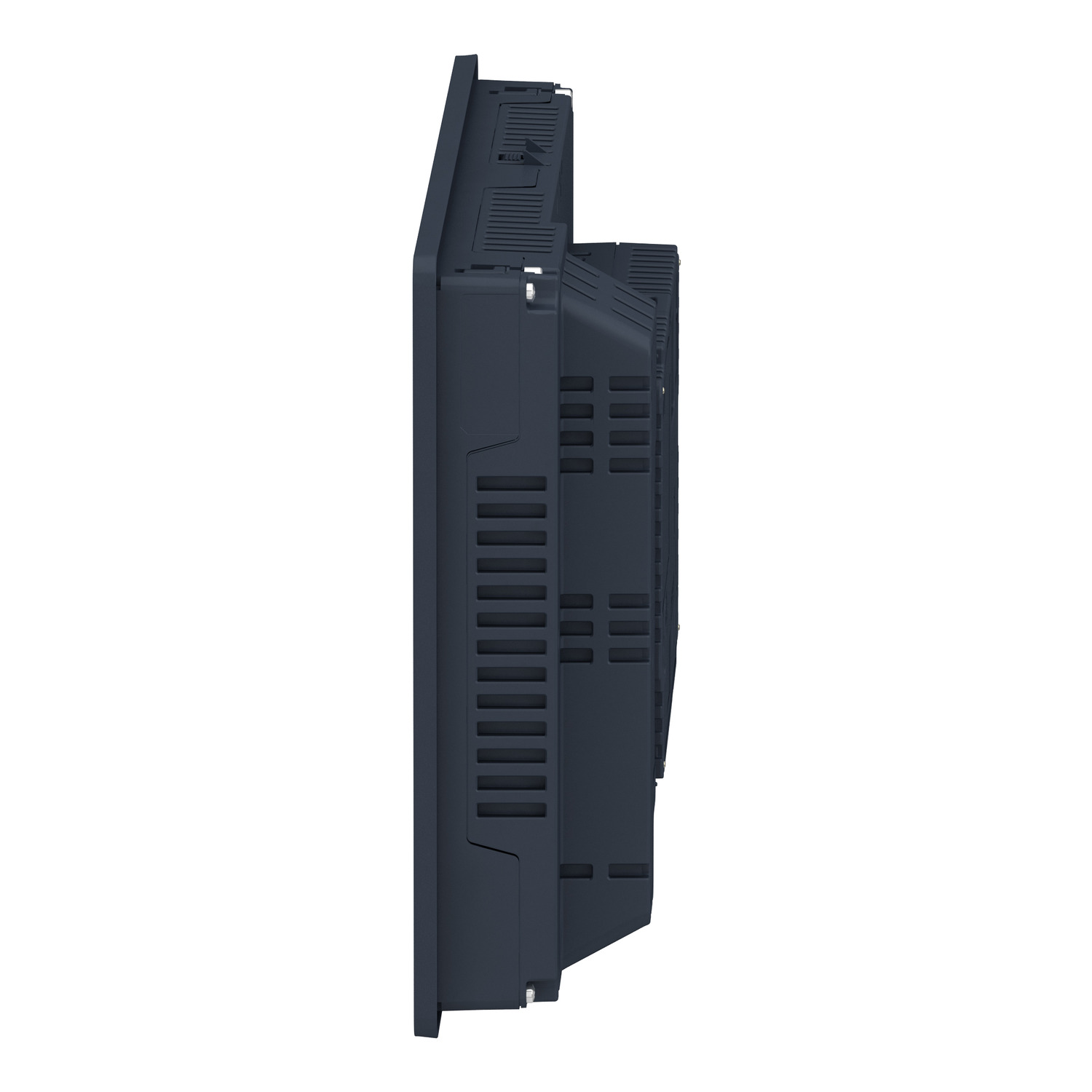

advanced touchscreen panel, Harmony GTU, 12inch wide display, 1280 x 800pixels WVGA
HMIDT651
| Range of Product | Harmony GTU |
|---|---|
| Product or Component Type | Advanced touchscreen panel |
| Terminal type | Touchscreen display |
| [Us] rated supply voltage | 12…24 V DC power supply |
| Supply voltage limits | 10.8…28.8 V |
| Power Consumption in W | 11.5 W |
| Inrush current | 30 A |
| Touchscreen resolution | 1024 x 1024 |
|---|---|
| Pixel resolution | 1280 x 800 |
| display size | 12.1 inch |
| Aspect ratio | 4:3 |
| Display type | Colour TFT LCD |
| display resolution | 1280 x 800 pixels WVGA |
| Display colour | 262144 colors |
| Backlight lifespan | 50000 hours |
| Touch panel | Single touch analogue resistive |
| Type of cooling | Natural convection |
| Type of Installation | Indoor installation |
| Cut-out dimensions | 295 (+ 1/- 0) x 217 (+ 1/- 0) mm |
| Width | 12.1 in (308.5 mm) |
| Height | 9.07 in (230.5 mm) |
| Depth | 2.6 in (67 mm) |
| Net Weight | 6.6 lb(US) (3 kg) |
| IP degree of protection | Front panel IP66 Front panel IP67 |
|---|---|
| NEMA degree of protection | NEMA 4X front panel |
| Standards | UL 508 ANSI/ISA 12-12-01 Class I division 2 CSA C22.2 No 213 CSA C22.2 No 142 IEC 61132-2 |
| Product certifications | CULus KC CE RCM UKCA UKEX |
| Ambient air temperature for operation | 32.0000000000…140.0000000000 °F (0…60 °C) IEC 61131-2 |
| Ambient air temperature for storage | -4.0000000000…140.0000000000 °F (-20…60 °C) |
| Relative Humidity | 10…90 % non-condensing |
| Operating altitude | 6561.68 ft (2000 m) |
| Vibration resistance | 3.5 mm constant amplitude 5…9 Hz) IEC 61131-2 9.8 m/s² 9…150 Hz) IEC 61131-2 |
| Shock resistance | 147 m/s²IEC 61131-2 |
| Electromagnetic compatibility | Electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2 |
| Category | US10MC222567 |
|---|---|
| Discount Schedule | 0MC2 |
| GTIN | 3606480687266 |
| Returnability | Yes |
| Country of origin | US |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 7.3 in (18.6 cm) |
| Package 1 Width | 13.0 in (33.0 cm) |
| Package 1 Length | 16.9 in (43.0 cm) |
| Package 1 Weight | 10.1 lb(US) (4.6 kg) |
| Unit Type of Package 2 | CAR |
| Number of Units in Package 2 | 2 |
| Package 2 Height | 16.5 in (42.0 cm) |
| Package 2 Width | 13.6 in (34.5 cm) |
| Package 2 Length | 18.1 in (46.0 cm) |
| Package 2 Weight | 20.485 lb(US) (9.292 kg) |
| Unit Type of Package 3 | P12 |
| Number of Units in Package 3 | 20 |
| Package 3 Height | 43.3 in (110.0 cm) |
| Package 3 Width | 31.5 in (80.0 cm) |
| Package 3 Length | 47.2 in (120.0 cm) |
| Package 3 Weight | 228.44 lb(US) (103.62 kg) |
| Warranty | 18 months |
|---|
