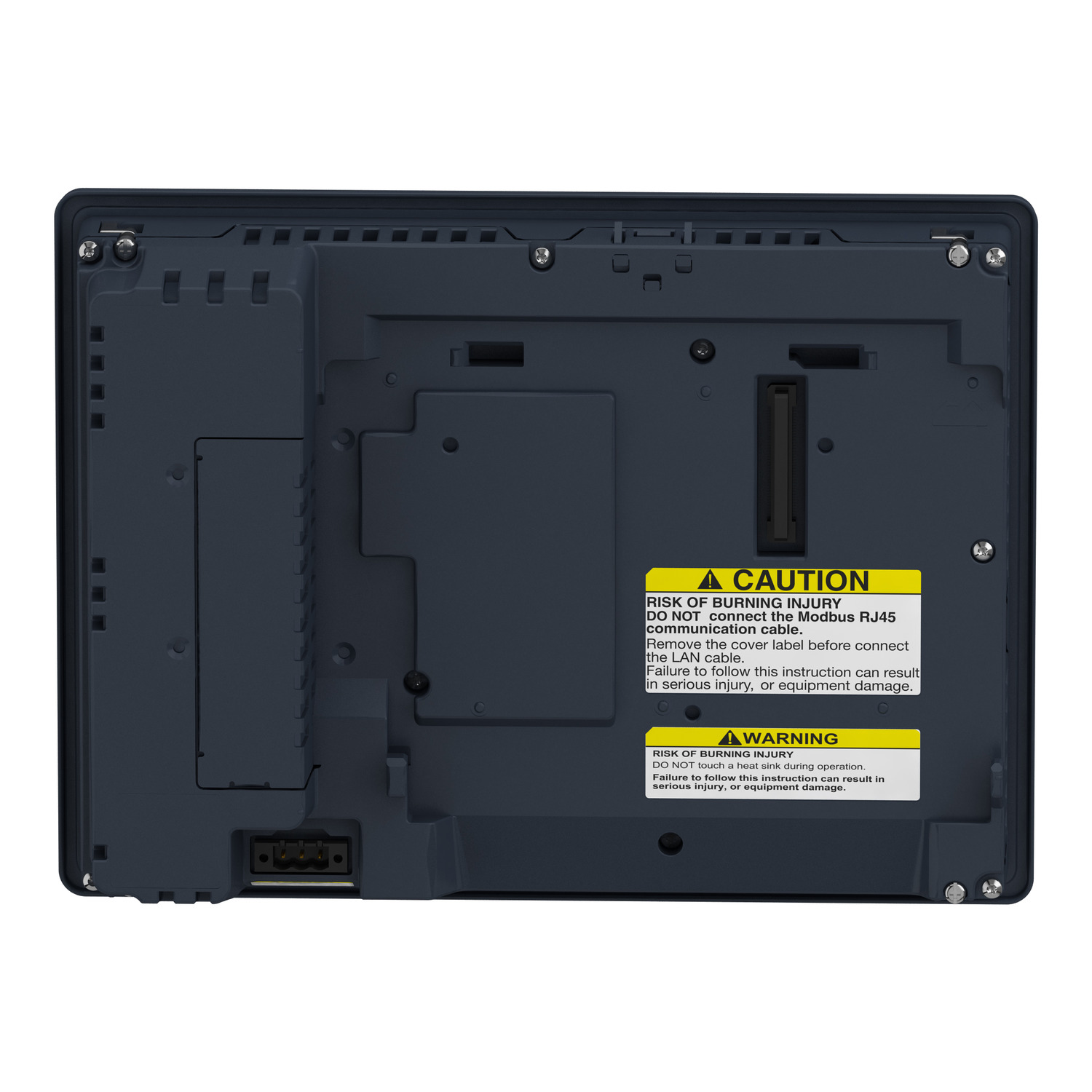

HMIDT551, advanced touchscreen panel, Harmony GTU, 10inch wide display

MXN $35,973.00 - (IVA Incluido) + Envío

7 disponibles

This Magelis GTU universal touchscreen operator interface (HMI) is supplied with 12V to 24V DC, has a 10″ color TFT LCD display with 1280 x 800 pixels and 262K colors. This universal touchscreen operator interface (HMI) is ideal for high-performance monitoring and communication. High-performance monitoring and communication thanks to a smartphone-like interface for use in the most demanding automation systems, including industrial control equipments, hazardous locations, and marine applications. The screen displays text messages, graphic objects and mimic diagrams, control and configuration of data. It also offers removable storage, dual LAN and dual communication interfaces. It resists permanent 60°C temperature, this makes it ideal for installation in areas where ventilation of the cabinet is not possible or risky.

Buy it now

Categories: HMI

Tags: HMI

SKU: HMIDT551

advanced touchscreen panel, Harmony GTU, 10inch wide display

HMIDT551

Main
Range of Product	Harmony GTU
Product or Component Type	Advanced touchscreen panel
Terminal type	Touchscreen display
[Us] rated supply voltage	12…24 V DC power supply
Supply voltage limits	10.8…28.8 V
Power Consumption in W	6.5 W
Inrush current	30 A

Complementary
Touchscreen resolution	1024 x 1024
Pixel resolution	1280 x 800
display size	10.1 inch
Aspect ratio	4:3
Display type	Colour TFT LCD
display resolution	1280 x 800 pixels WVGA
Display colour	262144 colors
Backlight lifespan	50000 hours
Touch panel	Single touch analogue resistive
Type of cooling	Natural convection
Type of Installation	Indoor installation
Cut-out dimensions	255 (+ 1/- 0) x 185 (+ 1/- 0) mm
Width	10.6 in (268.5 mm)
Height	7.8 in (198.5 mm)
Depth	2.6 in (67 mm)
Net Weight	5.5 lb(US) (2.5 kg)

Environment
IP degree of protection	Front panel IP66 Front panel IP67
NEMA degree of protection	NEMA 4X front panel
Standards	UL 508 ANSI/ISA 12-12-01 Class I division 2 CSA C22.2 No 213 CSA C22.2 No 142 IEC 61132-2
Product certifications	RCM CULus KC CE UKCA UKEX
Ambient air temperature for operation	32.0000000000…140.0000000000 °F (0…60 °C) IEC 61131-2
Ambient air temperature for storage	-4.0000000000…140.0000000000 °F (-20…60 °C)
Relative Humidity	10…90 % non-condensing
Operating altitude	6561.68 ft (2000 m)
Vibration resistance	3.5 mm constant amplitude 5…9 Hz) IEC 61131-2 9.8 m/s² 9…150 Hz) IEC 61131-2
Shock resistance	147 m/s²IEC 61131-2
Electromagnetic compatibility	Electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2

Ordering and shipping details
Category	US10MC222567
Discount Schedule	0MC2
GTIN	3606480687273
Returnability	Yes
Country of origin	US

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	8.3 in (21 cm)
Package 1 Width	13.0 in (33 cm)
Package 1 Length	14.6 in (37 cm)
Package 1 Weight	8.494 lb(US) (3.853 kg)
Unit Type of Package 2	CAR
Number of Units in Package 2	2
Package 2 Height	16.9 in (43 cm)
Package 2 Width	14.0 in (35.5 cm)
Package 2 Length	17.9 in (45.5 cm)
Package 2 Weight	19.332 lb(US) (8.769 kg)
Unit Type of Package 3	P12
Number of Units in Package 3	10
Package 3 Height	31.5 in (80 cm)
Package 3 Width	47.2 in (120 cm)
Package 3 Length	43.3 in (110 cm)
Package 3 Weight	213.17 lb(US) (96.69 kg)
