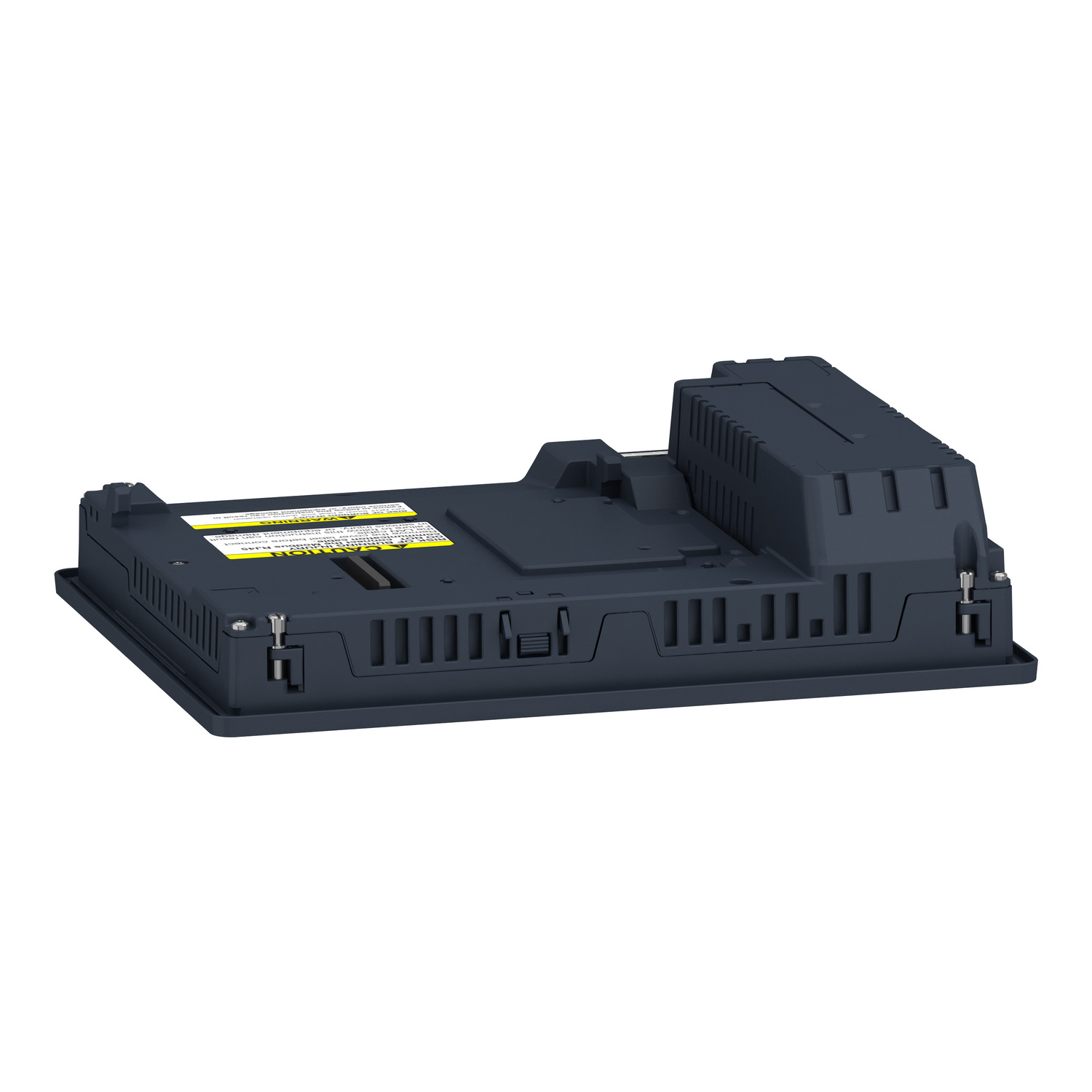

HMIDT542, flat screen, Harmony GTU, 10.4inch wide display

MXN $54,887.00 - (IVA Incluido) + Envío

24 disponibles

This Magelis GTU universal touchscreen operator interface (HMI) is supplied with 12V to 24V DC, has a 10.4″ color TFT LCD display with 800 x 600 pixels and 16M colors. It can handle multi-touch gestures. It is ideal for high-performance monitoring and communication thanks to a smartphone-like interface for use in the most demanding automation systems, including industrial control equipments, hazardous locations, and marine applications. The screen displays text messages, graphic objects and mimic diagrams, control and configuration of data. It also offers removable storage, dual LAN and dual communication interfaces. It resists permanent 60°C temperature, this makes it ideal for installation in areas where ventilation of the cabinet is not possible or risky.

Buy it now

Categories: HMI

Tags: HMI

SKU: HMIDT542

flat screen, Harmony GTU, 10.4inch wide display

HMIDT542

Main
Range of Product	Harmony GTU
Product or Component Type	Flat screen
Terminal type	Touchscreen display
[Us] rated supply voltage	12…24 V DC power supply
Supply voltage limits	10.8…28.8 V
Power Consumption in W	15 W
Inrush current	30 A

Complementary
Integrated connection type	USB 2.0 type A USB 2.0 type mini B
Touchscreen resolution	1024 x 1024
Pixel resolution	800 x 600
display size	10.4 inch
Aspect ratio	4:3
Display type	Colour TFT LCD
display resolution	800 x 600 pixels SVGA
Display colour	16 million colours
Backlight lifespan	50000 hours
Touch panel	Multi touch analogue resistive
Function Available	Brightness sensor
Type of cooling	Natural convection
Type of Installation	Indoor installation
Cut-out dimensions	259 (+ 1/- 0) x 201 (+ 1/- 0) mm
Width	10.7 in (272.5 mm)
Height	8.4 in (214.5 mm)
Depth	2.6 in (67 mm)
Net Weight	6.0 lb(US) (2.7 kg)

Environment
IP degree of protection	Front panel IP66 Front panel IP67
NEMA degree of protection	NEMA 4X front panel
Standards	UL 508 ANSI/ISA 12-12-01 Class I division 2 CSA C22.2 No 213 CSA C22.2 No 142 IEC 61132-2
Product certifications	CULus CE KC RCM UKCA UKEX
Ambient air temperature for operation	32.0000000000…140.0000000000 °F (0…60 °C) IEC 61131-2
Ambient air temperature for storage	-4.0000000000…140.0000000000 °F (-20…60 °C)
Relative Humidity	10…90 % non-condensing
Operating altitude	6561.68 ft (2000 m)
Vibration resistance	3.5 mm constant amplitude 5…9 Hz) IEC 61131-2 9.8 m/s² 9…150 Hz) IEC 61131-2
Shock resistance	147 m/s²IEC 61131-2
Electromagnetic compatibility	Electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2

Ordering and shipping details
Category	US10MC222567
Discount Schedule	0MC2
GTIN	3606480687259
Returnability	Yes
Country of origin	CN

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	8.3 in (21 cm)
Package 1 Width	13.0 in (33 cm)
Package 1 Length	14.6 in (37 cm)
Package 1 Weight	8.435 lb(US) (3.826 kg)
