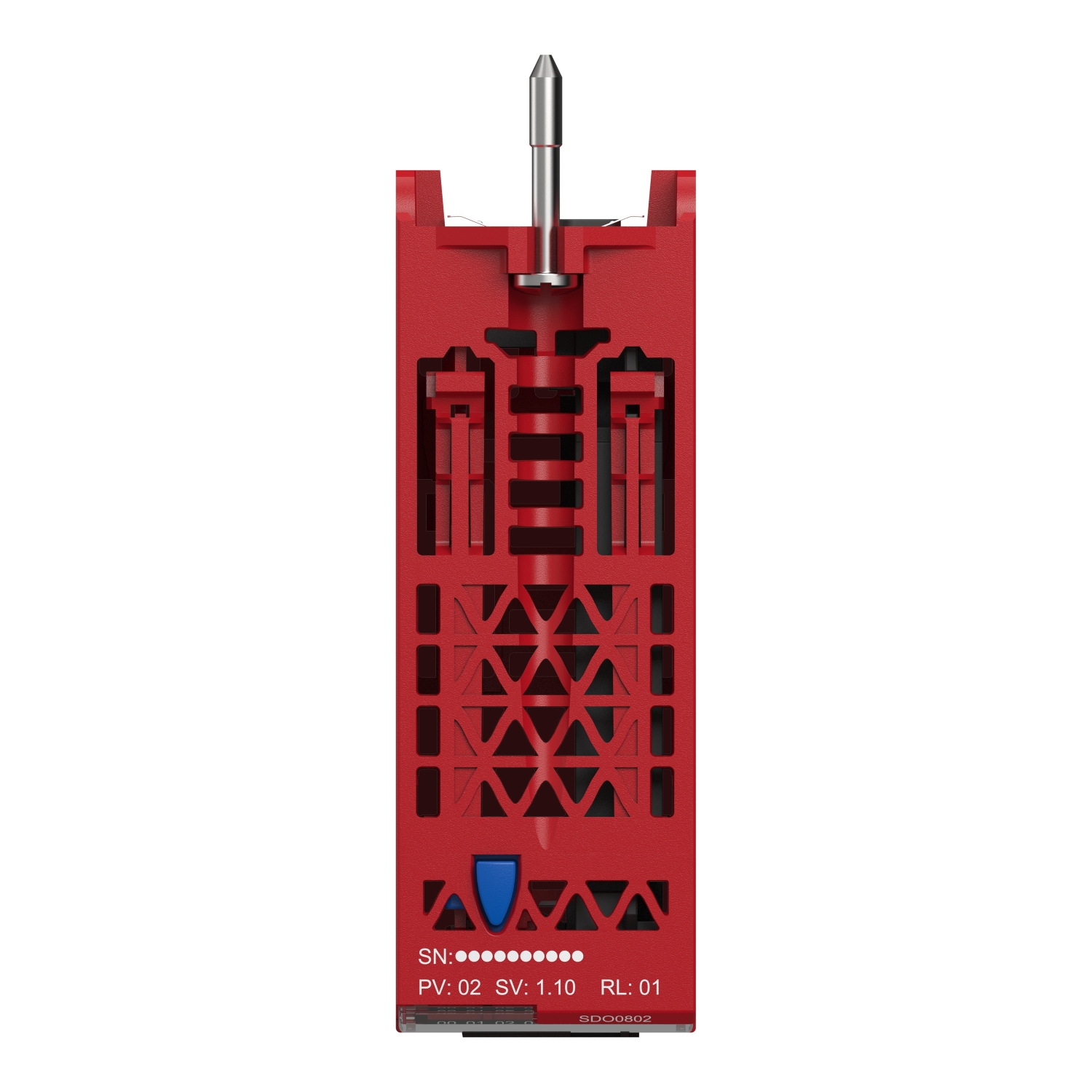

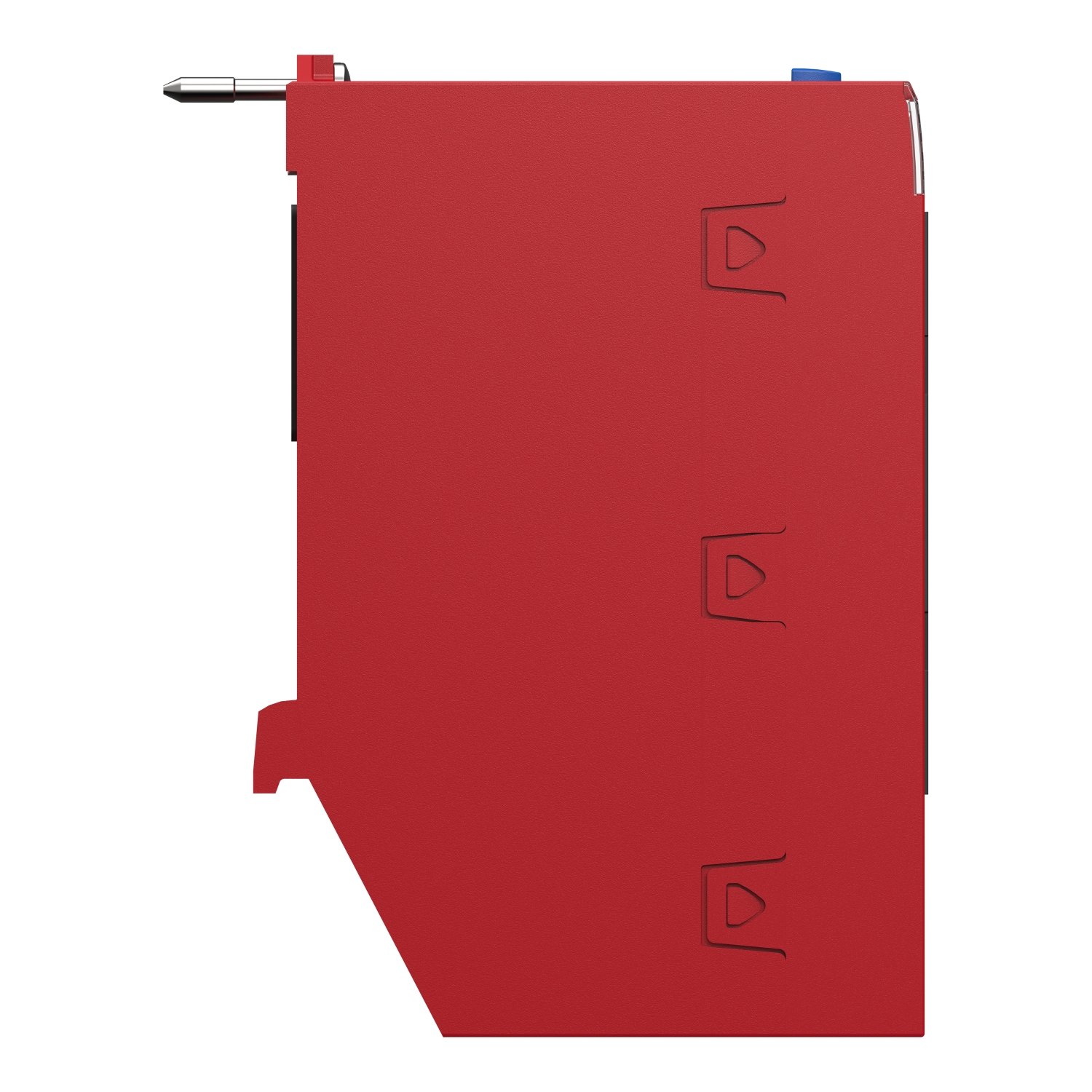

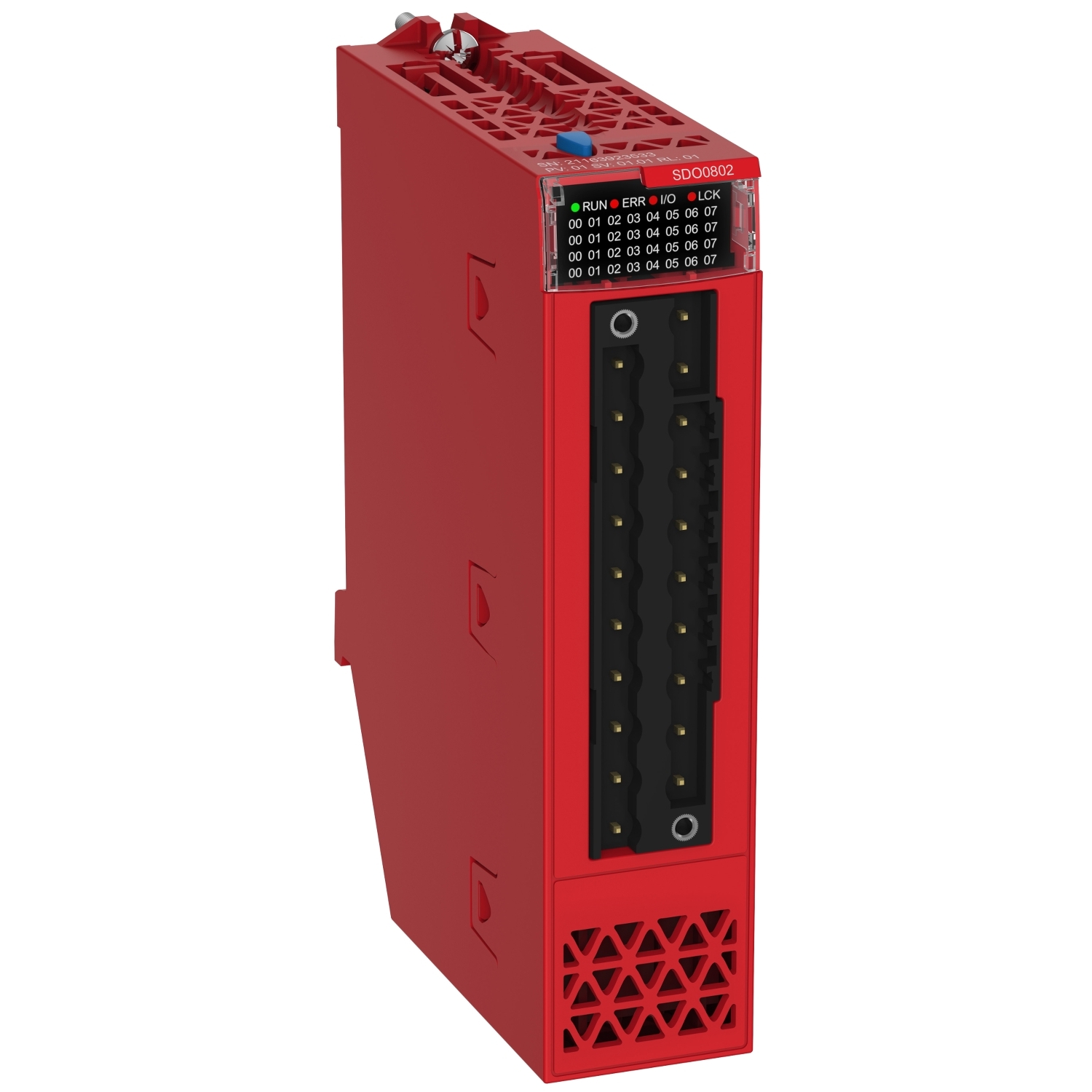

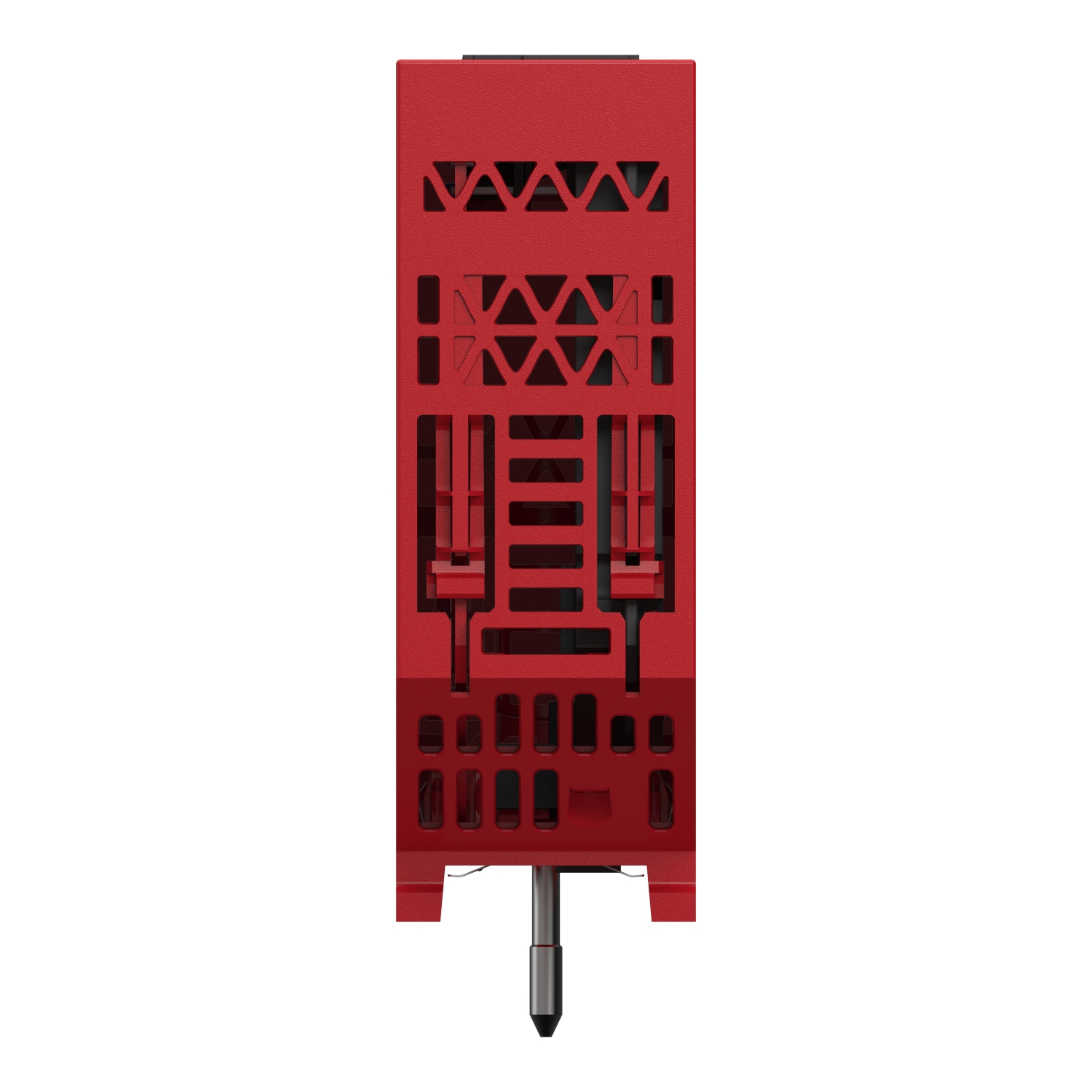

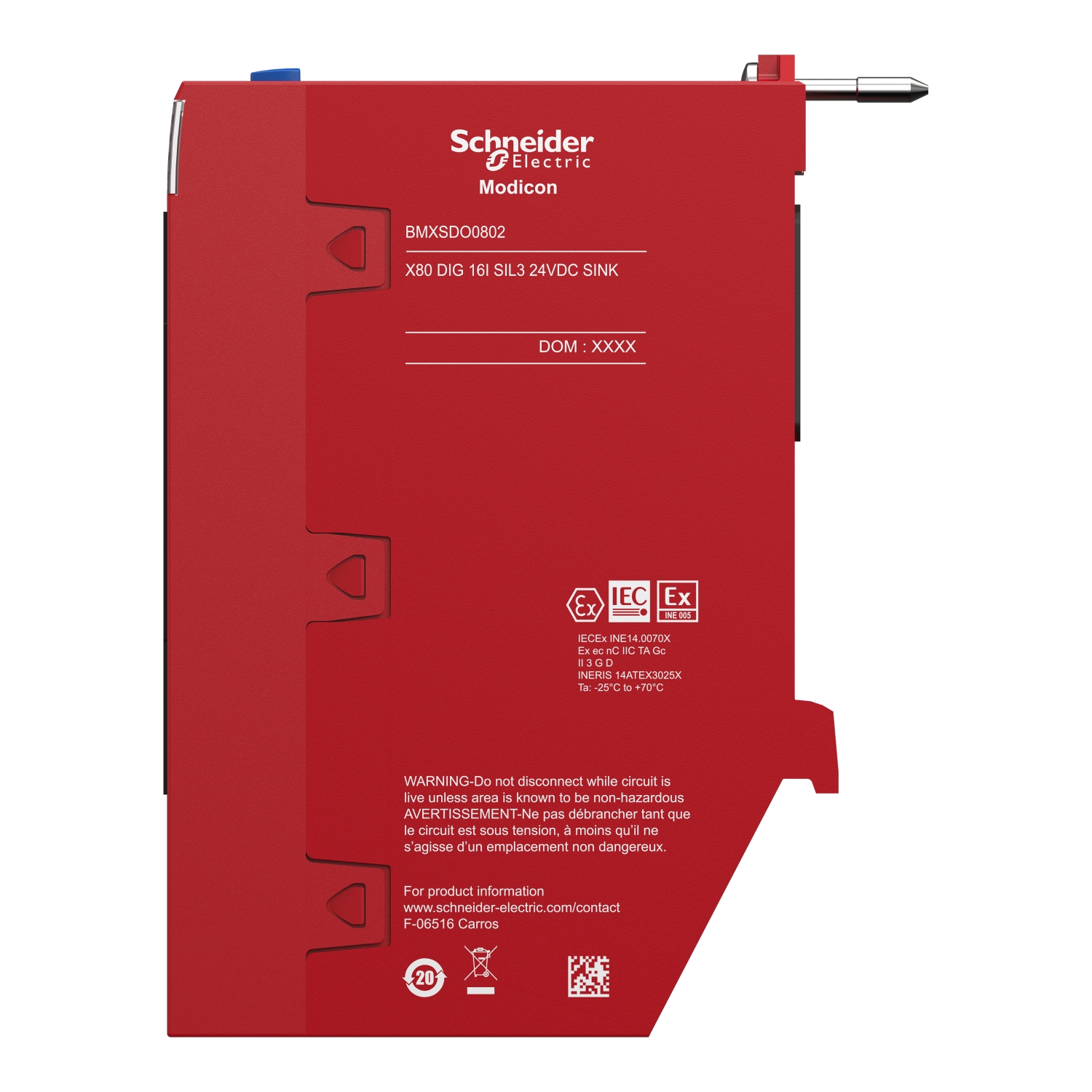

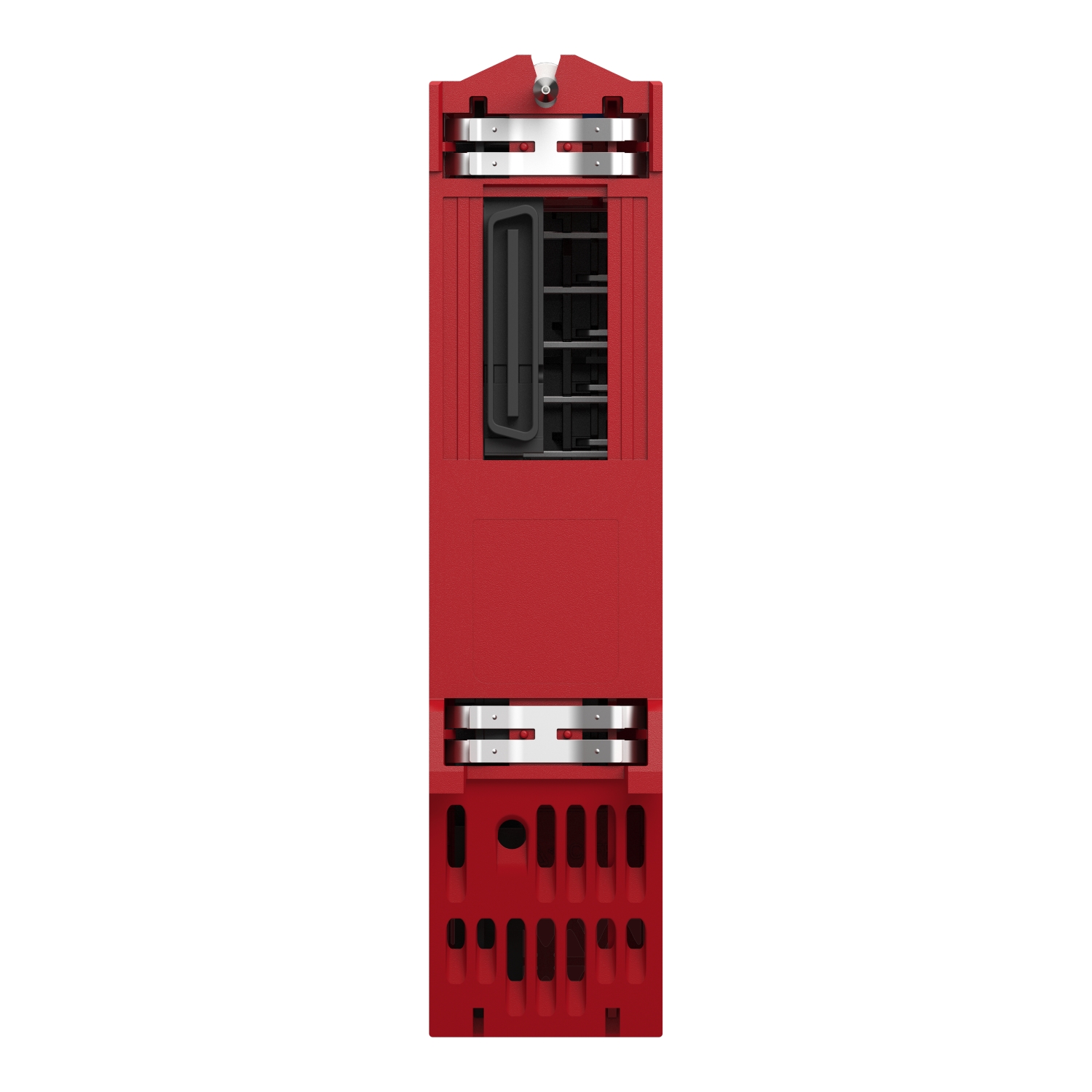

BMXSDO0802 safety discrete output module, Modicon X80, 8 outputs, 24V DC positive

MXN $30,565.00 - (IVA Incluido) + Envío

16 disponibles

This cord set is part of the Modicon X80 range, an offer of common modules and installation accessories for M580 and M340 automation platforms. This discrete output module offers 8 positive discrete output logic. It offers discrete output voltage ranges from 19V DC to 30V DC, 24V DC with solid state and not isolated discrete output. It is an IP20 rated product. It weighs 0.12kg. It is to be used with BMXFTB2010 screw clamp type terminal block. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock. The Modicon X80 range is one important part of EcoStruxure Plant, an open, flexible, reliable, sustainable, safe and secure architecture.

Buy it now

Categories: PLC's

Tags: PLC's

SKU: BMXSDO0802

safety discrete output module, Modicon X80, 8 outputs, 24V DC positive

BMXSDO0802

Main
Range of Product	Modicon X80
Product or Component Type	Discrete output module
Discrete output number	8 EN/IEC 61131-2
Discrete output type	Solid state Not isolated
Discrete output logic	Positive
Discrete output voltage	24 V 19…30 V DC
Discrete output current	0.5 A
Output compatibility	Not IEC 61131-2 DC input IEC 61131-2 type 3 DC input

Complementary
Current per channel	0.625 A
Maximum current per module	10 A
Maximum leakage current	0.5 mA at state 0
Maximum voltage drop	<1.2 V at state 1
Insulation resistance	> 10 MOhm 500 V DC
Power dissipation in W	4.4 W
Response time on output	1.2 ms
Paralleling of outputs	Yes : 2 maximum
Typical current consumption	264 mA 3.3 V DC 15 mA 24 V
MTBF reliability	383000 H
Protection type	reverse polarity protection overload protection overvoltage protection short-circuit protection
Output overload protection	With current limiter With electronic circuit breaker 1.5 In < Id < 2 In
Output overvoltage protection	With transil diode
Output short-circuit protection	With 2 A external fuse
Reverse polarity protection	Reverse mounted diode
Voltage detection threshold	< 14 V DC sensor fault > 18 V DC sensor OK
Maximum tungsten load	6 W
Switching frequency	0.5/LI² Hz
Load impedance ohmic	>= 48 Ohm
Status LED	1 LED (Green) module operating (RUN) 1 LED per channel (Green) channel diagnostic 1 LED (Red) module error (ERR) 1 LED (Red) module I/O
Net Weight	0.26 lb(US) (0.12 kg)

Environment
IP Degree of Protection	IP20
Environmental characteristic	Gas resistant class Gx Gas resistant class 3C4 Dust resistant class 3S4 Sand resistant class 3S4 Salt resistant level 2 Mold growth resistant class 3B2 Fungal spore resistant class 3B2
Dielectric strength	1500 V AC 50/60 Hz 1 minute, output/ground 1500 V AC 50/60 Hz 1 minute, output/internal logic
Vibration resistance	3 gn
Shock resistance	15 gn
Ambient Air Temperature for Storage	-40…185 °F (-40…85 °C)
Ambient Air Temperature for Operation	-13…140 °F (-25…60 °C)
Relative humidity	5…95 % 131 °F (55 °C) without condensation
protective treatment	Conformal coating
Operating altitude	0…6561.68 ft (0…2000 m) 2000…5000 m with derating factor

Ordering and shipping details
Category	US1PC3418161
Discount Schedule	PC34
GTIN	3606481204929
Returnability	Yes
Country of origin	US

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	2.165 in (5.500 cm)
Package 1 Width	7.087 in (18.000 cm)
Package 1 Length	10.236 in (26.000 cm)
Package 1 Weight	12.028 oz (341.000 g)
Unit Type of Package 2	S03
Number of Units in Package 2	8
Package 2 Height	11.811 in (30.000 cm)
Package 2 Width	11.811 in (30.000 cm)
Package 2 Length	15.748 in (40.000 cm)
Package 2 Weight	7.075 lb(US) (3.209 kg)
