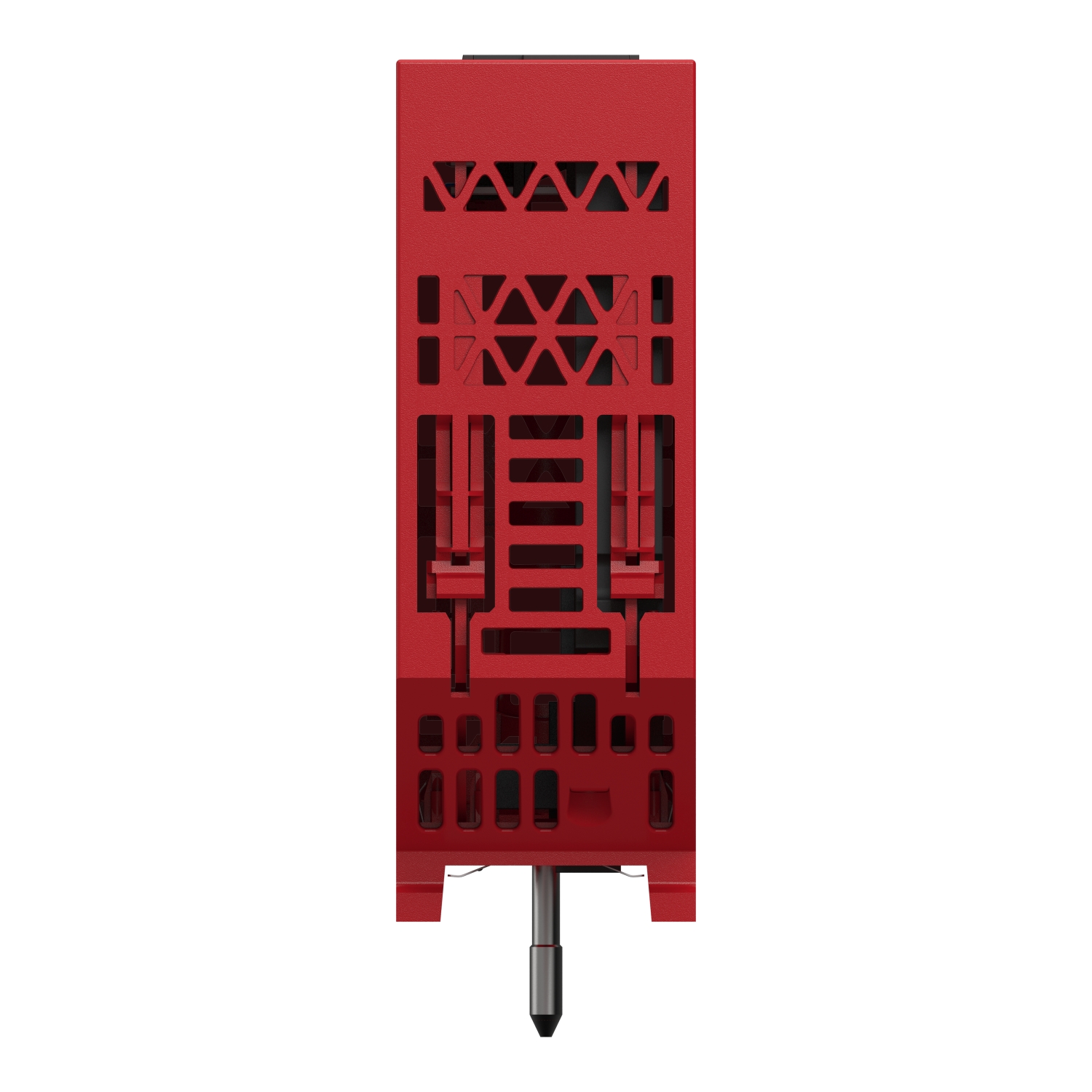

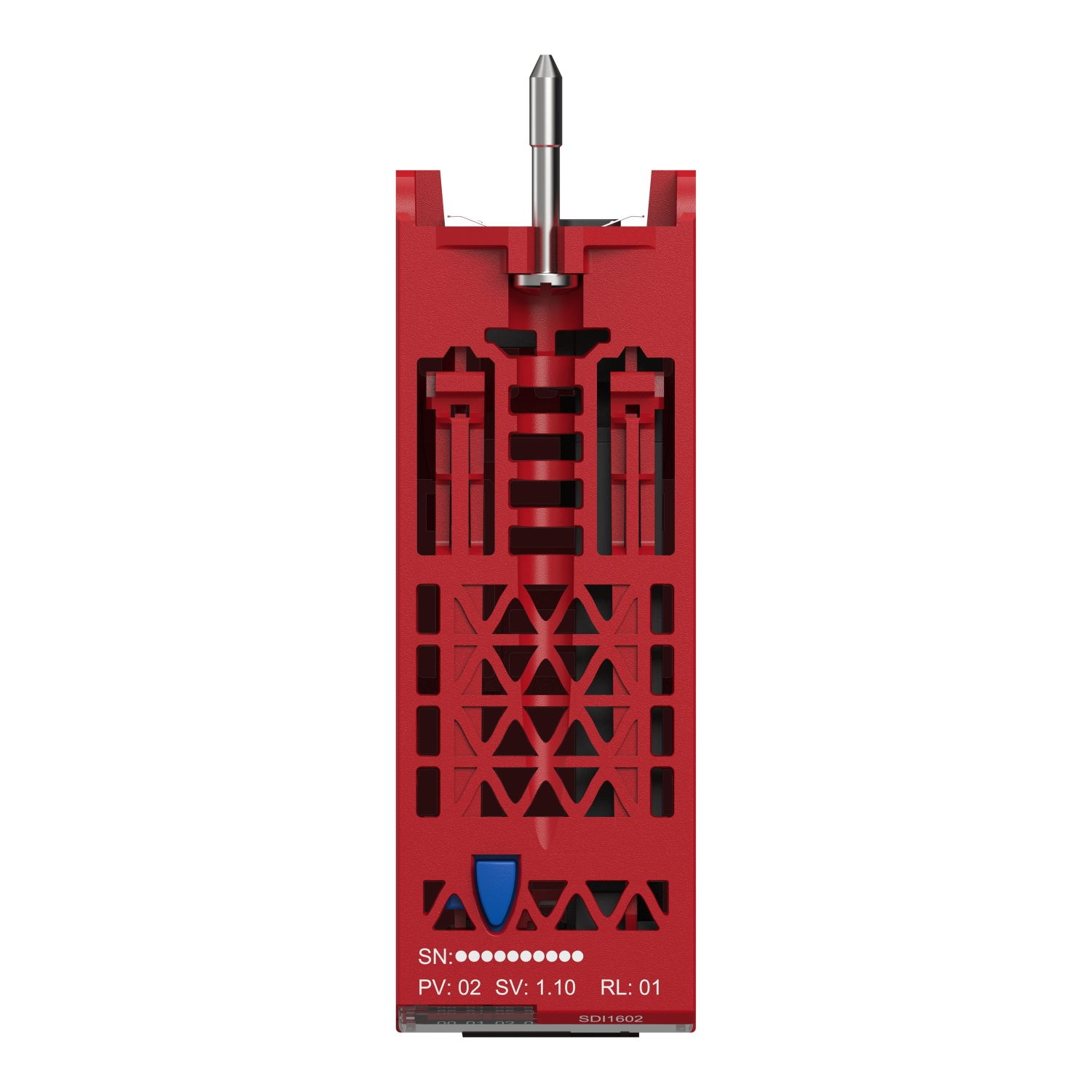

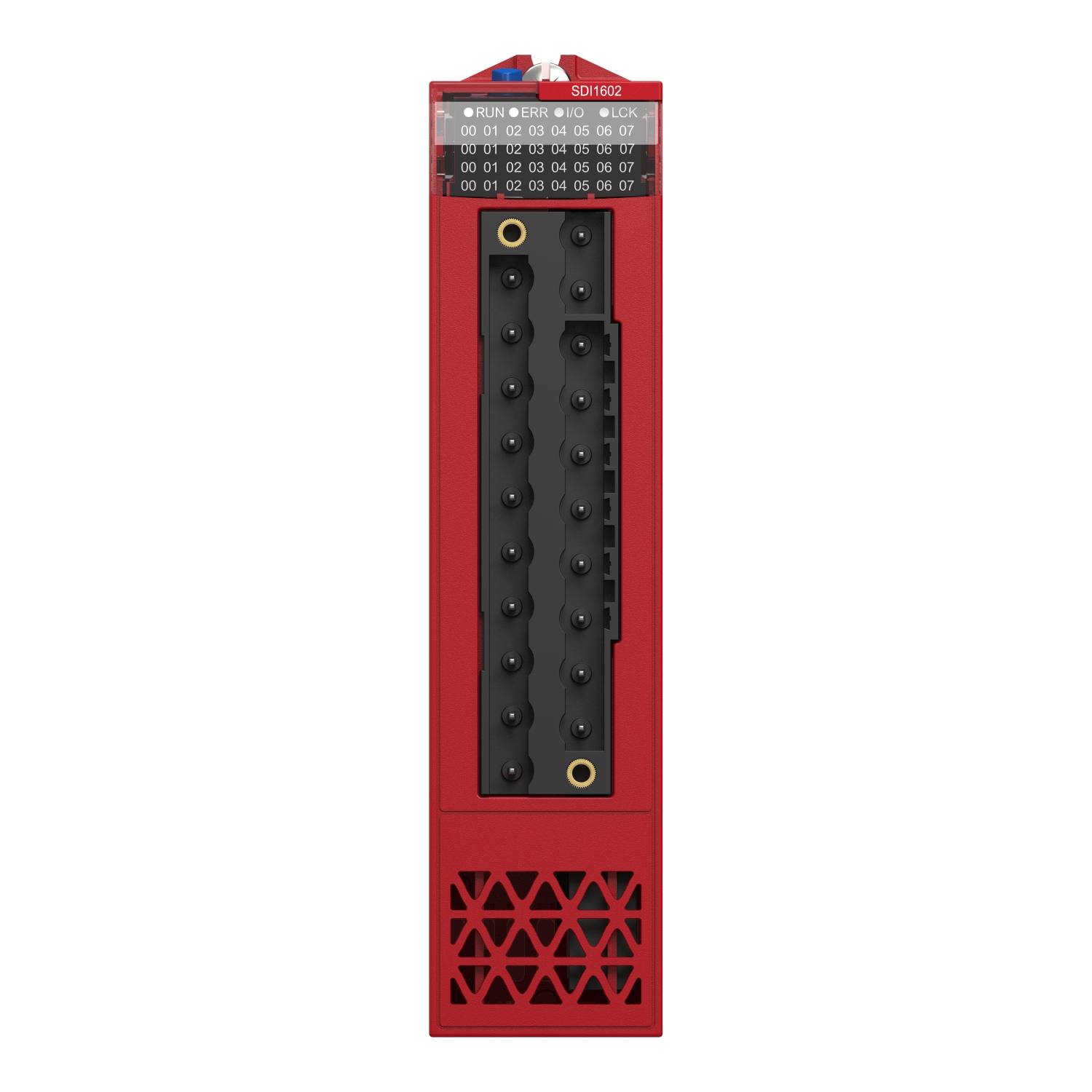

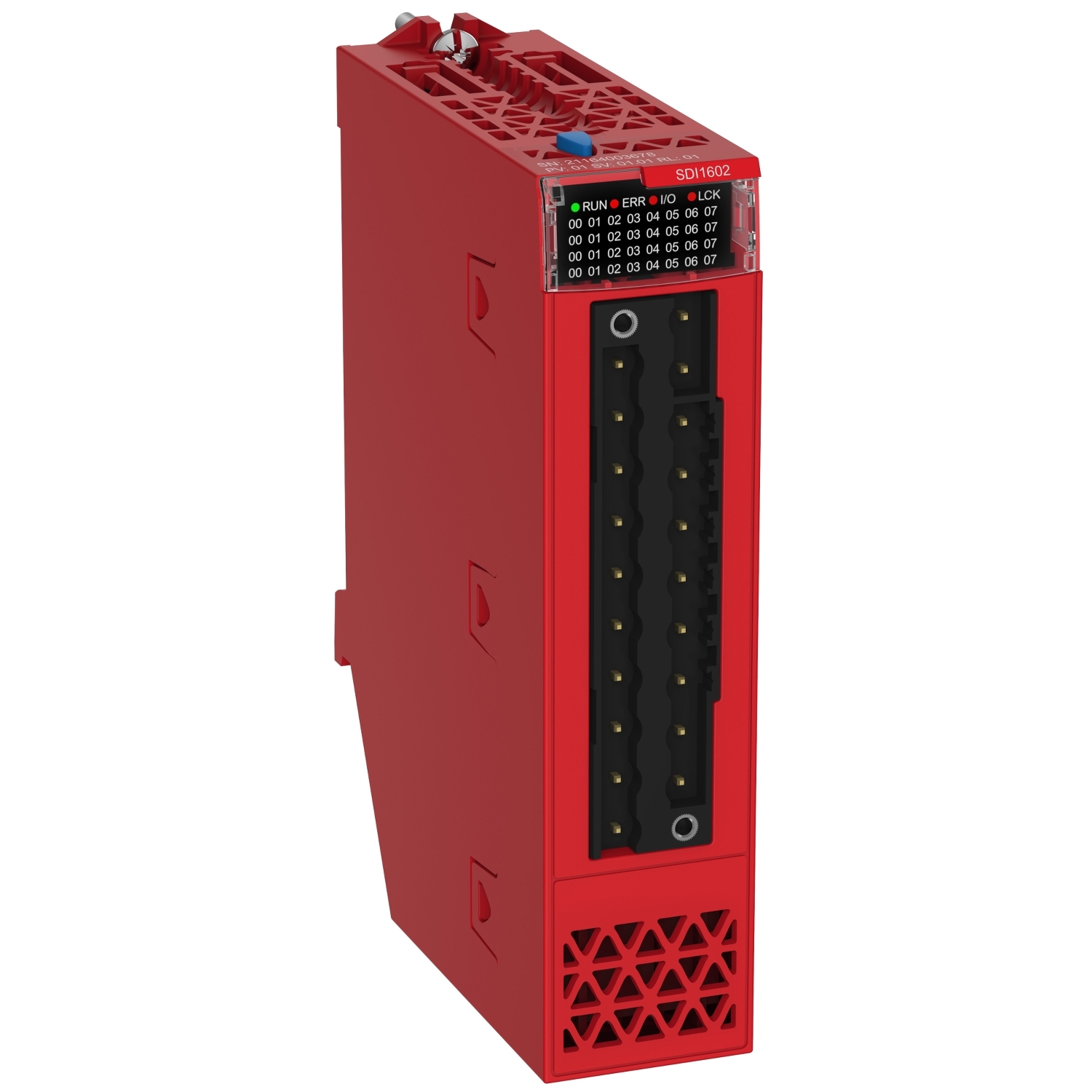

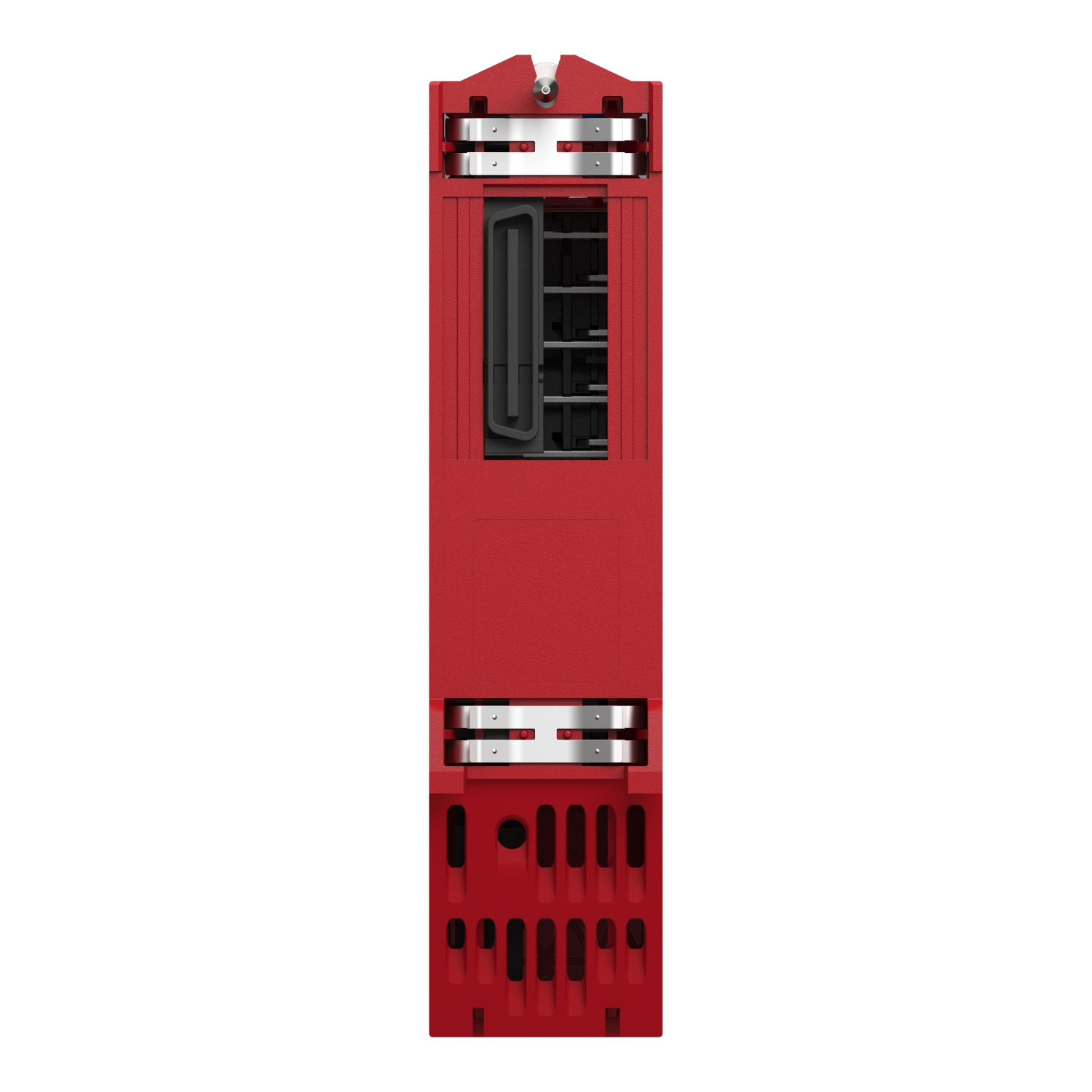

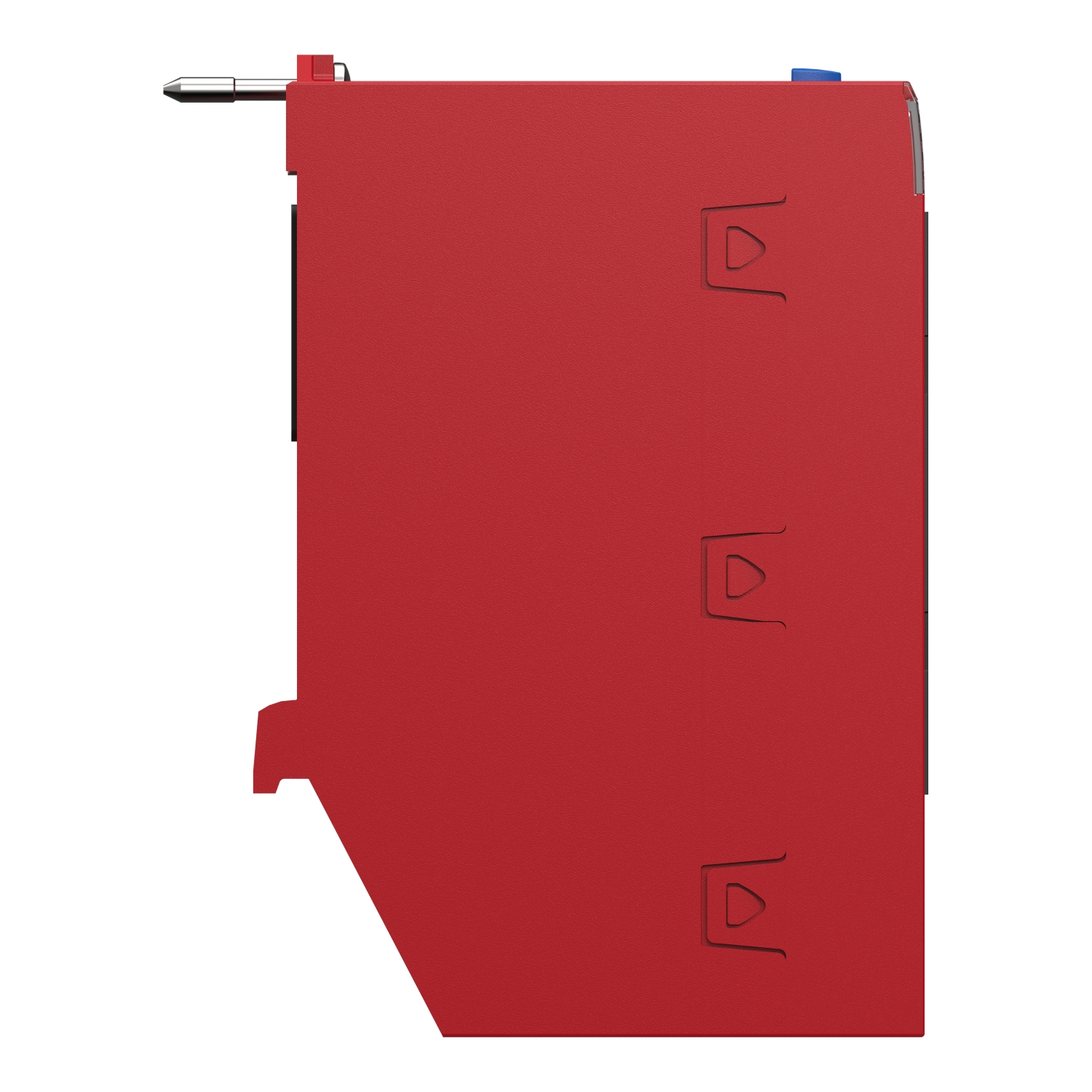

BMXSDI1602 safety discrete input module, Modicon X80, 16 inputs, 24V DC positive

MXN $27,045.00 - (IVA Incluido) + Envío

38 disponibles

This cord set is part of the Modicon X80 range, an offer of common modules and installation accessories for M580 and M340 automation platforms. This discrete input module offers 16 inputs with positive discrete input logic. It is a module with discrete input voltage of 24V DC with current sink positive logic. It is the Modicon digital input module dedicated to M580 safety systems. It features 16 Type 3 inputs, in two groups of 8 non-isolated inputs. It is an IP20 rated product. It weighs 0.115kg. It is suitable for safety most demanding applications. This product is certified by CE and UL, and also by ATEX and IECEx for use in explosive atmospheres. It complies up to SIL 3, Category 4, PLd. It is to be used with BMXFTB2000 caged terminal block. The I/O module height is larger than the height of a rack (Ethernet or X-bus) and should be considered before installing the rack. It can be installed either in a local or a remote rack. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock. The Modicon X80 range is one important part of EcoStruxure Plant, an open, flexible, reliable, sustainable, safe and secure architecture.

Comprar

Categorias: PLC's

Etiquetas: PLC's

SKU: BMXSDI1602

safety discrete input module, Modicon X80, 16 inputs, 24V DC positive

BMXSDI1602

Main
Range of Product	Modicon X80
Product or Component Type	Discrete input module
Discrete input number	16
Discrete input type	Not isolated
input type	Current sink (logic positive)
Discrete input voltage	24 V DC positive
Discrete input current	3.2 mA

Complementary
Input compatibility	With 2-wire/3-wire proximity sensors IEC 60947-5-2
Sensor power supply	19…30 V
Current state 1 guaranteed	>= 2 mA
Current state 0 guaranteed	<= 1.5 mA
Input impedance	7500 Ohm
Insulation resistance	> 10 MOhm 500 V DC
Power dissipation in W	3.57 W
DC typical response time	6 ms
DC maximum response time	6 ms
Paralleling of inputs	Yes
Typical current consumption	256 mA 3.3 V DC 100 mA 24 V
MTBF reliability	265000 H
Protection type	reverse polarity protection External overload protection 0.5 A fast blow
Voltage detection threshold	< 14 V DC sensor fault > 18 V DC sensor OK
Status LED	1 LED (Green) module operating (RUN) 1 LED per channel (Green) channel diagnostic 1 LED (Red) module error (ERR) 1 LED (Red) module I/O
Net Weight	0.254 lb(US) (0.115 kg)

Environment
IP Degree of Protection	IP20
Environmental characteristic	Gas resistant class Gx Gas resistant class 3C4 Dust resistant class 3S4 Sand resistant class 3S4 Salt resistant level 2 Mold growth resistant class 3B2 Fungal spore resistant class 3B2
Dielectric strength	1500 V AC 50/60 Hz 1 minute, primary/secondary
Vibration resistance	3 gn
Shock resistance	15 gn
Ambient Air Temperature for Storage	-40…185 °F (-40…85 °C)
Ambient Air Temperature for Operation	-13…140 °F (-25…60 °C)
Relative humidity	5…95 % 131 °F (55 °C) without condensation
protective treatment	Conformal coating
Operating altitude	0…6561.68 ft (0…2000 m) 2000…5000 m with derating factor

Ordering and shipping details
Category	US1PC3418161
Discount Schedule	PC34
GTIN	3606481204912
Returnability	Yes
Country of origin	FR

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	2.165 in (5.500 cm)
Package 1 Width	7.087 in (18.000 cm)
Package 1 Length	10.236 in (26.000 cm)
Package 1 Weight	11.922 oz (338.000 g)
Unit Type of Package 2	S03
Number of Units in Package 2	8
Package 2 Height	11.811 in (30.000 cm)
Package 2 Width	11.811 in (30.000 cm)
Package 2 Length	15.748 in (40.000 cm)
Package 2 Weight	6.914 lb(US) (3.136 kg)
