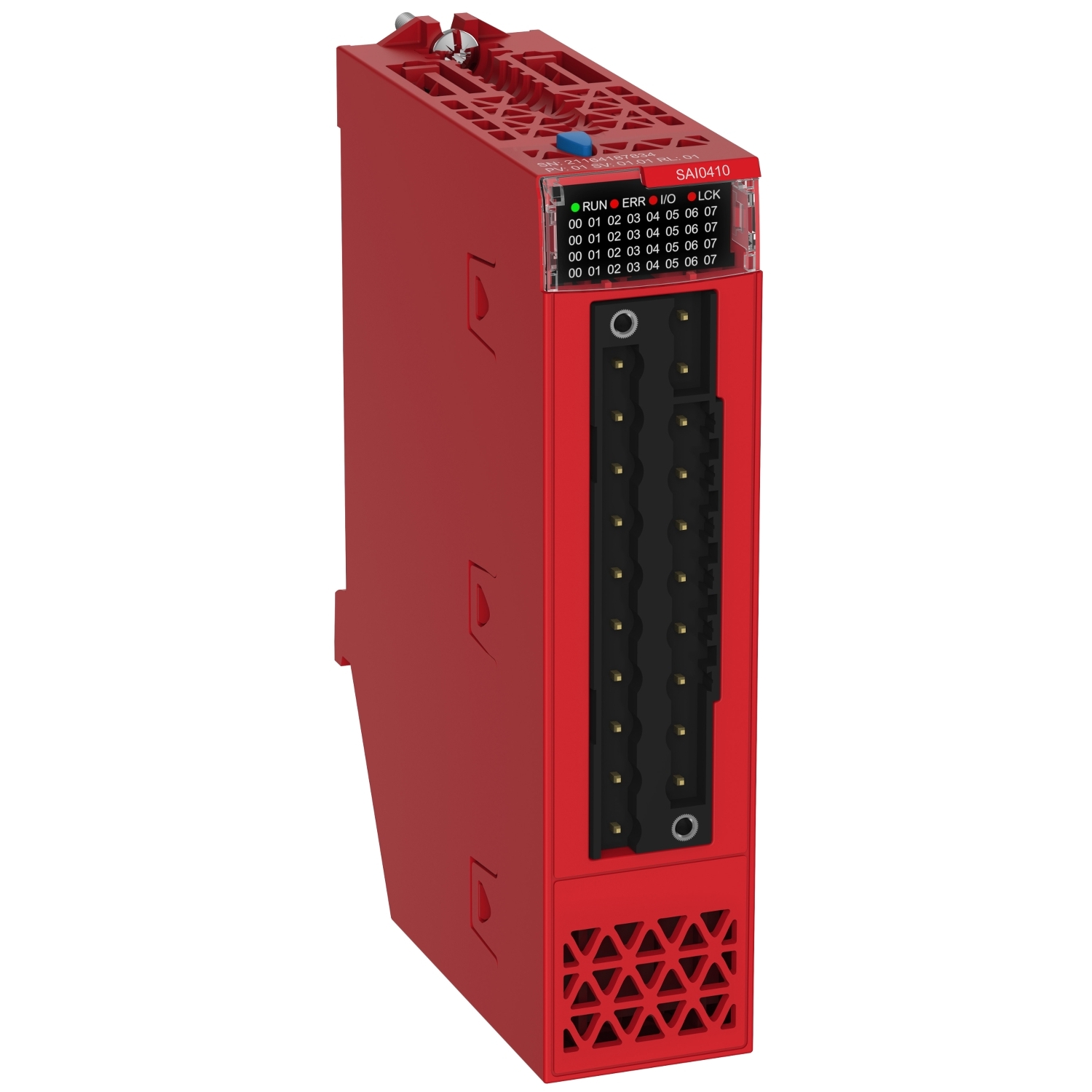

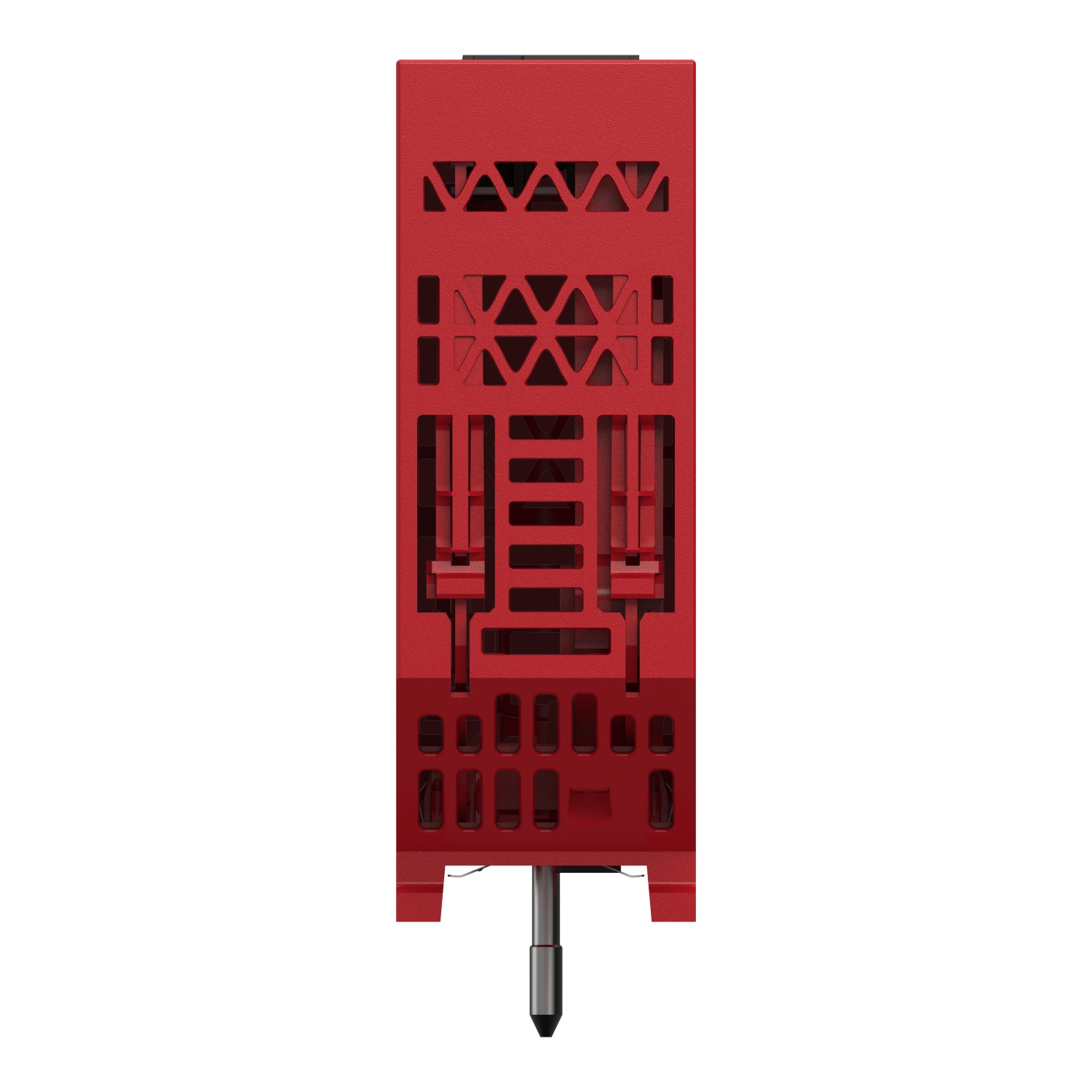

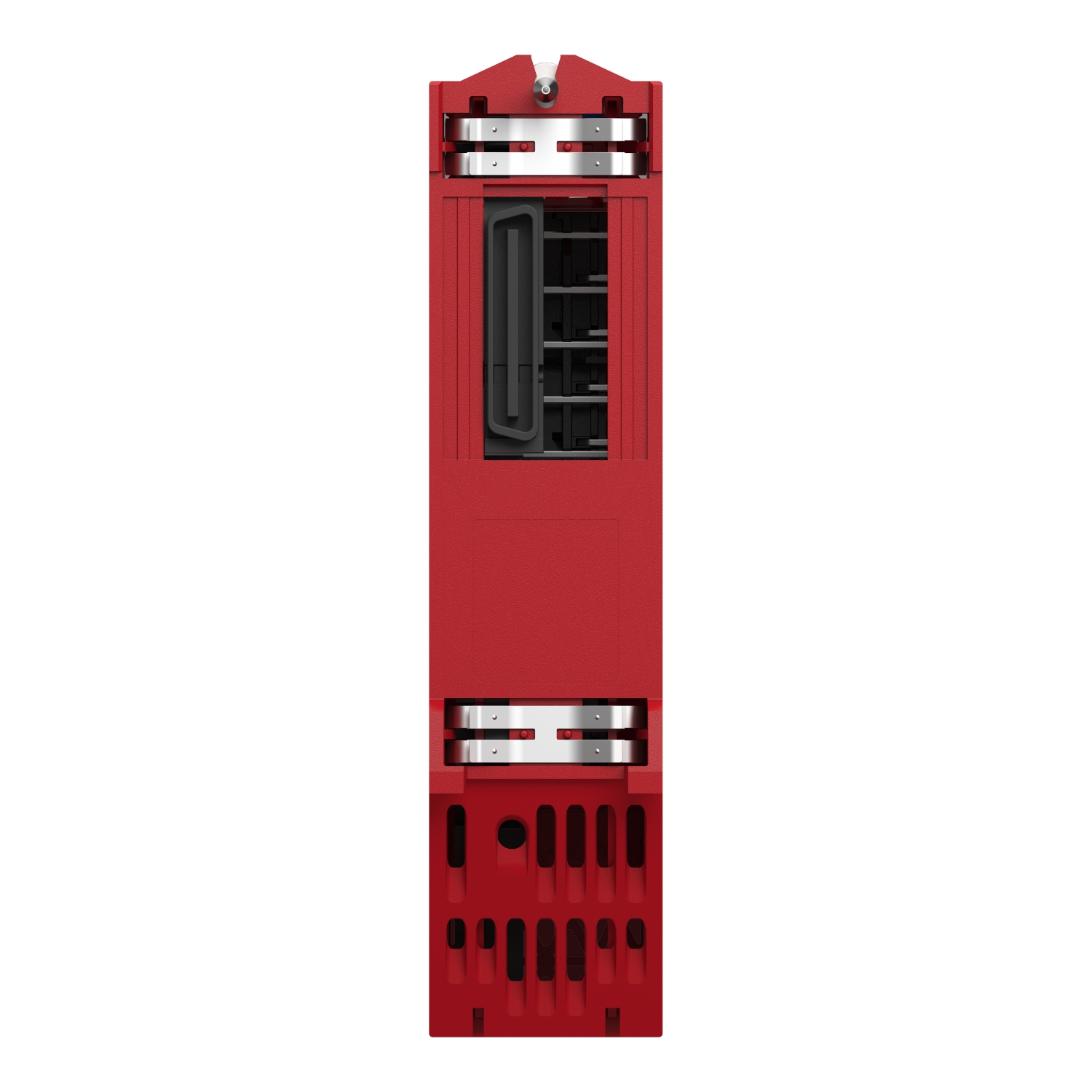

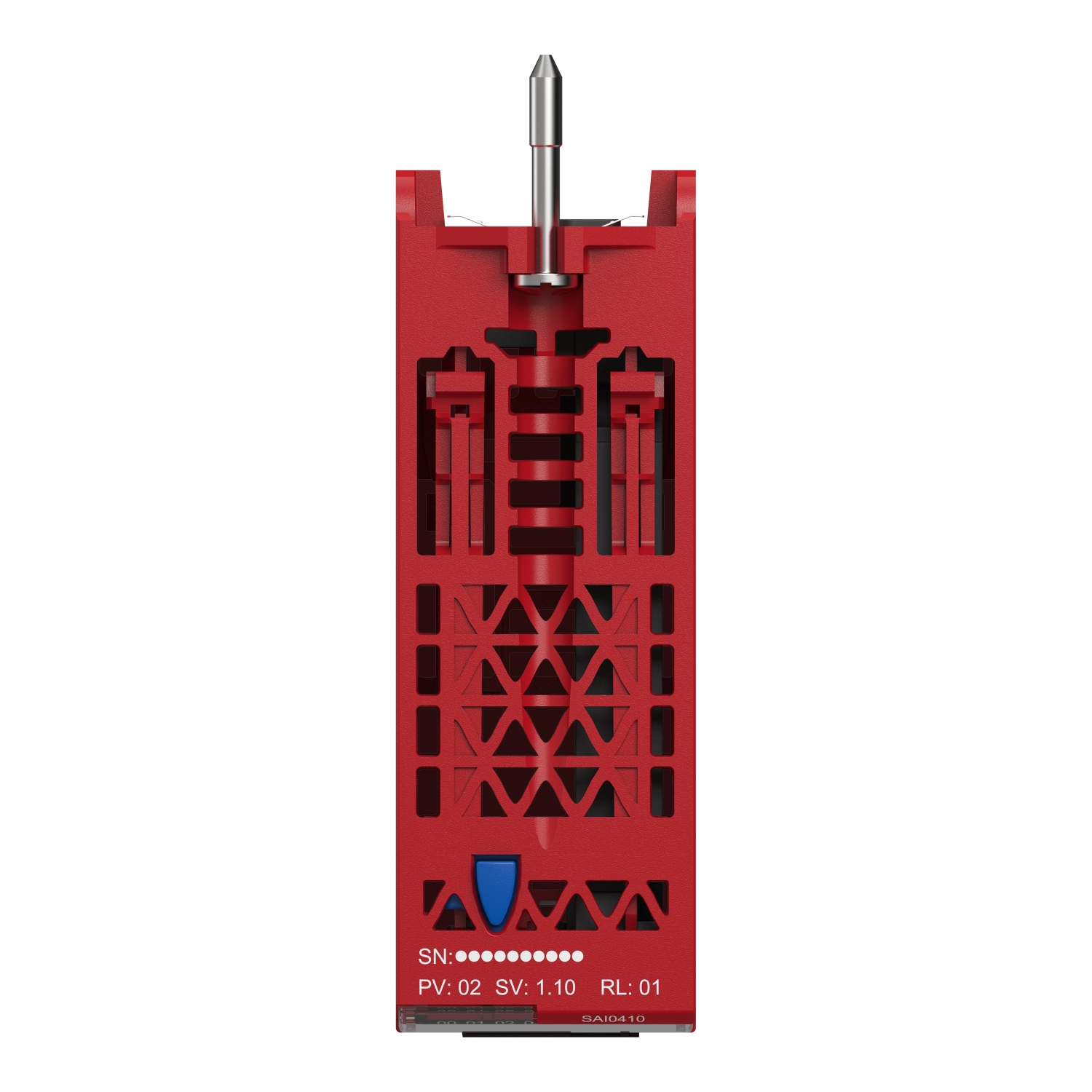

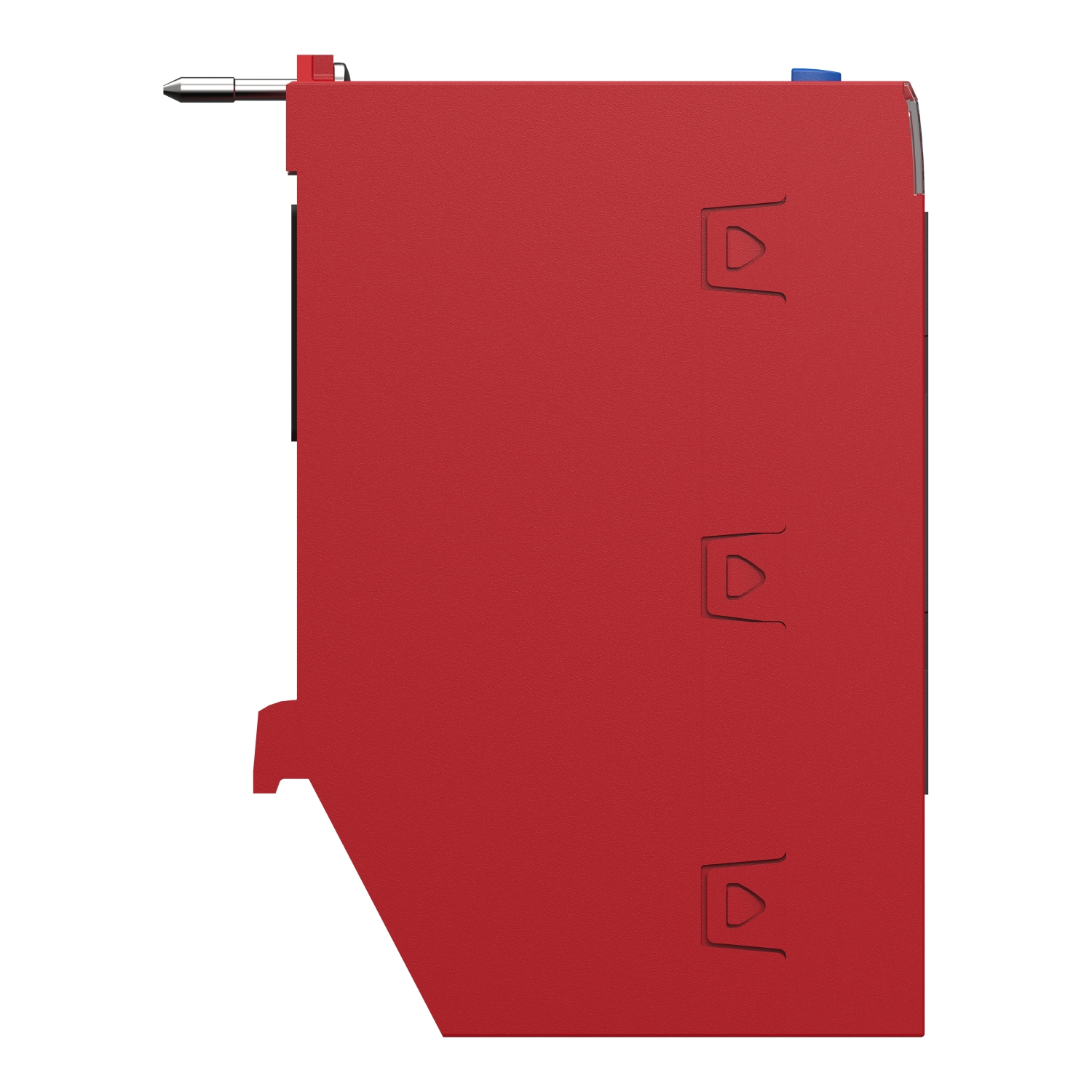

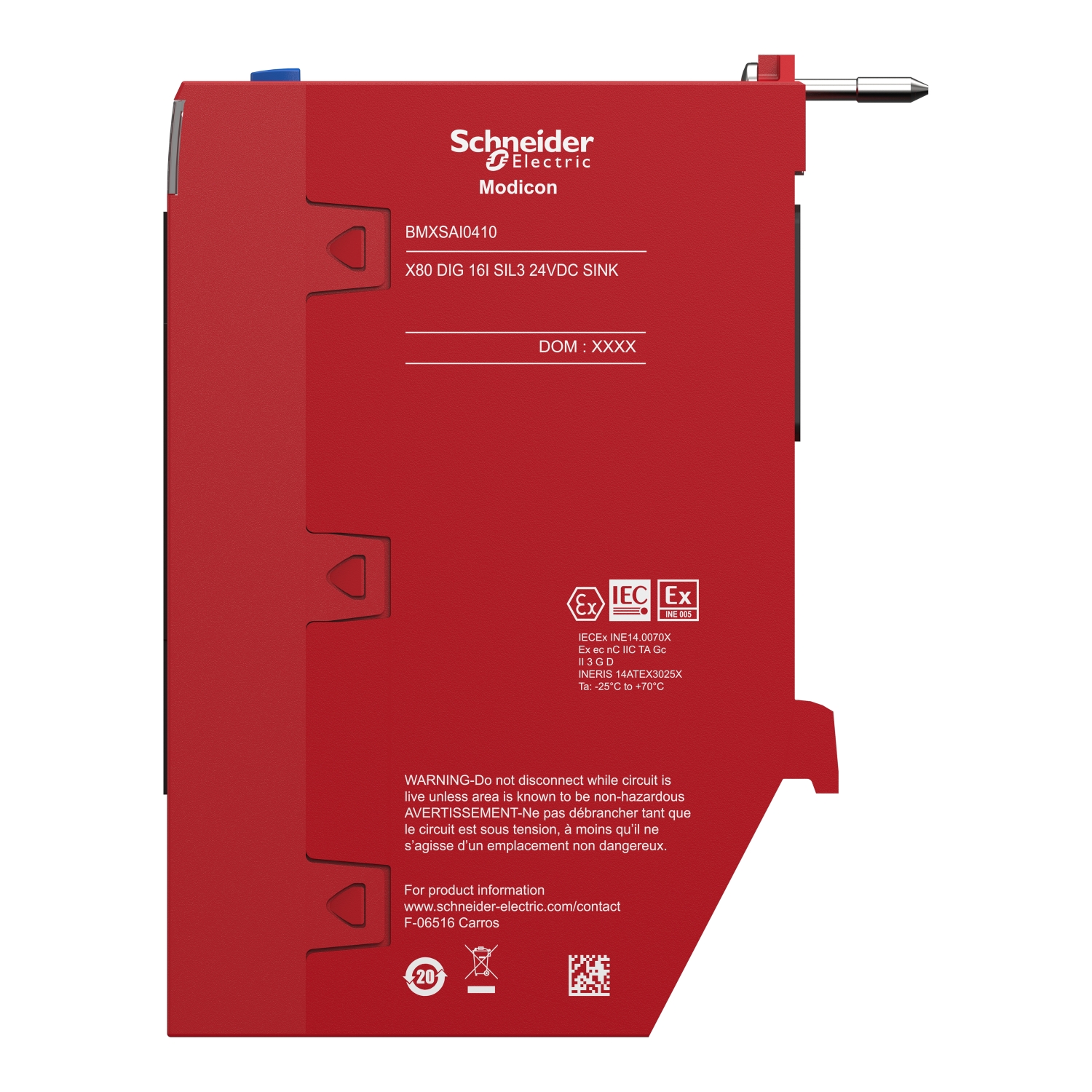

BMXSAI0410 safety analog input module, Modicon X80, 4 isolated inputs, 4 to 20mA

MXN $37,211.00 - (IVA Incluido) + Envío

15 disponibles

This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This safety analog input module offers 4 isolated inputs. It supports resistive type of inputs. It is the Modicon analog input module dedicated to M580 safety systems. It is connected via a 20-way removable terminal block. It features a 16-bit resolution. It has a red coating specific to Safety products. It is suitable for safety most demanding applications. This product is certified by CE and UL, and also by ATEX and IECEx for use in explosive atmospheres. It complies up to SIL 3, Category 4, PLd. This module can only be used with a Safety CPU. The I/O module height is larger than the height of a rack (Ethernet or X-bus) and should be considered before installing the rack. It can be installed either in a local or a remote rack. Modicon X80 is a platform of modules common to Modicon M580 and M340 automation platforms that reduces maintenance and training costs with same spare parts in stock, and unique training for various Programmable Automation Controllers (PAC). Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).

Buy it now

Categories: PLC's

Tags: PLC's

SKU: BMXSAI0410

safety analog input module, Modicon X80, 4 isolated inputs, 4 to 20mA

BMXSAI0410

Main
Range of Product	Modicon X80
Product or Component Type	Analog input module
Electrical connection	20 ways 1 connector
Isolation between channels	Isolated
Input level	High level
Analogue input number	4
Analogue input type	Current 4…20 mA

Complementary
Analog/digital conversion	16 bits
Analogue input resolution	13 bits 0…12500 counts
Permitted overload on inputs	25 mA 4…20 mA
Input impedance	286 Ohm
Precision of internal conversion resistor	0.1 % – 15 ppm/°C
type of filter	Second order digital filtering
Nominal read cycle time	6 ms for 4 channels
Measurement error	<= 0.3 % of full scale 4…20 mA – 25…60 °C
Temperature drift	30 ppm/°C 4…20 mA
Recalibration	Internal
Minimum crosstalk attenuation	120 dB
Digital value format	+/- 32000 in user scale +/- 10000 by default
Isolation voltage	500 V DC between channels 1500 V DC between channels and ground 1500 V DC between channels and bus
Measurement resolution	2 µA 4…20 mA
Maximum conversion value	0…25 mA 4…20 mA
MTBF reliability	463000 H
Operating altitude	0…6561.68 ft (0…2000 m) 2000…5000 m with derating factor
Status LED	1 LED (Green) RUN 1 LED per channel (Green) channel diagnostic 1 LED (Red) ERR 1 LED (Red) I/O
Net Weight	0.315 lb(US) (0.143 kg)
Current consumption	200 mA 3.3 V DC 115 mA 24 V DC

Environment
Vibration resistance	3 gn
Shock resistance	15 gn
Ambient Air Temperature for Storage	-40…185 °F (-40…85 °C)
Ambient Air Temperature for Operation	-13…140 °F (-25…60 °C)
Relative humidity	5…95 % 131 °F (55 °C) without condensation
IP Degree of Protection	IP20
Product Certifications	TÜV CSA EAC RCM UL ATEX Merchant Navy
Standards	CSA C22.2 No 61010-2-201 EN/IEC 61131-2 EN/IEC 61010-2-201 UL 61010-2-201
Environmental characteristic	Gas resistant class Gx Gas resistant class 3C4 Dust resistant class 3S4 Sand resistant class 3S4 Salt resistant level 2 Mold growth resistant class 3B2 Fungal spore resistant class 3B2 Fungal spore resistant class 3B2 IEC 60721-3-3

Ordering and shipping details
Category	US1PC3418161
Discount Schedule	PC34
GTIN	3606481204943
Returnability	No
Country of origin	FR

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	2.165 in (5.500 cm)
Package 1 Width	7.087 in (18.000 cm)
Package 1 Length	10.236 in (26.000 cm)
Package 1 Weight	12.134 oz (344.000 g)
Unit Type of Package 2	S03
Number of Units in Package 2	8
Package 2 Height	11.811 in (30.000 cm)
Package 2 Width	11.811 in (30.000 cm)
Package 2 Length	15.748 in (40.000 cm)
Package 2 Weight	7.18 lb(US) (3.259 kg)
