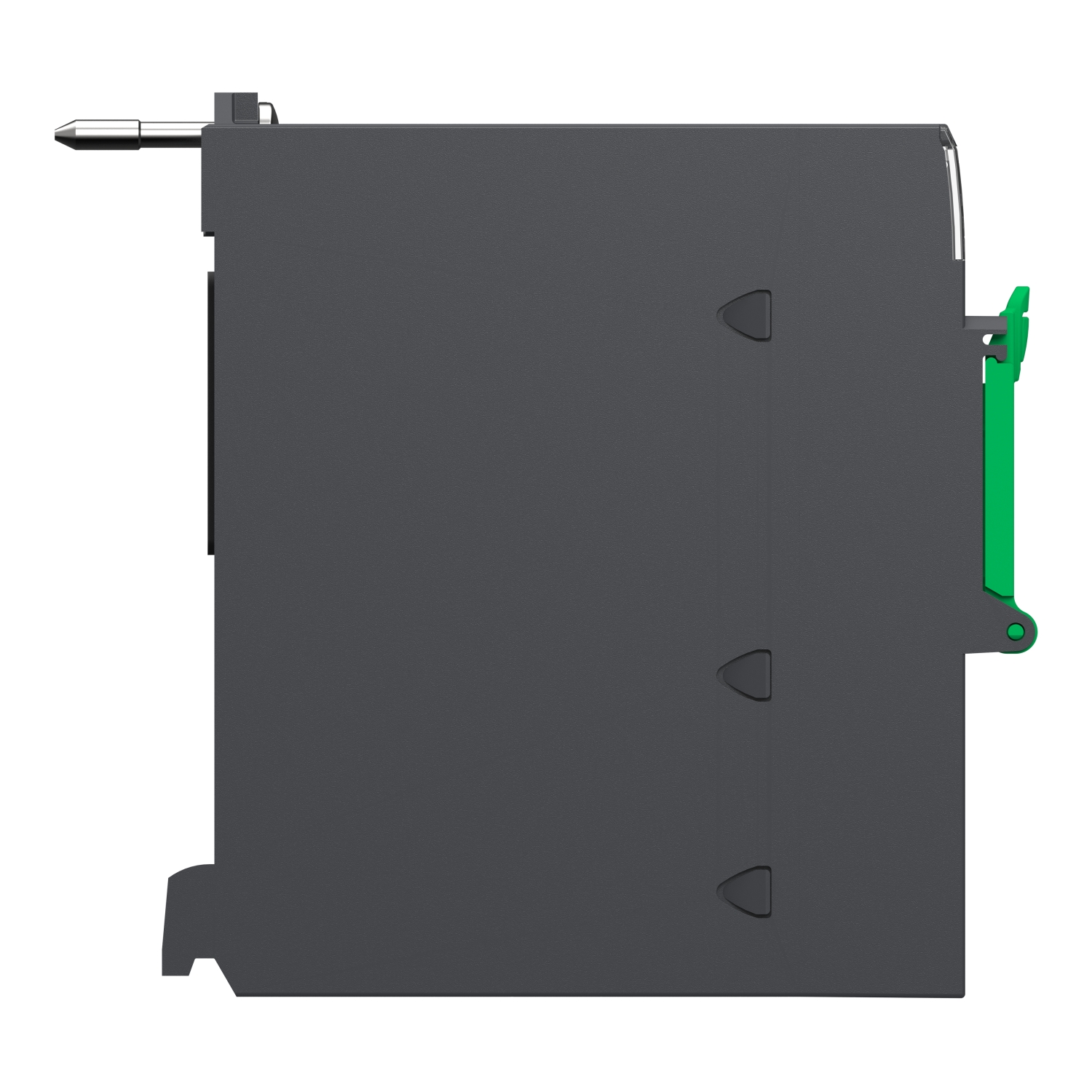

BMXPRA0100 peripheral remote IO adaptor module, Modicon X80, max 1024 discrete with 256 analog IO, Ethernet

MXN $20,490.00 - (IVA Incluido) + Envío

9 disponibles

This peripheral remote I/O adaptor module is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This adaptor module has 1 port with real time clock. It is an I/O adaptor module with a current consumption of 95mA and a power dissipation of 2.3W. It supports 448kB internal, 96kB removable memory capacity. This product is robust, high quality and based on the latest innovative technology. It is furnished with is EtherNet/IP for device network for integrated connections. It is an IP20 rated product. It is suitable for medium to large process applications. This product is certified by CE, C-Tick, Merchant Navy, GOST. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This product is compatible with 0 to 1024 discrete I/O module, 0 to 256 analog I/O module and 0 to 2 Ethernet module. Modicon X80 is a common platform of modules that reduces maintenance and training costs with same spare parts in stock, and unique training for various Programmable Automation Controllers (PAC).

Buy it now

Categories: PLC's

Brands:

Tags: PLC's

SKU: BMXPRA0100

peripheral remote IO adaptor module, Modicon X80, max 1024 discrete with 256 analog IO, Ethernet

BMXPRA0100

Main
Range of Product	Modicon X80
Product or Component Type	Peripheral remote I/O adaptor

Complementary
Number of port	1
Integrated connection type	Ethernet/IP device network
Communication Port Protocol	Modbus TCP
Realtime clock	With
Memory capacity	448 kB internal 96 kB removable
Application structure	1 master task
Local signalling	for module active (RUN) 1 LED (green) for module error (ERR) 1 LED (red) for external fault (I/O) 1 LED (red) for activity on Ethernet network (ETH ACT) 1 LED (green) for memory card fault (CARD ERR) 1 LED (red) for Ethernet link diagnostics (STS) 1 LED (green) for Ethernet network status (link) 1 LED (green)
Product compatibility	0…1024 discrete I/O module 0…256 analog I/O module 0…2 Ethernet module
Average consumption in mA	95 mA
Power dissipation in W	2.3 W
marking	CE
Module format	Standard
Maximum altitude transport	9842.5 ft (3000 m)
Relative Humidity	95 % without condensation

Environment
Directives	2014/35/EU – low voltage directive 2014/30/EU – electromagnetic compatibility 2014/34/EU – ATEX directive
Product certifications	CE UL CSA RCM EAC Merchant Navy ATEX zone 2/22 IECEx zone 2/22
Standards	EN/IEC 61131-2 EN/IEC 61010-2-201 UL 61010-2-201 CSA C22.2 No 61010-2-201 IACS E10 EN/IEC 61000-6-5, interface type 1 and type 2 EN/IEC 61850-3, location G EN/IEC 60079-0
Environmental characteristic	Hazardous location class I division 2
IP Degree of Protection	IP20
Ambient Air Temperature for Operation	-13…158 °F (-25…70 °C)
Ambient Air Temperature for Storage	-40…185 °F (-40…85 °C)
Operating altitude	<= 6561.68 ft (2000 m)

Ordering and shipping details
Category	US1PC3418160
Discount Schedule	PC34
GTIN	3595864063317
Returnability	Yes
Country of origin	FR

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	2.165 in (5.500 cm)
Package 1 Width	4.331 in (11.000 cm)
Package 1 Length	4.528 in (11.500 cm)
Package 1 Weight	8.395 oz (238.000 g)
Unit Type of Package 2	S02
Number of Units in Package 2	15
Package 2 Height	5.906 in (15.000 cm)
Package 2 Width	11.811 in (30.000 cm)
Package 2 Length	15.748 in (40.000 cm)
Package 2 Weight	8.818 lb(US) (4.000 kg)
