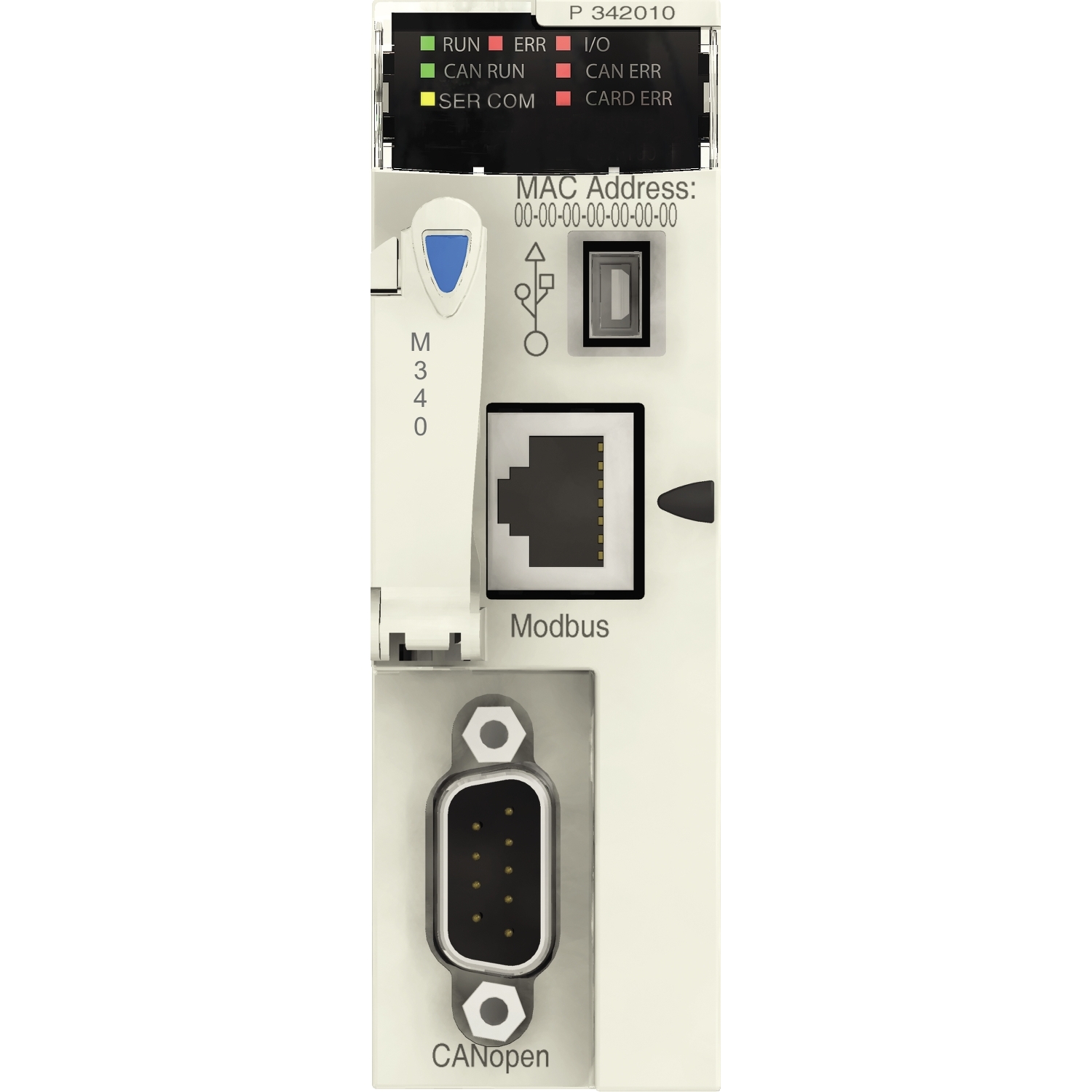

processor module M340 – max 1024 discrete + 256 analog I/O – Modbus – CANopen

BMXP342010

Main
Range of Product	Modicon M340 automation platform
Product or Component Type	Processor module
Concept	Modbus CANopen
Number of racks	4
Number of slots	11
Discrete I/O processor capacity	1024 I/O multi-rack configuration 704 I/O single-rack configuration
Analogue I/O processor capacity	256 I/O multi-rack configuration 66 I/O single-rack configuration
Number of application specific channel	36
Monitoring	Diagnostic counters Modbus Event counters Modbus

Complementary
Control channels	Programmable loops
Motion control	Independent axis CANopen
Integrated connection type	Non isolated serial link RJ45 character mode asynchronous in baseband, RS232C 2 twisted shielded pairs 0.3…19.2 kbit/s full duplex Non isolated serial link RJ45 character mode asynchronous in baseband, RS485 1 twisted shielded pair 0.3…19.2 kbit/s half duplex Non isolated serial link RJ45, master/slave Modbus, RTU/ASCII asynchronous in baseband, RS232C 1 twisted shielded pair 0.3…19.2 kbit/s half duplex Non isolated serial link RJ45, master/slave Modbus, RTU/ASCII asynchronous in baseband, RS485 1 twisted shielded pair 0.3…19.2 kbit/s half duplex USB port 12 Mbit/s CANopen master bus SUB-D 9 2 twisted shielded pairs 20 kbit/s…1 Mbit/s
Communication module processor capacity	2 Ethernet communication module 4 AS-Interface module
embedded communication service	Network management (NMT) CANopen Process Data Object (PDO) CANopen Service Data Object (SDO) CANopen Special functions (SYNC, EMCY, TIME) CANopen
Transmission rate	1 Mbit/s 0.0000000000…65.6 ft (0…20 m) 0.0000000000…2.0 ft (0…0.6 m) 125 kbit/s 0.0000000000…1640.4 ft (0…500 m) 0.0000000000…32.8 ft (0…10 m) 20 kbit/s 0.0000000000…8202.10 ft (0…2500 m) 0.0000000000…984.3 ft (0…300 m) 250 kbit/s 0.0000000000…820.2 ft (0…250 m) 0.0000000000…32.8 ft (0…10 m) 50 kbit/s 0.0000000000…3280.8 ft (0…1000 m) 0.0000000000…393.7 ft (0…120 m) 500 kbit/s 0.0000000000…328.08 ft (0…100 m) 0.0000000000…32.8 ft (0…10 m) 800 kbit/s 0.0000000000…131.2 ft (0…40 m) 0.0000000000…19.7 ft (0…6 m)
Bus type	CANopen M20 DS 301 V4.02 devices linked by daisy-chaining or tap junctions CSMA/CA CANopen M20 DS 303-2 devices linked by daisy-chaining or tap junctions CSMA/CA CANopen M20 DS 405 devices linked by daisy-chaining or tap junctions CSMA/CA
Number of server device(s)	63 CANopen
Number of devices per segment	0…32character mode) 0…32Modbus) 0…16 672.6 ft (205 m) CANopen) 0…32 607.0 ft (185 m) CANopen) 0…64 524.9 ft (160 m) CANopen)
Number of devices	2 point-to-point character mode 2 point-to-point Modbus
Bus length	0.0000000000…32.8 ft (0…10 m) serial link non isolated character mode segment 0.0000000000…32.8 ft (0…10 m) serial link non isolated Modbus segment 0.0000000000…3280.8 ft (0…1000 m) serial link isolated character mode segment 0.0000000000…3280.8 ft (0…1000 m) serial link isolated Modbus segment 0.0000000000…49.2 ft (0…15 m) character mode point-to-point 0.0000000000…49.2 ft (0…15 m) Modbus point-to-point
Maximum tap links length	<49.2 ft (15 m) serial link non isolated character mode segment <49.2 ft (15 m) serial link non isolated Modbus segment <131.2 ft (40 m) serial link isolated character mode segment <131.2 ft (40 m) serial link isolated Modbus segment
Number of addresses	0…248 character mode 0…248 Modbus
Requests	1 K data bytes per request character mode 252 data bytes per RTU request Modbus 504 data bytes per ASCII request Modbus
Control parameter	One CRC on each frame (RTU) Modbus One LRC on each frame (ASCII) character mode One LRC on each frame (ASCII) Modbus
Memory description	Supplied memory card (BMXRMS008MP) backup of programs, constants, symbols and data Internal RAM 4096 kB Internal RAM 256 kB data Internal RAM 3584 kB program constants and symbols
Maximum size of object areas	256 kB unlocated internal data 32634 %Mi located internal bits
Default size of object areas	1024 %MWi internal words located internal data 256 %KWi constant words located internal data 512 %Mi located internal bits
Application structure	1 cyclic/periodic master task No auxiliary task 64 event tasks 1 periodic fast task
Execution time per instruction	0.12 µs Boolean 0.17 µs double-length words 0.25 µs single-length words 1.16 µs floating points
Number of instructions per ms	6.4 Kinst/ms 65 % Boolean + 35 % fixed arithmetic 8.1 Kinst/ms 100 % Boolean
System overhead	0.13 ms fast task 0.7 ms master task
Current consumption	90 mA 24 V DC
Supply	Internal power supply via rack
marking	CE
Status LED	1 LED (Green) integrated machine/installation bus operational (CAN RUN) 1 LED (Green) processor running (RUN) 1 LED (Red) I/O module fault (I/O) 1 LED (Red) integrated machine/installation bus fault (CAN ERR) 1 LED (Red) memory card fault (CARD ERR) 1 LED (Red) processor or system fault (ERR) 1 LED (Yellow) activity on Modbus (SER COM)
Net Weight	0.46 lb(US) (0.21 kg)

Environment
Ambient Air Temperature for Operation	32…140 °F (0…60 °C)
Relative Humidity	10…95 % without condensation
IP Degree of Protection	IP20
protective treatment	TC
Directives	2014/35/EU – low voltage directive 2014/30/EU – electromagnetic compatibility
Product certifications	CE UL CSA RCM EAC Merchant Navy
Standards	EN 61131-2 EN/IEC 61010-2-201 UL 61010-2-201 CSA C22.2 No 61010-2-201 IACS E10 EN/IEC 61000-6-5, interface type 1 and type 2 EN/IEC 61850-3, location G
Environmental characteristic	Hazardous location class I division 2

Ordering and shipping details
Category	18160-MODICON M340
Discount Schedule	PC34
GTIN	3595863910599
Returnability	No
Country of origin	FR

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	2.2 in (5.5 cm)
Package 1 Width	4.3 in (11.0 cm)
Package 1 Length	4.7 in (12.0 cm)
Package 1 Weight	8.6 oz (244.0 g)
