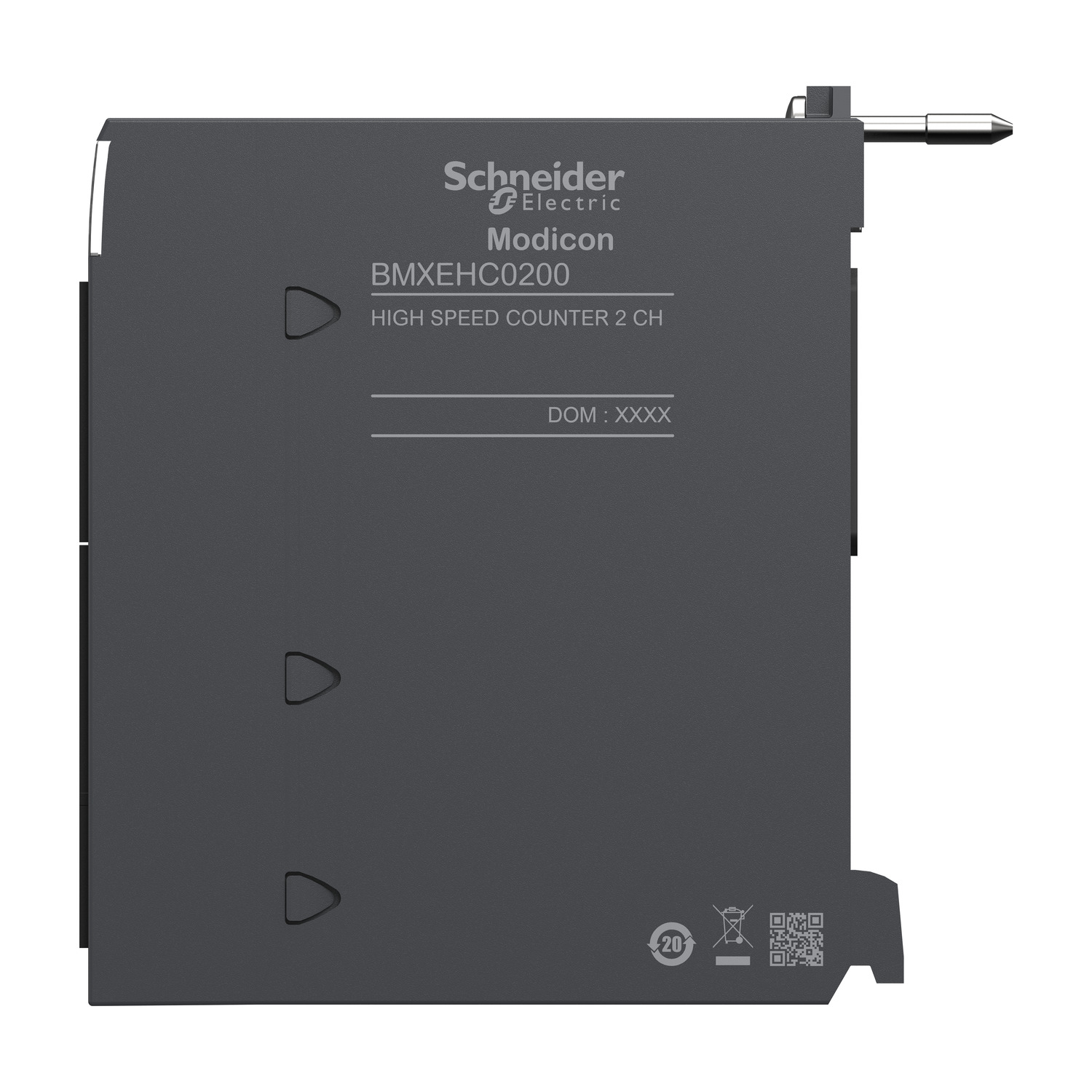

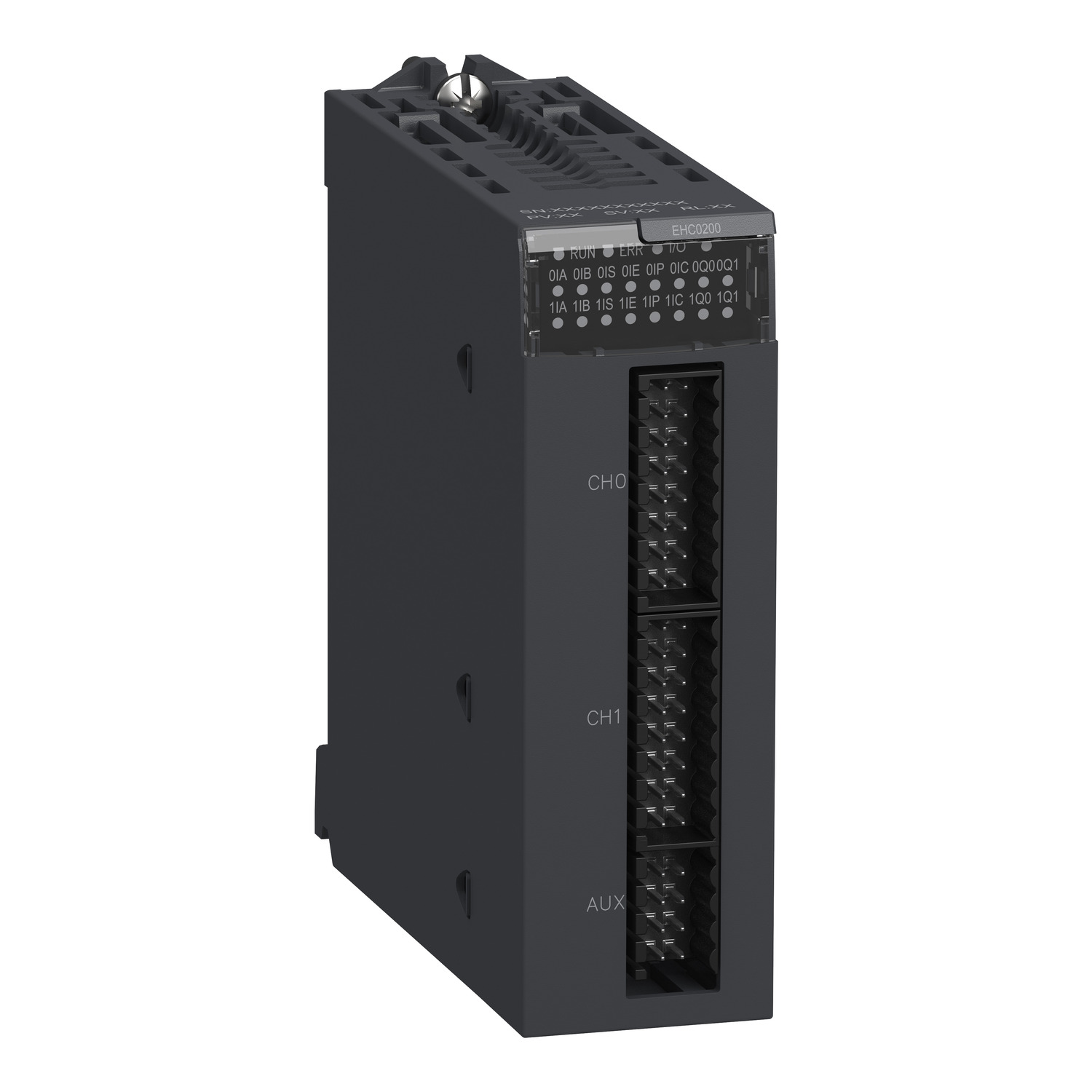

BMXEHC0200 counter module, Modicon M340, high speed, 2 channels

MXN $10,609.00 - (IVA Incluido) + Envío

7 disponibles

This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This high speed counter module has 2 channels, 6 inputs and 2 outputs. It is a counter module with an I/O voltage of 24V DC and a current consumption of 100mA at 3.3V DC bus, 40mA at 24V DC rack, 80mA at 24V DC sensor. Counter functions are loop (modulo) counting, width modulation, down counting etc. This product is robust, high quality and based on the latest innovative technology. It is furnished with 10-pin connector with for wiring auxiliary input and sensor power supply, 16-pin connector for wiring the sensors of counter 0 and 16-pin connector for wiring the sensors of counter 1. It is an IP20 rated product. It weighs 0.112kg. It is suitable for medium to large process applications. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This input compatible with 19.2V to 30V 2-wire/3-wire proximity sensor, incremental encoder with push-pull outputs, 10V to 30V totem pole. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).

Buy it now

Categories: PLC's

Brands:

Tags: PLC's

SKU: BMXEHC0200

counter module, Modicon M340, high speed, 2 channels

BMXEHC0200

Main
Range of Product	Modicon M340 automation platform
Product or Component Type	Counter module
Number of channels	2
Maximum counting frequency	60000 Hz
Number of inputs	6
Input compatibility	19.2…30 V 2-wire/3-wire proximity sensor incremental encoder with push-pull outputs, 10…30 V totem pole
Input voltage	24 V DC type 3
number of outputs	2
Output voltage	24 V DC

Complementary
Counter functions	Loop (modulo) counting Width modulation Down counting Measure time periods Ratio count Count events 32-bit counter counting Frequency meter
Cycle time	1 ms
Isolation voltage	1500 V 60 s
input type	3 auxiliary input 3 high speed
Input voltage limits	30 V
Input current	2 mA at 11 V
Voltage state 1 guaranteed	11…30 V
Current state 1 guaranteed	>= 6 mA
Voltage state 0 guaranteed	< 5 V
Current state 0 guaranteed	<= 1.5 mA
Discrete output logic	Positive or negative configurable
Maximum output current	2 A per module 0.5 A per output
Output voltage limits	19.2…30 V
Maximum load current	1 A per module 0.5 A per output
Maximum leakage current	0.1 mA at state 0
Maximum voltage drop	<3 V at state 1
Output overload protection	Integrated
Output short-circuit protection	1.5 A integrated
Overlap time	0.2 ms
Electrical connection	1 connector 10 pins for wiring auxiliary input and sensor power supply 1 connector 16 pins for wiring the sensors of counter 0 1 connector 16 pins for wiring the sensors of counter 1
Current consumption	200 mA 3.3 V DC bus 40 mA 24 V DC rack 80 mA 24 V DC sensor
Module format	Standard
Net Weight	0.247 lb(US) (0.112 kg)

Environment
Ambient Air Temperature for Operation	32.0000000000…140.0000000000 °F (0…60 °C)
Relative Humidity	10…95 % without condensation
IP Degree of Protection	IP20
Directives	2014/35/EU – low voltage directive 2014/30/EU – electromagnetic compatibility
protective treatment	TC

Ordering and shipping details
Category	US1PC3418160
Discount Schedule	PC34
GTIN	3595863910148
Returnability	Yes
Country of origin	FR
