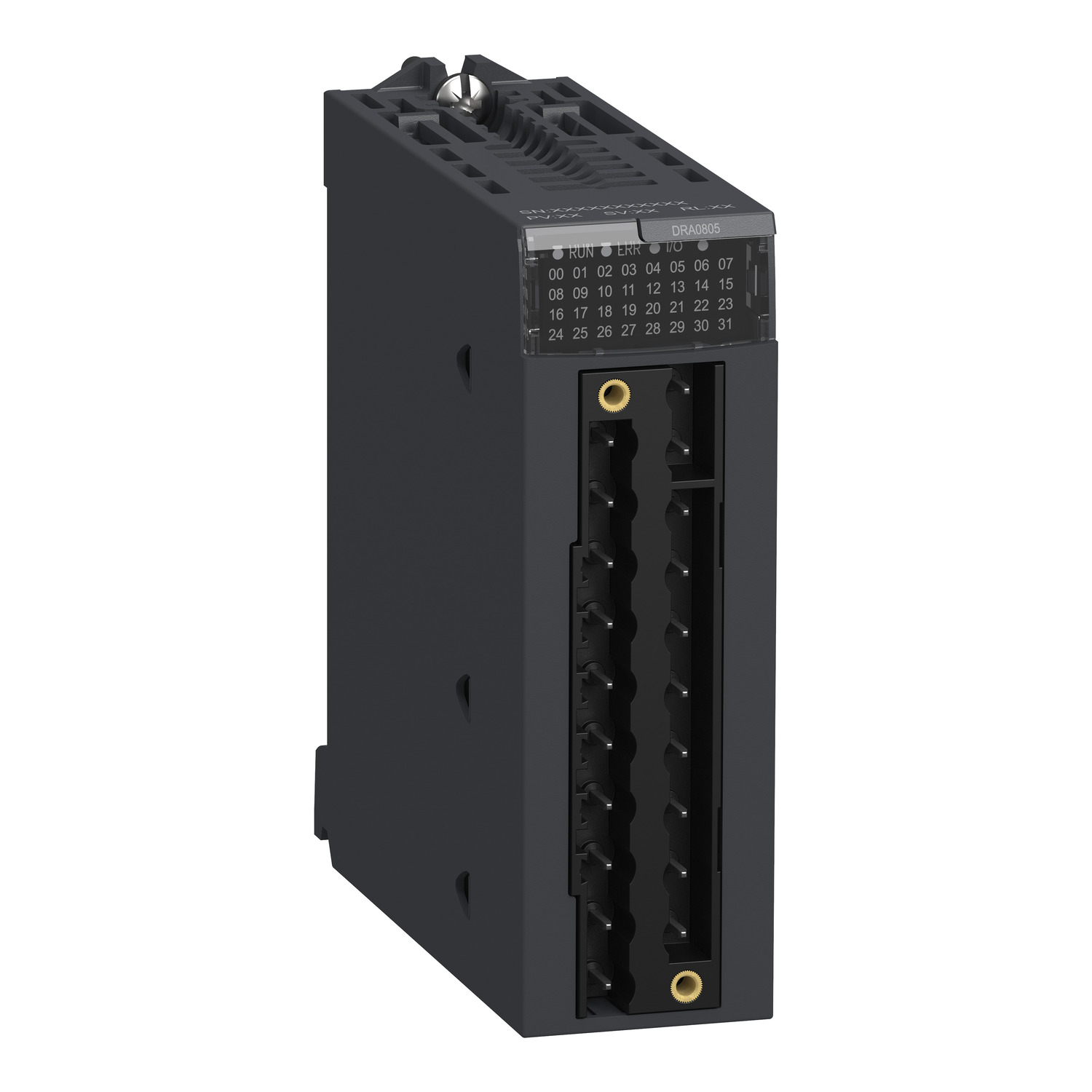

BMXDRA0805 Discrete output module, Modicon X80, 8 NO relay outputs, 24 to 240V AC / 24V DC

MXN $7,075.00 - (IVA Incluido) + Envío

119 disponibles

This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This discrete output module has 8 relay outputs. It is a discrete output module with an output voltage of 24V to 240V, 19V AC to 264V AC, 12V to 24V, 10V DC to 34V DC, a typical current consumption of 79mA at 3.3V DC. This product is robust, high quality and based on the latest innovative technology. It offers electrical durability of 100000, 1 million, 10 million, 150000, 1500000, 2 million, 300000, 3 million, 500000, 5 million, 700000 cycles and 2119902 hours of MTBF. It is an IP20 rated product. It weighs 0.145kg. It is suitable for medium to large process applications. This product is certified by EAC, Merchant Navy, CSA, RCM, CE and UL. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).

Comprar

Categorias: PLC's

Etiquetas: PLC's

SKU: BMXDRA0805

Discrete output module, Modicon X80, 8 NO relay outputs, 24 to 240V AC / 24V DC

BMXDRA0805

Main
Range of Product	Modicon X80
Product or Component Type	Discrete output module
Discrete output number	8 EN/IEC 61131-2
Discrete output type	Relay
Discrete output voltage	24…240 V 19…264 V AC 12…24 V 10…34 V DC

Complementary
[Ith] conventional free air thermal current	3 A
Insulation resistance	> 10 MOhm 500 V DC
Power dissipation in W	2.7 W
Response time on output	< 10 ms activation < 8 ms deactivation
Typical current consumption	79 mA 3.3 V DC
MTBF reliability	2119902 H
Output overload protection	Use 1 fast blow fuse per channel or group of channel
Output overvoltage protection	Use discharge diode on each output DC Use RC circuit on each output AC Use ZNO surge limiter on each output AC
Output short-circuit protection	Use 1 fast blow fuse per channel or group of channel
Minimum switching current	10 mA 5 V DC
Electrical durability	AC-15 100000 cycles 220 VA 200…240 V 0.35) AC-12 1000000 cycles 110 VA 110…120 V AC-12 1000000 cycles 220 VA 200…240 V AC-12 1000000 cycles 50 VA 48 V AC-15 1000000 cycles 110 VA 200…240 V 0.35) DC-12 1000000 cycles 24 W 24 V DC-13 1000000 cycles 24 W 24 V AC-15 10000000 cycles 10 VA 110…120 V 0.35) AC-15 10000000 cycles 10 VA 200…240 V 0.35) AC-15 150000 cycles 110 VA 110…120 V 0.35) AC-15 1500000 cycles 50 VA 110…120 V 0.35) AC-15 2000000 cycles 24 VA 48 V 0.35) DC-13 2000000 cycles 10 W 24 V DC-12 300000 cycles 40 W 24 V AC-15 3000000 cycles 50 VA 200…240 V 0.35) AC-12 500000 cycles 110 VA 48 V AC-12 500000 cycles 220 VA 110…120 V AC-15 5000000 cycles 10 VA 48 V 0.35) AC-15 500000 cycles 24 VA 24 V 0.35) AC-12 700000 cycles 50 VA 24 V
Status LED	1 LED (Green) module operating (RUN) 1 LED per channel (Green) channel diagnostic 1 LED (Red) module error (ERR) 1 LED (Red) module I/O
Net Weight	0.320 lb(US) (0.145 kg)

Environment
IP Degree of Protection	IP20
Directives	2014/35/EU – low voltage directive 2014/30/EU – electromagnetic compatibility
Environmental characteristic	Corrosion resistance Dust resistant
Dielectric strength	2000 V AC 50/60 Hz 1 min
Vibration resistance	3 gn
Shock resistance	30 gn
Ambient Air Temperature for Storage	-40.0000000000…185.0000000000 °F (-40…85 °C)
Ambient Air Temperature for Operation	32.0000000000…140.0000000000 °F (0…60 °C)
Relative humidity	5…95 % 131.0000000000 °F (55 °C) without condensation
Operating altitude	0…6561.68 ft (0…2000 m) 2000…5000 m with derating factor

Ordering and shipping details
Category	US1PC3418160
Discount Schedule	PC34
GTIN	3595863910650
Returnability	Yes
Country of origin	US

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	2.2 in (5.5 cm)
Package 1 Width	4.3 in (11.0 cm)
Package 1 Length	4.7 in (12.0 cm)
Package 1 Weight	6.2 oz (177.0 g)
