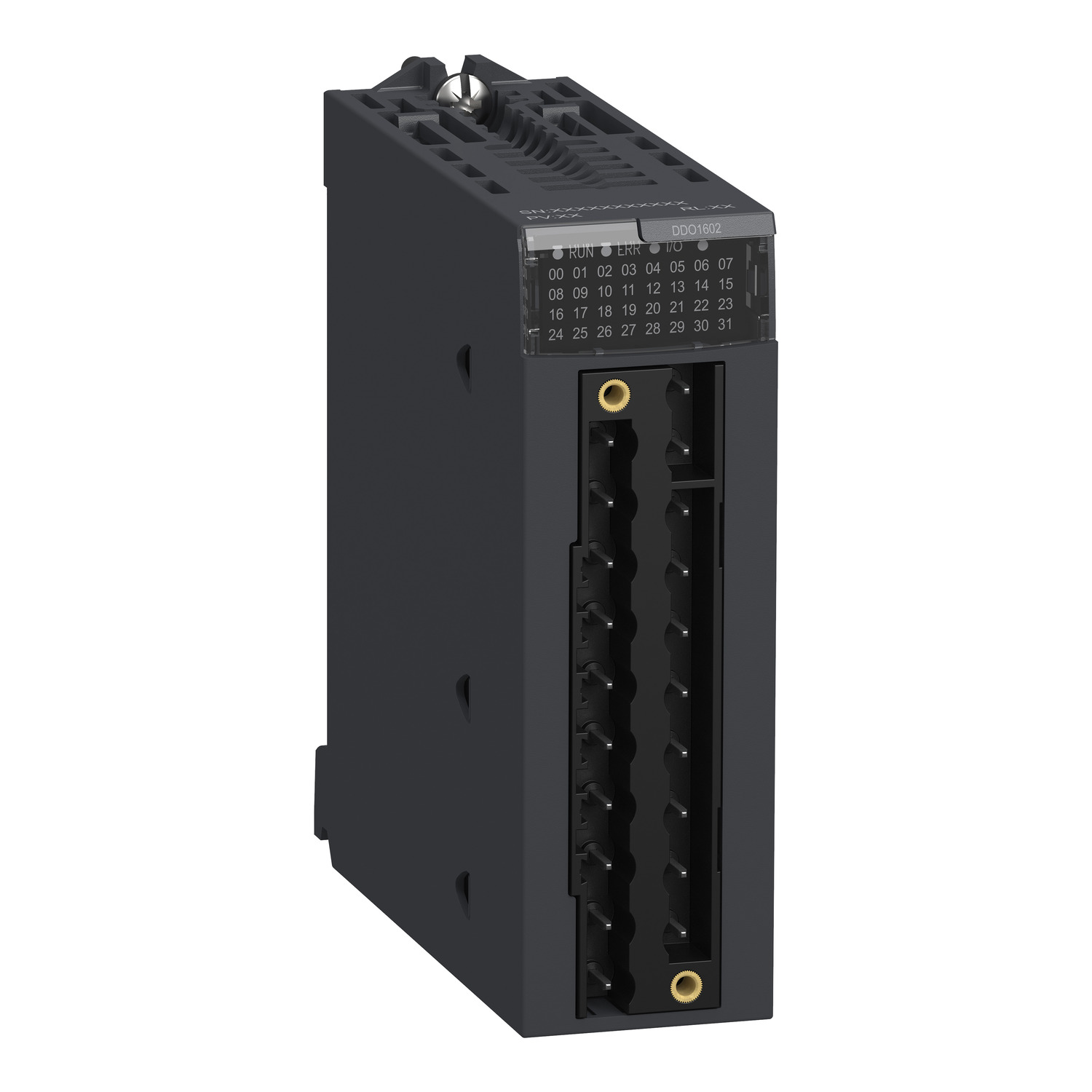

discrete output module, Modicon X80, 16 transistor outputs, 24V DC positive
BMXDDO1602
| Range of Product | Modicon X80 |
|---|---|
| Product or Component Type | Discrete output module |
| Discrete output number | 16 EN/IEC 61131-2 |
| Discrete output type | Solid state |
| Discrete output logic | Positive |
| Discrete output voltage | 24 V 19…30 V DC |
| Discrete output current | 0.5 A |
| Current per channel | 0.625 A |
|---|---|
| Maximum current per module | 10 A |
| Maximum leakage current | 0.5 mA at state 0 |
| Maximum voltage drop | <1.2 V at state 1 |
| Insulation resistance | > 10 MOhm 500 V DC |
| Power dissipation in W | 4 W |
| Response time on output | 1.2 ms |
| Paralleling of outputs | Yes : 2 maximum |
| Typical current consumption | 79 mA 3.3 V DC |
| MTBF reliability | 410000 H |
| Protection type | External fuse reverse polarity protection short-circuit protection overload protection overvoltage protection |
| Output overload protection | With electronic circuit breaker 1.5 In < Id < 2 In With current limiter |
| Output overvoltage protection | With transil diode |
| Output short-circuit protection | With 2 A external fuse |
| Reverse polarity protection | Reverse mounted diode |
| Voltage detection threshold | < 14 V DC preactuator fault > 18 V DC preactuator at state 0 |
| Maximum tungsten load | 6 W |
| Switching frequency | 0.5/LI² Hz |
| Load impedance ohmic | > 48 Ohm |
| Status LED | 1 LED (Green) module operating (RUN) 1 LED per channel (Green) channel diagnostic 1 LED (Red) module error (ERR) 1 LED (Red) module I/O |
| Net Weight | 0.26 lb(US) (0.12 kg) |
| IP Degree of Protection | IP20 |
|---|---|
| Directives | 2014/35/EU – low voltage directive 2014/30/EU – electromagnetic compatibility |
| Dielectric strength | 1500 V AC 50/60 Hz 1 minute, output/ground 1500 V AC 50/60 Hz 1 minute, output/internal logic |
| Vibration resistance | 3 gn |
| Shock resistance | 30 gn |
| Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) |
| Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) |
| Relative humidity | 5…95 % 131 °F (55 °C) without condensation |
| Operating altitude | 0…6561.68 ft (0…2000 m) 2000…5000 m with derating factor |
| Category | US1PC3418160 |
|---|---|
| Discount Schedule | PC34 |
| GTIN | 3595863910469 |
| Returnability | Yes |
| Country of origin | US |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 2.19 in (5.56 cm) |
| Package 1 Width | 4.369 in (11.096 cm) |
| Package 1 Length | 4.630 in (11.759 cm) |
| Package 1 Weight | 5.6 oz (160.0 g) |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 15 |
| Package 2 Height | 5.9 in (15 cm) |
| Package 2 Width | 11.8 in (30 cm) |
| Package 2 Length | 15.7 in (40 cm) |
| Package 2 Weight | 6.70 lb(US) (3.04 kg) |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 240 |
| Package 3 Height | 29.5 in (75.0 cm) |
| Package 3 Width | 23.6 in (60.0 cm) |
| Package 3 Length | 31.5 in (80.0 cm) |
| Package 3 Weight | 130.07 lb(US) (59 kg) |
| Warranty | 18 months |
|---|
