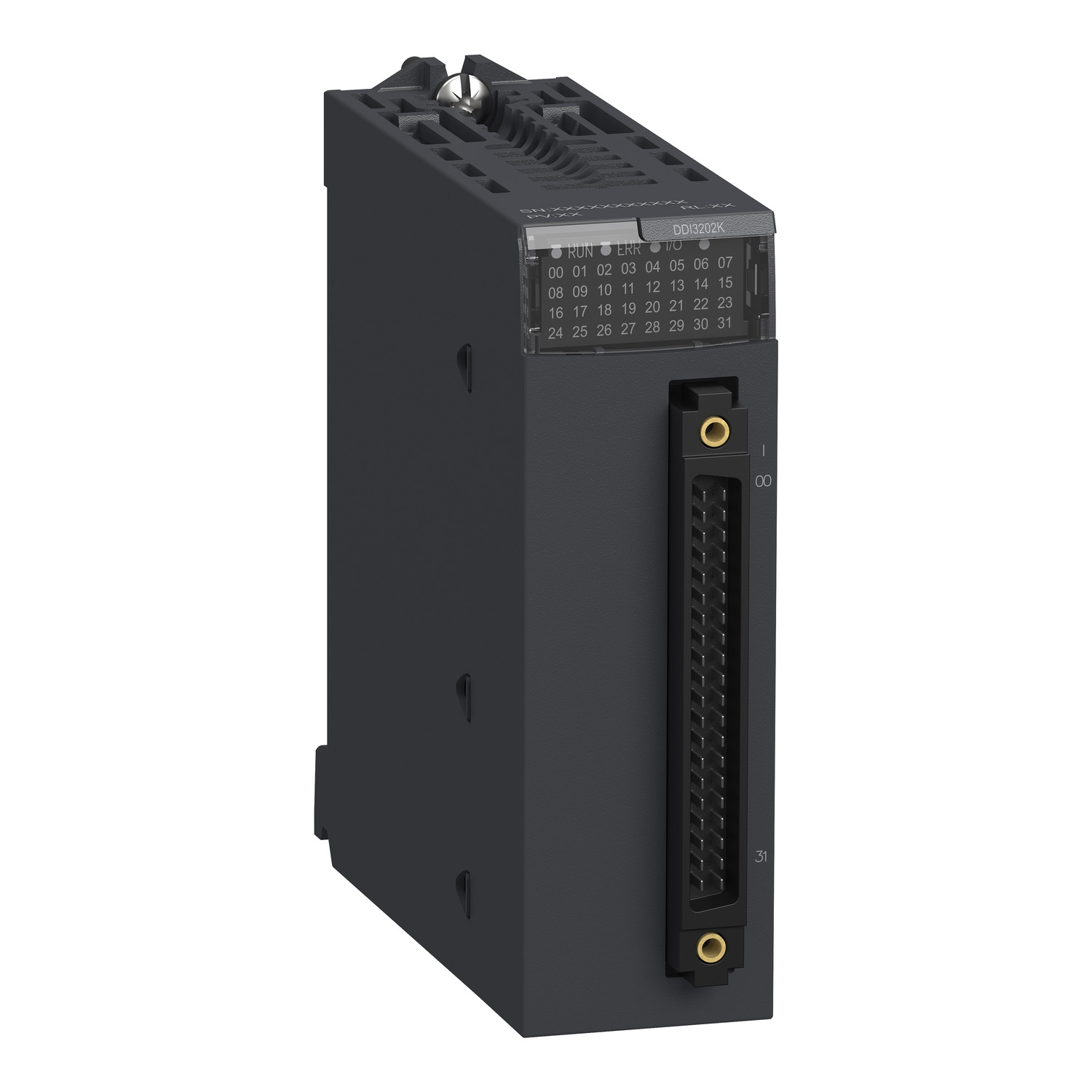

discrete input module, Modicon X80, 32 inputs, 24V DC positive
BMXDDI3202K
| Range of Product | Modicon X80 |
|---|---|
| Product or Component Type | Discrete input module |
| Discrete input number | 32 |
| Discrete input type | Isolated |
| input type | Current sink (logic positive) |
| Discrete input voltage | 24 V DC positive |
| Discrete input current | 2.5 mA |
| Input compatibility | With 2-wire/3-wire proximity sensors IEC 60947-5-2 With 2-wire/3-wire proximity sensors IEC 61131-2 Type 1 |
|---|---|
| Sensor power supply | 19…30 V |
| Current state 1 guaranteed | >= 2 mA |
| Current state 0 guaranteed | <= 0.5 mA |
| Input impedance | 9600 Ohm |
| Insulation resistance | > 10 MOhm 500 V DC |
| Power dissipation in W | 3.9 W |
| DC typical response time | 4 ms |
| DC maximum response time | 7 ms |
| Paralleling of inputs | No |
| Typical current consumption | 121 mA 3.3 V DC |
| MTBF reliability | 905000 H |
| Protection type | 1 external fuse per group of channel 0.5 A fast blow reverse polarity protection |
| Voltage detection threshold | < 14 V DC sensor fault > 18 V DC sensor OK |
| Status LED | 1 LED (Green) module operating (RUN) 1 LED per channel (Green) channel diagnostic 1 LED (Red) module error (ERR) 1 LED (Red) module I/O |
| Net Weight | 0.247 lb(US) (0.112 kg) |
| IP Degree of Protection | IP20 |
|---|---|
| Directives | 2014/35/EU – low voltage directive 2014/30/EU – electromagnetic compatibility |
| Dielectric strength | 1500 V AC 50/60 Hz 1 minute, primary/secondary 500 V DC 1 minute, between group of channels |
| Vibration resistance | 3 gn |
| Shock resistance | 30 gn |
| Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) |
| Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) |
| Relative humidity | 5…95 % 131 °F (55 °C) without condensation |
| Operating altitude | 0…6561.68 ft (0…2000 m) 2000…5000 m with derating factor |
| Category | US1PC3418160 |
|---|---|
| Discount Schedule | PC34 |
| GTIN | 3595863910018 |
| Returnability | Yes |
| Country of origin | FR |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 2.115 in (5.373 cm) |
| Package 1 Width | 4.320 in (10.974 cm) |
| Package 1 Length | 4.549 in (11.554 cm) |
| Package 1 Weight | 5.4 oz (154.4 g) |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 15 |
| Package 2 Height | 5.9 in (15 cm) |
| Package 2 Width | 11.8 in (30 cm) |
| Package 2 Length | 15.7 in (40 cm) |
| Package 2 Weight | 5.5 lb(US) (2.5 kg) |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 240 |
| Package 3 Height | 29.5 in (75.0 cm) |
| Package 3 Width | 23.6 in (60.0 cm) |
| Package 3 Length | 31.5 in (80.0 cm) |
| Package 3 Weight | 127.9 lb(US) (58 kg) |
| Warranty | 18 months |
|---|
