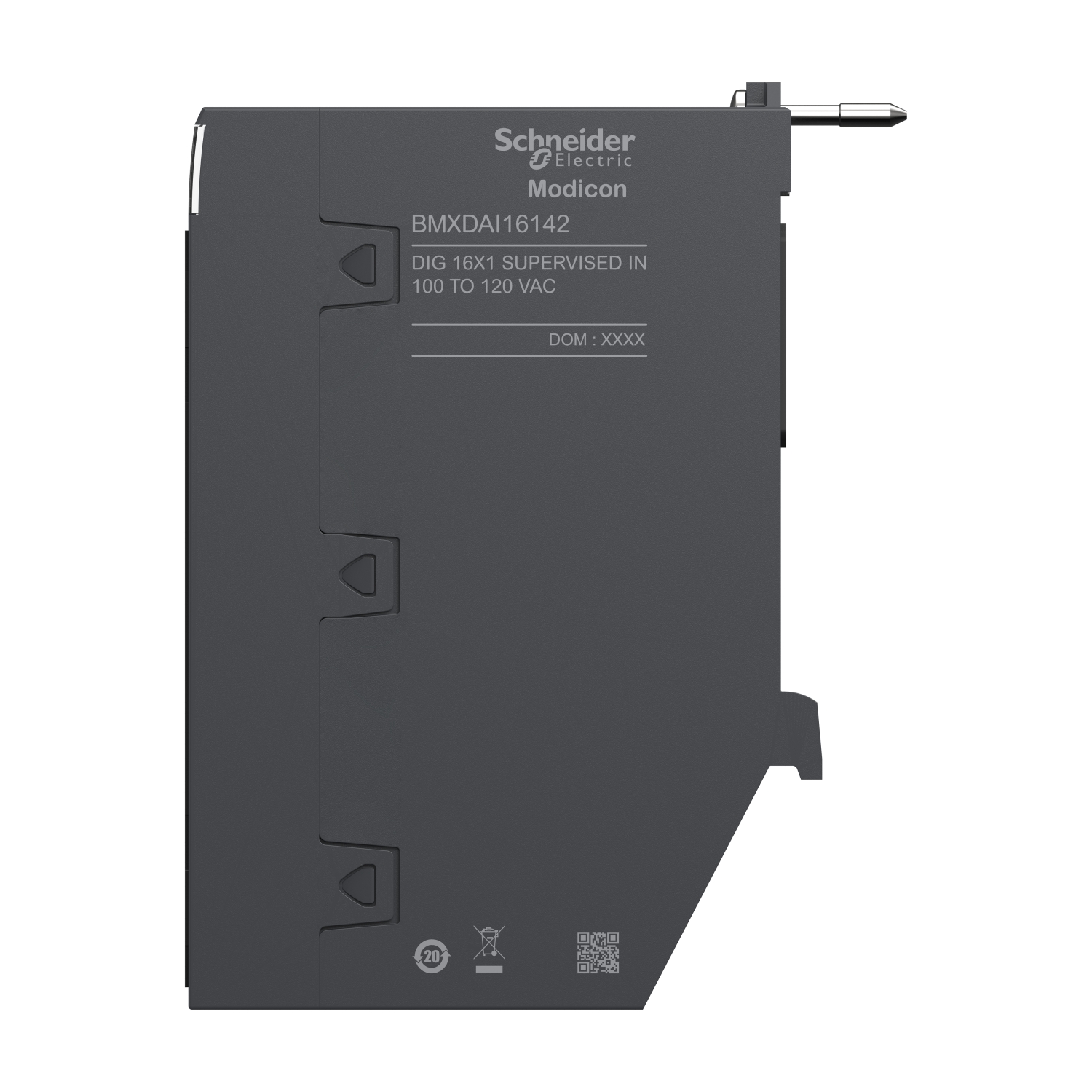

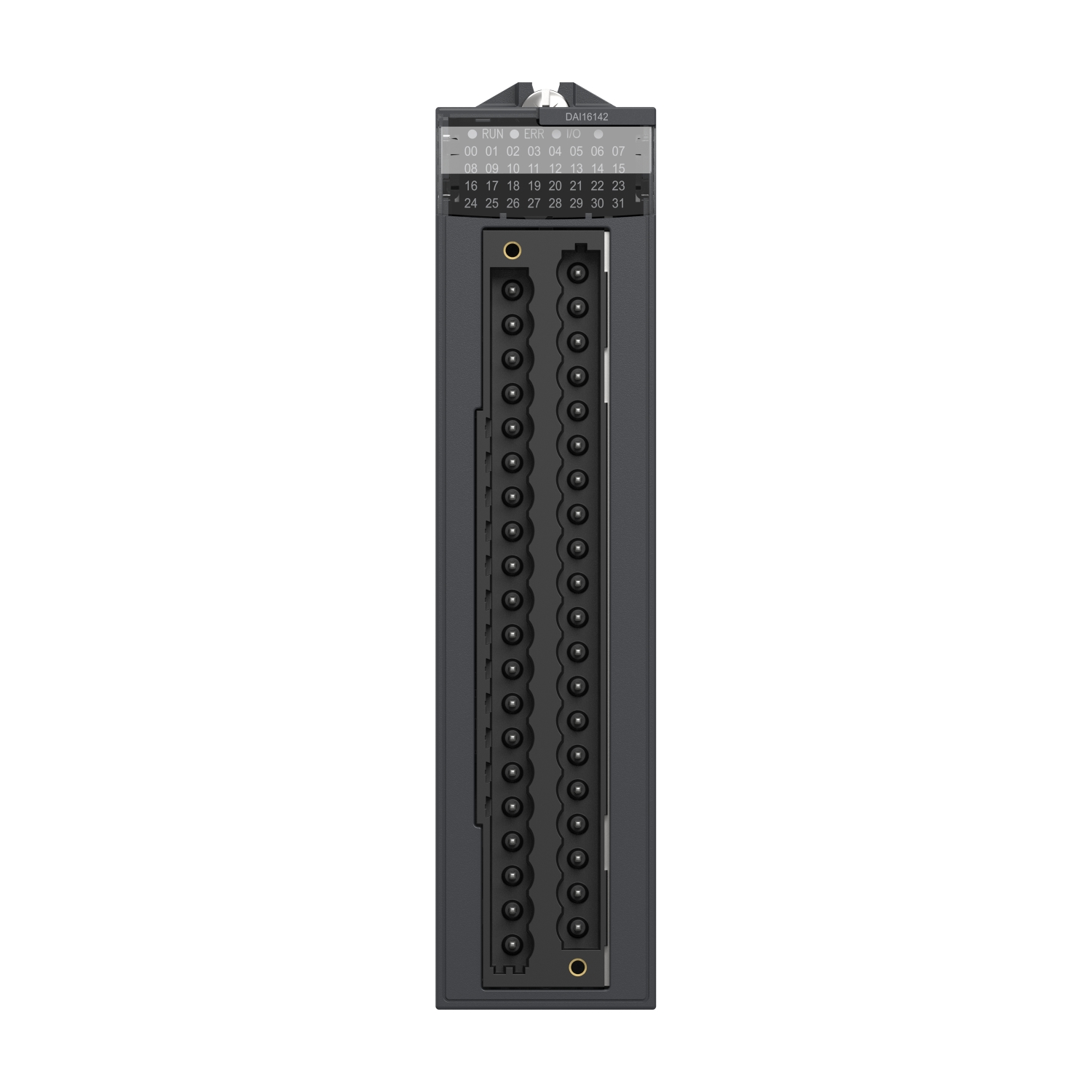

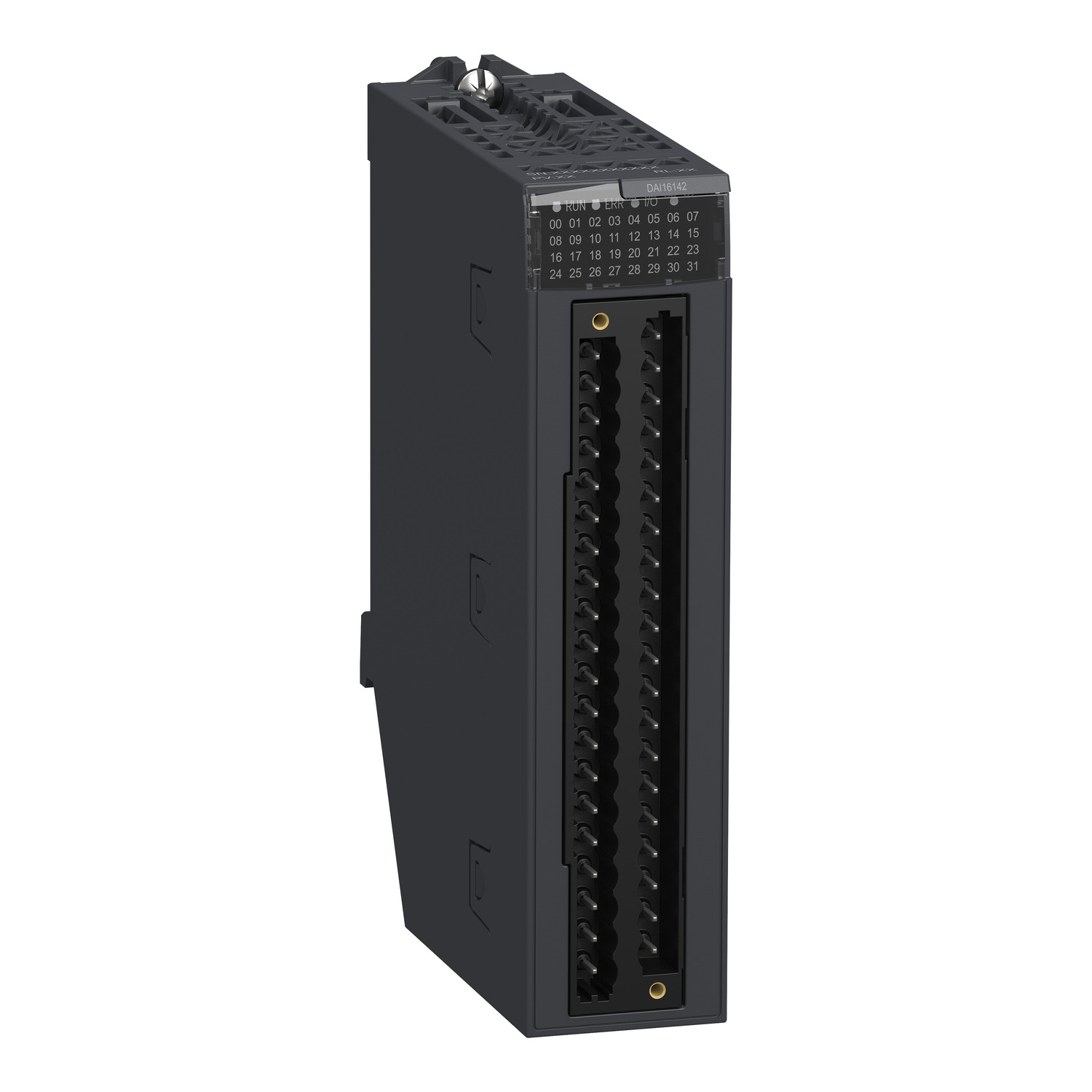

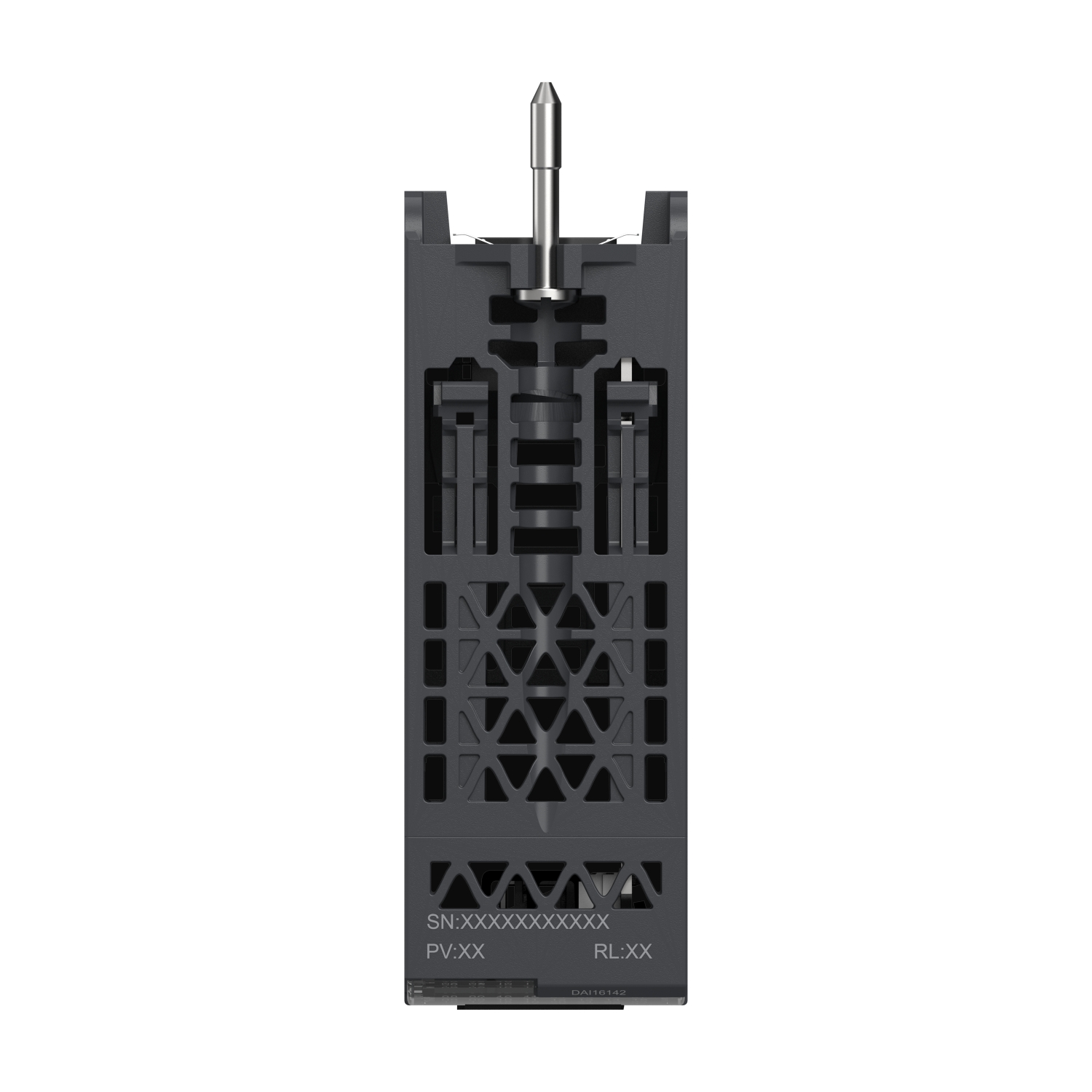

Discrete input module, Modicon X80, 16 isolated inputs, 100 to 120V AC
BMXDAI16142
| Range of Product | Modicon X80 |
|---|---|
| Product or Component Type | Discrete I/O module |
| Discrete input number | 16 |
| Discrete input type | Isolated |
| input type | Capacitive |
| Discrete input voltage | 100…120 V AC |
| Discrete input current | 11.9 mA |
| Input compatibility | 2-wire proximity sensor IEC 60947-5-2 2-wire proximity sensor IEC 61131-2 Type 1 |
|---|---|
| Network Frequency | 60 Hz |
| network frequency limits | 47…63 Hz |
| Sensor power supply | 85…132 V |
| Current state 1 guaranteed | >= 4 mA |
| Current state 0 guaranteed | <= 3 mA |
| Input impedance | 11…13.4 kOhm |
| Insulation resistance | > 10 MOhm 500 V DC |
| Power dissipation in W | 4.3 W |
| AC activation response time | 21 ms |
| AC deactivation response time | 35 ms |
| Typical current consumption | 76 mA 3.3 V DC |
| MTBF reliability | 3700000 H |
| Protection type | 1 external fuse per group of channel 0.25 A fast blow |
| Voltage detection threshold | < 40 V AC sensor fault > 85 V AC sensor OK |
| Status LED | 1 LED (Green) module operating (RUN) 1 LED per channel (Green) channel diagnostic 1 LED (Red) module error (ERR) 1 LED (Red) module I/O |
| Net Weight | 0.346 lb(US) (0.157 kg) |
| IP Degree of Protection | IP20 |
|---|---|
| Dielectric strength | 1780 V AC 60 Hz 1 min |
| Vibration resistance | 3 gn |
| Shock resistance | 30 gn |
| Ambient Air Temperature for Storage | -40.0000000000…185.0000000000 °F (-40…85 °C) |
| Ambient Air Temperature for Operation | 32.0000000000…140.0000000000 °F (0…60 °C) |
| Relative humidity | 0…95 % 32.0000000000…140.0000000000 °F (0…60 °C) without condensation |
| Operating altitude | 0…6561.68 ft (0…2000 m) 2000…5000 m with derating factor |
| Category | US1PC3418160 |
|---|---|
| Discount Schedule | PC34 |
| GTIN | 3606480025730 |
| Returnability | No |
| Country of origin | FR |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 2.244 in (5.700 cm) |
| Package 1 Width | 6.969 in (17.700 cm) |
| Package 1 Length | 10.236 in (26.000 cm) |
| Package 1 Weight | 10.370 oz (294.000 g) |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 8 |
| Package 2 Height | 11.811 in (30.000 cm) |
| Package 2 Width | 11.811 in (30.000 cm) |
| Package 2 Length | 15.748 in (40.000 cm) |
| Package 2 Weight | 6.250 lb(US) (2.835 kg) |
| Warranty | 18 months |
|---|
