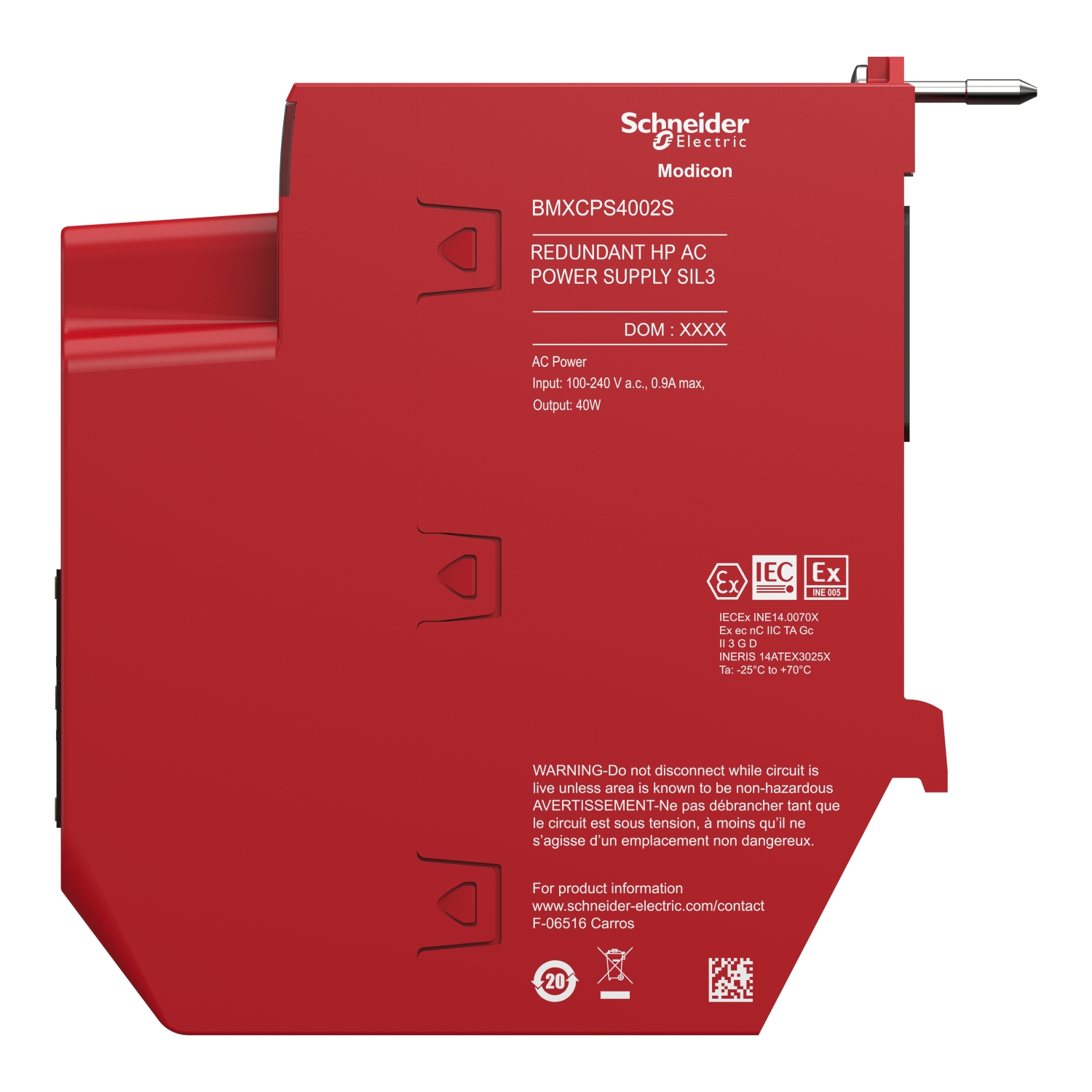

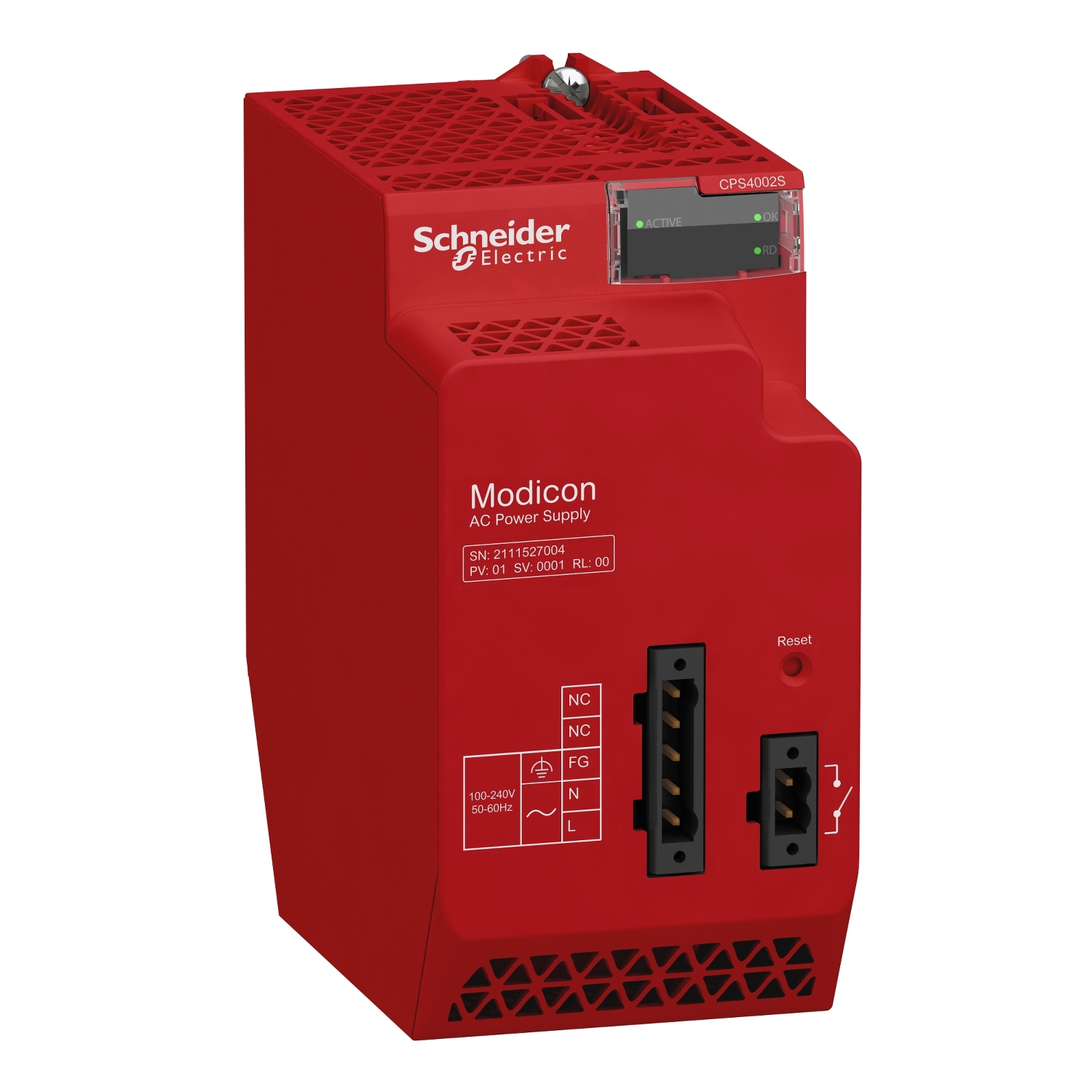

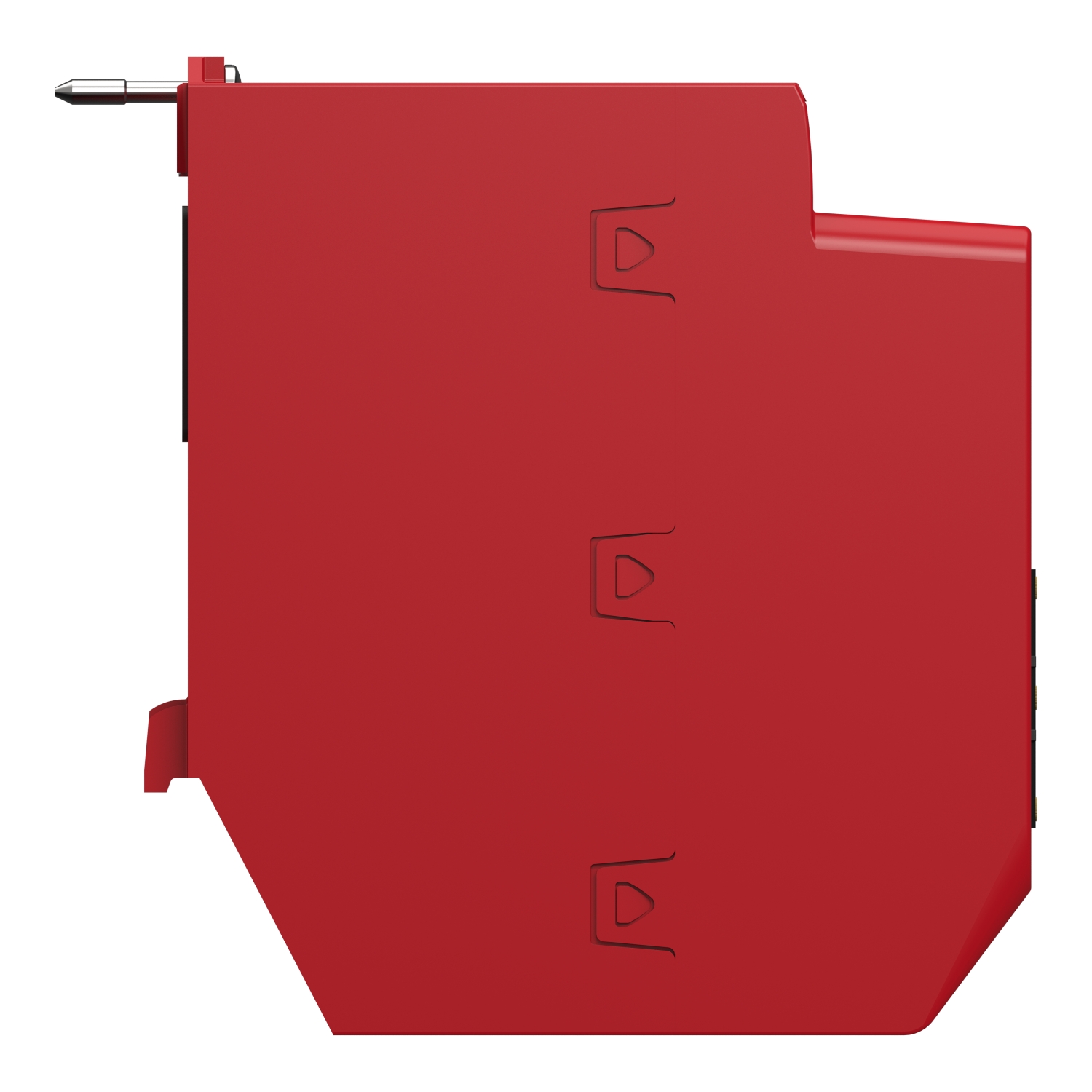

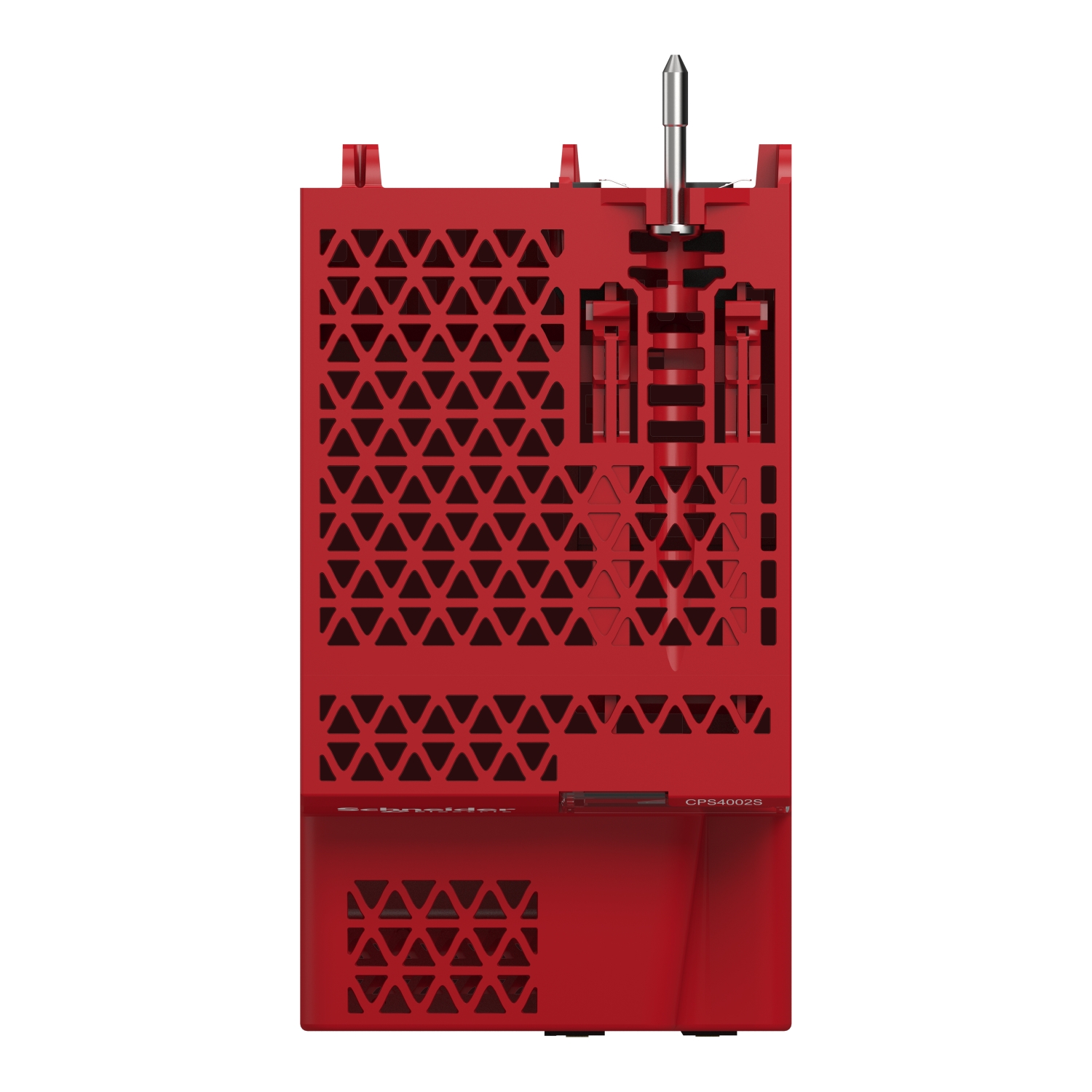

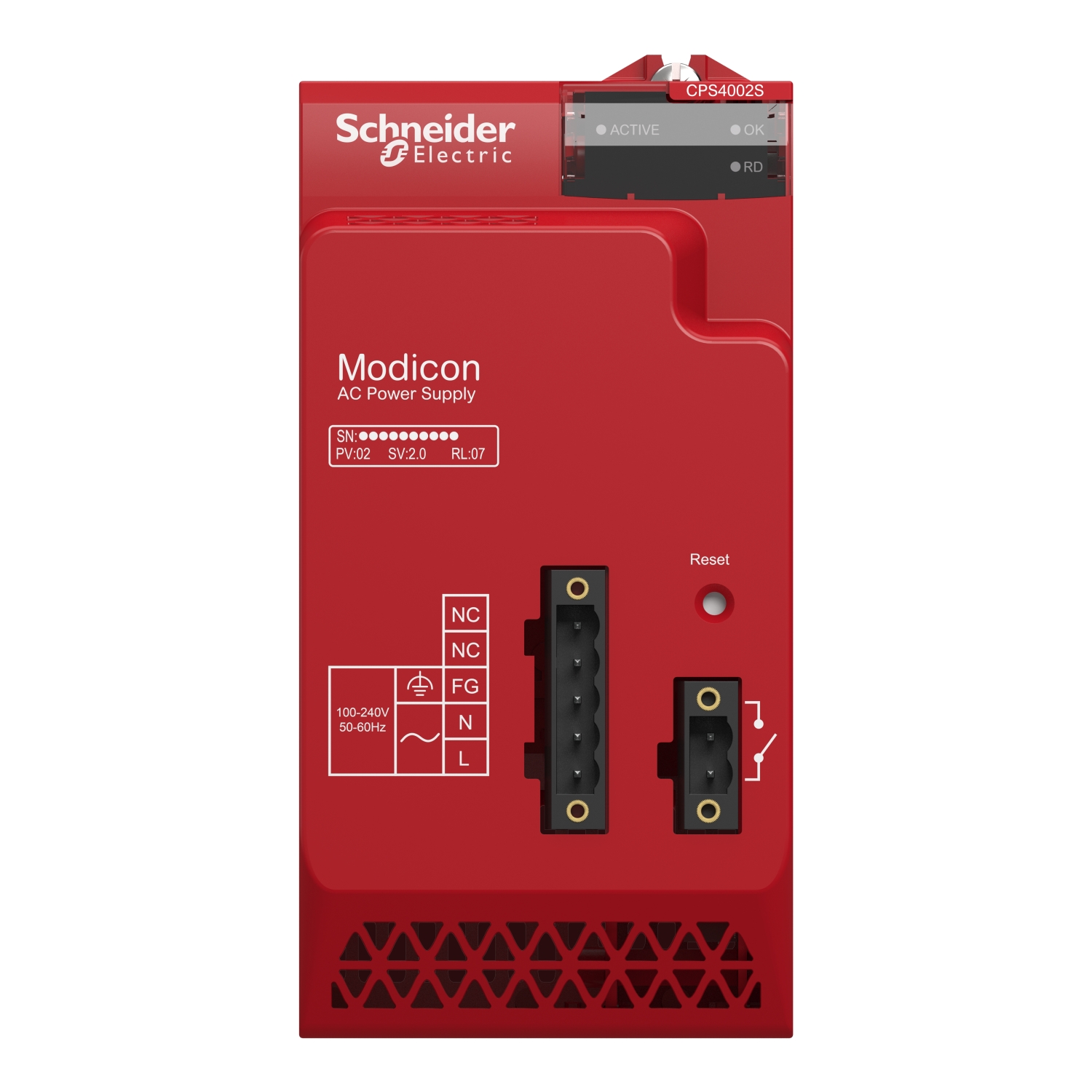

redundant power supply module, Modicon X80, 100 to 240V AC, safety
BMXCPS4002S
| Range of Product | Modicon X80 |
|---|---|
| Product or Component Type | Power supply module |
| backplane compatibility | All backplane |
| advanced diagnostics available via network | Redundancy information Redundancy test Temperature sensing Remaining lifetime Uptime duration |
| Primary Voltage | 100…240 V |
| Supply circuit type | AC |
| Secondary power | 15 W 3.3 V DC -13…140 °F (-25…60 °C) I/O module logic power supply 40 W 24 V DC -13…140 °F (-25…60 °C) I/O module power supply and processor if 3.3 V not loaded |
| Primary voltage limit | 85…264 V |
|---|---|
| Network Frequency | 50/60 Hz |
| network frequency limits | 47…63 Hz |
| Apparent power | 0.13 kVA |
| Input current | 0.55 A 230 V 1.1 A 115 V |
| Inrush current | 30 A 115 V 60 A 230 V |
| I²t on activation | 1 A².s 115 V 4 A².s 230 V |
| It on activation | 0.1 A.s 115 V 0.15 A.s 230 V |
| MTBF reliability | 792000 H |
| Protection type | Internal fuse not accessible primary circuit Overload protection secondary circuit Overvoltage protection secondary circuit Short-circuit protection secondary circuit |
| Current at secondary voltage | 4.5 A 3.3 V DC I/O module logic power supply 1.67 A 24 V DC I/O module power supply and processor |
| Maximum power dissipation in W | 8.5 W |
| Status LED | 1 LED (Green) presence of voltages (OK) 1 LED (Green) redundancy OK 1 LED (Green) power supply status |
| Control Type | RESET push-button cold restart |
| Electrical connection | 1 connector 2 alarm relay 1 connector 5 line supply, protective earth |
| Insulation resistance | >= 100 MOhm primary/ground >= 100 MOhm primary/secondary |
| Net Weight | 1.12 lb(US) (0.51 kg) |
| Immunity to microbreaks | 10 ms |
|---|---|
| Dielectric strength | 1500 V primary/secondary I/O module logic power supply 1500 V primary/secondary I/O module power supply and processor 2300 V primary/secondary sensor power supply 1500 V primary/ground 500 V 24 V sensor output/ground |
| Vibration resistance | 3 gn |
| Shock resistance | 15 gn |
| IP Degree of Protection | IP20 |
| Directives | 2014/30/EU – electromagnetic compatibility 2006/42/EC – machinery 2014/34/EU – ATEX directive |
| Product certifications | CE UL CSA RCM EAC Merchant Navy ATEX zone 2/22 IECEx zone 2/22 TÃœV |
| Standards | EN/IEC 61131-2 EN/IEC 61010-2-201 UL 61010-2-201 CSA C22.2 No 61010-2-201 IACS E10 EN/IEC 61000-6-5, interface type 1 and type 2 EN/IEC 61850-3, location G EN/IEC 60079-0 |
| Environmental characteristic | Hazardous location class I division 2 Gas resistant class Gx ISA S71.04 Gas resistant class 3C4 IEC 60721-3-3 Dust resistant class 3S4 IEC 60721-3-3 Sand resistant class 3S4 IEC 60721-3-3 Salt resistant level 2 IEC 68252 Mold growth resistant class 3B2 IEC 60721-3-3 Fungal spore resistant class 3B2 IEC 60721-3-3 |
| Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) |
| Ambient Air Temperature for Operation | -13…140 °F (-25…60 °C) |
| Relative humidity | 5…95 % 131 °F (55 °C) without condensation |
| protective treatment | Conformal coating |
| Operating altitude | 0…6561.68 ft (0…2000 m) 2000…5000 m with derating factor |
| Category | US1PC3418161 |
|---|---|
| Discount Schedule | PC34 |
| GTIN | 3606481204950 |
| Returnability | Yes |
| Country of origin | ID |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 7.09 in (18 cm) |
| Package 1 Width | 9.8 in (25 cm) |
| Package 1 Length | 3.5 in (9 cm) |
| Package 1 Weight | 22.6 oz (640 g) |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 6 |
| Package 2 Height | 11.8 in (30 cm) |
| Package 2 Width | 11.8 in (30 cm) |
| Package 2 Length | 15.7 in (40 cm) |
| Package 2 Weight | 9.7 lb(US) (4.4 kg) |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 48 |
| Package 3 Height | 23.6 in (60 cm) |
| Package 3 Width | 31.5 in (80 cm) |
| Package 3 Length | 27.6 in (70 cm) |
| Package 3 Weight | 95.2 lb(US) (43.2 kg) |
