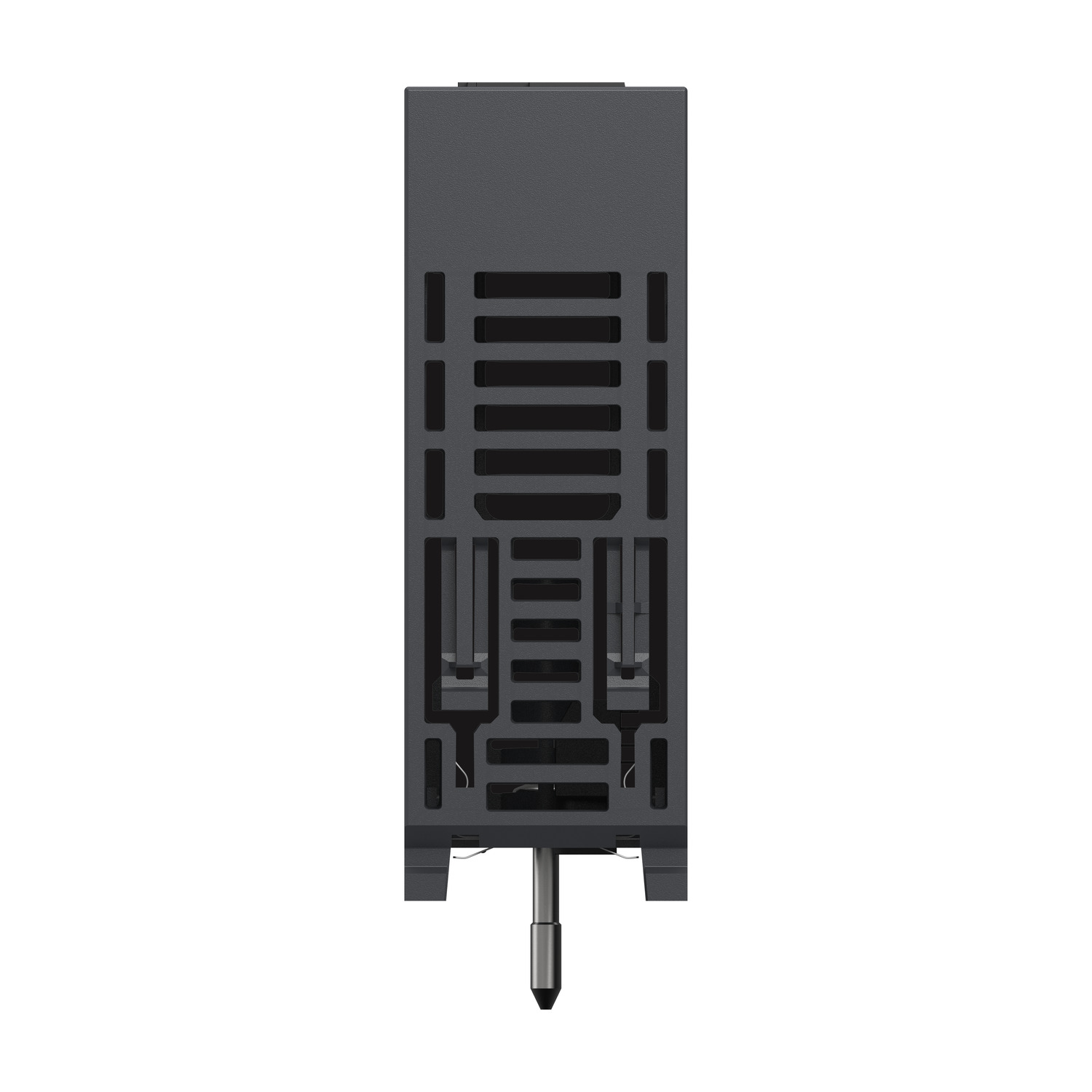

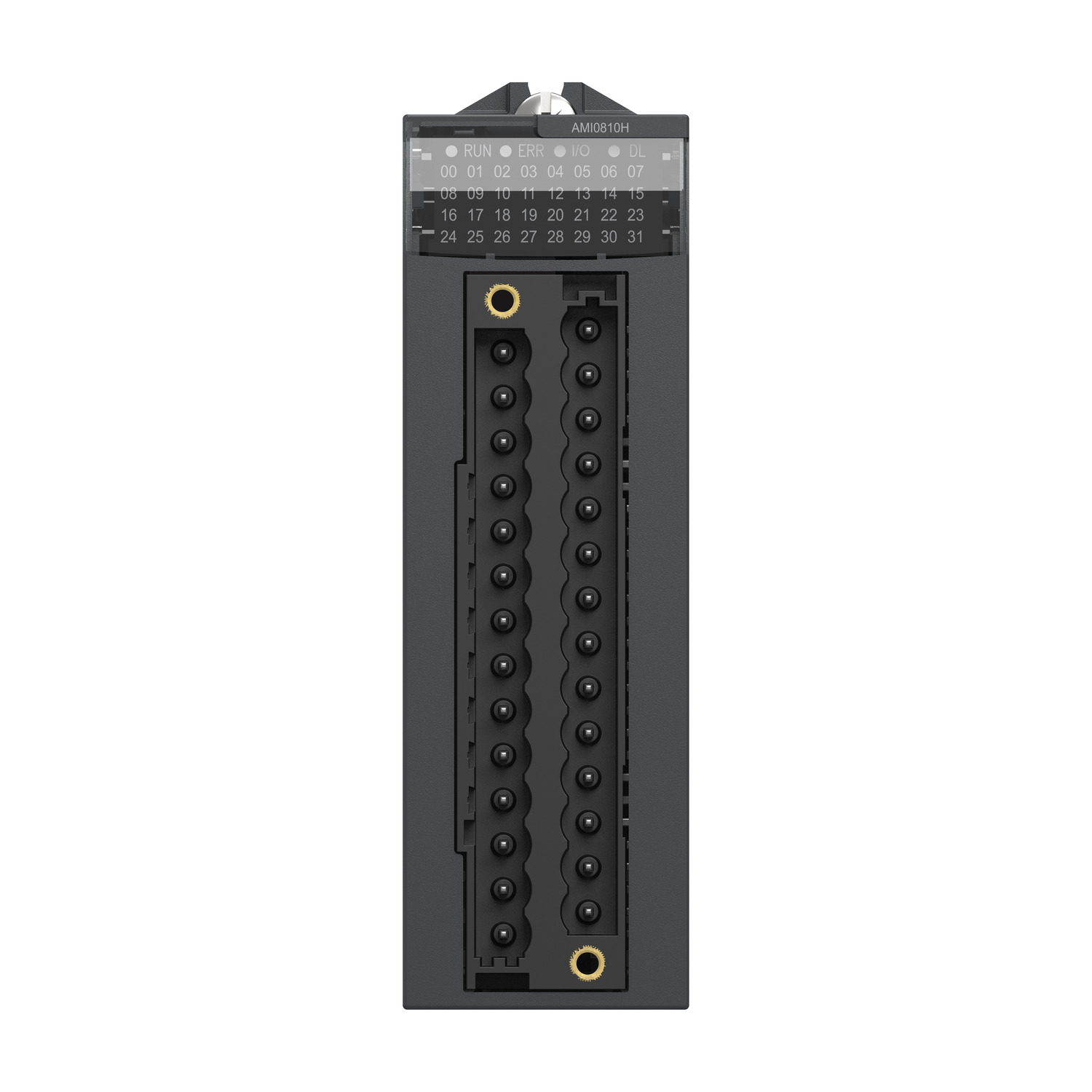

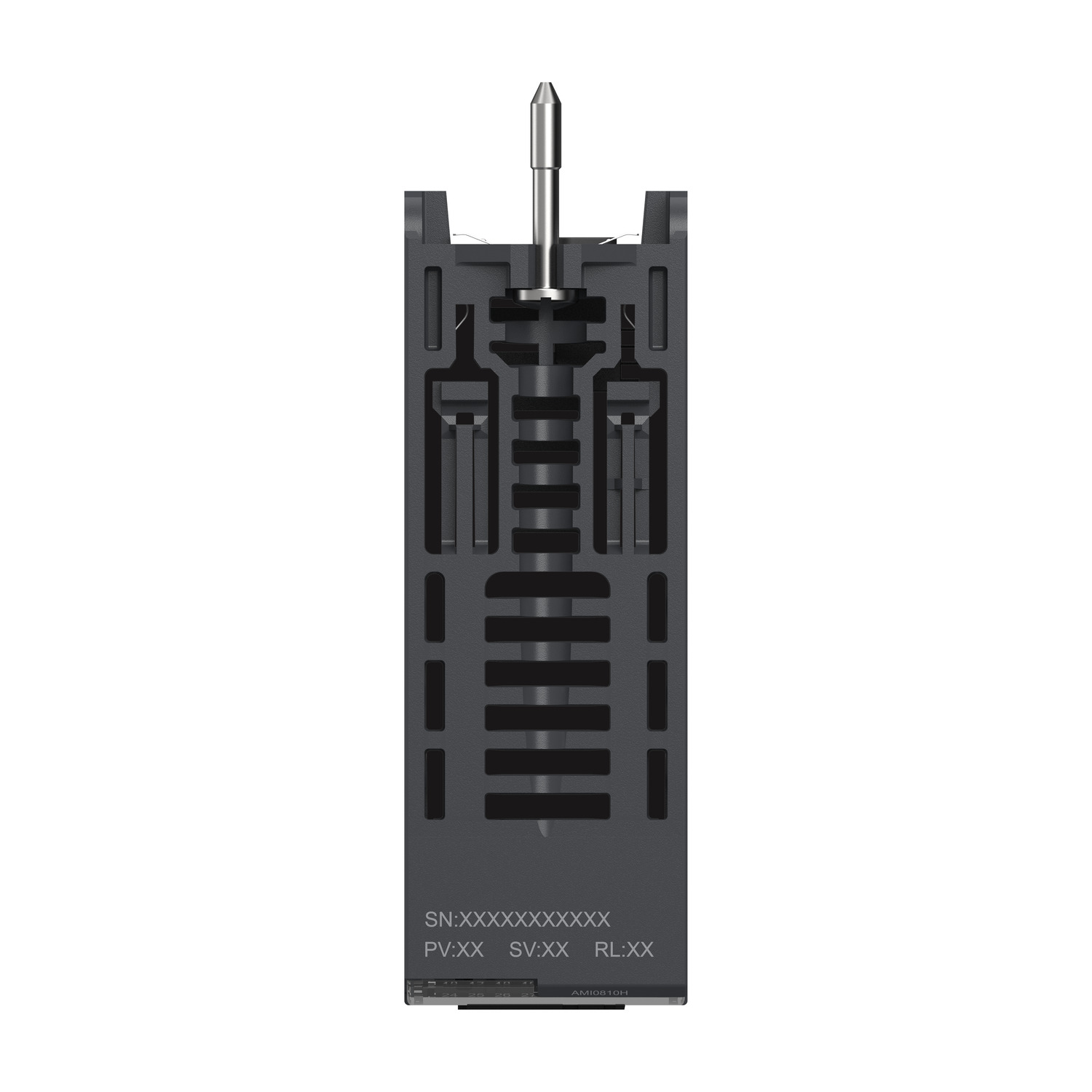

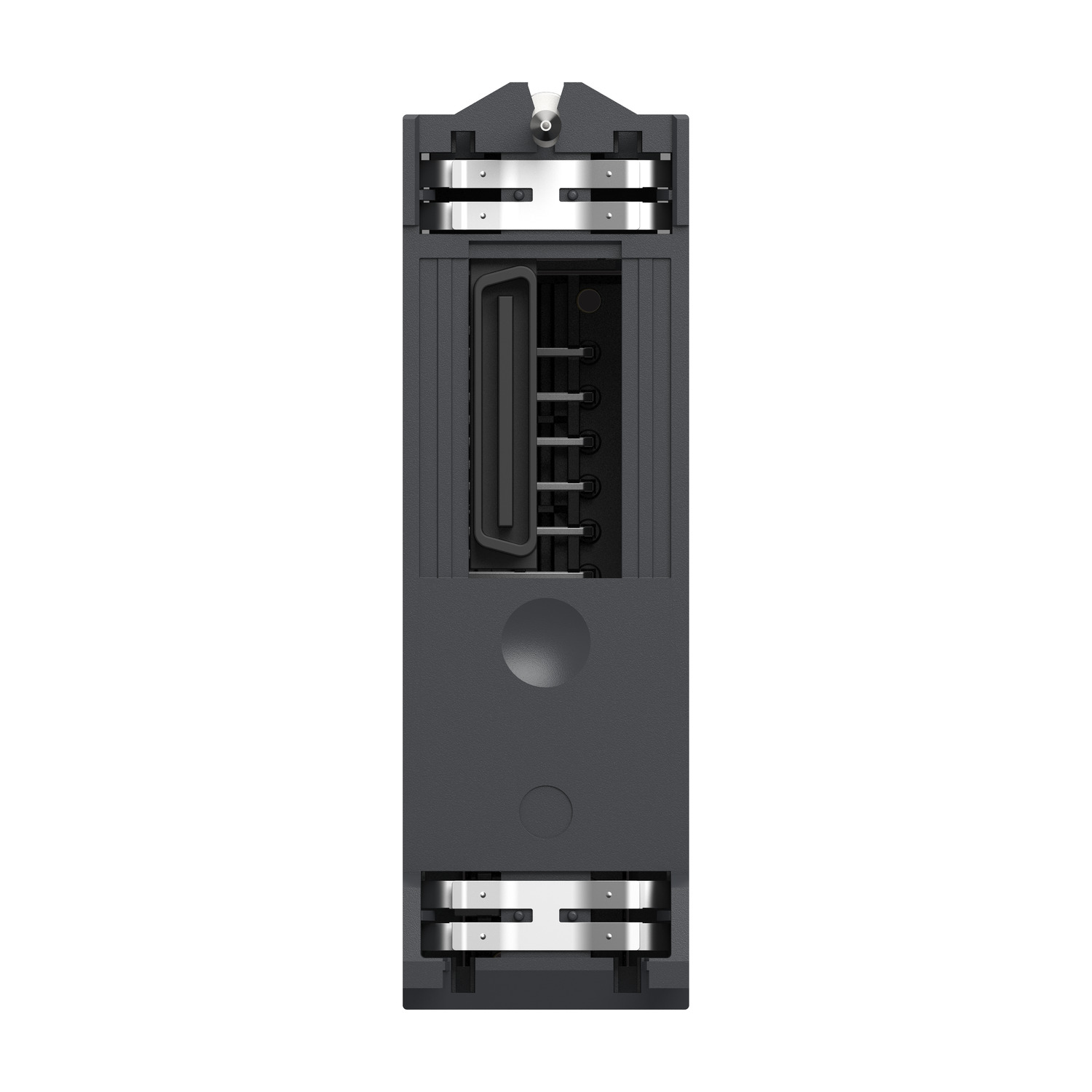

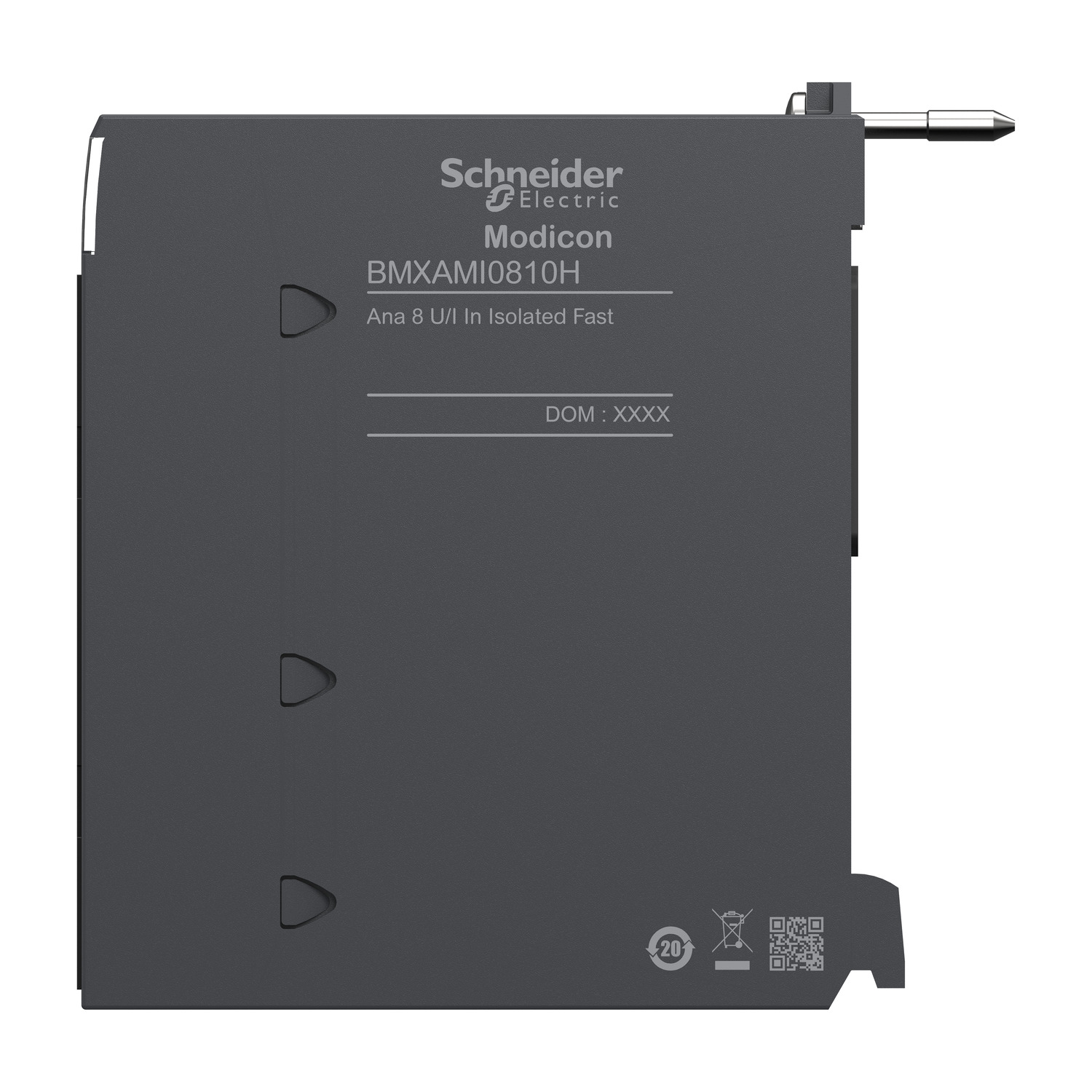

BMXAMI0810H analog isolated high level input module, Modicon X80, 8 I, 0 to 20mA, 4 to 20mA, 10V positive or negative, severe environment

MXN $38,363.00 - (IVA Incluido) + Envío

20 disponibles

This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This analogue input module has 8 inputs with 15bit + sign input resolution. It is an input module with a power consumption of 1.54W at 24V DC. This ruggedized product can be used in more severe environments, and operate in an extended temperature range, from -25°C to +70°C. It is furnished with 28-way connector for electrical connection. It is an IP20 rated product. It weighs 0.175kg. It is suitable for medium to large process and severe environments applications. This product is certified by EAC, RCM, UL, CSA, IEC-Ex, Merchant Navy, ATEX, CE. It meets IEC 61131-2, CSA C22.2 No 142, CSA C22.2 No 213 and UL 508 standards. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).

Buy it now

Categories: PLC's

Tags: PLC's

SKU: BMXAMI0810H

analog isolated high level input module, Modicon X80, 8 I, 0 to 20mA, 4 to 20mA, 10V positive or negative, severe environment

BMXAMI0810H

Main
Range of Product	Modicon X80
Product or Component Type	Analog input module
Product Specific Application	For severe environments
Electrical connection	28 ways 1 connector
Isolation between channels	Isolated
Input level	High level
Analogue input number	8
Analogue input type	Current +/- 20 mA Current 0…20 mA Current 4…20 mA Voltage +/- 10 V Voltage +/- 5 V Voltage 0…10 V Voltage 0…5 V Voltage 1…5 V

Complementary
Analog/digital conversion	16 bits
Analogue input resolution	15 bits + sign
Permitted overload on inputs	+/- 30 mA 0…20 mA +/- 30 mA 4…20 mA +/- 30 V +/- 10 V +/- 30 V +/- 5 V +/- 30 V 0…10 V +/- 30 V 0…5 V +/- 30 V 1…5 V +/- 30 mA +/- 20 mA
Input impedance	10 MOhm in voltage mode 250 Ohm + 3.6…50 Ohm internal protective resistor in current mode
Precision of internal conversion resistor	0.1 % – 15 ppm/°C
type of filter	First order digital filtering
Fast read cycle time	1 ms + 1 ms x number of channels used
Nominal read cycle time	9 ms for 8 channels
Measurement error	0.15 % of full scale +/- 20 mA 25 °C 0.15 % of full scale 0…20 mA 25 °C 0.15 % of full scale 4…20 mA 25 °C 0.075 % of full scale +/- 10 V 25 °C 0.075 % of full scale 0…10 V 25 °C 0.075 % of full scale 0…5 V 25 °C 0.075 % of full scale 1…5 V 25 °C 0.075 % of full scale +/- 5 V 25 °C <= 0.2 % of full scale +/- 10 V – 25…70 °C <= 0.2 % of full scale +/- 5 V – 25…70 °C <= 0.2 % of full scale 0…10 V – 25…70 °C <= 0.2 % of full scale 0…5 V – 25…70 °C <= 0.2 % of full scale 1…5 V – 25…70 °C <= 0.55 % of full scale +/- 20 mA – 25…70 °C <= 0.55 % of full scale 0…20 mA – 25…70 °C <= 0.55 % of full scale 4…20 mA – 25…70 °C
Temperature drift	30 ppm/°C +/- 10 V 30 ppm/°C +/- 5 V 30 ppm/°C 0…10 V 30 ppm/°C 0…5 V 30 ppm/°C 1…5 V 50 ppm/°C +/- 20 mA 50 ppm/°C 0…20 mA 50 ppm/°C 4…20 mA
Minimum crosstalk attenuation	80 dB
Common mode rejection	80 dB
Digital value format	– 32768 to + 32767 in maximum user scale +/- 10000 by default
Isolation voltage	300 V DC between channels 1400 V DC between channels and ground 1400 V DC between channels and bus
Measurement resolution	0.36 mV +/- 10 V 0.36 mV 0…10 V 0.36 mV 0…5 V 0.36 mV 1…5 V 0.36 mV +/- 5 V 1.4 µA +/- 20 mA 1.4 µA 0…20 mA 1.4 µA 4…20 mA
Maximum conversion value	+/- 11.4 V +/- 10 V +/- 11.4 V 0…10 V +/- 11.4 V 0…5 V +/- 11.4 V 1…5 V 0…30 mA +/- 20 mA 0…30 mA 0…20 mA 0…30 mA 4…20 mA 0…30 mA +/- 5 V
MTBF reliability	900000 H
Operating altitude	0…6561.68 ft (0…2000 m) 2000…5000 m with derating factor
Status LED	1 LED (Green) RUN 1 LED per channel (Green) channel diagnostic 1 LED (Red) ERR 1 LED (Red) I/O
Net Weight	0.386 lb(US) (0.175 kg)
Power consumption in W	1.06 W 24 V DC typical 1.50 W 24 V DC maximum 0.32 W 3.3 V DC typical 0.48 W 3.3 V DC maximum
Current consumption	150 mA 3.3 V DC 54 mA 24 V DC

Environment
Vibration resistance	3 gn
Shock resistance	30 gn
Ambient Air Temperature for Storage	-40.0000000000…185.0000000000 °F (-40…85 °C)
Ambient Air Temperature for Operation	-13.0000000000…158.0000000000 °F (-25…70 °C)
Relative humidity	5…95 % 131.0000000000 °F (55 °C) without condensation
IP Degree of Protection	IP20
Directives	2014/35/EU – low voltage directive 2014/30/EU – electromagnetic compatibility
Product Certifications	CE RCM CSA EAC Merchant Navy UL ATEX IEC-Ex
Standards	EN/IEC 61010-2-201 EN/IEC 61131-2 UL 61010-2-201 CSA C22.2 No 61010-2-201
Environmental characteristic	Gas resistant class Gx Gas resistant class 3C4 Dust resistant class 3S4 Sand resistant class 3S4 Salt resistant level 2 Mold growth resistant class 3B2 Fungal spore resistant class 3B2 Hazardous location
protective treatment	Conformal coating

Ordering and shipping details
Category	US1PC3418160
Discount Schedule	PC34
GTIN	3595864156620
Returnability	Yes
Country of origin	US

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	2.165 in (5.500 cm)
Package 1 Width	4.331 in (11.000 cm)
Package 1 Length	4.567 in (11.600 cm)
Package 1 Weight	5.926 oz (168.000 g)
Unit Type of Package 2	S02
Number of Units in Package 2	15
Package 2 Height	5.906 in (15.000 cm)
Package 2 Width	11.811 in (30.000 cm)
Package 2 Length	15.748 in (40.000 cm)
Package 2 Weight	6.294 lb(US) (2.855 kg)

Contractual warranty
Warranty	18 months
