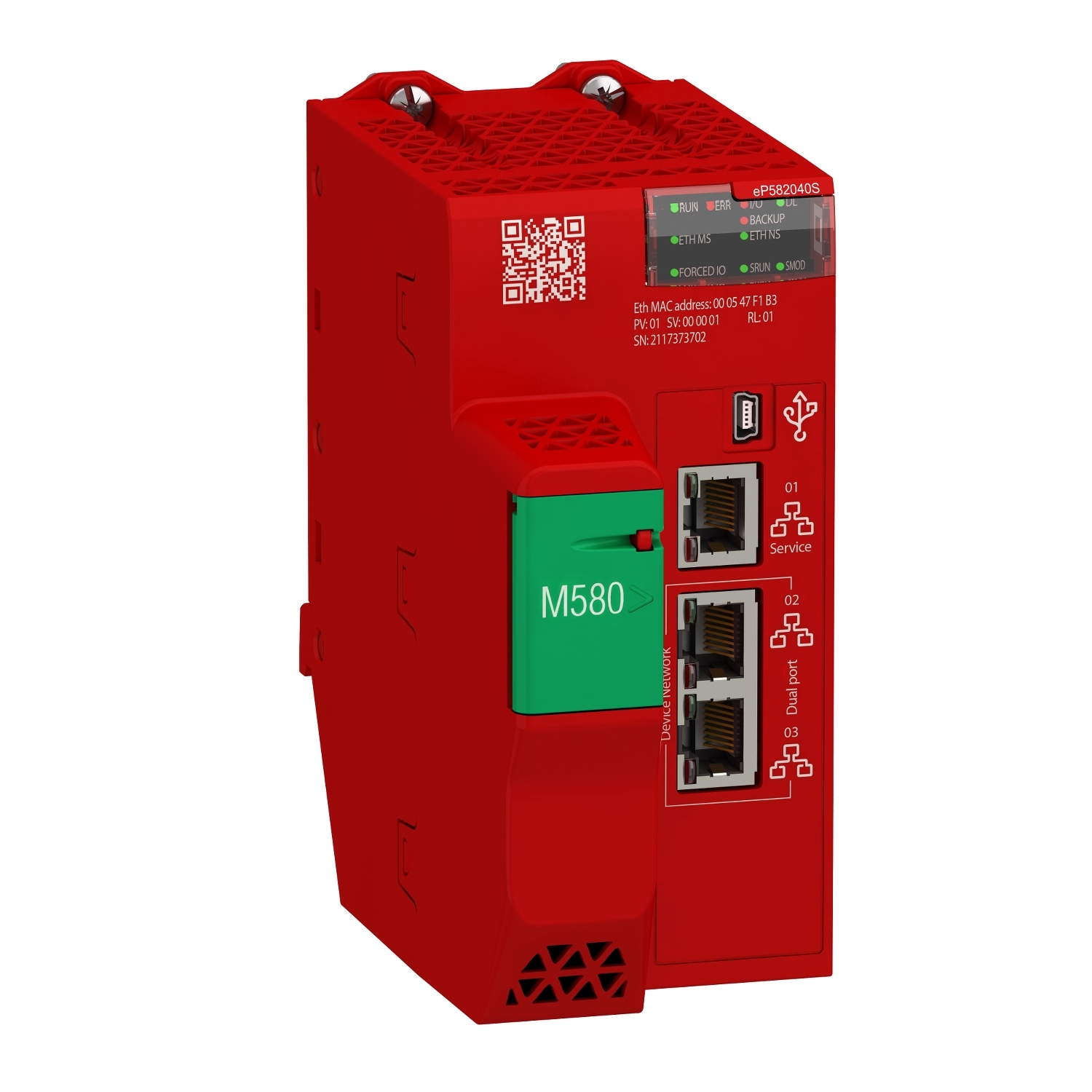

standalone safety processor, Modicon M580, 8MB, 61 Ethernet devices, 8 remote IO racks, 16 CIP safety devices
BMEP582040S
| Range of Product | Modicon M580 |
|---|---|
| Product or Component Type | Processor module |
| Impregnation material | Conformal coated |
| Number of racks | 4 |
|---|---|
| Local I/O processor capacity (discrete) | 2048 I/O |
| Local I/O processor capacity (analog) | 512 I/O |
| Number of application specific channel (local rack) | 72 |
| Application specific I/O | Counter Motion control SSI encoder Accurate time stamping Serial link HART |
| Checks | Process control Safety control |
| Control channels | Programmable loops |
| Integrated connection type | 1 Ethernet TCP/IP service port 2 Ethernet TCP/IP device network USB type mini B |
| Number of remote I/O station | 8 – 2 remote drop |
| Number of distributed equipment | 64 |
| Number of CIP safety IO devices | 16 |
| Communication module processor capacity | 2 Ethernet communication module 16 AS-Interface module |
| communication service | DIO scanner RIO scanner |
| Memory description | Expandable flash, 4 GB data storage Integrated RAM, 10 kB system memory Integrated RAM, 8 MB program process Integrated RAM, 768 kB data process Integrated RAM, 2 MB program safety Integrated RAM, 512 KB data safety |
| Application structure | 128 event tasks 2 auxiliary tasks 1 cyclic/periodic master task 1 periodic fast task 1 periodic safe task |
| Cybersecurity | Achilles certified DoS prevention IPSec SNMP logging Syslog protocol support Audit trail Embedded firewall Firmware signature Password protection Port hardening Security log |
| Number of instructions per ms | 30 Kinst/ms 65 % Boolean + 35 % fixed arithmetic 40 Kinst/ms 100 % Boolean |
| Current consumption | 295 mA 24 V DC |
| MTBF reliability | 775000 H |
| marking | CE |
| Vibration resistance | 3 gn |
|---|---|
| Shock resistance | 15 gn |
| Ambient Air Temperature for Operation | -13.0000000000…140.0000000000 °F (-25…60 °C) |
| Ambient Air Temperature for Storage | -40.0000000000…185.0000000000 °F (-40…85 °C) |
| Operating altitude | 0…6561.68 ft (0…2000 m) 2000…5000 m with derating factor |
| Relative humidity | 5…95 % 131.0000000000 °F (55 °C) without condensation |
| IP Degree of Protection | IP20 |
| Directives | 2014/30/EU – electromagnetic compatibility 2006/42/EC – machinery 2014/34/EU – ATEX directive |
| Product certifications | CE UL CSA RCM EAC Merchant Navy ATEX zone 2/22 IECEx zone 2/22 TÃœV |
| Standards | IEC 61131-2 IEC 61010-2-201 UL 61010-2-201 CSA C22.2 No 61010-2-201 IACS E10 EN/IEC 61000-6-5, interface type 1 and type 2 EN/IEC 61850-3, location G IEC 60079-0 |
| Environmental characteristic | Hazardous location class I division 2 Gas resistant class Gx ISA S71.04 Gas resistant class 3C4 IEC 60721-3-3 Dust resistant class 3S4 IEC 60721-3-3 Sand resistant class 3S4 IEC 60721-3-3 Salt resistant level 2 IEC 68252 Mold growth resistant class 3B2 IEC 60721-3-3 Fungal spore resistant class 3B2 IEC 60721-3-3 |
| protective treatment | Conformal coating |
| Safety level | SIL 3 IEC 61508 SIL 3 IEC 61511 SILCL 3 IEC 62061 SILCL 3 ISO 13849-1 category 4 SIL 4 EN 50126 SIL 4 EN 50128 SIL 4 EN 50129 |
| Supply | Internal power supply via rack |
| Status LED | 1 LED (Green) processor running (RUN) 1 LED (Red) processor or system fault (ERR) 1 LED (Red) I/O module fault (I/O) 1 LED (Green) download in progress (DL) 1 LED (Red) memory card or CPU flash fault (BACKUP) 1 LED (green/red) ETH MS (Ethernet port configuration status) 1 LED (green/red) Eth NS (Ethernet network status) 1 LED (Green) processor in safety mode (SRUN) 1 LED (Green) processor in maintenance mode (SMOD) 1 LED (Red) I/O values overrided by user (FORCED IO) |
| Net Weight | 1.872 lb(US) (0.849 kg) |
| Category | US1PC3418161 |
|---|---|
| Discount Schedule | PC34 |
| GTIN | 3606489705480 |
| Returnability | Yes |
| Country of origin | FR |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 3.504 in (8.900 cm) |
| Package 1 Width | 7.087 in (18.000 cm) |
| Package 1 Length | 9.843 in (25.000 cm) |
| Package 1 Weight | 30.899 oz (876.000 g) |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 6 |
| Package 2 Height | 11.811 in (30.000 cm) |
| Package 2 Width | 11.811 in (30.000 cm) |
| Package 2 Length | 15.748 in (40.000 cm) |
| Package 2 Weight | 12.648 lb(US) (5.737 kg) |
