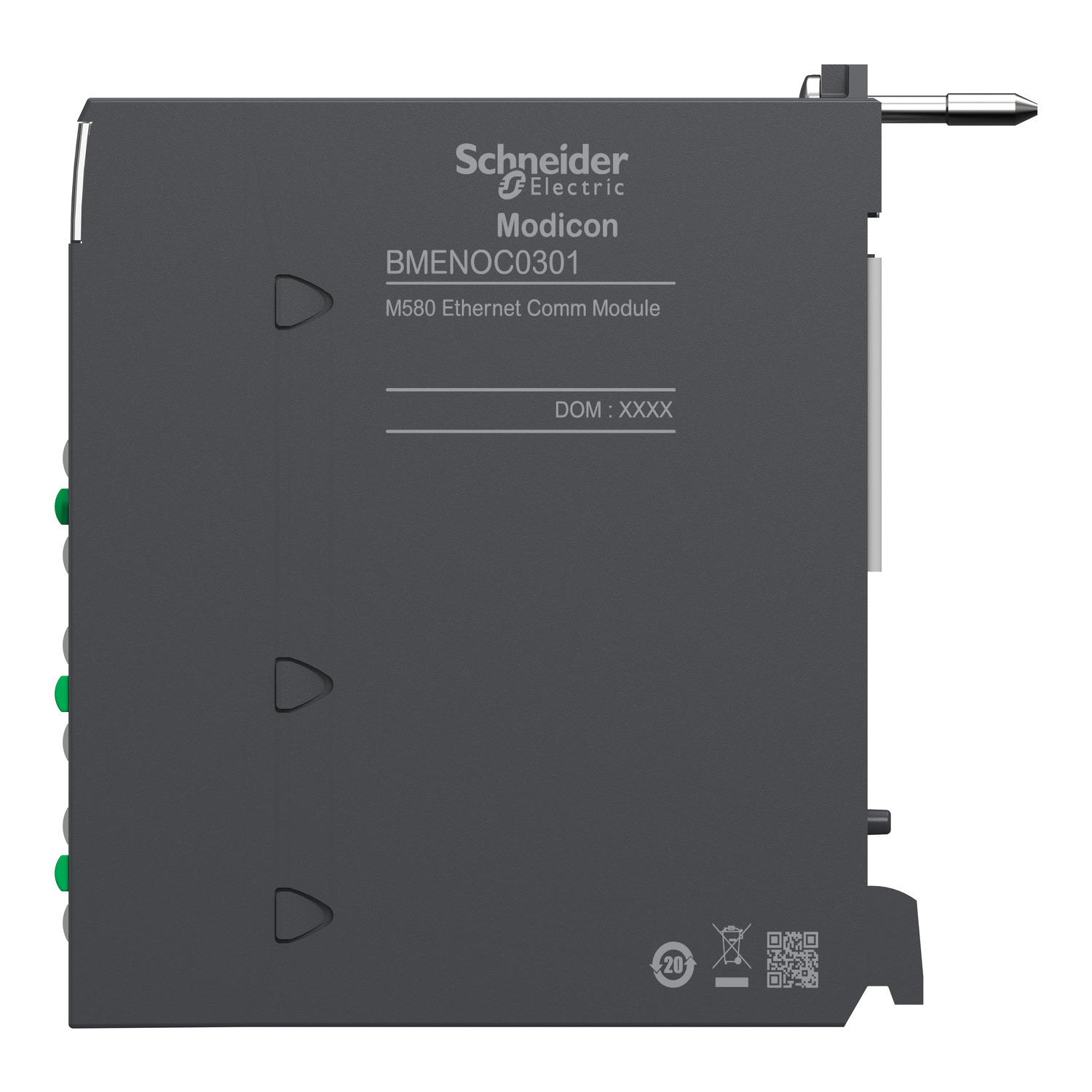

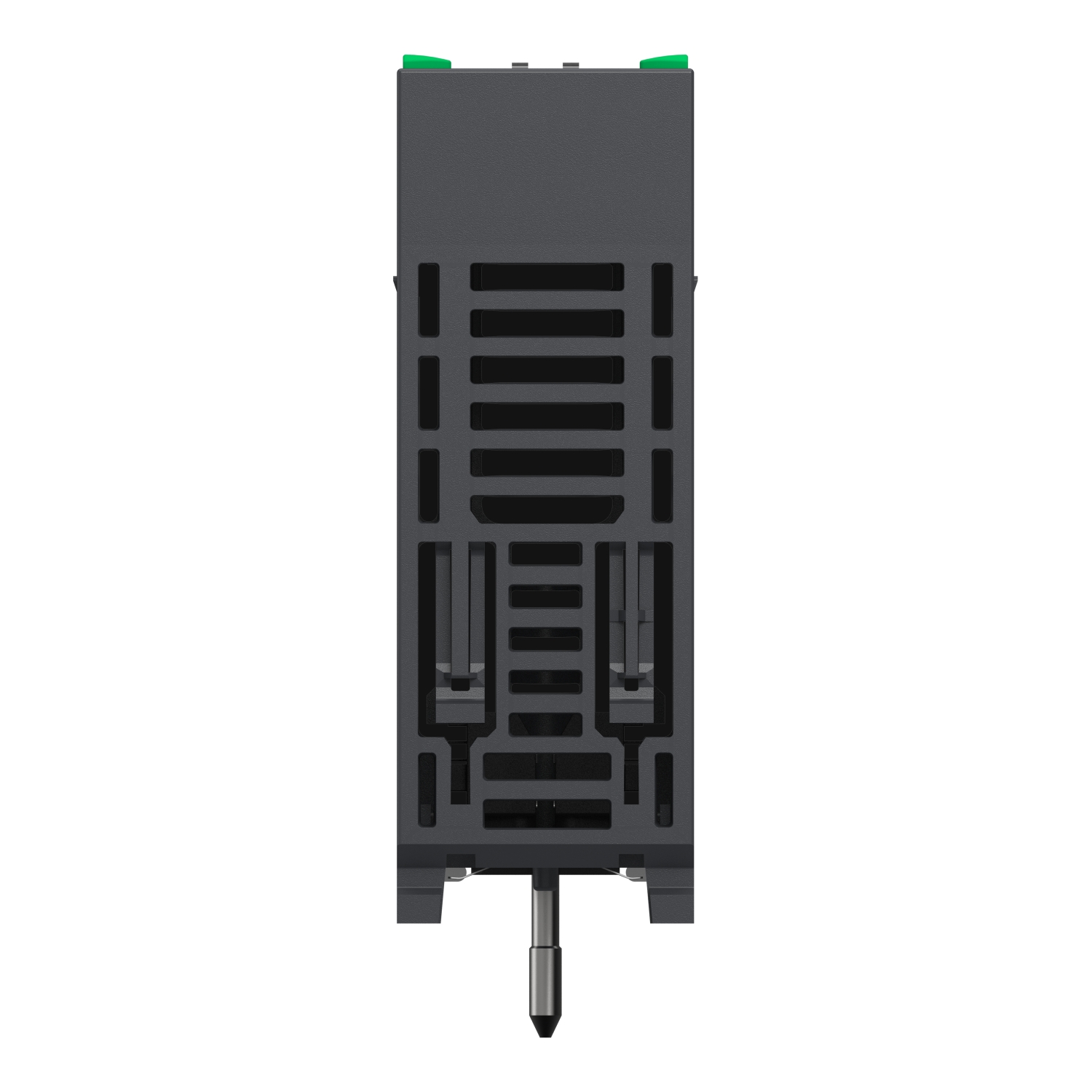

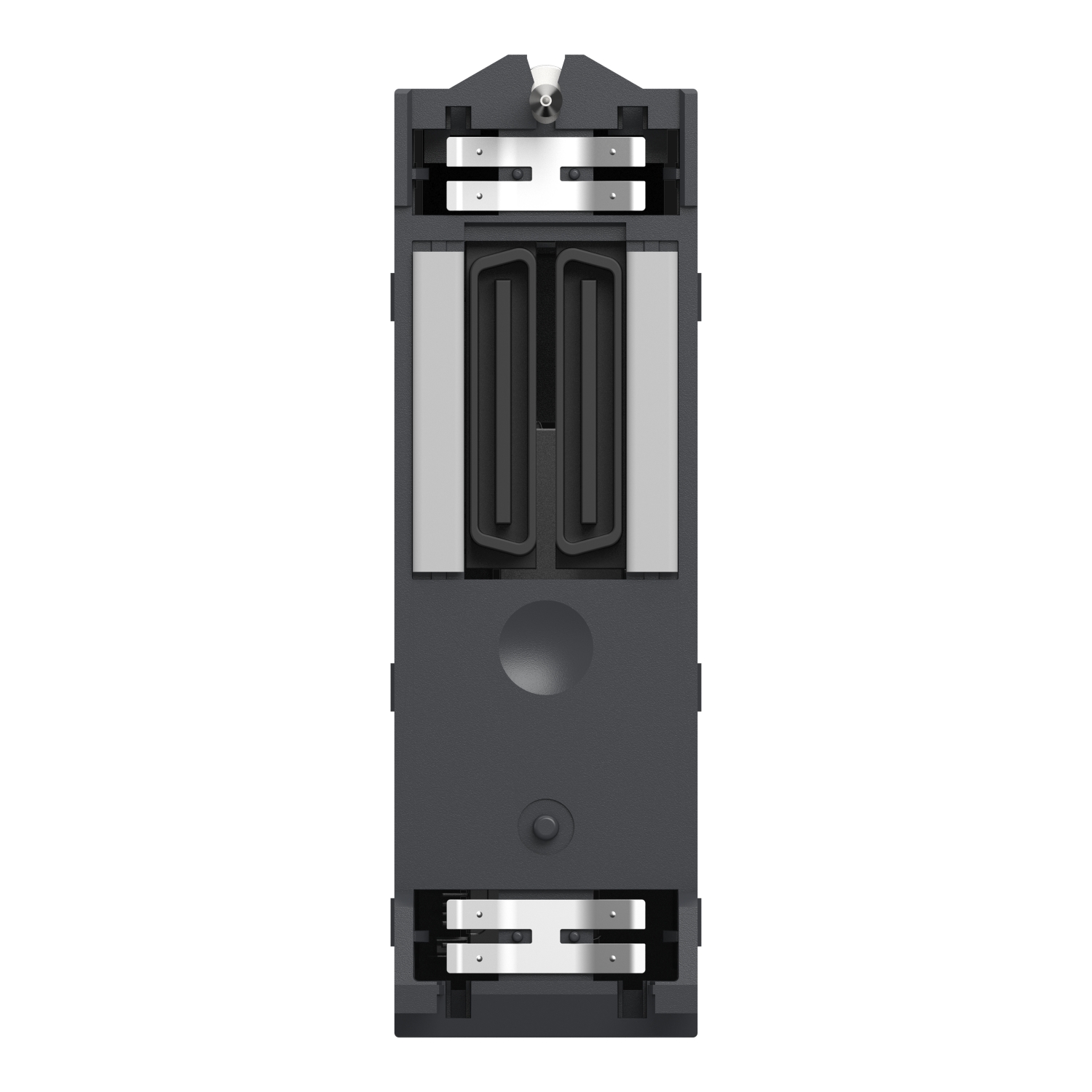

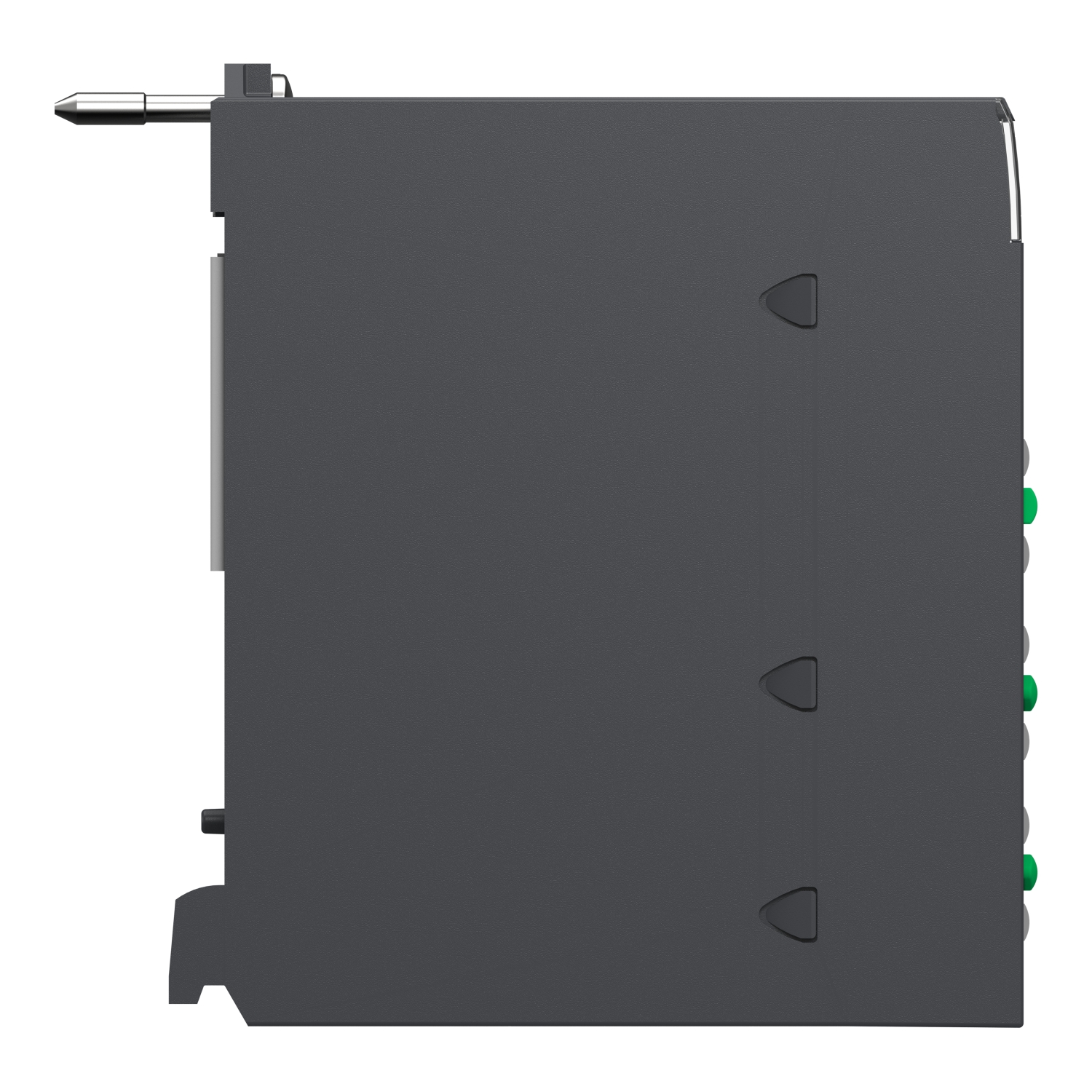

BMENOC0301 network module, Modicon M580, Ethernet IP/Modbus TCP

MXN $38,987.00 - (IVA Incluido) + Envío

35 disponibles

This product is part of the Modicon M580 range, an offer of Programmable Automation Controllers (PAC) and safety Programmable Logic Controllers (PLC) with built-in Ethernet. This communication module has 3 ports. It is integrated with 3 Ethernet RJ45 connectors. Communication services are bandwidth management, FDR server, Modbus TCP I/O scanner and messaging, EtherNet/IP I/O scanner and messaging, embedded 4-port switch, RSTP support, SNMP network administrator, embedded multiport switch etc. It is a communication module with a current consumption of 555mA, works with internal power supply. It is an IP20 rated product. It weighs 0.2kg. It is suitable for medium to large process applications. This product is certified by CE and UL. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This connection sub-base is compatible with BMEXBPxxx – Ethernet + X-bus rack. The benefits of Modicon M580 are reduce time to market, improve reliability and sustainability, improve productivity with high performance and increase operating profitability due to improved access to data.

Buy it now

Categories: PLC's

Tags: PLC's

SKU: BMENOC0301

network module, Modicon M580, Ethernet IP/Modbus TCP

BMENOC0301

Main
Range of Product	Modicon M580
Product or Component Type	Communication module
Product compatibility	BMEXBP… – Ethernet + X-bus rack
Concept	Transparent Ready

Complementary
Integrated connection type	3 Ethernet RJ45 10/100 Mbit/s double shielded twisted pair
Web server	Basic
Transmission support medium	Ethernet backplane
Communication service	Bandwidth management FDR server SNMP network administrator Modbus TCP I/O Scanner and Messaging Ethernet/IP I/O Scanner and Messaging RSTP support Port mirroring Embedded multiport switch
Port Ethernet	10BASE-T/100BASE-TX
Supply	Internal power supply via rack
marking	CE
Module format	Standard
Current consumption	900 mA 3.3 V DC for product version >= 13) 1800 mA 3.3 V DC for product version < 13)
Net Weight	0.4 lb(US) (0.2 kg)

Environment
Ambient Air Temperature for Operation	32…140 °F (0…60 °C)
IP Degree of Protection	IP20
Directives	2014/35/EU – low voltage directive 2014/30/EU – electromagnetic compatibility
Local signalling	for processor running (RUN) 1 LED (green) for processor or system fault (ERR) 1 LED (red) for ETH MS (Ethernet port configuration status) 1 LED (green/red) for Eth NS (Ethernet network status) 1 LED (green/red)

Ordering and shipping details
Category	US1PC3418160
Discount Schedule	PC34
GTIN	3606480713903
Returnability	Yes
Country of origin	US

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	2.165 in (5.500 cm)
Package 1 Width	4.409 in (11.200 cm)
Package 1 Length	4.724 in (12.000 cm)
Package 1 Weight	8.959 oz (254.000 g)
Unit Type of Package 2	S02
Number of Units in Package 2	15
Package 2 Height	5.906 in (15.000 cm)
Package 2 Width	11.811 in (30.000 cm)
Package 2 Length	15.748 in (40.000 cm)
Package 2 Weight	9.118 lb(US) (4.136 kg)
