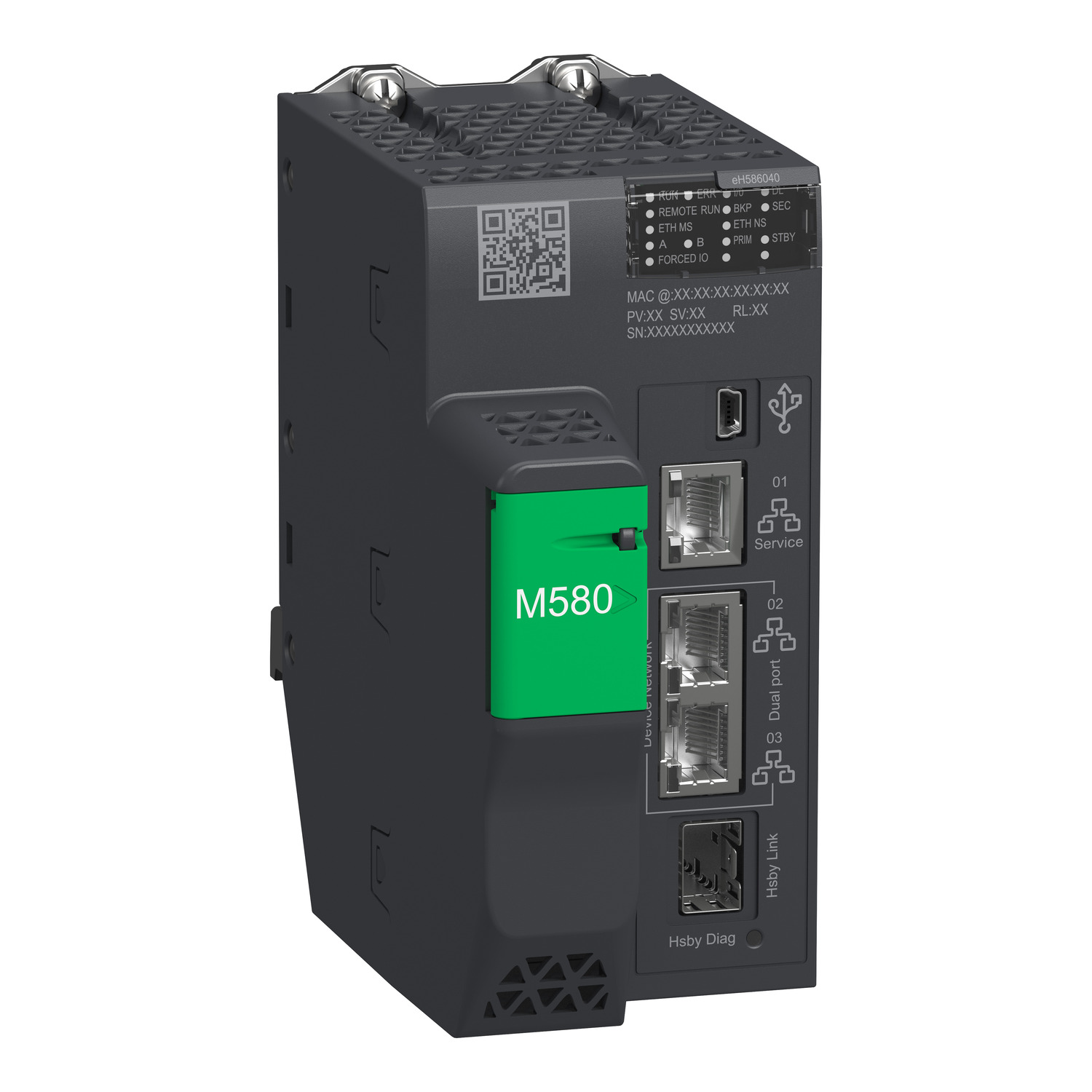

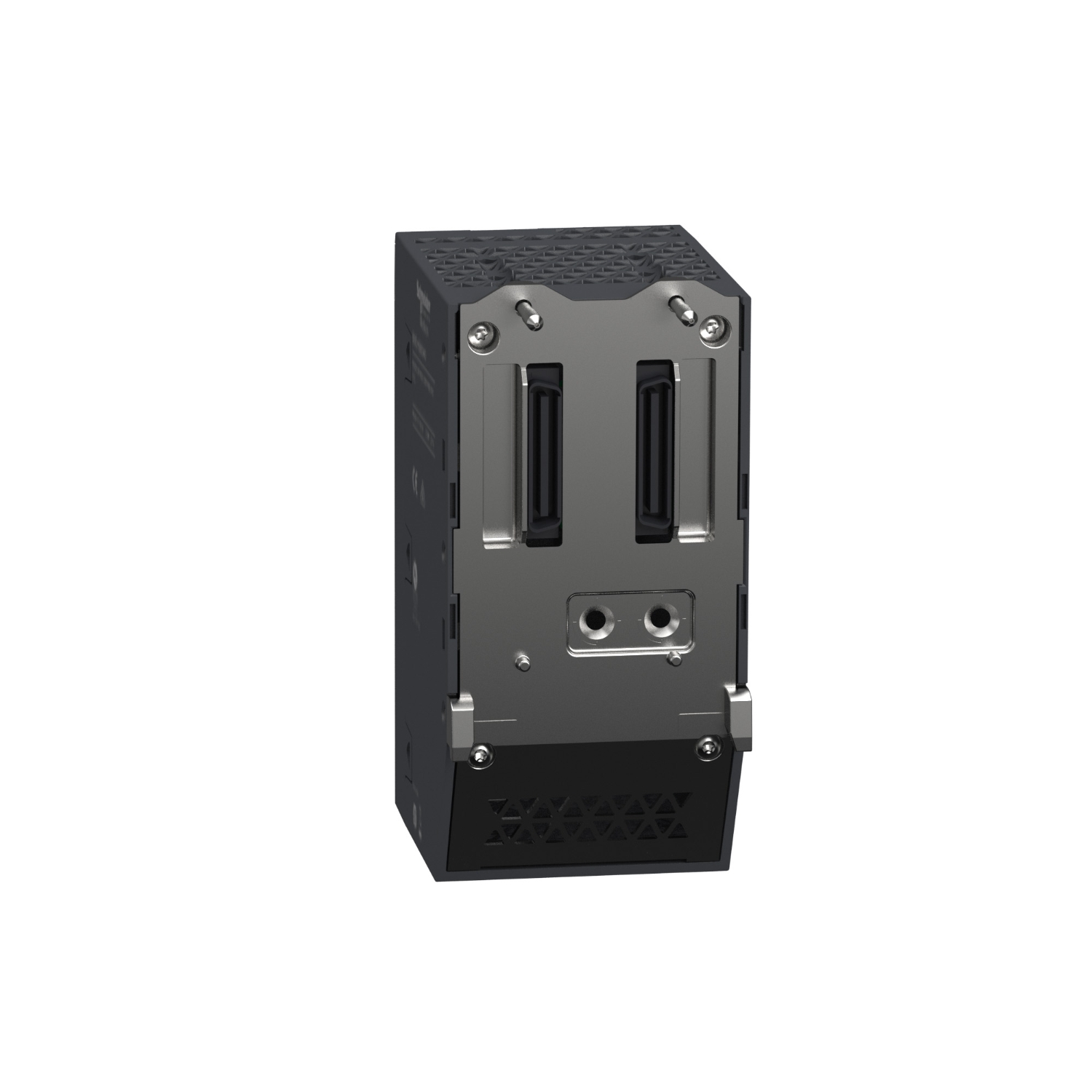

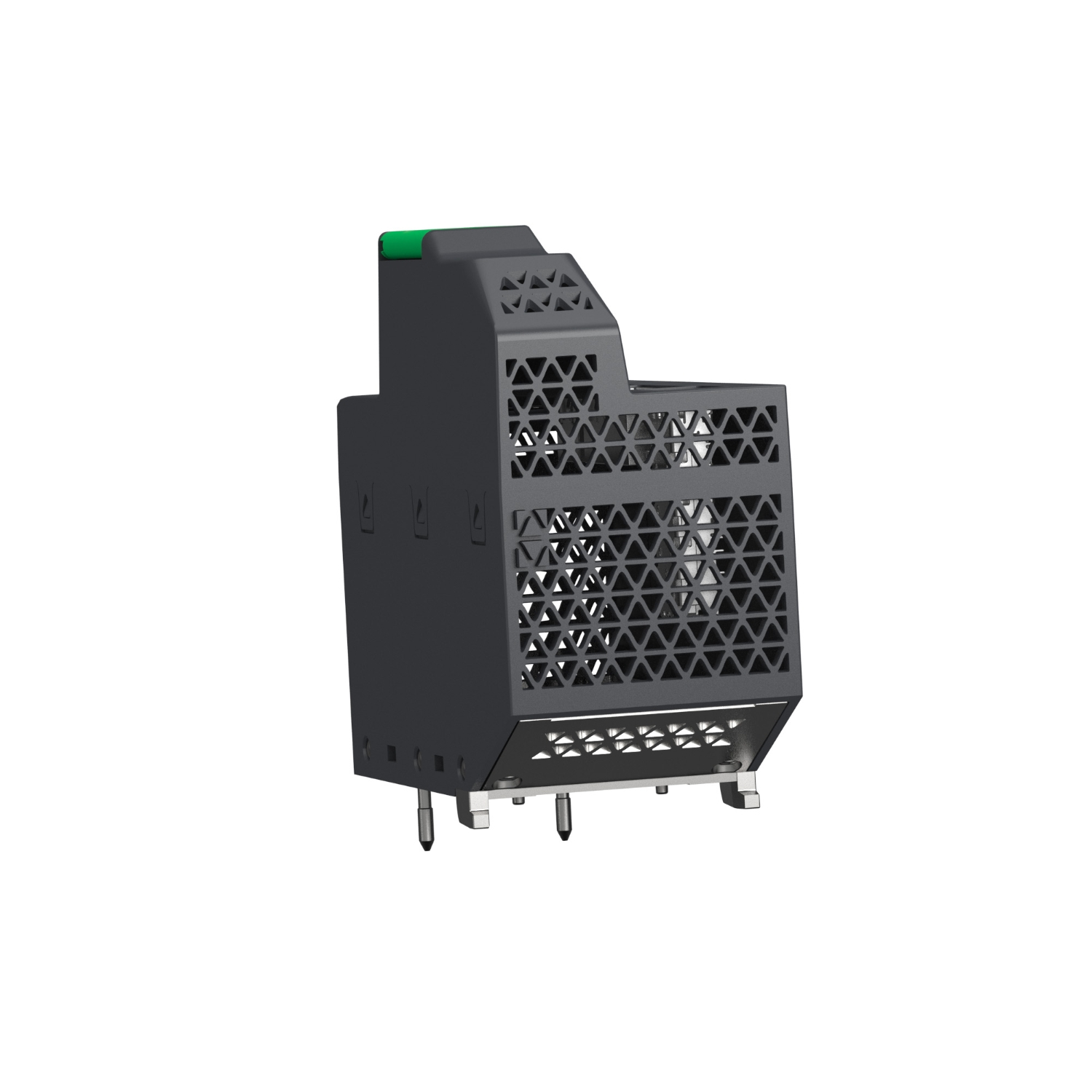

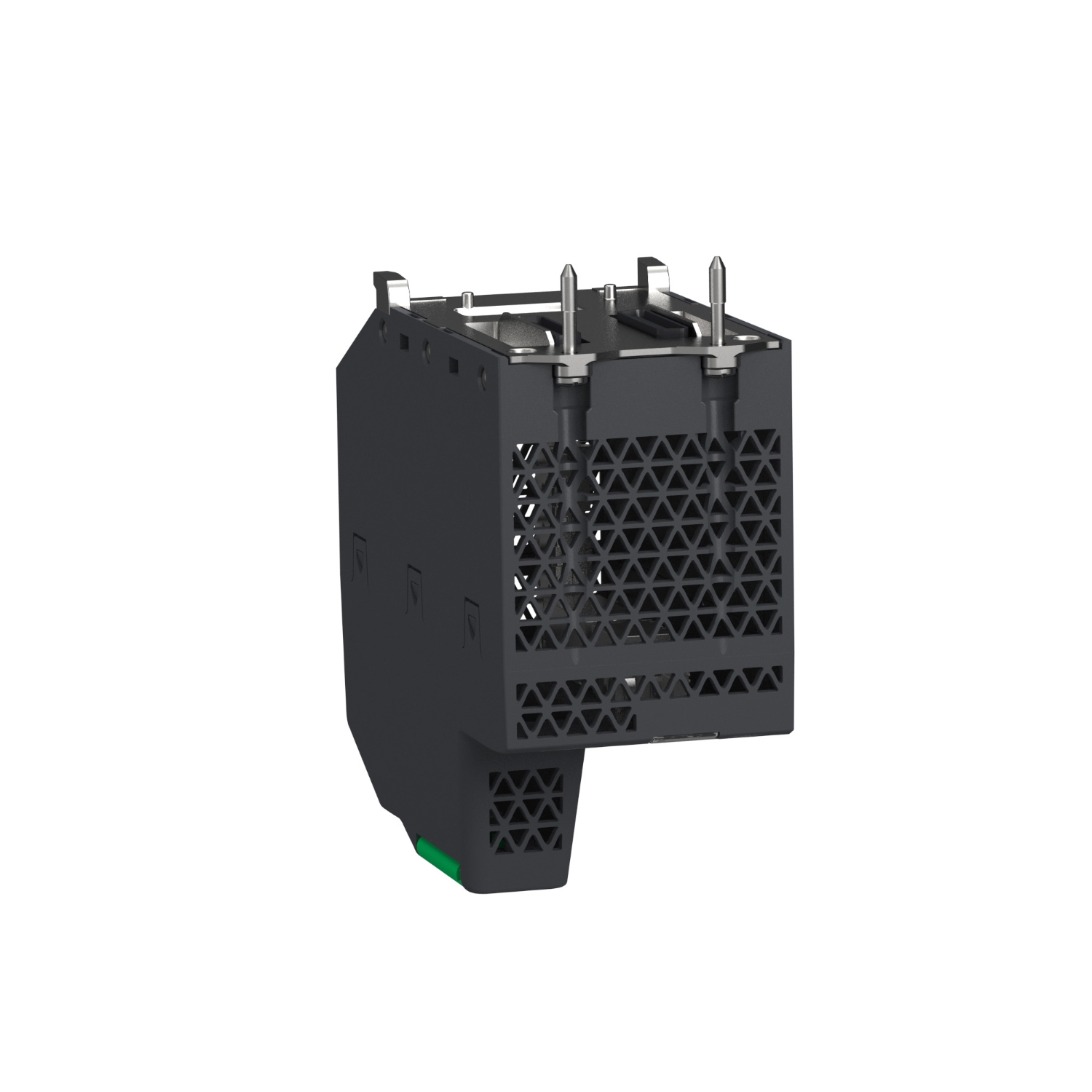

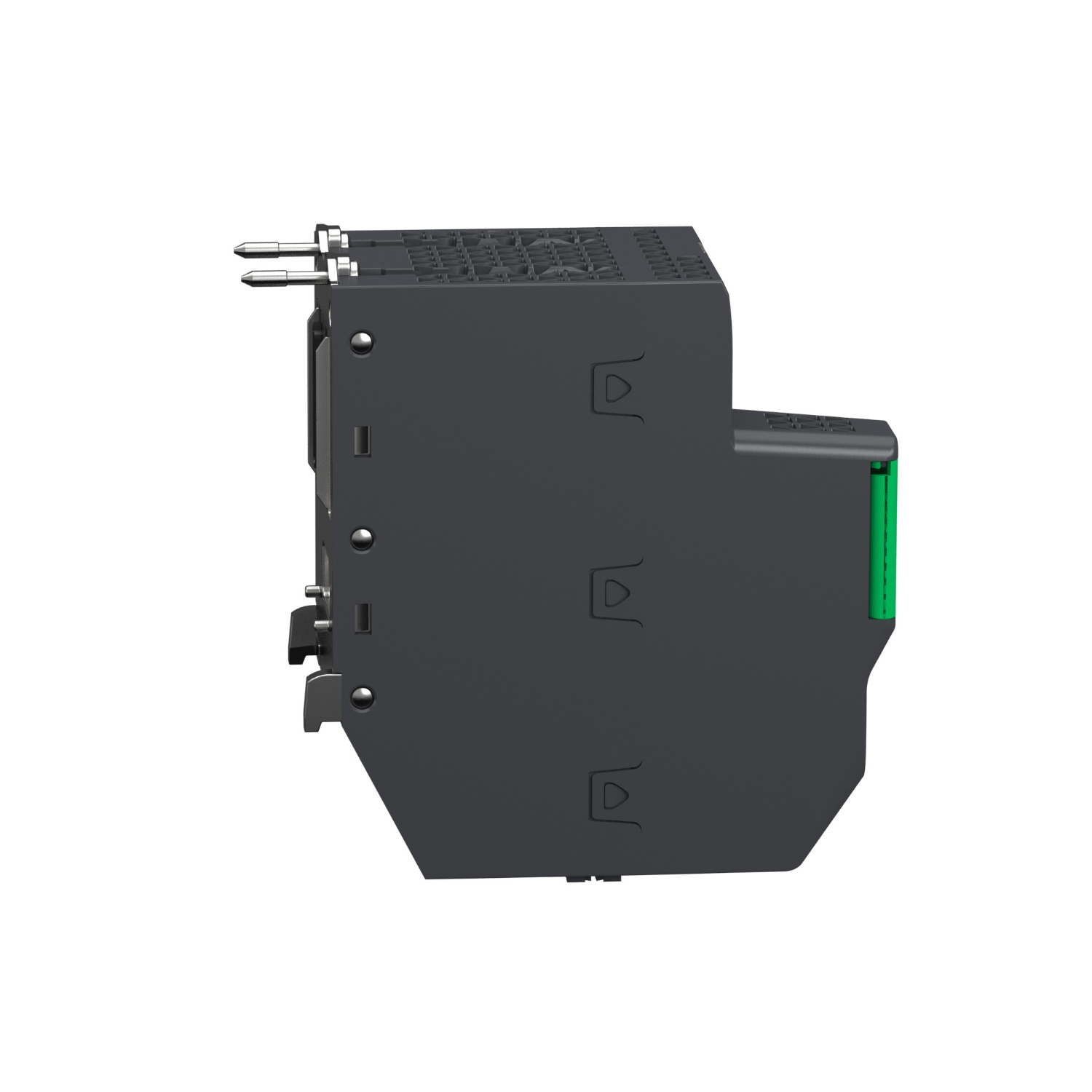

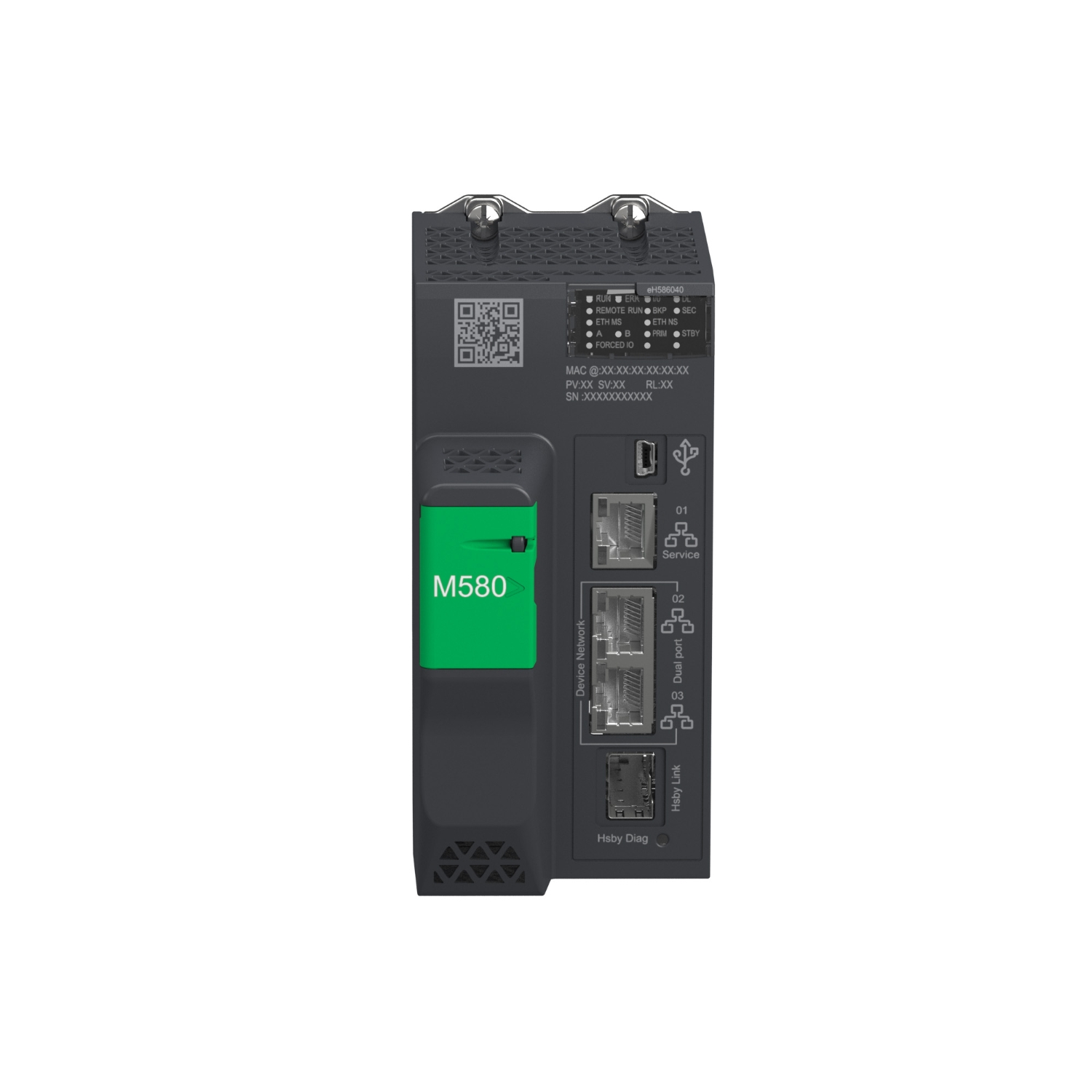

BMEH586040 redundant processor, Modicon M580, 64MB, 61 Ethernet devices, 31 remote IO racks of X80 and Quantum IO

MXN $363,227.00 - (IVA Incluido) + Envío

15 disponibles

This product is part of the Modicon M580 range, an offer of Programmable Automation Controllers (PAC) and safety Programmable Logic Controllers (PLC) with built-in Ethernet. This redundant processor module offers a maximum of 1 rack configuration. It is a processor module with a current consumption of 295mA at 24V DC. It supports 64 distributed equipment. It is integrated with Ethernet TCP/IP for service port, 2 Ethernet TCP/IP for device network, Ethernet for HSBY port and USB type mini B for connections. It offers 600000 hours of MTBF. It has 31 – 2 racks per remote drop for I/O station. It has an integrated RAM of 64MB for program and data, integrated RAM of 10kb for system memory and an expandable flash of 4GB for data storage. It is an IP20 rated product. It weighs 0.849kg. It is suitable for medium to large process applications. This product is certified by CE, Merchant Navy, UL, RCM, CSA, EAC. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. The benefits of Modicon M580 are reduce time to market, improve reliability and sustainability, improve productivity with high performance and increase operating profitability due to improved access to data.

Buy it now

Categories: PLC's

Tags: PLC's

SKU: BMEH586040

redundant processor, Modicon M580, 64MB, 61 Ethernet devices, 31 remote IO racks of X80 and Quantum IO

BMEH586040

Main
Range of Product	Modicon M580
Product or Component Type	Redundant processor module

Complementary
Number of racks	1
Application specific I/O	Counter SSI encoder Serial link HART Accurate time stamping Motion control
Checks	Process control
Control channels	Programmable loops
Integrated connection type	1 Ethernet TCP/IP service port 2 Ethernet TCP/IP device network USB type mini B 1 Ethernet HSBY port
Number of remote I/O station	31 – 2 X80 and Quantum drops
Number of distributed equipment	64
Communication module processor capacity	6 Ethernet communication module 16 AS-Interface module
communication service	DIO scanner RIO scanner
Memory description	Expandable flash, 4 GB data storage Integrated RAM, 10 kB system memory Integrated RAM, 64 MB program and data Integrated RAM, 4096 kB HSBY data
Application structure	1 cyclic/periodic master task 1 periodic fast task
Cybersecurity	Achilles certified DoS prevention IPSec SNMP logging Syslog protocol support Transport layer security Audit trail Embedded firewall Firmware signature Password protection Port hardening Secure communiction (HTTPS) Security log
Number of instructions per ms	40 Kinst/ms 65 % Boolean + 35 % fixed arithmetic 50 Kinst/ms 100 % Boolean
Current consumption	365 mA 24 V DC
MTBF reliability	650000 H
marking	CE

Environment
Vibration resistance	3 gn
Shock resistance	30 gn
Ambient Air Temperature for Operation	32.0000000000…140.0000000000 °F (0…60 °C)
Ambient Air Temperature for Storage	-40.0000000000…185.0000000000 °F (-40…85 °C)
Operating altitude	0…6561.68 ft (0…2000 m) 2000…5000 m with derating factor
Relative humidity	5…95 % 131.0000000000 °F (55 °C) without condensation
IP Degree of Protection	IP20
Directives	2014/35/EU – low voltage directive 2014/30/EU – electromagnetic compatibility
Product certifications	CE UL CSA RCM EAC Merchant Navy
Standards	IEC 61131-2 IEC 61010-2-201 UL 61010-2-201 CSA C22.2 No 61010-2-201 IACS E10 EN/IEC 61000-6-5, interface type 1 and type 2 EN/IEC 61850-3, location G
Environmental characteristic	Hazardous location class I division 2
Supply	Internal power supply via rack
Status LED	1 LED (Green) processor running (RUN) 1 LED (Red) processor or system fault (ERR) 1 LED (Red) I/O module fault (I/O) 1 LED (Green) download in progress (DL) 1 LED (Red) memory card or CPU flash fault (BACKUP) 1 LED (green/red) ETH MS (Ethernet port configuration status) 1 LED (green/red) Eth NS (Ethernet network status) 1 LED (Green) peer processor running (REMOTE RUN) 1 LED (Green) processor ID set to A (A) 1 LED (Green) processor ID set to B (B) 1 LED (Green) processor acting as Primary (PRIM) 1 LED (Green) processor acting as Standby (STBY) 1 LED (Green) I/O values overrided by user (FORCED IO) 1 LED (Green) Hot standby link status (Hsby Diag)
Net Weight	1.872 lb(US) (0.849 kg)

Ordering and shipping details
Category	US1PC3418161
Discount Schedule	PC34
GTIN	3606485440019
Returnability	Yes
Country of origin	FR

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	3.425 in (8.700 cm)
Package 1 Width	6.969 in (17.700 cm)
Package 1 Length	9.843 in (25.000 cm)
Package 1 Weight	30.970 oz (878.000 g)
Unit Type of Package 2	S03
Number of Units in Package 2	6
Package 2 Height	11.811 in (30.000 cm)
Package 2 Width	11.811 in (30.000 cm)
Package 2 Length	15.748 in (40.000 cm)
Package 2 Weight	12.414 lb(US) (5.631 kg)
