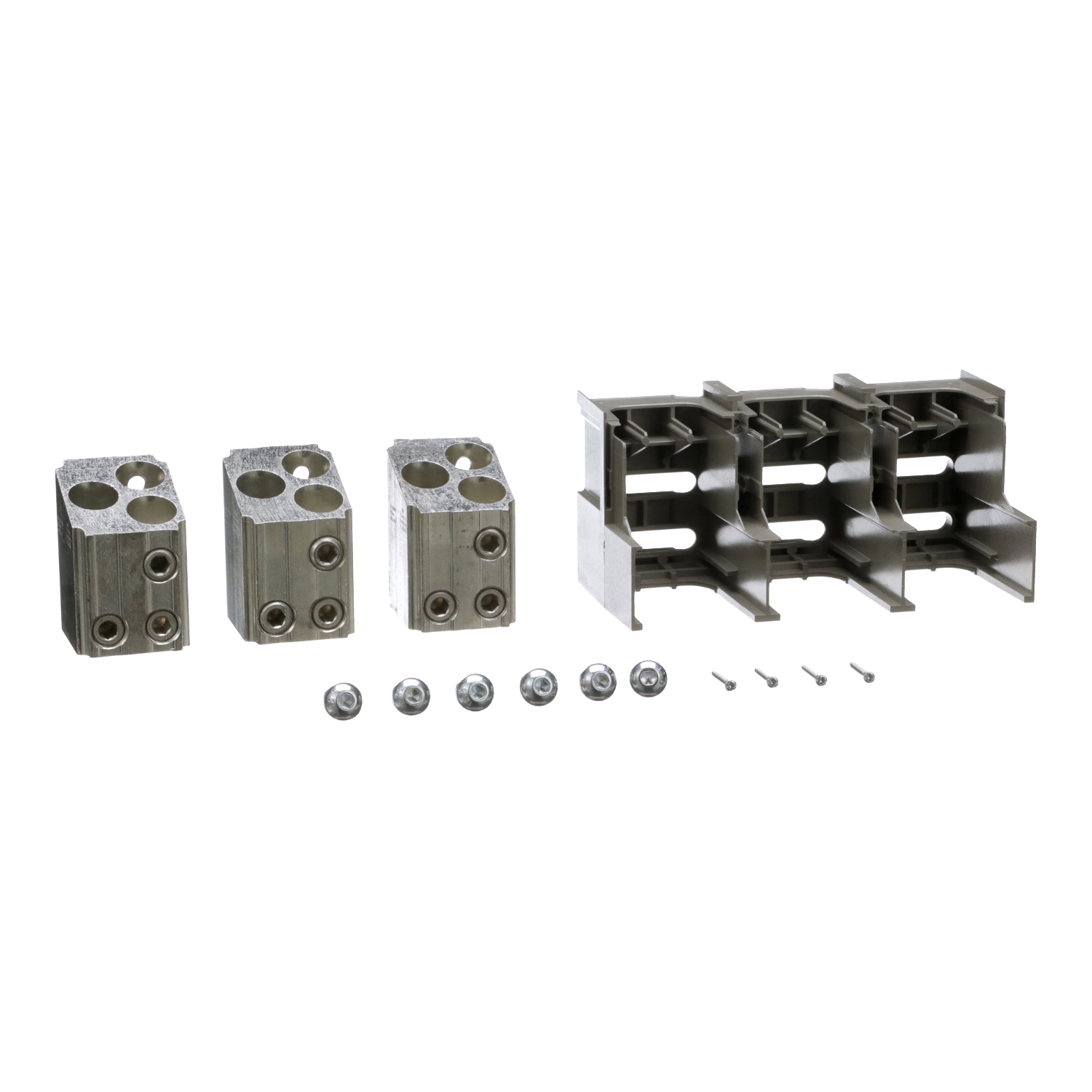

AL1200P6KU, Circuit breaker accessory, PowerPacT P, lug kit, mechanical, 800A to 1200A, AWG 3/0 to 600kcmil, set of 3

MXN $1,079,999.00 - (IVA Incluido) + Envío

Sin existencias

The current-limiting attributes of PowerPacT P-Frame, AL1200P6KU, Lug kit for the circuit breakers provide greater protection for downstream devices by limiting the let-through current in the event of a fault. These current limiting circuit breakers ship with a label that identifies them as UL/CSA Current-Limiting Circuit Breakers. These lug kits come in sets of 4.The PowerPacT Advantage. Proven Performance, Industry-leading circuit breaker innovation and protection for heavy-duty commercial and industrial applications. Smart, Integrated metering options provide a cost-effective solution to reduce energy consumption, optimize energy costs, and improve energy availability for your facilities. Flexible, Full range of thermal-magnetic and electronic trip molded case circuit breakers from 15 A to 3000 A, delivering the ratings, configurations, and operators for your unique applications. Simple, Common catalog numbers, standardized ratings, and a full range of field-installable accessories make product selection, installation and maintenance easier than ever. Common Design Features, Mounting holes, door trim, and handle accessories.

SKU: AL1200P6KU

Circuit breaker accessory, PowerPacT P, lug kit, mechanical, 800A to 1200A, AWG 3/0 to 600kcmil, set of 3

AL1200P6KU

Main
Range of Product PowerPact P
Product or Component Type Mechanical lug
Accessory / separate part categor Connection accessory
Quantity per Set Set of 3
Circuit breaker type Standard
Complementary
Line Rated Current 1200 A
Material Aluminium
Mounting Mode Wall-mounted
AWG gauge AWG 3/0…600 kcmil aluminium/copper
Kcmil size 600 kcmil
mounting location Downstream
Upstream
Tightening torque 442.5 lbf.in (50 N.m) 0.1…0.5 in² (95…300 mm²) (AWG 3/0…600 kcmil)
Environment
Product Certifications UL
CSA
Ordering and shipping details
Category US10DE201250
Discount Schedule 0DE2
GTIN 785901512905
Returnability Yes
Country of origin US
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 5.50 in (13.97 cm)
Package 1 Width 7.50 in (19.05 cm)
Package 1 Length 11.50 in (29.21 cm)
Package 1 Weight 4.239 lb(US) (1.923 kg)
Contractual warranty
Warranty 18 months
Peso 5 kg
Dimensiones 15 × 15 × 15 cm
Product Datasheet
Instruction Sheet
Environmental Disclosure
