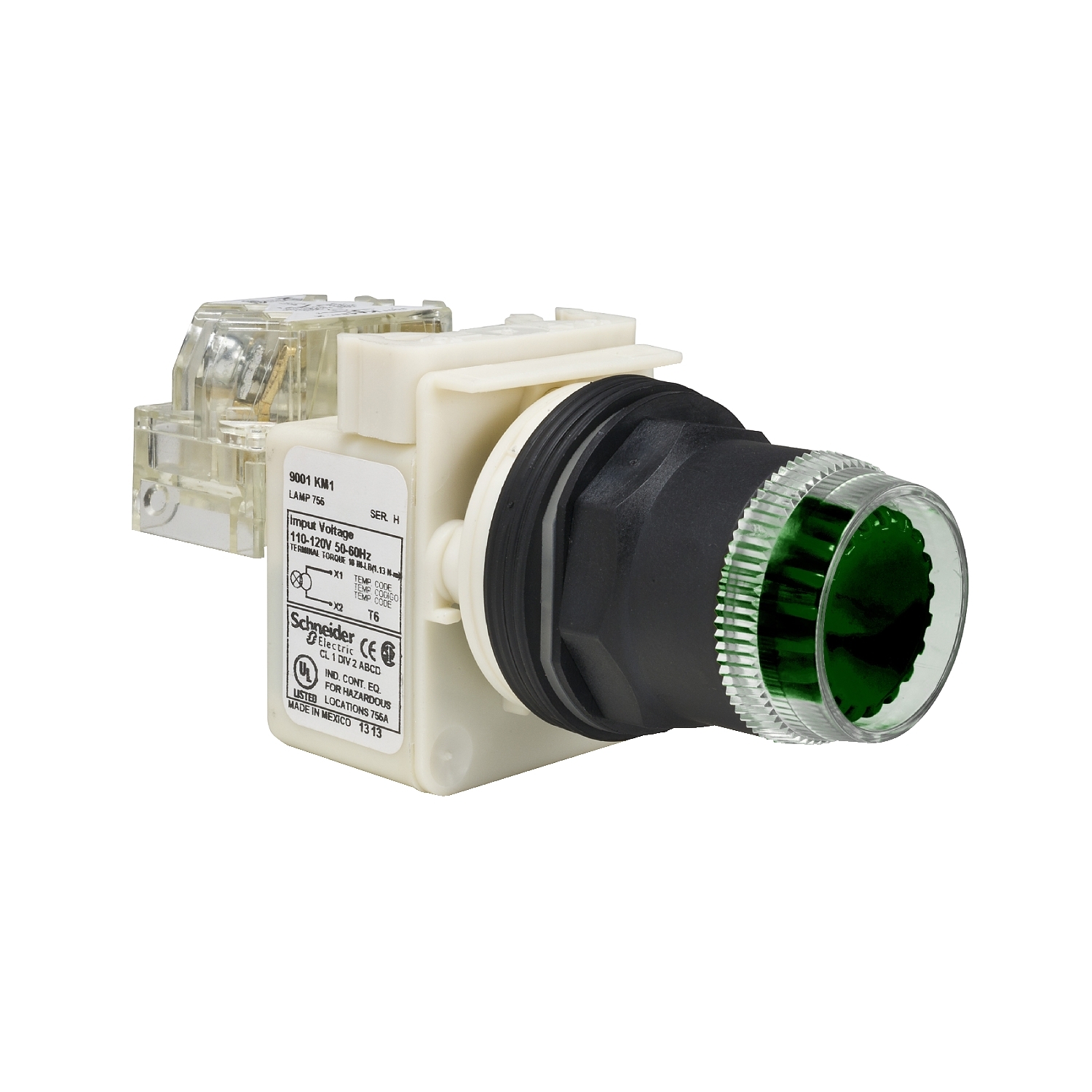

9001SK1L1G, Illuminated push-button head, Harmony 9001SK, plastic, plastic guard flush, green, 30mm, spring return, 110-120V

MXN $3,012.00 - (IVA Incluido) + Envío

4 disponibles

This Harmony 9001SK, modular illuminated flush green push button is supplied with a full guard. It has a double insulated plastic bezel and is supplied with a 110V AC transformer. This illuminated push button with transformer and full guard provides an ergonomic and visual interface for controlling your machines. It is clearly distinguishable visually at a distance thanks to its illuminated head and clear color. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant plastic body ensures product continues to operate even after severe accidents.

Buy it now
SKU: 9001SK1L1G

Illuminated push-button head, Harmony 9001SK, plastic, plastic guard flush, green, 30mm, spring return, 110-120V

9001SK1L1G

Main
Range of Product Harmony 9001SK
Product or Component Type Head for illuminated push-button
Device short name 9001SK
Complementary
Bezel material Plastic
Mounting diameter 1.2 in (30 mm)
Shape of signaling unit head Octagonal
Operator additional information Plastic guard
Bulb base BA 9s
Light block supply Via transformer 120 V AC 50/60 Hz
Contacts type and composition Without contact block
Product Certifications CE
UL listed file E42259 CCN NKCR
CSA LR24590 class 3211 03
IP degree of protection IP64
NEMA degree of protection NEMA 1/2/3/3R/4/4X/6/12/13
Cap/operator or lens colour Green
[Us] rated supply voltage 110…120 V
Light block supply Via integral transformer
Operator profile Flush
Type of operator Spring return
Supply frequency 50…60 Hz
Size 30 mm
Light source Incandescent bulb
Ordering and shipping details
Category US10CS121429
Discount Schedule 0CS1
GTIN 785901820932
Returnability Yes
Country of origin MX
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 2.205 in (5.601 cm)
Package 1 Width 3.661 in (9.299 cm)
Package 1 Length 1.8 in (4.6 cm)
Package 1 Weight 6.560 oz (185.973 g)
Contractual warranty
Warranty 18 months
Peso 0.186 kg
Dimensiones 9.3 × 4.6 × 5.6 cm
Product Datasheet
Instruction Sheet
Brochure
Technical Drawing
