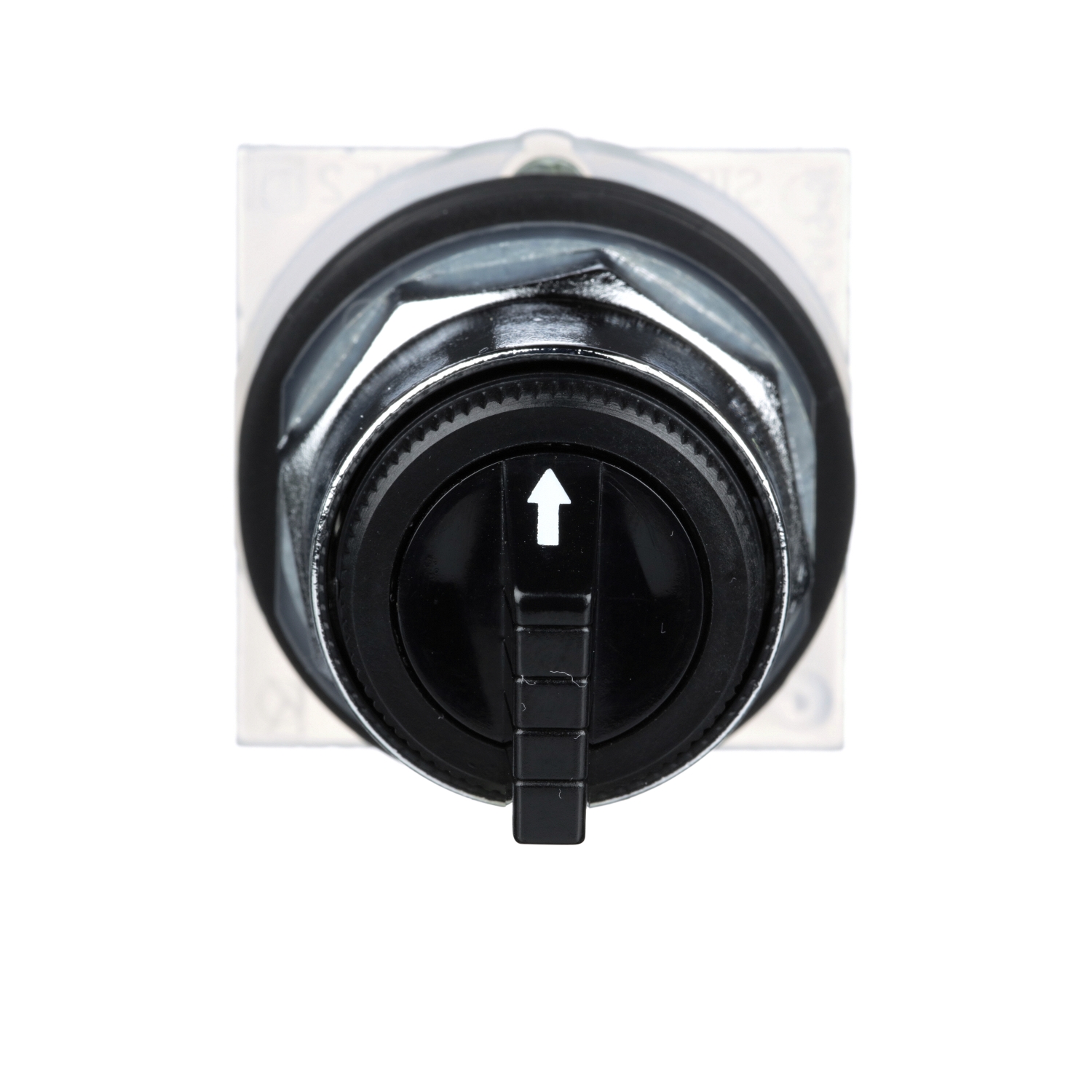

9001KS43B, 30mm Push Button, Type K, selector switch, 3 position, C cam, black knob

MXN $884.00 - (IVA Incluido) + Envío

446 disponibles

30mm push button range is robust and offers long term reliability in heavy duty industrial applications and extreme environments. The 9001K operator have a metal operator base and the 9001SK operators have a plastic base. This very broad line of push button operators includes push buttons, emergency stop mushroom head push buttons, selector switches, key operated switches, and operators with potentiometers. Also includes pilot lights (LED, incandescent and neon), joystick controllers, wobble stick operators, and operators with multiple functions. These operators can be purchased as complete operators or as subassemblies that can be assembled by the user to meet specific requirements. The 9001 K metal 30mm push buttons are automatic selfgrounding operators requiring no additional wiring and are ABS Certified. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Contact blocks have terminal screw shipped back out to speed wiring and has a very large variety of accessories. Some operators have super bright LEDs for high visibility. These operators are IP 66, NEMA 4 rated (heavy duty, oil tight, water proof and dust tight without requiring boots). The 9001SK operators are also NEMA 4X corrosion resistant. The 9001K and 9001SK 30mm push button operators conforms to IEC, UL, CSA, EN and NOM standards. They are CE marked. 30mm Push Buttons are used in the automotive, machine tool, crane and hoist, food and beverage, industrial applications, material handling, petrochemical, wastewater treatment, metallurgy and many more industries.

Buy it now
SKU: 9001KS43B

30mm Push Button, Type K, selector switch, 3 position, C cam, black knob

9001KS43B

Main
Range of Product Harmony 9001K
Product or Component Type Head for selector switch
Device short name K
Type of operator maintained
Operator profile Black standard knob
Complementary
Bezel material Metal
Mounting diameter 1.2 in (30 mm)
Operator position information 3 positions
Contacts type and composition Without contact block
device presentation Basic element
Cap/operator or lens colour Black
Operator profile Standard handle
Type of operator Stay put
Size 30 mm
Cam profile 3
Environment
NEMA degree of protection NEMA 1/2/3/3R/4/6/12/13
Product Certifications CSA LR24590 class 3211 03
CE
UL listed file E42259 CCN NKCR
Ordering and shipping details
Category US10CS121426
Discount Schedule 0CS1
GTIN 785901322634
Returnability Yes
Country of origin MX
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 2.0000000000 in (5.08 cm)
Package 1 Width 2.300 in (5.842 cm)
Package 1 Length 2.800 in (7.112 cm)
Package 1 Weight 4.32 oz (122.47 g)
Unit Type of Package 2 PAL
Number of Units in Package 2 3600
Package 2 Height 40.0000000000 in (101.6 cm)
Package 2 Width 40.0000000000 in (101.6 cm)
Package 2 Length 48.0000000000 in (121.92 cm)
Package 2 Weight 1005.00009 lb(US) (455.86 kg)
Contractual warranty
Warranty 18 months
Peso 0.122 kg
Dimensiones 5.8 × 7.1 × 5.1 cm
Product Datasheet
Instruction Sheet
Technical Drawing
