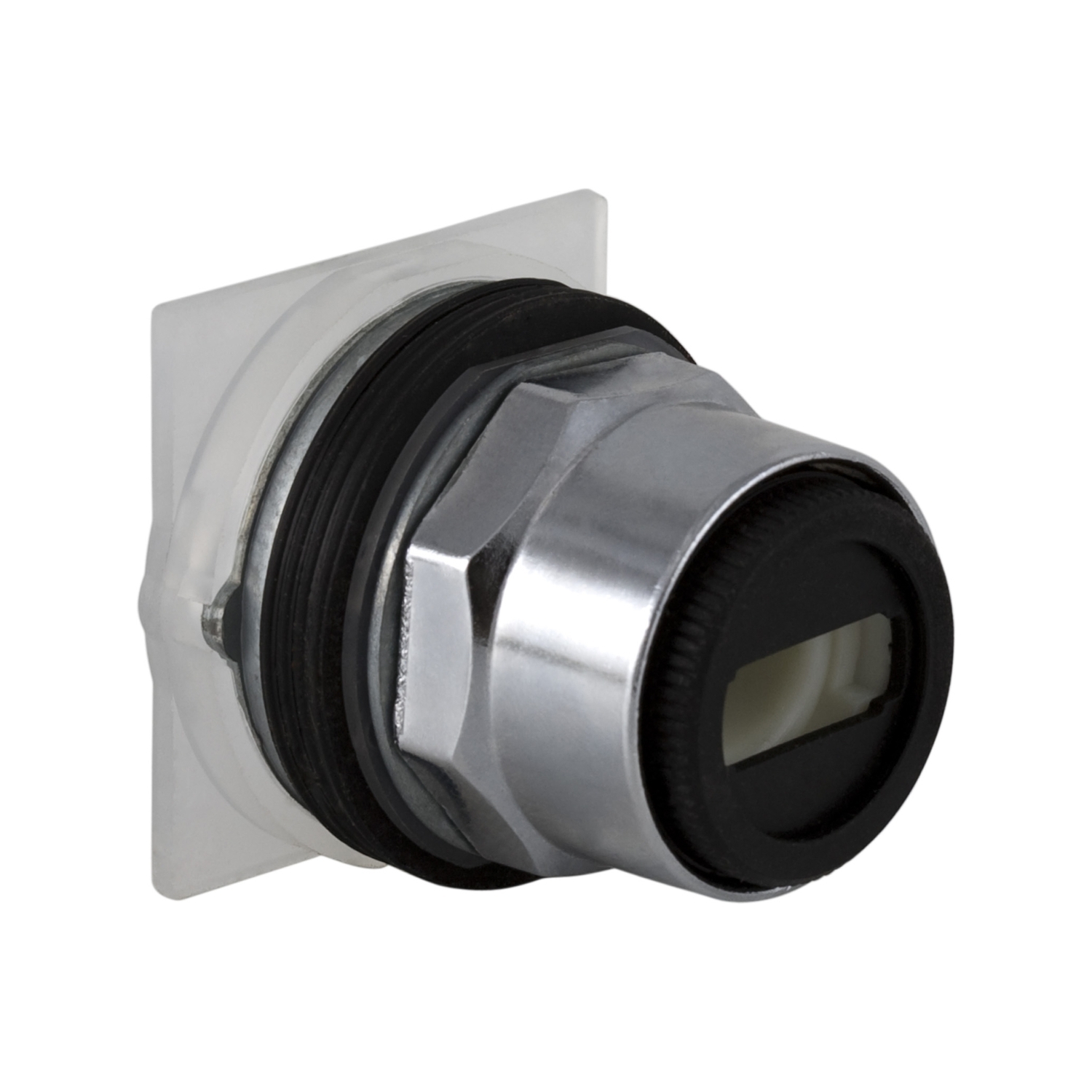

9001KS42, 30mm push button, Type K, 3 position selector switch, NEMA 4, 13

MXN $557.00 - (IVA Incluido) + Envío

Sin existencias

The 9001K push button line has a large variety of operators and accessories for heavy industry applications. These operators are used in the petrochemical, metallurgy, mining, oil and gas, wastewater treatment and automotive manufacturing industries and more. Type K operators have a die cast operator that mounts in a 1.18 inch round hole. This non-illuminated 3 position selector switch has a die cast ring nut. The selector switch is maintained in all three positions. Contact blocks with the desired contact arrangements must be added to this selector switch. A selector switch knob must be added to this selector switch. When properly installed this opertor is UL listed for Types 1, 2, 3, 3R, 4, 6, 12 and 13 environments. This operator is UL Listed and CSA certified. “This product is certified by CSA LR 25490 class 3211 03, UL listed file E42259 CCN NKCR and CE.” “It is installed into a Ø 30mm panel cutout.” “A comprehensive range of illuminated pushbuttons, pilot lights, emergency stop buttons, selector switches, joystick controllers and accessories to fit your needs.” “The modular range of Ø 30mm metal control and signaling provides robust and reliable solutions for a wide range of heavy industry applications.”

SKU: 9001KS42

30mm push button, Type K, 3 position selector switch, NEMA 4, 13

9001KS42

Main
Range of Product Harmony 9001K
Product or Component Type Head for selector switch
Device short name K
Type of operator maintained
Operator profile Without cap without knob
Complementary
Bezel material Metal
Mounting diameter 1.2 in (30 mm)
Operator position information 3 positions
Contacts type and composition Without contact block
device presentation Basic element
Operator profile Without handle
Type of operator Stay put
Size 30 mm
Cam profile 2
Environment
NEMA degree of protection NEMA 1/2/3/3R/4/6/12/13
Product Certifications UL listed file E42259 CCN NKCR
CE
CSA LR24590 class 3211 03
Ordering and shipping details
Category US10CS121426
Discount Schedule 0CS1
GTIN 785901322603
Returnability Yes
Country of origin MX
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 2.756 in (7.000 cm)
Package 1 Width 2.362 in (6.000 cm)
Package 1 Length 1.969 in (5.000 cm)
Package 1 Weight 3.880 oz (110.000 g)
Contractual warranty
Warranty 18 months
Peso 0.122 kg
Dimensiones 5.8 × 7.1 × 5.3 cm
Product Datasheet
Instruction Sheet
Technical Drawing
