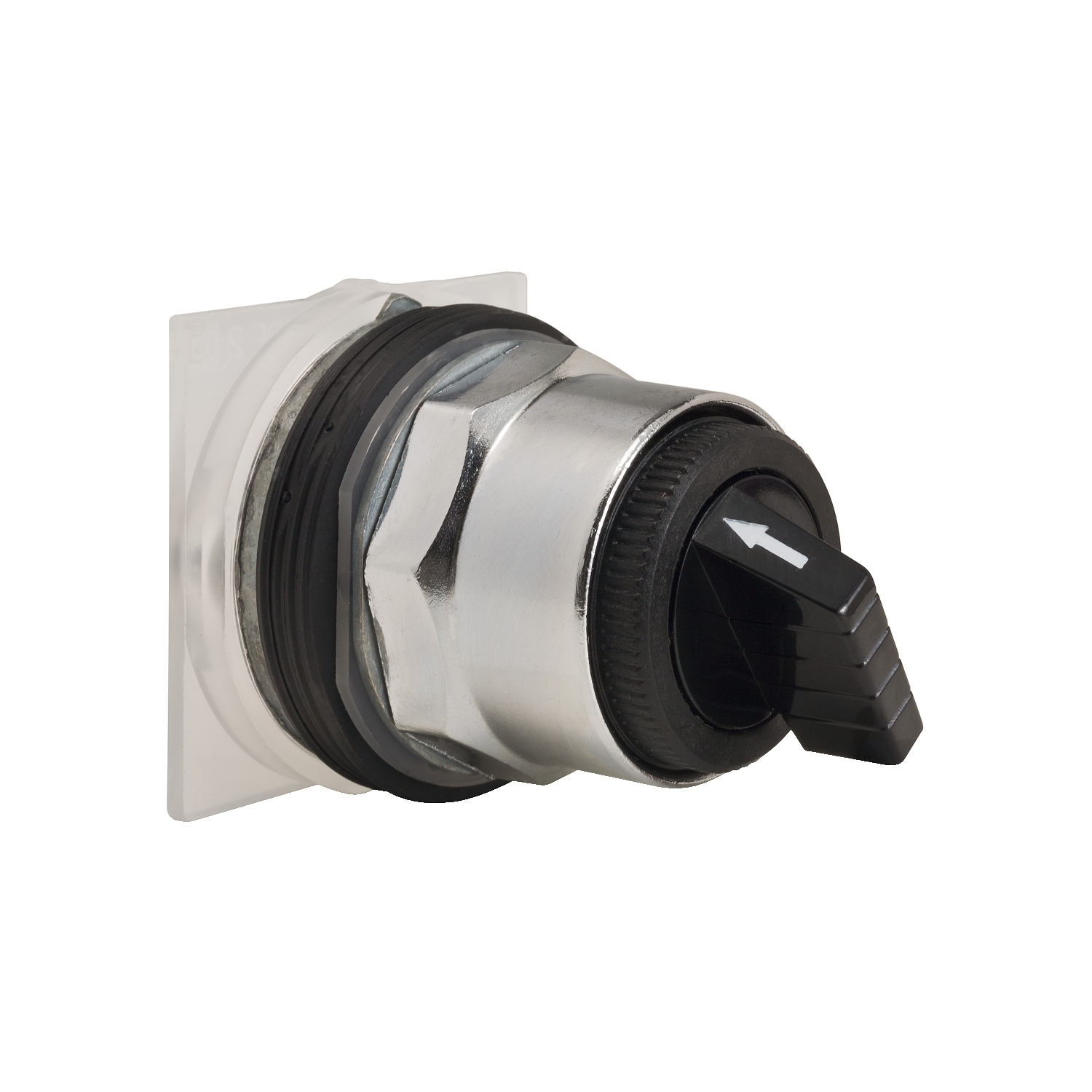

9001KS34B, Selector switch head, Harmony 9001K, metal, standard handle, black, 30mm, 2 positions, spring return right to left

MXN $1,138.00 - (IVA Incluido) + Envío

29 disponibles

This Harmony 9001K, black selector switch with D cam has 2 positions, operates with spring return from right position mechanism. It has a chromium-plated metal bezel. This selector switch provides a versatile interface for controlling your machines. It is easily installed into a standard 30mm diameter panel cut-outs and is easily connected to control circuits. It provides an effective manner to set your machine in various operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.

Buy it now
SKU: 9001KS34B

Selector switch head, Harmony 9001K, metal, standard handle, black, 30mm, 2 positions, spring return right to left

9001KS34B

Main
Range of Product Harmony 9001K
Product or Component Type Head for selector switch
Device short name K
Type of operator spring return
Operator profile Black standard knob
Complementary
Bezel material Metal
Mounting diameter 1.2 in (30 mm)
Operator position information 2 positions
Contacts type and composition Without contact block
device presentation Basic element
Cap/operator or lens colour Black
Operator profile Standard handle
Type of operator Spring return
Size 30 mm
Return Right to left
Cam profile 4
Environment
NEMA degree of protection NEMA 1/2/3/3R/4/6/12/13
Product Certifications CE
UL listed file E42259 CCN NKCR
CSA LR24590 class 3211 03
Ordering and shipping details
Category US10CS121426
Discount Schedule 0CS1
GTIN 785901322597
Returnability Yes
Country of origin US
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 2.0000000000 in (5.08 cm)
Package 1 Width 2.300 in (5.842 cm)
Package 1 Length 2.800 in (7.112 cm)
Package 1 Weight 4.32 oz (122.47 g)
Contractual warranty
Warranty 18 months
Peso 0.122 kg
Dimensiones 5.8 × 7.1 × 5.1 cm
Product Datasheet
Instruction Sheet
Technical Drawing
