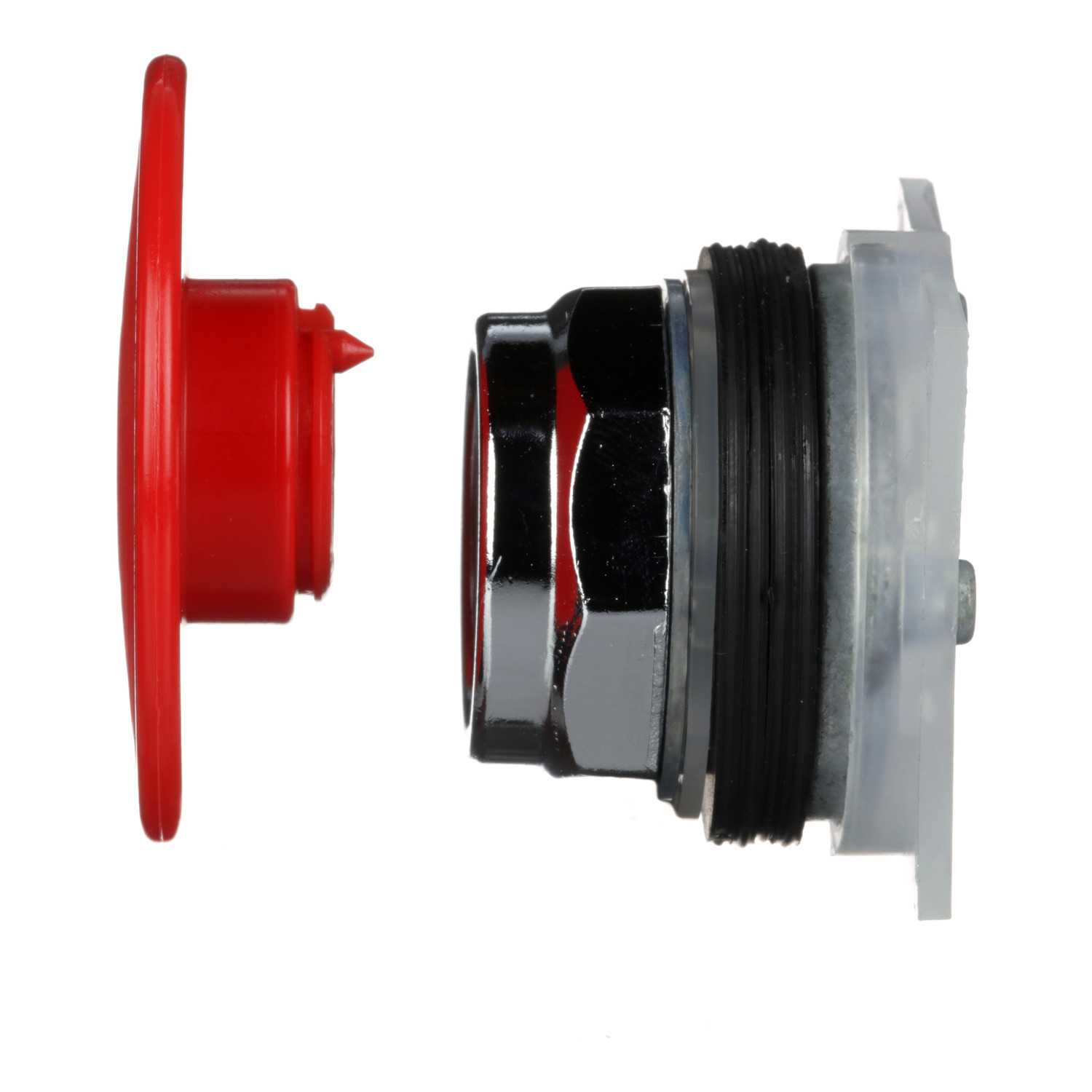

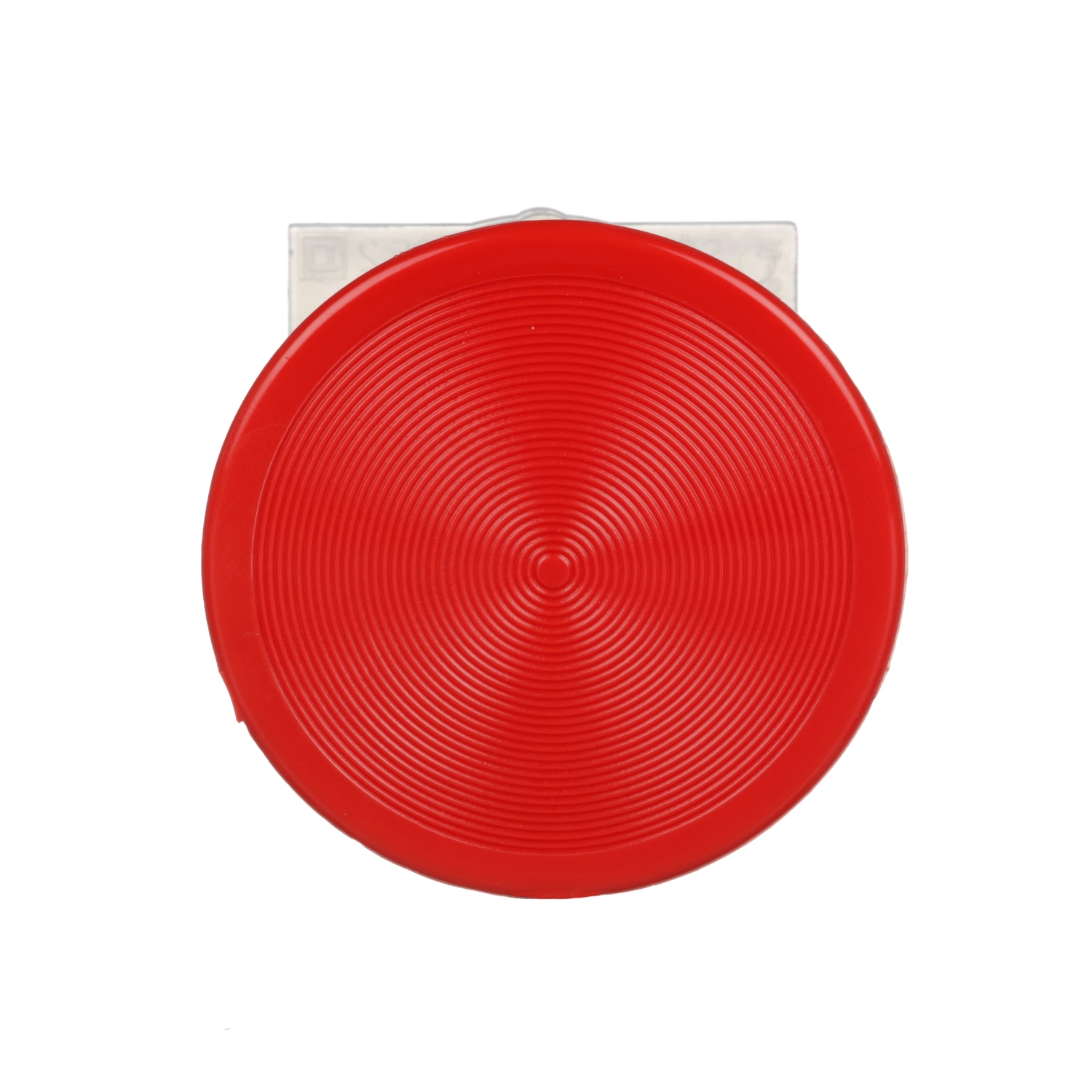

9001KR5R, 30mm Push Button, Type K, mushroom button operator, 2.25 inch diameter, plastic red cap

MXN $1,015.00 - (IVA Incluido) + Envío

130 disponibles

30mm push button range is robust and offers long term reliability in heavy duty industrial applications and extreme environments. The 9001K operator have a metal operator base and the 9001SK operators have a plastic base. This very broad line of push button operators includes push buttons, emergency stop mushroom head push buttons, selector switches, key operated switches, and operators with potentiometers. Also includes pilot lights (LED, incandescent and neon), joystick controllers, wobble stick operators, and operators with multiple functions. These operators can be purchased as complete operators or as subassemblies that can be assembled by the user to meet specific requirements. The 9001 K metal 30mm push buttons are automatic selfgrounding operators requiring no additional wiring and are ABS Certified. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Contact blocks have terminal screw shipped back out to speed wiring and has a very large variety of accessories. Some operators have super bright LEDs for high visibility. These operators are IP 66, NEMA 4 rated (heavy duty, oil tight, water proof and dust tight without requiring boots). The 9001SK operators are also NEMA 4X corrosion resistant. The 9001K and 9001SK 30mm push button operators conforms to IEC, UL, CSA, EN and NOM standards. They are CE marked. 30mm Push Buttons are used in the automotive, machine tool, crane and hoist, food and beverage, industrial applications, material handling, petrochemical, wastewater treatment, metallurgy and many more industries.

Buy it now
SKU: 9001KR5R

30mm Push Button, Type K, mushroom button operator, 2.25 inch diameter, plastic red cap

9001KR5R

Main
Range of Product Harmony 9001K
Product or Component Type Head for push-button
Device short name 9001K
Operator profile Red flush
Operator additional information Snap-in plastic
Complementary
Mounting diameter 1.2 in (30 mm)
Shape of signaling unit head Round
Type of operator spring return
Bezel material Metal
Cap/operator or lens colour Red
Operator profile Mushroom Ø 57 mm
Type of operator Spring return
Contacts type and composition Without contact block
Ordering and shipping details
Category US10CS121426
Discount Schedule 0CS1
GTIN 785901887317
Returnability Yes
Country of origin US
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 2.800 in (7.112 cm)
Package 1 Width 2.400 in (6.096 cm)
Package 1 Length 2.100 in (5.334 cm)
Package 1 Weight 4.160 oz (117.934 g)
Contractual warranty
Warranty 18 months
Peso 0.118 kg
Dimensiones 6.1 × 5.3 × 7.1 cm
Product Datasheet
Instruction Sheet
Technical Drawing
