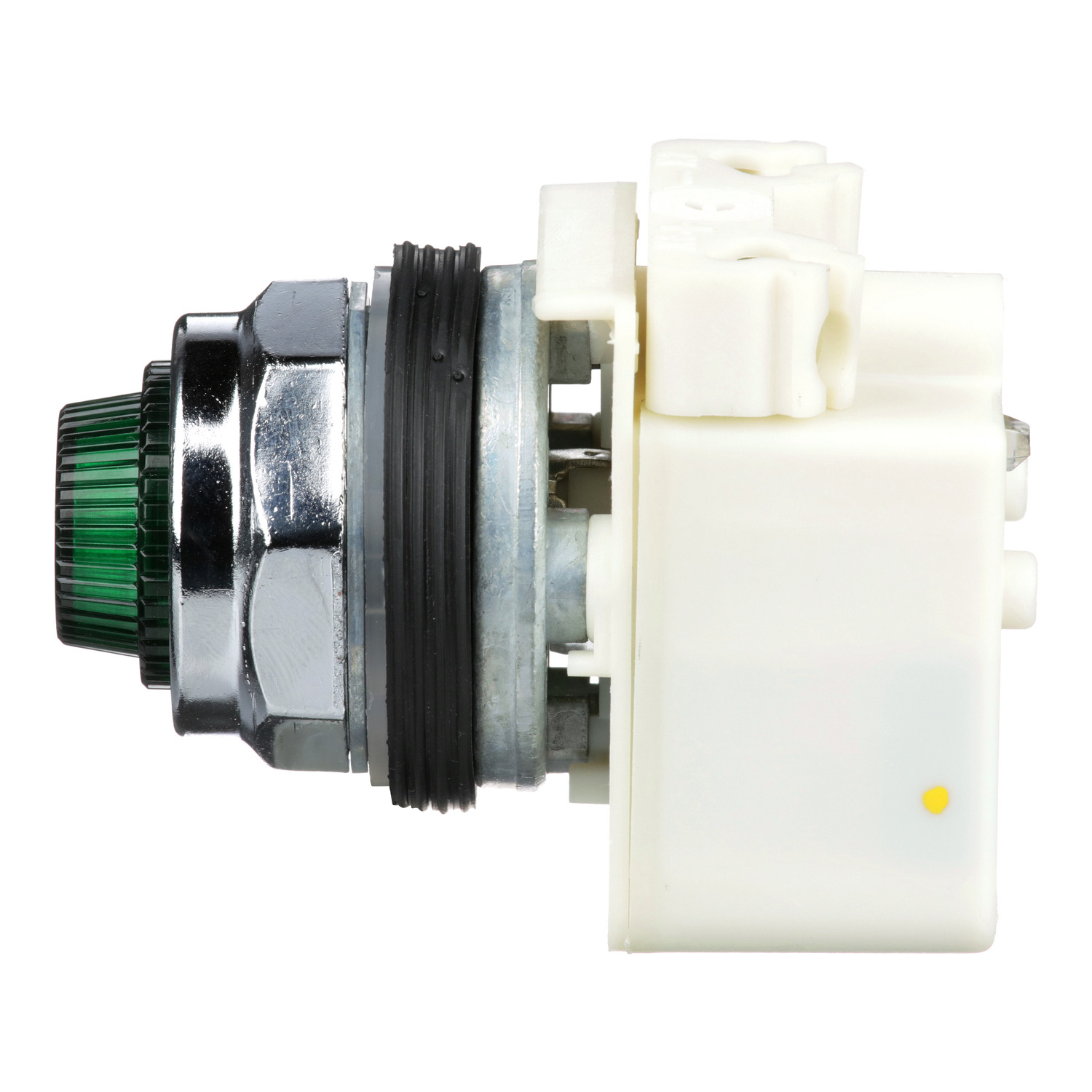

9001KP1G31, Pilot light, Harmony 9001K, metal, polycarbonate, fresnel lens, green, 30mm, 120VAC

MXN $1,736.00 - (IVA Incluido) + Envío

74 disponibles

30mm push button range is robust and offers long term reliability in heavy duty industrial applications and extreme environments. The 9001K operator have a metal operator base and the 9001SK operators have a plastic base. This very broad line of push button operators includes push buttons, emergency stop mushroom head push buttons, selector switches, key operated switches, and operators with potentiometers. Also includes pilot lights (LED, incandescent and neon), joystick controllers, wobble stick operators, and operators with multiple functions. These operators can be purchased as complete operators or as subassemblies that can be assembled by the user to meet specific requirements. The 9001 K metal 30mm push buttons are automatic selfgrounding operators requiring no additional wiring and are ABS Certified. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Contact blocks have terminal screw shipped back out to speed wiring and has a very large variety of accessories. Some operators have super bright LEDs for high visibility. These operators are IP 66, NEMA 4 rated (heavy duty, oil tight, water proof and dust tight without requiring boots). The 9001SK operators are also NEMA 4X corrosion resistant. The 9001K and 9001SK 30mm push button operators conforms to IEC, UL, CSA, EN and NOM standards. They are CE marked. 30mm Push Buttons are used in the automotive, machine tool, crane and hoist, food and beverage, industrial applications, material handling, petrochemical, wastewater treatment, metallurgy and many more industries.

Buy it now
SKU: 9001KP1G31

Pilot light, Harmony 9001K, metal, polycarbonate, fresnel lens, green, 30mm, 120VAC

9001KP1G31

Main
Range of Product Harmony 9001K
Product or Component Type Pilot light
Device short name K
Complementary
Bezel material Metal
Mounting diameter 1.2 in (30 mm)
Lens type Fresnel plastic
Cap/operator or lens colour Green
Light source incandescent
Bulb base BA 9s
Light block supply Via transformer 120 V AC 50/60 Hz
Via integral transformer 110 V AC 50/60 Hz
Connections – terminals Screw clamp terminals, 1 x 0.22…2 x 1.5 mm² IEC 60947-1
Shape of screw head Round
Operating position Any position
Light source Incandescent bulb
[Us] rated supply voltage 110…120 V AC
Operating Mode Normal
device presentation Complete product
Lens type Fresnel
[Us] rated supply voltage 110…120 V
Light block supply Via integral transformer
Supply frequency 50…60 Hz
Lens material Polycarbonate
Size 30 mm
Environment
Product Certifications CSA LR25490 class 3211 03
UL listed file E42259 CCN NKCR
CE
NEMA degree of protection NEMA 1/2/3/3R/4/6/12/13
Ordering and shipping details
Category US10CS121426
Discount Schedule 0CS1
GTIN 785901094487
Returnability Yes
Country of origin MX
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 1.900 in (4.826 cm)
Package 1 Width 2.200 in (5.588 cm)
Package 1 Length 3.700 in (9.398 cm)
Package 1 Weight 7.84 oz (222.26 g)
Contractual warranty
Warranty 18 months
Peso 0.222 kg
Dimensiones 5.6 × 9.4 × 4.8 cm
Product Datasheet
Instruction Sheet
Technical Drawing
