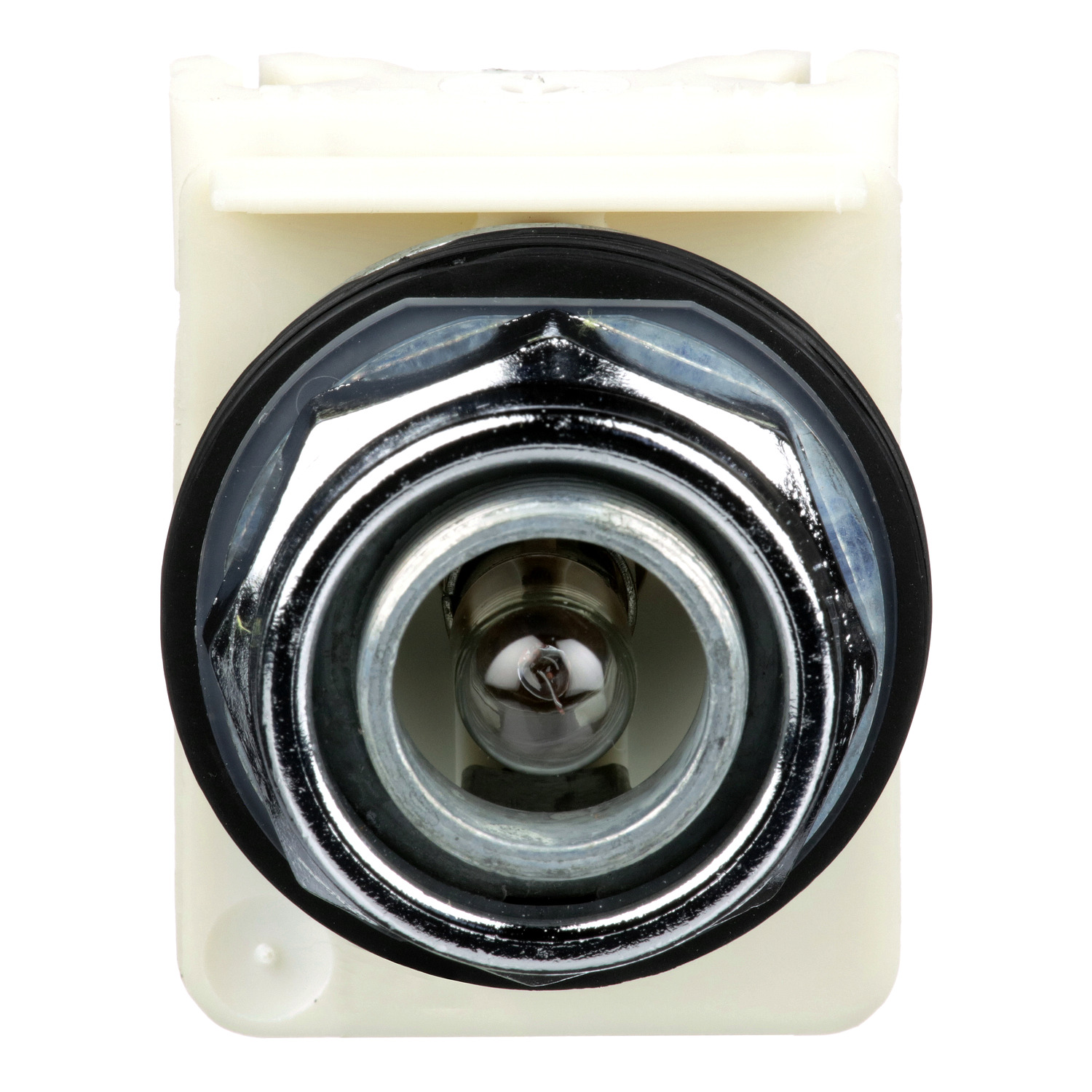

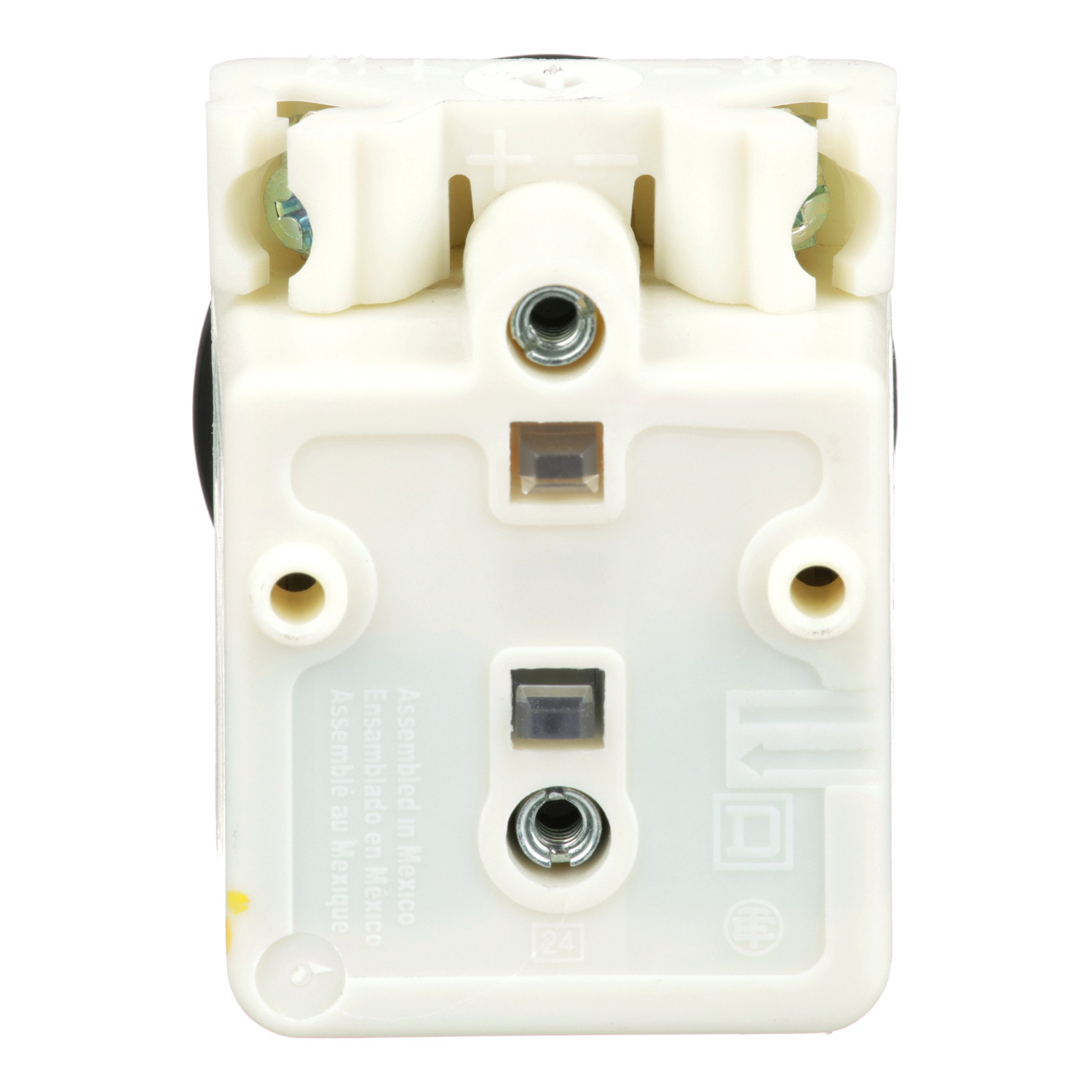

9001KP1, Pilot light head, Harmony 9001K, metal, without cap, 30mm, 120VAC

MXN $1,624.00 - (IVA Incluido) + Envío

21 disponibles

30mm push button range is robust and offers long term reliability in heavy duty industrial applications and extreme environments. The 9001K operator have a metal operator base and the 9001SK operators have a plastic base. This very broad line of push button operators includes push buttons, emergency stop mushroom head push buttons, selector switches, key operated switches, and operators with potentiometers. Also includes pilot lights (LED, incandescent and neon), joystick controllers, wobble stick operators, and operators with multiple functions. These operators can be purchased as complete operators or as subassemblies that can be assembled by the user to meet specific requirements. The 9001 K metal 30mm push buttons are automatic selfgrounding operators requiring no additional wiring and are ABS Certified. Contact blocks have terminal screw shipped back out to speed wiring and has a very large variety of accessories. Some operators have super bright LEDs for high visibility. These operators are IP 66, NEMA 4 rated (heavy duty, oil tight, water proof and dust tight without requiring boots). The 9001SK operators are also NEMA 4X corrosion resistant. The 9001K and 9001SK 30mm push button operators conforms to IEC, UL, CSA, EN and NOM standards. They are CE marked. 30mm Push Buttons are used in the automotive, machine tool, crane and hoist, food and beverage, industrial applications, material handling, petrochemical, wastewater treatment, metallurgy and many more industries.

Buy it now
SKU: 9001KP1

Pilot light head, Harmony 9001K, metal, without cap, 30mm, 120VAC

9001KP1

Main
Range of Product Harmony 9001K
Product or Component Type Head for pilot light
Device short name K
Complementary
Bezel material Metal
Mounting diameter 1.2 in (30 mm)
Cap/operator or lens colour Without cap
Bulb base BA 9s
Light block supply Via transformer 110 V AC 50/60 Hz
Via transformer 120 V AC 50/60 Hz
Shape of screw head Round
Light source Incandescent bulb
Operating Mode Normal
[Us] rated supply voltage 110…120 V
Light block supply Via integral transformer
Supply frequency 50…60 Hz
Size 30 mm
Environment
Product Certifications CE
CSA LR25490 class 3211 03
UL listed file E42259 CCN NKCR
NEMA degree of protection NEMA 1/2/3/3R/4/6/12/13
Ordering and shipping details
Category US10CS121426
Discount Schedule 0CS1
GTIN 785901732501
Returnability Yes
Country of origin MX
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 1.800 in (4.572 cm)
Package 1 Width 2.200 in (5.588 cm)
Package 1 Length 3.600 in (9.144 cm)
Package 1 Weight 7.84 oz (222.26 g)
Unit Type of Package 2 PAL
Number of Units in Package 2 1200
Package 2 Height 40.0000000000 in (101.6 cm)
Package 2 Width 40.0000000000 in (101.6 cm)
Package 2 Length 48.0000000000 in (121.92 cm)
Package 2 Weight 601.0005 lb(US) (272.609 kg)
Contractual warranty
Warranty 18 months
Peso 0.222 kg
Dimensiones 5.6 × 9.1 × 4.6 cm
Product Datasheet
Instruction Sheet
Technical Drawing
