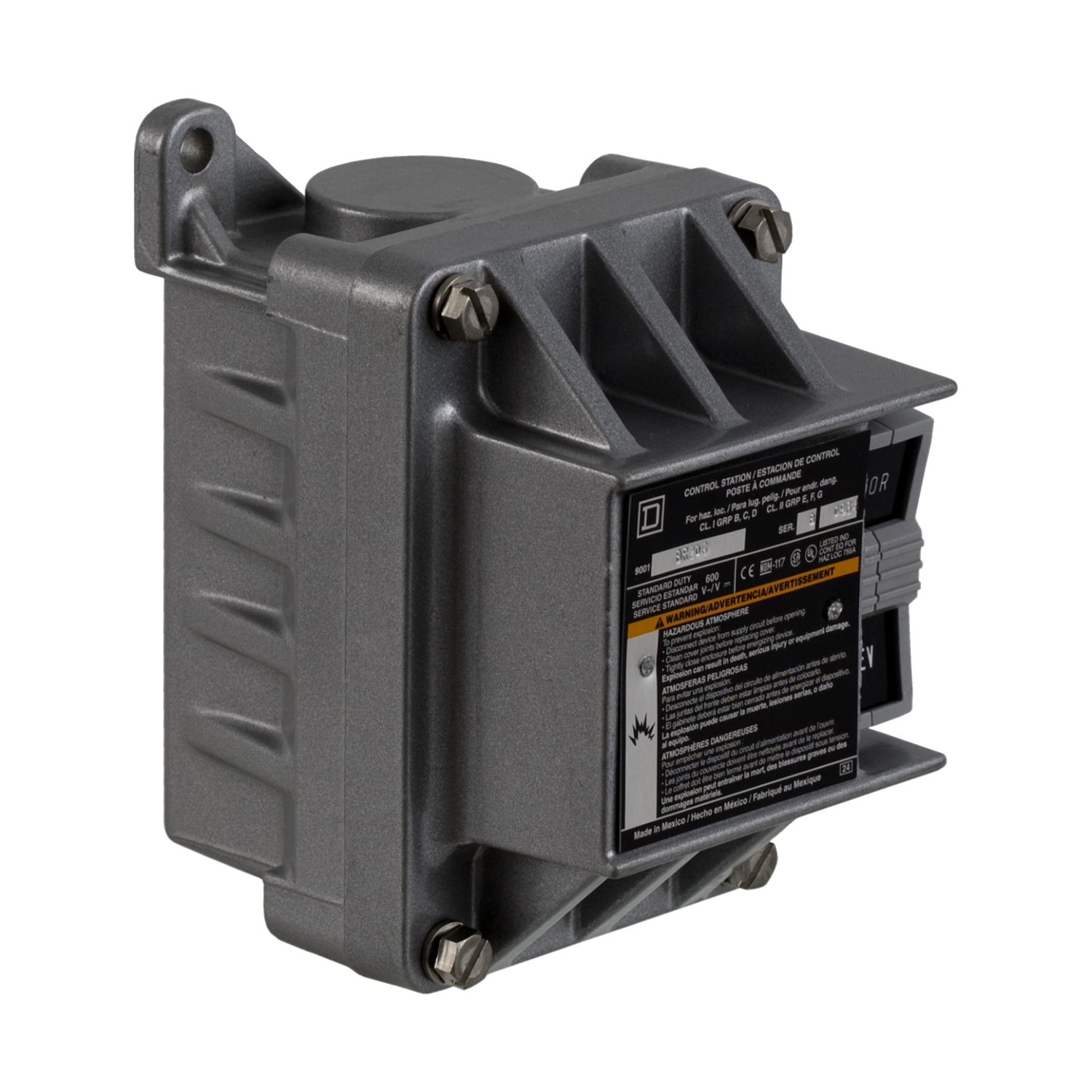

control station type B – 2 operators -Forward/Reverse – NEMA 7/9
9001BR206
| Range of Product | Harmony 9001B |
|---|---|
| Product or Component Type | Complete control station |
| Device short name | 9001BR |
| Control station application | Two functions |
| Colour of base of enclosure | Grey |
| Material | Cast zinc |
|---|---|
| marking | CE |
| Type of operator | momentary |
| Control station composition | 1 push-button, black, white FOR 1 push-button, black, white REV |
| Contacts type and composition | 1 NO + 1 NO |
| Mechanical durability | 5000000 cycles |
| [Ie] rated operational current | 5 A 600 V, AC |
| Device mounting | Surface |
| Type of Installation | Indoor |
| Ambient Air Temperature for Storage | -40.0000000000…158.0000000000 °F (-40…70 °C) |
|---|---|
| Ambient Air Temperature for Operation | -13.0000000000…158.0000000000 °F (-25…70 °C) |
| NEMA degree of protection | NEMA 7/9 |
| Product Certifications | CSA LR25490 class 3211 03 UL listed file E42259 CCN NKCR |
| Environmental characteristic | Hazardous location |
| Category | 21421-9001 B (NOT BW70 – BW80) |
|---|---|
| Discount Schedule | CS1 |
| GTIN | 00785901857877 |
| Returnability | No |
| Country of origin | MX |
| Warranty | 18 months |
|---|
