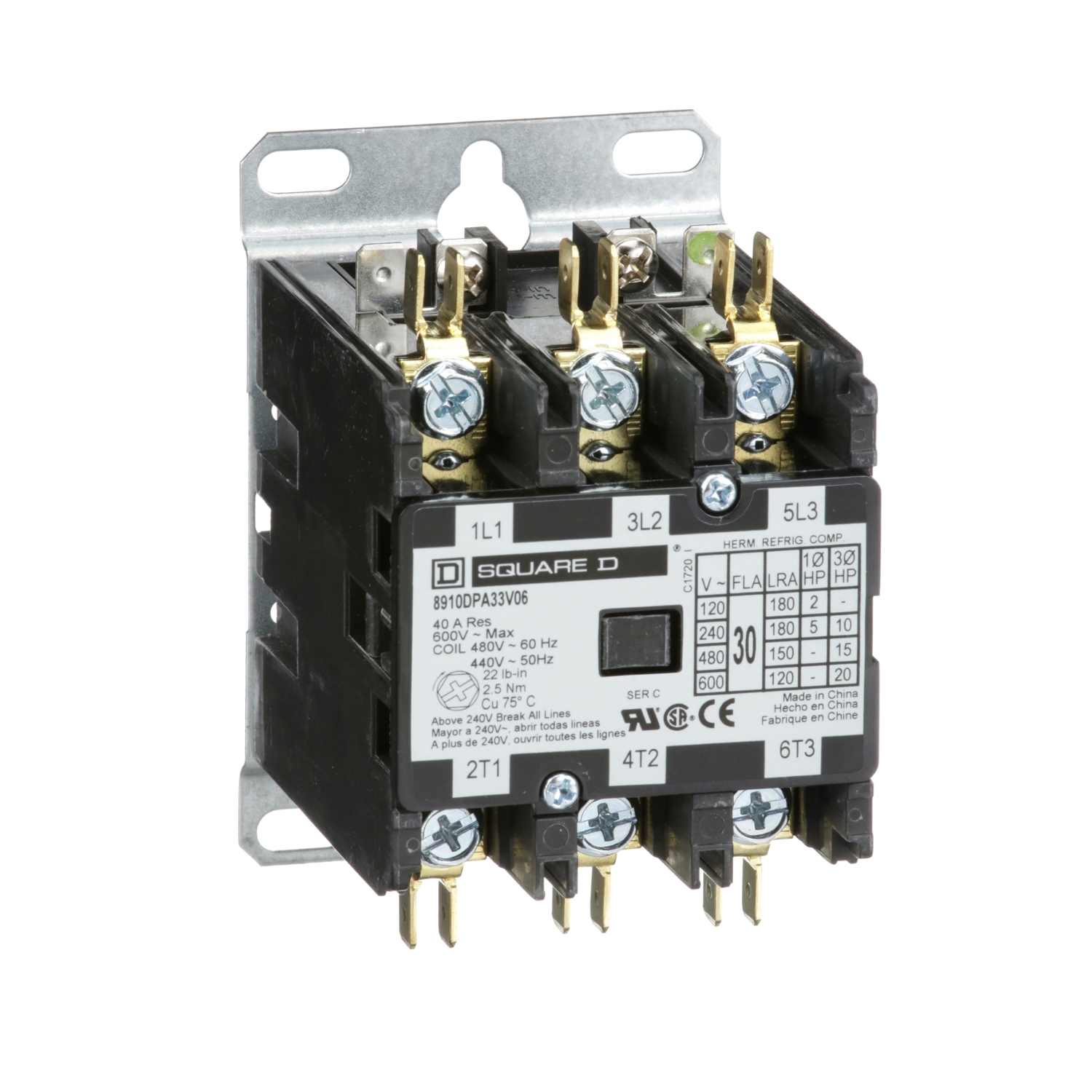

8910DPA33V06, Contactor, Definite Purpose, 30A, 3 pole, 20HP at 575VAC, 3 phase, 440/480VAC 50/60Hz coil, open

MXN $1,571.00 - (IVA Incluido) + Envío

12 disponibles

8910DP definite purpose magnetic contactors are designed for heating, air conditioning and refrigeration applications. This line of definite purpose contactors has current ratings up to 120 amperes resistive and 50 HP at 600 VAC. This three pole definite purpose contactor has a full load rating of 30 ampere and a resistive rating of 40 amperes. It also has a 2 HP at 115 VAC single phase, 5 HP at 230 VAC single phase and 10 HP at 230 VAC three phase, 15 HP at 460 VAC three phase and 20 HP at 575 VAC three phase. The nonreplaceable coil is available with a variety of coil voltages. This device has a 440/480 VAC 50/60 Hz coil. The contactor has straight through wiring. Contactor is 3.75 inches by 2.37 inches and 3.00 tall. These contactors are UL component recognized and CSA certified.

Buy it now

Categories: Contactors

Brands:

Tags: Contactors

SKU: 8910DPA33V06

Contactor, Definite Purpose, 30A, 3 pole, 20HP at 575VAC, 3 phase, 440/480VAC 50/60Hz coil, open

8910DPA33V06

Main
Product or Component Type	Definite Purpose Contactor
Line Rated Current	30 A
Number of Poles	3P
Pole contact composition	3 NO
Range of Product	DPA

Complementary
Maximum Horse Power Rating	2 hp 115 V AC, 1 phase 5 hp 230 V AC, 1 phase 10 hp 230 V AC, 3 phase 15 hp 460 V AC, 3 phase 20 hp 575 V AC, 3 phase
Locked rotor rated current	150 A 460 V AC 120 A 575 V AC 180 A 277 V AC
[Ue] rated operational voltage	600 V AC
[Uc] control circuit voltage	440 V AC 50 Hz 480 V AC 60 Hz
Phase	3 phase
Electrical Connection	Binder head Quick connect terminals

Environment
Product Certifications	UL Recognized CSA

Ordering and shipping details
Category	US1CP1B21343
Discount Schedule	CP1B
GTIN	785901849841
Returnability	Yes
Country of origin	CN

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	2.50 in (6.35 cm)
Package 1 Width	3.200 in (8.128 cm)
Package 1 Length	4.200 in (10.668 cm)
Package 1 Weight	17.440 oz (494.416 g)
Unit Type of Package 2	CAR
Number of Units in Package 2	8
Package 2 Height	7.0000000000 in (17.78 cm)
Package 2 Width	5.80 in (14.732 cm)
Package 2 Length	8.70 in (22.098 cm)
Package 2 Weight	8.889 lb(US) (4.032 kg)
