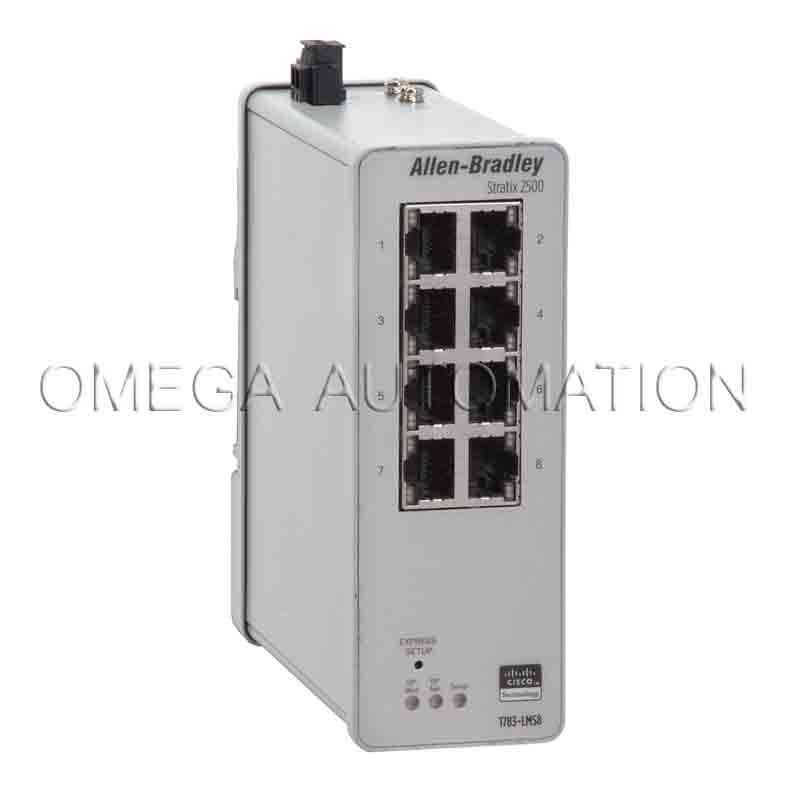

Technical Specifications
Mechanical
| Width | 45.7 cm |
|---|---|
| Height | 144.8 cm |
| Depth | 115 cm |
| Torque, functional ground lug screw | 0.51 Nm |
| Torque, power terminal screw | 0.19 Nm |
Electrical
| Number of ports 10/100 Mbps RJ45 | 8 |
|---|---|
| Layer 2 | No |
| Layer 3 | No |
| Manageable | Yes |
| Pulse (digital) output | 5.3 W |
| Power dissipation | 5.3 W |
| Power Input | 12 – 24V DC, 0.4 – 0.2 A (SELV) |
| Total number of ports | 8 |
| Wire size, ethernet connection | RJ45 connector according to IEC 60603-7, 2 or 4-pair category 5e minimum cable according to TIA 568-B.1 or category 5 cable according to ISO/IEC 24702 |
| Ethernet | Yes |
| Wire size, DC power connection, solid or stranded copper wire rated at 30 °C, or greater, above the surrounding air temperature | 0.82 mm² |
| Wire size, ground connection, solid or stranded copper wire | 3.3 mm² |
| Wiring category on communication ports | 2 |
| Wiring category on power ports | 2 |
Environmental
| Degree of protection (IP) | IP30 |
|---|---|
| Housing base material | Open-style |
| Nominal position | T4 |
| Delta connected motor power, max | T4 |
| Temperature, surrounding air, maximum | 60 °C |
| EFT/B immunity for IEC 61000-4-4 at 100 kHz on DC power ports | ±3 kV |
| EFT/B immunity for IEC 61000-4-4 at 100 kHz on Ethernet ports | ±3 kV |
| Emissions, CISPR11 (IEC 61000-6-4) | IEC 61000-6-4 |
| ESD immunity, IEC 61000-4-2, air discharges | 8 kV |
| ESD immunity, IEC 61000-4-2, contact discharges | 6 kV |
| Radiated RF immunity, IEC 61000-4-3 with 1 kHz sine-wave 80% AM from 2000 – 2700 MHz | 3 Kg/Km |
| Radiated RF immunity, IEC 61000-4-3 with 1 kHz sine-wave 80% AM from 80 – 2000 MHz | 10 Kg/Km |
| Radiated RF immunity, IEC 61000-4-3 with 200 Hz 50% pulse 100% AM at 900 MHz | 10 Kg/Km |
| Shock, non-operating, IEC 60068-2-27 (test Ea, unpackaged shock) | 30 g |
| Shock, operating, IEC 60068-2-27 (test Ea, unpackaged shock) | 30 g |
| Temperature, operating, IEC 60068-2-1 (test Ad, operating, cold) | -20 °C |
| Temperature, operating, IEC 60068-2-14 (test Nb, operating, thermal shock) | -20 °C |
| Temperature, operating, IEC 60068-2-2 (test Bd, operating, dry heat) | -20 °C |
| Ambient temperature, maximum | 60 °C |
| Conducted RF immunity, IEC 61000-4-6 with 1 kHz sine-wave 80% AM from 150 kHz – 80 MHz (rms) | 10 V |
| Radiated RF immunity, IEC 61000-4-3 with 200 Hz 50% pulse 100% AM at 1890 MHz | 10 Kg/Km |
| Relative humidity, IEC 60068-2-30 (test Db, unpackaged damp heat), non-condensing | 5 % |
| Surge transient immunity, IEC 61000-4-5, line-earth (CM) on communication ports | ±2 kV |
| Surge transient immunity, IEC 61000-4-5, line-earth (CM) on DC power ports | ±2 kV |
| Surge transient immunity, IEC 61000-4-5, line-line (DM) on DC power ports | ±1 kV |
| Temperature, non-operating, IEC 60068-2-1 (test Ab, unpackaged non-operating cold) | -40 °C |
| Temperature, non-operating, IEC 60068-2-14 (test Na, unpackaged non-operating thermal shock) | -40 °C |
| Temperature, non-operating, IEC 60068-2-2 (test Bb, unpackaged non-operating dry heat) | -40 °C |
