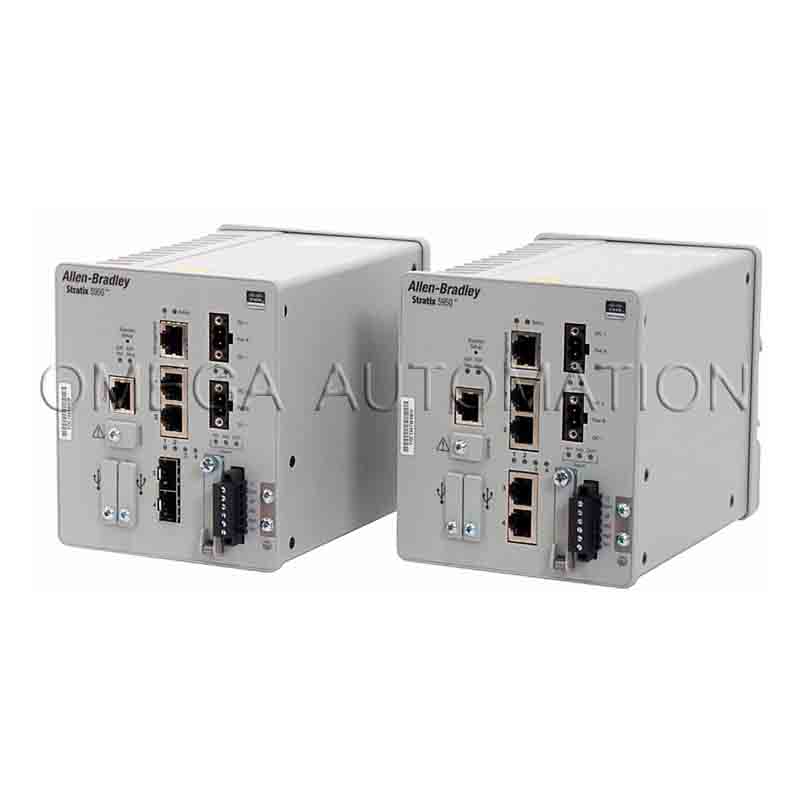

Technical Specifications
Mechanical
| Width | 9.14 cm |
|---|---|
| Height | 12.95 cm |
| Depth | 13.58 cm |
| Approximate weight | 1.38 kg |
| Screw torque, ground terminal, maximum | 0.96 Nm |
| Screw torque, power and alarm terminals | 0.23 Nm |
Electrical
| Number of ports 10/100 Mbps RJ45 | 8 |
|---|---|
| Number of combination-ports RJ45/Mini GBIC | 2 |
| Layer 2 | No |
| Layer 3 | No |
| Manageable | Yes |
| Power consumption, maximum | 20 W |
| Power dissipation | 20 W |
| Firmware type | Full |
| Isolation voltage (continuous), basic insulation type, DC power ports to ground, DC power ports to ethernet ports, and DC power ports to alarm ports | 50 V |
| Number of combination ports 10/100/1000 Mbps | 2 |
| Power consumption at 24V DC, 40 ˚C | 15 W |
| Total number of ports | 10 |
| Wire size, alarm connection, solid or stranded, UL/CSA-rated style 1007 or 1569 twisted-pair copper appliance wiring material (AWM) wire | 0.5 mm² |
| Wire size, DC power connection, solid or stranded copper wire rated at 75 °C or greater | 0.5 mm² |
| Wire size, ethernet connection | RJ45 connector according to IEC 60603-7, 2 or 4-pair category 5e minimum cable according to TIA 568-B.1 or category 5 cable according to ISO/IEC 24702 |
| Mounting method | DIN rail (top hat rail) |
| Ethernet | Yes |
| Protection type | Alarm not rated |
| Alarm relay at 30V DC | 1 A |
| Alarm relay at 48V DC | 0.5 A |
| CIP sync (IEEE 1588) | Yes |
| DLR | Yes |
| Maximum insulation, DC power connection | 1.2 mm |
| Power input at 12 – 48V DC, class 2/SELV | 0.5 A |
| Wire size, ground connection, stranded copper wire, minimum | 4 mm² |
| Wire strip length, alarm connection | 6.3±0.5 mm |
| Wire strip length, DC power connection | 6.3±0.5 mm |
| Wiring category on console and alarm ports | 3 |
| Wiring category on DC power ports | 2 |
| Wiring category on Ethernet ports | 2 |
Environmental
| Degree of protection (IP) | IP30 |
|---|---|
| Housing base material | Open-style |
| Nominal position | T4 |
| Temperature, surrounding air, maximum | 60 °C |
| EFT/B immunity for IEC 61000-4-4 at 100 kHz on DC power ports | ±2 kV |
| EFT/B immunity for IEC 61000-4-4 at 100 kHz on Ethernet ports | ±1 kV |
| EFT/B immunity for IEC 61000-4-4 at 5 kHz on alarm ports | ±2 kV |
| EFT/B immunity for IEC 61000-4-4 at 5 kHz on Ethernet ports | ±2 kV |
| Emissions, CISPR11 (IEC 61000-6-4) | Class A |
| ESD immunity, IEC 61000-4-2, air discharges | 15 kV |
| ESD immunity, IEC 61000-4-2, contact discharges | 8 kV |
| Radiated RF immunity, IEC 61000-4-3 with 1 kHz sine-wave 80% AM from 1000 – 2700 MHz | 10 Kg/Km |
| Radiated RF immunity, IEC 61000-4-3 with 200 Hz 50% pulse 100% AM at 900 MHz | 20 Kg/Km |
| Shock, non-operating, IEC 60068-2-27 (test Ea, unpackaged shock) | 55 g |
| Shock, operating, IEC 60068-2-27 (test Ea, unpackaged shock) | 30 g |
| Surge transient immunity, IEC 61000-4-5, line-earth (CM) on Ethernet ports | ±2 kV |
| Temperature, operating, IEC 60068-2-1 (test Ad, operating, cold) | -40 °C |
| Temperature, operating, IEC 60068-2-14 (test Nb, operating, thermal shock) | -40 °C |
| Temperature, operating, IEC 60068-2-2 (test Bd, operating, dry heat) | -40 °C |
| Selectable start times | T4 |
| Conducted RF immunity, IEC 61000-4-6 with 1 kHz sine-wave 80% AM from 150 kHz – 80 MHz (rms) | 10 V |
| Damped oscillatory wave immunity, IEC 61000-4-18, line-earth (CM) on power ports | ±2.5 kV |
| Damped oscillatory wave immunity, IEC 61000-4-18, line-line (DM) on power ports | ±1 kV |
| EFT/B immunity for IEC 61000-4-4 at 100 kHz on alarm ports | ±1 kV |
| EFT/B immunity for IEC 61000-4-4 at 2.5 kHz on alarm ports | ±4 kV |
| EFT/B immunity for IEC 61000-4-4 at 2.5 kHz on Ethernet ports | ±4 kV |
| EFT/B immunity for IEC 61000-4-4 at 5 kHz on DC power ports | ±4 kV |
| Radiated RF immunity, IEC 61000-4-3 with 1 kHz sine-wave 80% AM from 80 – 1000 MHz | 20 Kg/Km |
| Relative humidity, IEC 60068-2-30 (test Db, unpackaged damp heat), non-condensing | 5 % |
| Surge transient immunity, IEC 61000-4-5, line-earth (CM) on DC power ports | ±2 kV |
| Surge transient immunity, IEC 61000-4-5, line-line (DM) on DC power ports | ±1 kV |
| Temperature, non-operating, IEC 60068-2-1 (test Ab, unpackaged non-operating cold) | -40 °C |
| Temperature, non-operating, IEC 60068-2-14 (test Na, unpackaged non-operating thermal shock) | -40 °C |
| Temperature, non-operating, IEC 60068-2-2 (test Bb, unpackaged non-operating dry heat) | -40 °C |
| Vibration, IEC 60068-2-6 (test Fc, operating) at 10 – 500 Hz | 2 g |
| Voltage variation IEC 61000-4-29, interruption on DC power ports | 10 ms |
