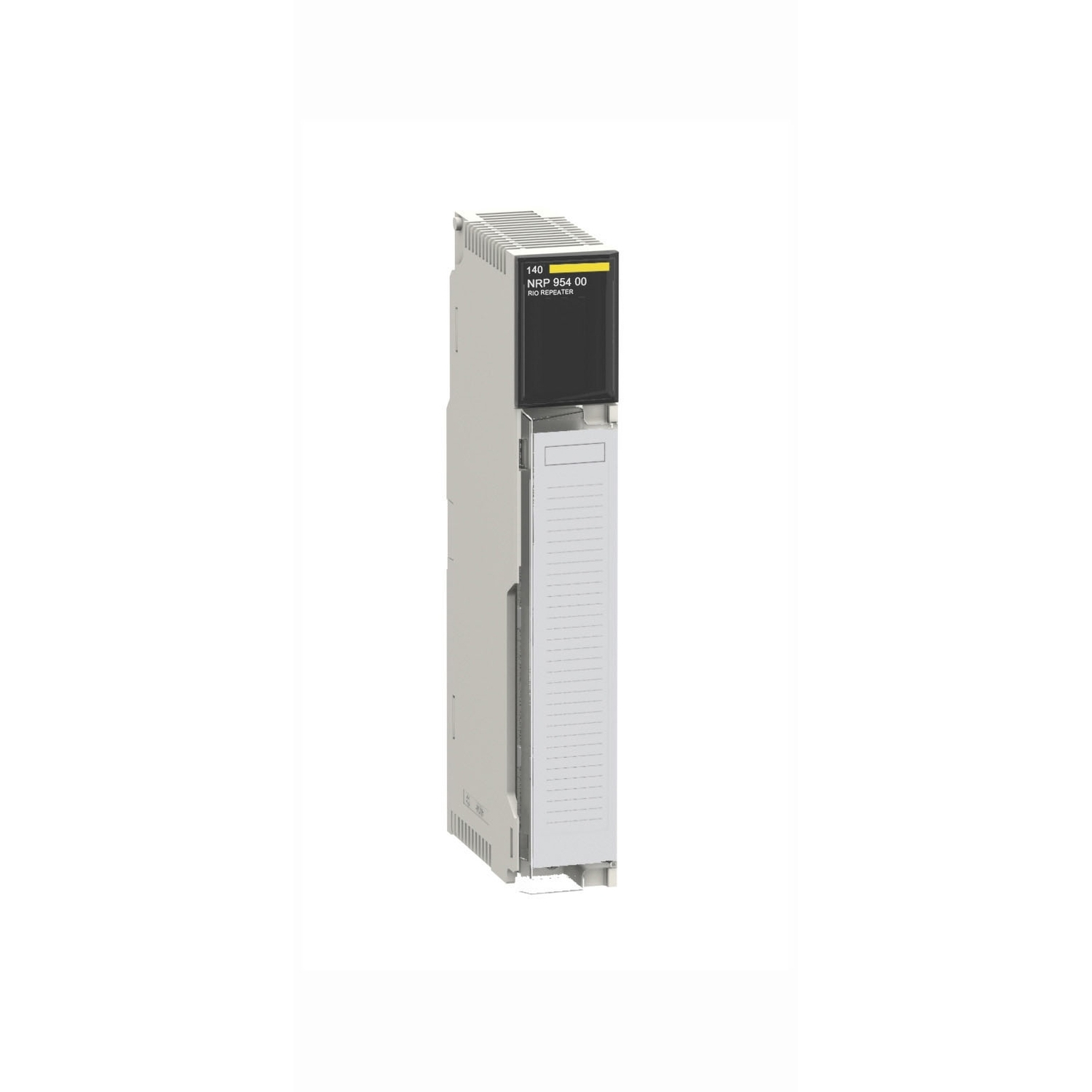

Fibre optic repeater MM/ST RIO S908 2CH
140NRP95400
| Range of Product | Modicon Quantum automation platform |
|---|---|
| Product or Component Type | Fibre optic repeater |
| optic fiber type | Multi mode |
| Bus current requirement | 700 mA |
|---|---|
| Power dissipation in W | 5 W |
| Inrush current | 1 A 5 V DC |
| Number of Port | 2 fiber optic ST 1 coaxial connector |
| Local signalling | 1 LED green RDY module status 1 LED red ERR internal fault, module failure 1 LED green coaxial communication status 2 LEDs green optical communication status 1 LED red FAULT error 1 LED red activity detected |
| Wavelength | 0.00003 in (820 nm) |
| Optic distance between 2 transceivers | 6561.7 ft (2000 m) 50/125 µm)3.5 dBm 9842.5 ft (3000 m) 62.5/125 µm)3.5 dBm 9842.5 ft (3000 m) 100/140 µm)5 dBm |
| Attenuation | -20…-13 dB 50/125 µm) -16…-10 dB 62.5/125 µm) -10.5…-4 dB 100/140 µm) |
| Rise/fall time | 20 ns |
| Receiver Sensitivity | – 30 dBm |
| Dynamic range | 20 dB |
| Detected silence | -36 dBm |
| marking | CE |
| Material | PC (polycarbonate) |
| AWG Gauge | AWG 14…AWG 1 |
| Width | 1.59 in (40.34 mm) |
| Height | 9.8 in (250 mm) |
| Depth | 4.09 in (103.85 mm) |
| Net Weight | 1.221 lb(US) (0.554 kg) |
| Ambient Air Temperature for Operation | 32.0000000000…140.0000000000 °F (0…60 °C) |
|---|---|
| Ambient Air Temperature for Storage | -40.0000000000…185.0000000000 °F (-40…85 °C) |
| Relative humidity | 0…95 % |
| Operating altitude | 0…6561.68 ft (0…2000 m) |
| Standards | CSA C22.2 No 142 UL 508 FM Class 1 Division 2 |
| Product Certifications | TÃœV |
| Category | US1PC2118155 |
|---|---|
| Discount Schedule | PC21 |
| GTIN | 3595864115238 |
| Returnability | No |
| Country of origin | FR |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 1.929 in (4.900 cm) |
| Package 1 Width | 6.457 in (16.400 cm) |
| Package 1 Length | 12.402 in (31.500 cm) |
| Package 1 Weight | 21.023 oz (596.000 g) |
| Warranty | 18 months |
|---|
