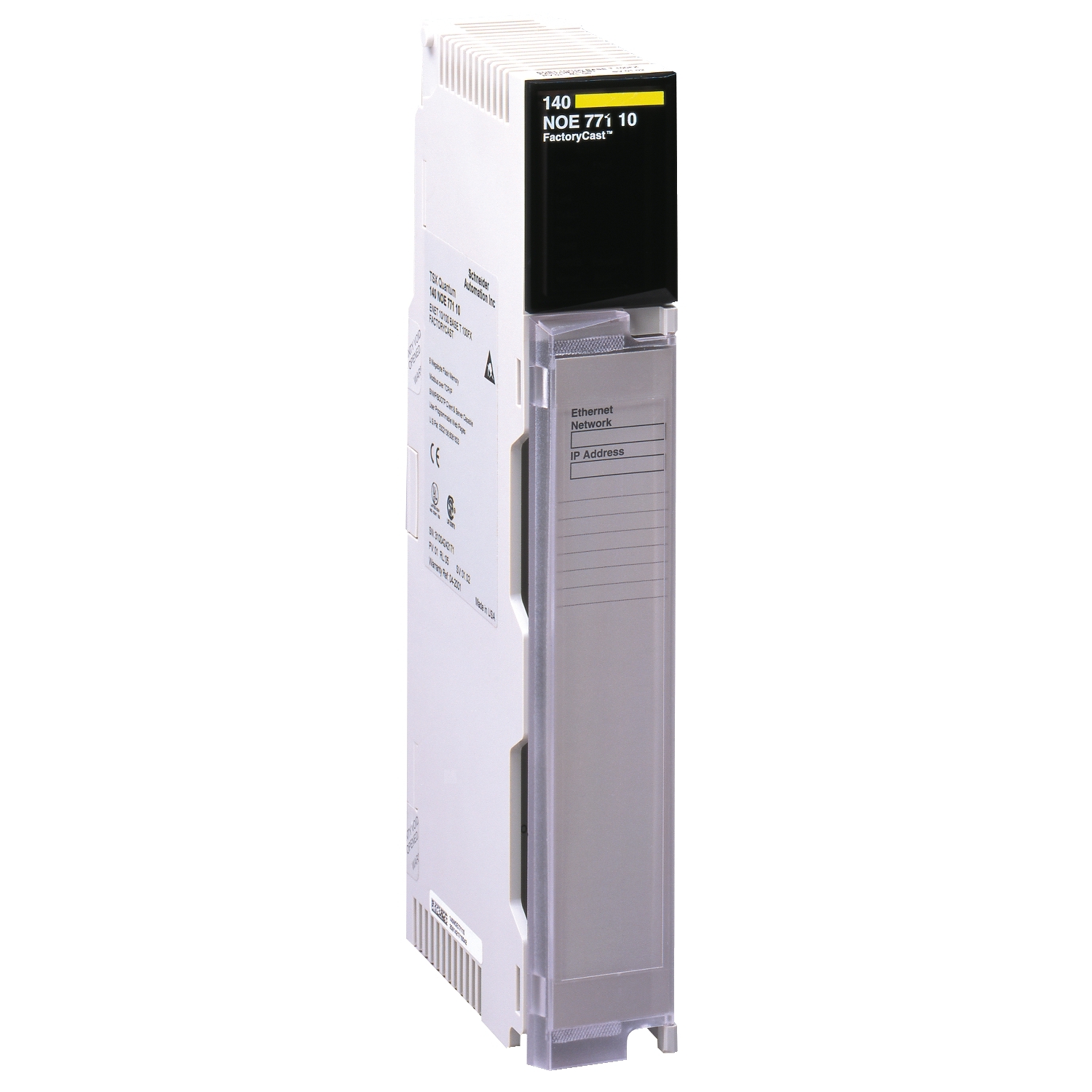

Ethernet network TCP/IP module, Modicon Quantum, transparent ready, 750mA at 5VDC
140NOE77101
Range of Product | Modicon Quantum automation platform |
---|---|
Product or Component Type | Ethernet network TCP/IP module |
Concept | Transparent Ready |
Web server | Class B30 |
Web services | Diagnostics via predefined web pages Rack viewer Data Editor (via PC terminal) |
communication service | SNMP network management Bandwidth management Global Data I/O scanning Modbus TCP messaging FDR server |
Communication Port Protocol | Ethernet Modbus TCP/IP |
Physical interface | MT/RJ – 100BASE-FX fiber optic RJ45 – 10BASE-T/100BASE-TX twisted pair |
Transmission Rate | 10/100 Mbit/s |
Redundancy | Yes hot standby redundant architecture |
---|---|
Supply | Via the power supply of the rack |
marking | CE |
Local signalling | for 10 Mbps or 100 Mbps data rate (10 MB/100 MB) 1 LED for collision detection (Coll) 1 LED for download mode (Kernel) 1 LED for Ethernet module fault (Fault) 1 LED for Ethernet network status (RUN) 1 LED for full-duplex mode (Fduplex) 1 LED for module ready (Ready) 1 LED for network active (Link) 1 LED for rack operational (Active) 1 LED for transmission/reception activity (TxAct/RxAct) 1 LED |
Current consumption | 750 mA 5 V DC |
Module format | Standard |
Net Weight | 0.761 lb(US) (0.345 kg) |
IP Degree of Protection | IP20 |
---|---|
Product Certifications | cUL UL 508 |
Standards | CSA C22.2 No 142 FM Class 1 Division 2 |
Resistance to electrostatic discharge | 4 kV contact IEC 801-2 8 kV on air IEC 801-2 |
Resistance to electromagnetic fields | 9.1 V/m (10 V/m) 80…1000 MHz IEC 801-3 |
Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) |
Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) |
Relative Humidity | 95 % without condensation |
Operating altitude | <= 14763.78 ft (4500 m) |
Category | US1BMS180230 |
---|---|
Discount Schedule | BMS1 |
GTIN | 3595862052887 |
Returnability | No |
Country of origin | FR |
Unit Type of Package 1 | PCE |
---|---|
Number of Units in Package 1 | 1 |
Package 1 Height | 2.0 in (5.0 cm) |
Package 1 Width | 6.7 in (17.0 cm) |
Package 1 Length | 12.4 in (31.5 cm) |
Package 1 Weight | 19.8 oz (560.0 g) |
Warranty | 18 months |
---|
